T6DCE821B — 916098095 00
AEG — Clothes Dryer
Parts for T6DCE821B
W0016685 FITTINGS DRAINAGE,CONDENSATION,OUTER,KIT
W0016701 BUSH, ROLLER, DRUM, 29MM
$9.00
W0017020 SHAFT, DOOR HINGE, 112MM
$10.00
W0017346 SIDE PANEL,INSULATED,RIGHT
$126.90
W0017357 RACK, DRYING, SHOES, PLASTIC,TIR
$65.00
W0017372 FLUFF FILTER
$52.00
W0017380 HUMIDITY SENSOR
$39.00
W0017400 DISCHARGE PIPE, L=331.5MM
$19.00
W0017403 GASKET, FILTER
$37.00
_1.png)
W0017421 DRUM, LIFTER
$14.95
W0017432 HEATER, 240V,1400+600W
$161.00
W0017445 MICROSWITCH, FLOAT
$34.00
W0017467 CONE
$21.25
W0017477 HINGE BUSHING
$8.00
W0049534 PULLEY IDLER
W0074439 THERMISTOR NTC PROBE
W0074941 AEG DRYER CONDENSATION PUMP
$87.00
W0076579 AEG ELECTROLUX CONDENSOR DRYER DRUM ROLLER
$39.00
W0076582 GASKET, DRUM, BACK, 1683MM
$35.00
W0076610 GASKET FRONT, LARGE OPENING
$37.00
W0076617 DOOR SWITCH
$39.00
W0150019 LEG ADJUSTABLE
W0273973 DRIVE BELT,L=1971MM
$55.00
W0274532 SPRING,BUTTON,ON/OFF
$5.80

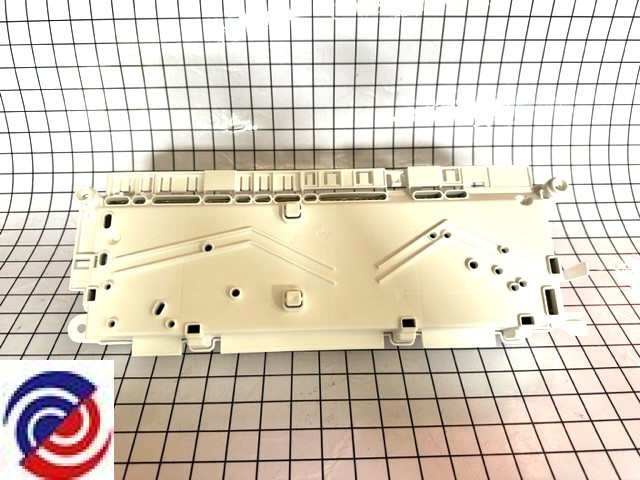

W0275617 PCBA MAIN BOARD T6DCE821B
W0016608 SEAL TEMPERATURE SENSOR
$23.20
W0016656 BUFFER (MOTOR)
$8.00
W0016657 BUSH MAIN MOTOR
W0016659 GASKET FRONT HEAT EXCHANGER
W0017345 SIDE PANEL,WITH INSULATION
$170.05
W0017370 SUPPORT, TANK
$58.00
W0017371 TANK, UPPER
$54.00
W0017377 COVER, HEATING ELEMENT
$58.00
W0017378 PROTECTION, HEATING ELEMENT
$27.00
W0017379 TANK. CONNECTOR
$22.90
W0017383 BELT DRIVE L=1791
W0017384 TUBE HOLDER
$12.40
W0017387 COVER SCROLL FRONT
$15.00
W0017388 COVER SCROLL BACK
$16.50
W0017389 BRACKET FIXING MOTOR FRONT
$19.00
W0017390 IMPELLER, COOLING
$27.50
W0017393 BRACKET FIXING MOTOR REAR
$16.00
W0017395 SUPPORT, PUMP
$16.00
W0017398 HOSE, PUMP, TANK, 1130MM
$40.00
W0017399 SEALING, AIR DUCT, BASEMENT
$21.00
W0017401 SUPPORT, HUMIDITY SENSOR
$20.00
W0017404 COVER, PUMP, FLOAT
$13.00
W0017405 GASKET BASEMENT HEATER
$17.60
W0017406 BUSH TANK
$10.00
W0017412 COVER PLATE, DOOR LOCK
$4.00
W0017414 DOOR, CONDENSER,BASEMENT
W0017416 KNOB LOCK,DOOR,BASEMENT
$24.20
W0017417 FAN WHEEL, FRONT
$55.00
W0017434 CLAMP CABLE
$7.15
W0017463 COVER PLATE, BOTTOM
$59.40
W0017466 CONE, BASE
$36.00
W0017493 GASKET, DOOR, BASEMENT
$35.00
W0017535 MOTOR, INVERTER, 190V,240HZ,3600RPM
W0017539 STEAM CONDENSER, ASSEMBLY
$184.00
W0025696 BUSH KIT (MOTOR)
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0074344 BOLT,ROLLER,5,5X38
$4.00
W0074914 TENSION SPRING, MOTOR, ENV06
W0076605 OVERFLOW HOSE
$31.00
W0076611 HANDLE, STEAM CONDENSER
$27.20
W0076619 POWER CABLE, AUS,2670MM,3X1.0MM
$57.00
W0116470 FAN ASSEMBLY
W0274376 FRONT PANEL, CABINET, ONE
$132.00
W0274378 CONNECTOR, WATER TANK, UL
$6.00
W0274379 FAN WHEEL, BACK, COOLING, Ø123MM
$33.00
W0274416 CATCH,PORTHOLE,DOOR,ONE
$27.00
W0274424 WINDOW,PLASTIC,INNER,431MM
$78.00
W0274502 WORKTOP
$111.00
W0274526 PCBA USER INTERFACE+SELECTOR
W0274531 BUTTON,WHITE,RECTANGULAR,ON/OF
$16.00
W0274534 KNOB,PROGRAMME SELECTOR,BLACK,
$35.00
W0274536 BOX SELECTOR HOUSING
$15.40
W0274540 COVER,MAIN ELECTRONIC BOARD,ED
$14.50
W0274544 COVER,BACK PANEL,AIR DUCT
$55.00
W0274559 DIFFUSER,LUMINOUS DIODE,SUPPOR
$42.00
W0274560 DOOR FRAME,FRONT,WHITE,?490MM
$179.00
W0274562 FRAME DOOR BACK WHITE 486MM
$50.00
W0274565 GASKET,DOOR,BLACK,ONE
$31.00
W0274566 DOOR HINGE,ONE
$28.00
W0274567 PLINTH
$55.00
W0274568 HINGE PLINTH L&R
$13.00
W0274569 SUPPORT PLINTH ONE CD
$18.35
W0274610 TAPPET DOOR ALUMINIUM CD
$16.00
W0274665 COVER,USER INTERFACE BOARD,BAC
$32.00
W0274707 CONTROL PANEL HANDLE T6DCE821B
$150.00
W0275421 GASKET, AIR DUCT, DOOR, 17X20X1683MM
$90.00
W0275428 ANTI INTERFERENCE FILTER
$37.00
W0275454 DOOR LOCK, GREY, PTO
$81.00
