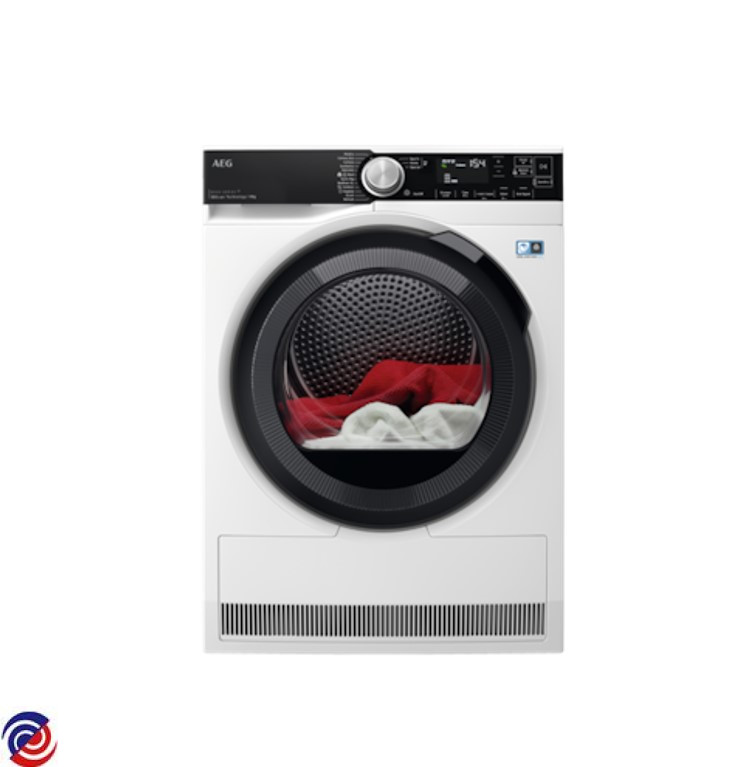

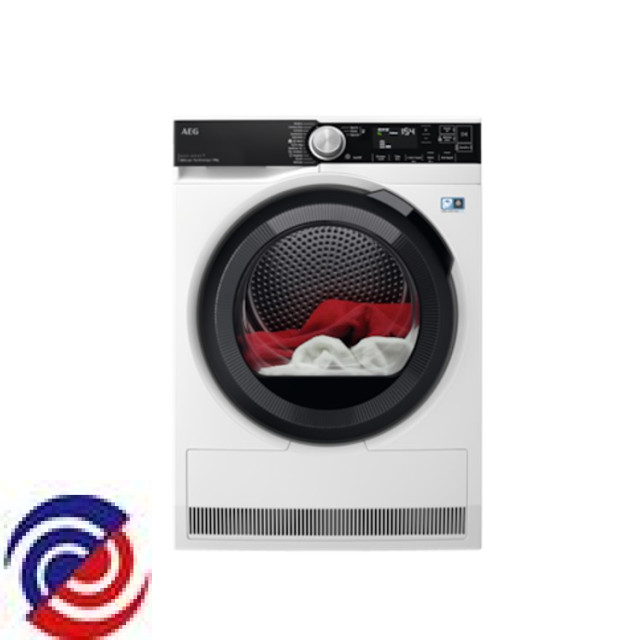

T858M6OBC — 916099546 00
AEG — Clothes Dryer
Parts for T858M6OBC
W0016685 FITTINGS DRAINAGE,CONDENSATION,OUTER,KIT
W0017020 SHAFT, DOOR HINGE, 112MM
$7.50
W0017385 LAMP, DRUM, LED, 0.5W
$21.75
W0076617 DOOR SWITCH
$29.25
W0273973 DRIVE BELT,L=1971MM
$41.25
W0296358 CATCH, PORTHOLE, GLASS DOOR, PILOT2
$6.00
W0374929 CLAMPING ROLLER, ASSEMBLY
$20.25
W0017389 BRACKET FIXING MOTOR FRONT
$14.25
W0017412 COVER PLATE, DOOR LOCK
$3.00
W0017497 KNOB LOCK,DOOR,BASEMENT,7801
$18.15
W0017520 TENSION SPRING, MOTOR
$9.75
W0076605 OVERFLOW HOSE
$23.25
W0076606 HOSE, PUMP, TANK, L=1130
W0076619 POWER CABLE, AUS,2670MM,3X1.0MM
$42.75
W0076655 FIXING BRACKET, MAIN MOTOR, REAR
$10.50
W0274376 FRONT PANEL, CABINET, ONE
$99.00
W0274479 FAN WHEEL,170MM
$43.50
W0274540 COVER,MAIN ELECTRONIC BOARD,ED
$10.88
W0274564 DOOR FRAME,BACK,GREY,?485,5MM
$67.50
W0274566 DOOR HINGE,ONE
$21.00
W0274568 HINGE PLINTH L&R
$9.75
W0274789 GASKET, DRUM, BACK, 1341MM
$76.50
W0275427 ANTI-INTERFERENCE FILTER, POWER CABLE
$36.98
W0282709 GASKET COVER BACK PANEL
W0296390 TAPPET,DOOR,PLASTIC,ONE
$6.00
W0361144 FELT RECTANGULAR
$3.00
W0361208 DOOR LOCK,9KG
$12.75
W0361321 WINDOW TRANSPARENT INNER
$51.00
W0364139 INSULATION,BACK PANEL,COVER
$31.50
W0364144 CABLE DUCT, POWER OPTIFLOW
$3.00
W0366415 SIDE PANEL,INSULATION,WHITE,47
$94.50
W0366629 SEALING STRIP,BACK PANEL
$3.00
W0366655 CONNECTOR, WATER TANK
$4.50
W0366668 DRUM,COMPLETE,434MM,OPTIFLOW
$252.75
W0366670 BACK PANEL,PLASTIC,OPTIFLOW
$36.00
W0366774 BUSH,TANK,OVAL,56X42MM CN
$2.63
W0366790 GASKET, WIRING, HUMIDITY SENSOR, BIT
$2.63
W0366791 Gasket,wiring,door switch,BIT
$3.00
W0366792 Gasket,basement,air duct,BIT
$5.51
W0366802 GASKET, FLUFF FILTER, AIR DUCT, BIT
$5.25
W0366807 COVER, HINGE, PLINTH, BIT,DIAMOND
$2.63
W0366808 SUPPORT, PLINTH, BIT,DIAMOND
$14.25
W0366812 GASKET,DRUM,FRONT,1683MM CN
$17.10
W0366817 PUMP, CONDENSATION, 240V,50HZ,5W,BIT
$35.25
W0366851 GASKET, AIR DUCT, DOOR, BIT
$9.75
W0366952 HARNESS,COMPRESSOR,250MM,PROPA
$9.56
W0367443 ROLLER,DRUM,COMPLETE,4PCS
$58.50
W0367562 SCREWS,DOOR,KIT,13+2 CN
$39.26
W0367748 NUT,M6
$3.00
W0367778 FAN COOLING CMPSOR 24W 120MM
$48.00
W0369056 CAPACITOR, 12.F
$14.85
W0369057 SEALING, TEMPERATURE SENSOR
$18.75
W0369097 HARNESS, ANTI-INTERFERENCE FIL
W0369179 DRUM LIFTER,GREY,3 PCS.,298.3M
$12.86
W0370071 MOTOR, MAGNET, HP,PM
$192.00
W0370079 WIRING PROTECTION, CAPACITOR,
$4.09
W0370115 HARNESS, PUMP, COOLING FAN, PC
$35.21
W0370116 HARNESS, TEMPERATURE SENSOR, P
$68.63
W0370117 HARNESS, COMPRESSOR, PCB, J2/J
$17.93
W0370118 HARNESS, TANK, TEMPERATURE SEN
$34.69
W0370120 HARNESS, DOOR SWITCH, USER INT
$34.24
W0370212 AIR DUCT, FRONT, WELDED, BIT
$126.56
W0370217 FLUFF FILTER, BIT
$30.00
W0370219 DOOR, BASEMENT, GREY, HP,BIT
$11.36
W0370277 HARNESS, MOTOR, PCB, J2,1010MM
$15.56
W0370334 HARNESS, MAIN PCB HUMIDITY
W0370398 SUPPORT, TANK, KILIMANJARO
$22.80
W0370409 SIDE PANEL,WITH INSULATION LH
$94.50
W0370411 TANK, UPPER, L=567MM
$39.71
W0370443 NOT CONFIG ELECTRONIC,EDR16,OPTIFLOW,A
$389.96
W0373188 PLINTH
$42.00
W0373490 WORK TOP,ASSEMBLY,WHITE,597X50
$81.75
W0374945 BUTTON, ROUND, ON/OFF, RUBY
$7.24
W0374988 COVER, PROGRAMME SELECTOR, BACK, RUBY
$10.05
W0375119 COVER, USER INTERFACE BOARD, BACK, RUBY
$17.36
W0375136 DIFFUSER, LED, KNOB
$18.11
W0375157 MICROSWITCH, FLOAT, BIT
$22.50
W0375258 DOOR FRAME, INNER, BLACK, RUBY
$29.55
W0375362 KNOB, SILVER, RUBY,SS
$44.44
W0375618 HUMIDITY SENSOR, CAPACITIVE,BIT,AC
$129.68
W0375709 DOOR FRAME, FRONT, BLACK, RUBY
$191.59
W0375800 CONTROL PANEL, WHITE, AEG, EN
$289.99
W0375813 CONFIGURED ELECTRONIC, EDR16,O
$338.89
W0375818 CONFIGURED ELECTRONIC, USER IN
$345.34
W0375851 NOT CONFIGURED ELECTRONIC, USE
$377.81
W0377671 ADJUSTABLE FOOT
$15.75
W0382788 BUSH, HINGE, 15,75MM
W0382944 TEMPERATURE PROBE, NTC
$25.50
W0382945 MOTOR,BUSHING,KIT,FRONT+REAR
W0382947 WASHER
W0382948 COVER BACK AIR DUCT
