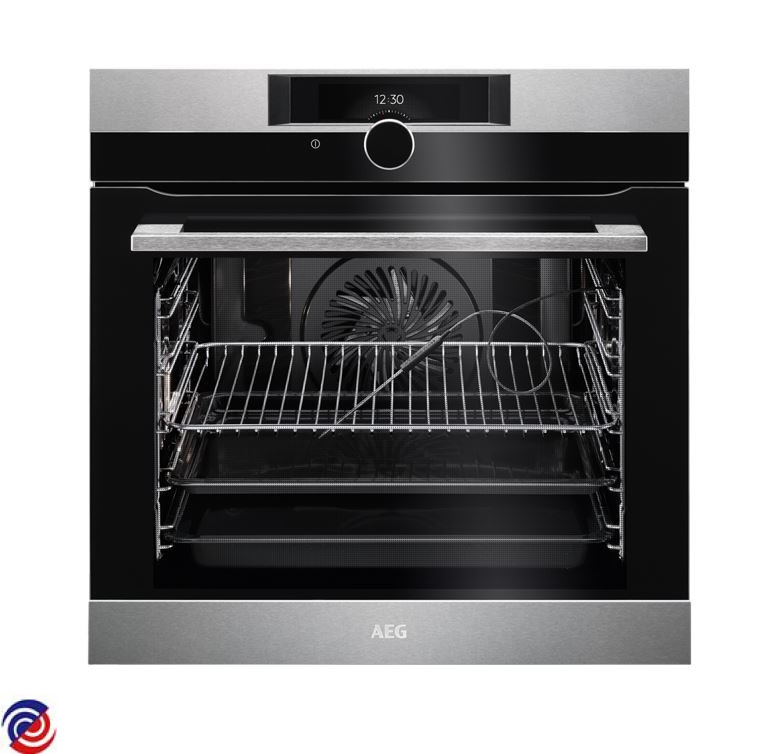

BPK842320M — 944188066 01
AEG — Cooker Electric
Parts for BPK842320M
W0017921 MOTOR MICRO CONVEVTION
$64.00
W0023140 DOOR GLASS HT 524X402
$258.00
W0026321 GASKET OVEN DOOR BLK 503 X 371
$54.60
W0026431 SPRING DAMPER MOTOR
$12.55
W0026435 OVEN WIRE SHELF CLIP
$5.50
W0030821 TRAY BAKING
W0114534 ELEMENT ROUND 240V 2400W
W0134447 RACK SIDE OVEN RIGHT
$45.90
W0134448 RACK SIDE OVEN LEFT
$40.00
W0147344 LAMP HALOGEN BULB 25W G9 230V
W0147345 LAMP 40W HALOGEN G9 230V
W0274530 HANDLE INOX
$132.00
W0274623 AEG OVEN DOOR LOCK WITH MOTOR PYRO
$99.00
W0274688 OVEN GRILL SHELF 466MM x 385MM
$64.00
W0275423 MEAT THERMOMETER BLACK 480MM
$47.00
.jpg)
W0275444 OVEN LAMP ASSY TOP 40W G9
$22.00

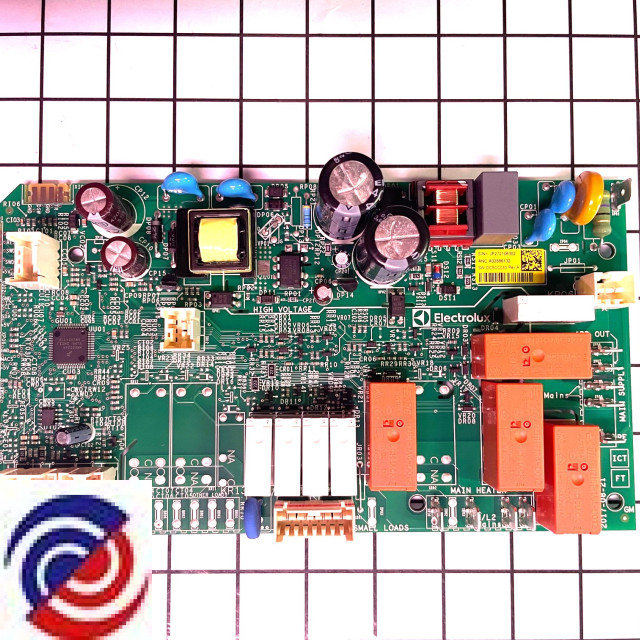

W0284614 POWER BOARD OVC5000
$273.00
W0017741 STOPPER DOOR RUBBER HIGH-TEMP
$7.00
W0017828 OVER HEAT PROTECTION THEMO 145
$25.00
W0022502 CATALYST
$60.00
W0023155 FAN WHEEL CONVECTION FAN
W0023193 GRILL INSERT 415X330X39.5MM
$51.00
W0023194 GLASS OVEN LAMP SIDE HALOGEN
$31.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0023219 SOCKET MEAT THERMOMETER BLACK
$77.00
W0023912 SCREW DOOR HAND M4 X 50 PKT 5
$12.00
W0024074 KIT SCREW PKT 4
$23.00
W0026334 NUT CONVECTION FAN M6L
$7.00
W0027301 GLASS COVER OVEN LAMP TOP
$64.00
W0101122 CABLE HOLDER
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114558 LAMP ASSY 25W G9 230V HALOGEN
$40.00
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134398 RUNNER TELESCOPIC PKT 6
W0274104 TERMINAL BLOCK 3 POL
$18.25
W0274436 PANEL BACK OVEN
$171.70
W0274456 HARNESS PCB - DOOR LOCK
$56.00
W0274462 PAN DRIP 466X385X40 MM
$58.00
W0274484 PANEL SIDE LH
$189.20
W0274485 PANELSIDE RH
$189.20
W0274486 PANEL BOTTOM
$174.00
W0274487 PANEL TOP
$210.00
W0274513 ELECTROLUX FRONT GLASS INOX 594 X 470MM
$147.00
W0274518 GENERAELEMENT UPPER 2300W
$111.00
W0274550 PCB LED ITEX
$342.00
W0274555 ADAPTOR DOOR HANDLE
$5.50
W0274593 COVER UI ITEX
$18.00
W0274594 KNOB CONTROL ITEX
$295.00
W0274595 BRACKET FIXING
$15.00
W0274612 FRAME FRONT
$53.00
W0274617 COVER FAN
$64.00
W0274638 FOIL PROTECTOR OVC5000
$10.00
W0274656 PANEL CONTROL INOX ITEX
$308.00
W0274657 HARNESS PB- -DOOR SWITCH
$51.00
W0274668 GLASS FSILK SCREE 499 X 388MM
$321.00
W0274674 GLASS DOOR INNER 488 X 383MM
$342.00
W0274677 HARNESS PB - UI OVC5000
$23.50
W0274679 HOLDER HEATING ELEMENT
$5.15
W0274692 ELEMENT LOWER 1000W
$106.15
W0274693 FAN COOLING ASSY 35/10W
$105.00
W0274700 HARNESS OVEN LAMP TO PB
$58.05
W0274716 HARNESS PB- DOOR LOCK
$50.00
W0275059 TOP COVER DOOR BLACK
W0275338 SENSOR PT500 370MM
$65.00
W0275351 U I BOARD CONFIG ITEX
$714.00
W0282745 HINGE 8.8- 9.5 KG
$74.00
W0282749 HINGE 8.8- 9.5 KG SOFT
$137.00
W0282818 FLANGE
$4.00
W0283087 BUSH FRONT PANEL
$7.00
