DC7003000M — 944171535 00
AEG — Cooker Electric

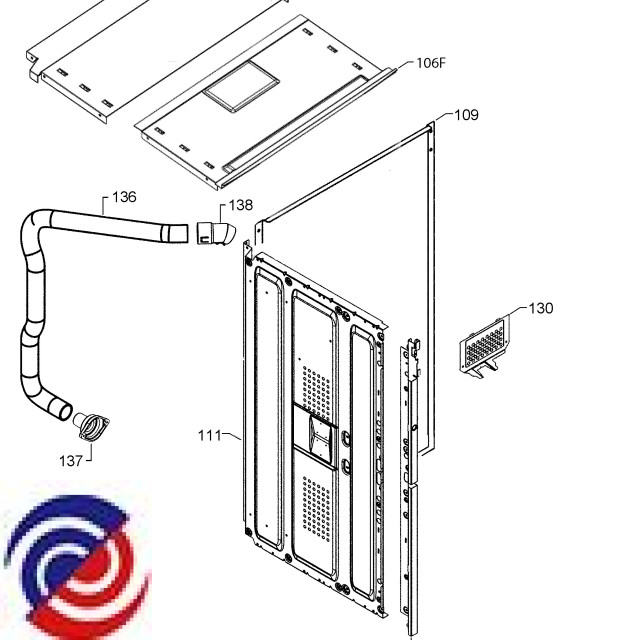

Parts for DC7003000M
W0021896 BULB, OVEN LAMP, E14,250V,25W
$18.00
W0022460 BOARD USER INTERFACE ASSY
$256.50
W0023016 PROFILE, UPPER, UPPER DOOR
$25.50
W0023017 PROFILE, UPPER, LOWER DOOR
$25.50
W0023035 SEALING, FRONT PANEL, LOWER OVEN
$51.00
W0023036 GASKET CAVITY OVEN UPPER OV
W0023040 GRILL, INSERT, 368X305X40MM
$52.50
W0023091 SWITCH MICRO LAMP
$58.50
W0023098 OVEN TOP ELEMENT, GRILL, 1200W
$76.80
W0023100 OVEN TOP ELEMENT, GRILL 1900W
$102.75
W0023200 LAMP OVEN COMPLETE TOGGLE SWIT
$21.00
W0023261 OVEN LIGHT,SIDE,COMPLETE,230V/
$33.00
W0026435 OVEN WIRE SHELF CLIP
$4.13
W0103171 RING ELEMENT, UPPER OVEN, 240V, 1650W
W0105480 MOTOR WITH FAN, COOLING
$225.34
W0114285 ELEMENT RING 1900W 230V
$47.25
W0114286 ELEMENT HEATING LWR 1000W 230V
W0114339 BUSH, FRONT FRAME
$6.75
W0114360 GRID, LEFT, LOWER OVEN
$16.95
W0114361 GRILL, SIDE, LOWER OVEN, RIGHT
$33.00
W0114362 GRID, LEFT, UPPER OVEN
$11.33
W0114363 GRID, RIGHT, UPPER OVEN
$37.09
W0114427 HINGE, OVEN DOOR, 4,5-5,3KG
$18.75
W0114428 HINGE, OVEN DOOR, 6,5-7,1KG
$18.75
W0114567 OVEN LAMP, COMPLETE, TOP, G9,230V,40W
$40.73
W0114695 FAN MOTOR D41116
$127.54
W0114701 SENSOR, MAIN, OVEN, PT 500
$40.50
W0147345 BULB,OVEN LAMP,G9,230V,40W
$17.25
W0150421 POWER BOARD,OVC2000-A1
$307.50
W0022088 IMPELLER, FAN, D118
$13.88
W0022176 SHIELD, BOTTOM HEATER
$22.28
W0022178 TERMINAL BLOCK
$10.28
W0022366 SWITCH THERMAL KLIXON 110C
W0022399 CHANNEL AIR COMPLETE 2 HOLES
$47.85
W0022552 SCREW M4X6 TT PAN T20
W0022554 RELAY 230V
$65.25
W0022950 RACK SHELF
W0022983 TOUCH CONTROL, PLATE, TOUCH SENSOR
$933.75
W0023005 REAR PANEL D41116
$57.75
W0023006 SIDE PANEL, RIGHT - LEFT
$74.25
W0023008 PROFILE RIGHT BLACK
$78.38
W0023010 PROFILE, LEFT, BLACK
$48.00
W0023014 GLASS PANEL UPPER DOOR 480X281
$110.51
W0023015 GLASS, INNER DOOR D41116
$96.26
W0023019 GLASS PANEL LOWER DOOR 480X390
$113.25
W0023027 BACK PANEL, CONVECTION FAN, UPPER OVEN
$55.65
W0023058 TOP, PANEL, FRONT
$9.30
W0023059 TOP, PANEL, REAR
$18.56
W0023060 FLANGE, STEAM EXHAUST HOSE
$28.88
W0023066 FRONT PANEL BLACK H=900
$90.75
W0023106 STEAM EXHAUST HOSE, MAIN OVEN
$74.18
W0023107 PIPE UNION, STEAM HOSE
$9.90
W0023215 DOOR HANDLE, ALUMINIUM, ROUND
$73.31
W0023313 ASSEMBLY, OVEN DOOR, LOWER OVEN
$299.25
W0024182 KIT,BUSH,SCREW HANDLE
$14.25
W0026272 FAN WHEEL, CONVECTION FAN
$40.50
W0026384 SCREW WASHER HANDLE
$9.64
W0026385 NUT, CONVECTION FAN, M6
$4.50
W0026429 ADAPTOR DOOR HANDLE BLK
$24.00
W0026439 CONTROL PANEL, INOX, AEG, 60CM
$273.64
W0026709 NUT, FAN D41116
$3.00
W0028568 HEXAGON NUT M4 DIN934-V2A
W0103018 BLADE FAN
W0103019 FAN WHEEL, CONVECTION FAN, 180MM, 0,7MM
$39.00
W0103401 COVER, CONNECTION EOK66030X
$8.25
W0104916 DOOR STOPPER
$3.00
W0105632 BOARD POWER CONFIGURED OVC2000
W0106497 BOLT TORX B63 5X9 5 T20
W0106504 FAN COVER. STAYCLEAN D41116
W0106511 BOLT TORX 3 5 X 9 5 T20
$4.13
W0114223 PAN DRIP GREY/BLUE ENAMELLED
W0114240 RIBBON CABLE
$13.20
W0114264 CLAMP CABLE
$13.50
W0114315 CLIP ROSETTE
$3.71
W0114335 DOOR OVEN GLASS INNER LWR OVN
W0114340 SPACER FRONT FRAME
W0114384 SEAL HOSE,L=40MM
$9.08
W0114396 LAMP 40W 230V HALOGEN GLOBE G9
W0114558 OVEN LAMP, COMPLETE, SIDE, G9,230V,25W
$30.00
W0114568 GLASS.OVEN LIGHT.ROUND
W0114710 GLASS. OVEN LIGHT. SIDE
W0114711 LAMP OVEN LIGHT ASSY SIDE
W0115020 ASSEMBLY, OVEN DOOR, UPPER OVEN
$99.00
W0134377 ADAPTOR, DOOR HANDLE, BLACK, 520MM
$17.25
W0134443 HANDLE, OVEN DOOR, INOX
$44.25
