F77000M0P — 911414059 02

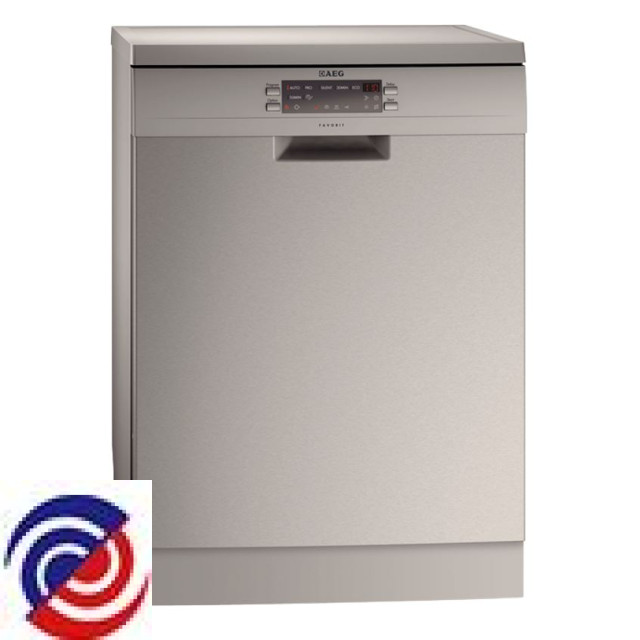

AEG — Dishwasher
Parts for F77000M0P
W0015200 DISPENSER DETERGENT
W0015364 AEG ELECTROLUX WESTING DISHWASHER DRAIN FILTER ASSEMBLY
$48.00
W0015381 NUT FASTENING TOP SPRAY ARM
$4.50
W0015383 BASKET CUTLERY GREY COMPLETE
$65.25
W0015778 DOOR GASKET, L=1770MM
$36.00
W0015826 WORKTOP COMPLETE SILVER
$276.00
W0015843 GASKET DOOR LOWER BLK
W0028839 CONFIGURED ELECTRONIC, EDW1XXX
$262.91
W0071643 MAIN SWITCH, AUTO OFF
$36.75
W0071723 CAPACITOR, MOTOR, 3 UF
$38.25
W0072959 HOSE DRAIN - 2.23M LONG
W0072989 PRESSURE SWITCH, D2 60
$64.50
W0128335 ELEMENT INLINE 230V/2000W 32MM
W0149911 STOP BASKET REAR DK GREY
W0015189 LOCK DOOR
$52.50
W0015191 REGULATOR FLOW CONTROL
$87.00
W0015205 TURBIDITY SENSOR, NTC
$51.75
W0015221 HARNESS WIRING MAIN ELECTRONIC
$15.64
W0015222 WIRING HARNESS ASSEMBLY
$172.09
W0015362 SPRAY ARM UPPER GREY
$73.50
W0015365 HOSE, HEATER, SUMP
$36.75
W0015366 HOSE, HEATER, PUMP
$54.00
W0015368 GASKET, SUMP
$13.50
W0015369 GASKET WATER SOFTENER
$18.75
W0015373 FILTER FLAT
$31.50
W0015378 SPRAY ARM BEARING, CUTLERY TRAY
$12.38
W0015379 SPRAY ARM TOP GREY
$114.19
W0015751 CORD POWER AUST/NZ 10A
$30.00
W0015776 TRAY BOTTOM SPILLAGE
$33.00
W0015777 BRACE FRONT UPPER
$25.91
W0015779 BASEPLATE BASEMENT
$33.00
W0015784 PANEL FRONT LOWER
$17.21
W0015788 COVER WIRING HARNESS
$7.39
W0015789 CLAMP FIXING PARTITION
$4.13
W0015792 RAIL BASKET UPPER
$12.75
W0015798 FOOT SUPPORT, FRONT - RIGHT
$7.50
W0015804 HOLDER GLASS LONG STEM/SPOON
$7.50
W0015809 RACK FOLD DOWN LH 333MM
$30.00
W0015810 BASKET TINES, RIGHT, L=333
$33.00
W0015827 PUSH BUTTON, ON/OFF, INOX
$16.61
W0015828 PUSH BUTTON SPRING
$9.75
W0015829 RIVET PLASTIC DOOR DIA 12X19MM
$18.75
W0015832 PUSH BUTTON ASSY INOX LEFT
$34.20
W0015839 DOOR OUTER ST/ST INOX
$181.50
W0015842 PLINTH SILVER
$118.50
W0015852 PUSH BUTTON ASSY INOX RIGHT
$34.20
W0015866 MOUNT PUMP DRAIN
$3.00
W0015868 SPONGE WATER TANK
$4.95
W0015875 PANEL CONTROL
$150.00
W0015886 CLIP, RIVET, SIDE PANEL, 20.8X19.5MM
$5.25
W0017615 SEALING PRESSURE SWITCH
$4.50
W0018962 STOPPER, BASKET RAIL, FRONT
$15.30
W0018981 FOOT ADJUSTABLE
$14.18
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$11.18
W0019046 TUBE CONTAINER CUP FILL VALVE
$18.98
W0019081 ADJUSTABLE FOOT, FRONT, 61XM8
$14.21
W0023575 HANDLE BASKET COMPLETE
$55.28
W0023584 ROLLER KIT LOWER BSKT PKT 8
$60.00
W0023828 KIT OVERFLOW HOSE
$11.93
W0023902 KIT DOOR HINGE LEFT/RIGHT
$122.25
W0071622 WASHING PUMP TACHO
W0071623 DRAIN PUMP, 50HZ.
W0071624 SWITCH & FLOAT ASSY
W0071648 USER INTERFACE BOARD EDW1850
W0071929 SUMP WATER ASSEMBLY
W0071931 HOSE, SUMP, WATER SOFTENER
$34.76
W0071933 SUPPORT SPRAY ARM LOWER
$23.06
W0071940 CAP WATER SOFTENER
$4.50
W0071941 NUT WATER SOFTENER
$3.38
W0071943 SPRAY ARM ASSY GREY
W0071946 BASKET UPPER
$146.25
W0071952 CHANNEL DRAINAGE GREY COMPLETE
W0071954 MANIFOLD INNER - 691.9MM LONG
$46.54
W0071959 SUPPORT PRESSURE SENSOR
W0072701 CONTAINER CUP SMALL
W0072793 COVER TERMINAL
$6.60
W0072854 VENT DRYING ACTIVATOR
W0072859 PANEL SIDE LH INOX 519 X 808
$127.50
W0072860 PANEL SIDE RH INOX 519 X 808
W0072862 BRACE FRONT LOWER
$22.50
W0072879 BASKET LOWER SILVER
$142.50
W0072906 FUNNEL FILLING D/W SALT TRANS
$4.50
W0072913 BRACE REAR UPPER
W0072919 FOOT SUPPORT, FRONT - LEFT
$7.50
W0072924 ROLLER BASKET ADJUSTMENT
W0072925 ROLLER BASKET ADJUSTMENT
W0072935 HOSE DRYING X 795MMLONG
$30.00
W0072941 SUPPORT MOTOR RUBBER
$10.73
W0072943 HANDLE GREY
$4.50
W0072944 PUSH BUTTON, ON/OFF
$13.95
W0072990 WATER SOFTENER
$99.00
W0090332 BRACKET ROLLER REAR SIFFENING
$7.50
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090627 GROMMET, DECALCIFIER ESL9163
$3.38
W0090637 COVER LATCH HOLE
$8.25
W0090684 HOSE SWITCH PRESSURE ?10X260MM
W0090851 FIXING CLAMP SENSOR
W0103995 CAPACITOR 0.47ÁF
$22.50
W0116477 DOOR INNER COMPLETE
W0116544 HOSE INLET WATER BLOCK X1800
W0128356 WHEEL SUPPORT KIT,DARK GREY,4
$43.50
W0129222 SEAL AIR CHAMBER
