KM8403101M — 944066337 01
AEG — Microwave

W0017871 ASSEMBLY,CONDENSATION,MOTOR,24

$260.25

W0022985 CABLE, SENSOR, OVEN, L=1000

$171.75

W0026274 MOTOR, CONVEYOR, 230V,

$137.25

W0026279 HEATING ELEMENT, UPPER, 230V,1900W

$116.25

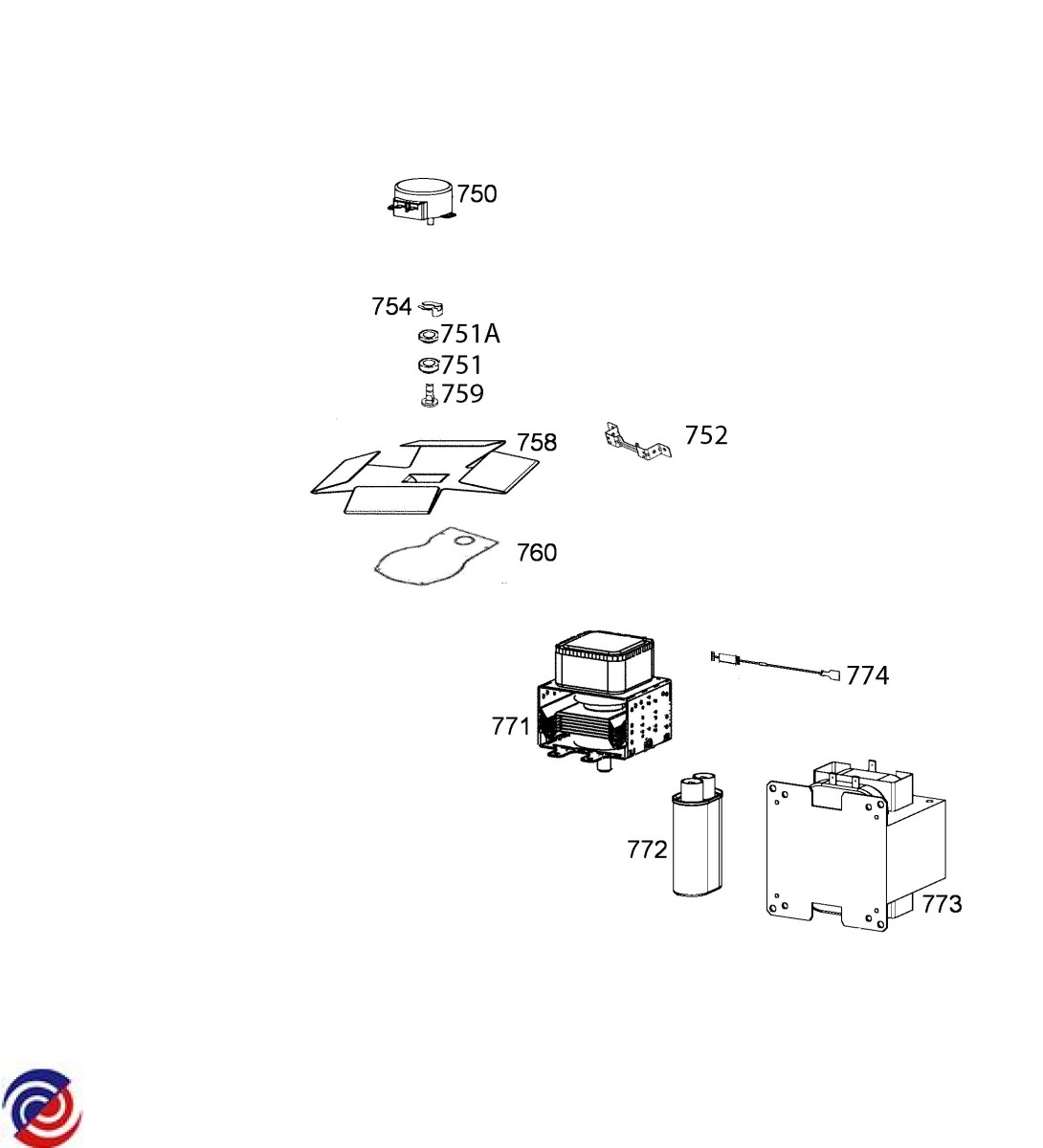

W0026281 MAGNETRON

$182.25

W0026282 TRANSFORMER, 230V/50HZ

$335.25

W0026283 MOTOR, STIRRER, 230V

$83.25

W0026285 ASSEMBLY, COOLING FAN, COMPLETE

$91.20

W0026301 FAN STIRRER

$23.96

W0026302 SENSOR, PT500

$51.00

W0026303 HEATING ELEMENT, ROUND, 230V,1650W

$112.50

W0026306 OVEN LAMP, COMPLETE, G9

$25.50

W0026380 HARNESS, POWER BOARD, XP06<->SIDEKICK

$102.00

W0026427 ADAPTOR DOOR HANDLE BLK

$29.25

W0026428 DOOR HANDLE, ROUND, INOX

$37.50

W0026472 HARNESS USER INTERFACE BOARD X

$26.18

W0026986 GASKET, OVEN DOOR

$46.50

W0027116 GRID, RIGHT

$54.00

W0027117 GRID, LEFT

$54.00

W0027369 HINGE, 7.1KG

$30.90

W0114339 BUSH, FRONT FRAME

$6.75

W0114583 HEATING ELEMENT, BOTTOM, 1000W

W0147313 POWER BOARD ASS CONFIG OVC 300

$228.75

W0147344 BULB, OVEN LAMP, G9,230V,25W

W0017784 MOUNTING PLATE,BACK

$46.35

W0017791 CONTROL PANEL, INOX, AEG, 60CM, VCU

$159.26

W0017873 SAFETY,SWITCH,LEFT,L

W0017874 SWITCH SAFETY RIGHT

$38.14

W0022369 THERMOSTAT RED BLK 145.C

W0022555 BOLT TORX B63 5X6

$4.13

W0022556 SCREW TORX 4 X 10 T20

$4.13

W0023126 BOTTOM PLATE

$27.83

W0023165 SCREW MOUNT 4.2MM X 9.5MM

$12.75

W0023181 SUPPORT, HINGE, LEFT

$22.13

W0023182 SUPPORT, HINGE, RIGHT

$22.13

W0023205 CARRIER, USER INTERFACE BOARD, OMEGA

$24.11

W0023209 CLAMP CABLE 15x 16mm

$3.00

W0023211 CABLE HOLDER

$4.50

W0023212 SHIELD, BOTTOM, HEATER

$27.83

W0023274 FUSE RETAINER, COMPLETE, T10AL/230V

$39.00

W0024182 KIT,BUSH,SCREW HANDLE

$14.25

W0024456 KIT,RUBBER CAP,DOOR HINGE,2PCS

$29.25

W0026025 KIT,SUPPORT,SPACE COMPENSATOR

$9.30

W0026251 SIDE PANEL, LEFT-RIGHT, 478,6X336,4X30MM

$55.65

W0026255 BACK PANEL, OVEN, 540X339,9X35MM

$55.65

W0026272 FAN WHEEL, CONVECTION FAN

$40.50

W0026280 BACK PANEL CONVECTION FAN

$74.18

W0026284 SENSOR, MAGNETRON, NTC

$51.00

W0026286 SHIELD, CONVECTION FAN

$13.20

W0026287 DOOR GLASS, 474X244MM

$110.25

W0026290 BEARING, STIRRER

$26.25

W0026291 RETAINER MOTOR

$10.73

W0026292 COVER, MICA

W0026296 SUPPORT, CONNECTION BOX

$9.30

W0026297 WASHER AXLE 21/11MM

$10.88

W0026300 DIODE, HV

W0026337 CONNECTION BOX, WITH, CABLE, 3X1,5

$57.75

W0026385 NUT, CONVECTION FAN, M6

$4.50

W0026395 GASKET, ROUND, 892,5MM

$31.50

W0026473 DOOR COMPLETE

$417.75

W0026474 HARNESS POWER BOARD DOOR SWITC

$16.69

W0026490 FRONT GLASS, STAINLESS, 591,5X331MM

$279.75

W0026517 TOUCH CONTROL, PANEL

$168.75

W0027064 AXLE, STIRRER

$9.19

W0027065 ASSEMBLY INNER DOOR

$158.93

W0027067 HARNESS POWER BOARD MAGNETRON

$53.78

W0027085 GLASS HOLDER, L

$60.75

W0027086 GLASS HOLDER, R

$60.75

W0027100 MOUNTING SET FIXING

$22.50

W0027123 DOOR, TRIM, TOP

$60.75

W0027124 RING, NUT

$8.25

W0027159 GASKET, DOOR, MICROWAVE OVENS

$42.00

W0027169 TAPE, DRIP PROTECTION, FRONT GLASS

$57.75

W0027170 DOOR GLASS 474X244MM

$110.25

W0027232 PIVOT, SIDE, GRID

$13.50

W0027365 COVER TOP

$93.68

W0028981 CONFIGURED ELECTRONIC USER PCB

$437.25

W0077100 HOLDER,SIDE,GRID,4MM PIN

$26.25

W0103137 LOCKING SPRING. 9MM

W0103177 FILTER, VOLTAGE

W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M

W0106497 BOLT TORX B63 5X9 5 T20

W0114542 DISH BAKING

W0134348 BOARD INTERFACE VCU UNPROGRAMD

$156.00

W0134350 NUT, HEATING ELEMENT, UPPER,M4

$4.13

W0134453 RACK GRILL

W0134463 DOOR, FRAME

W0147402 HINGE 7.1KG LONG

$33.00

W0274457 CAP NUT,M6

$22.28

W0275324 SHEILD PROTECTION LARGE
