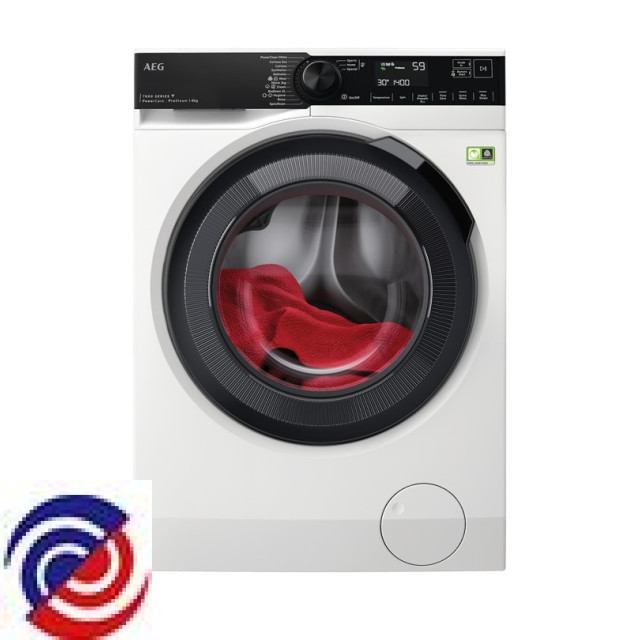

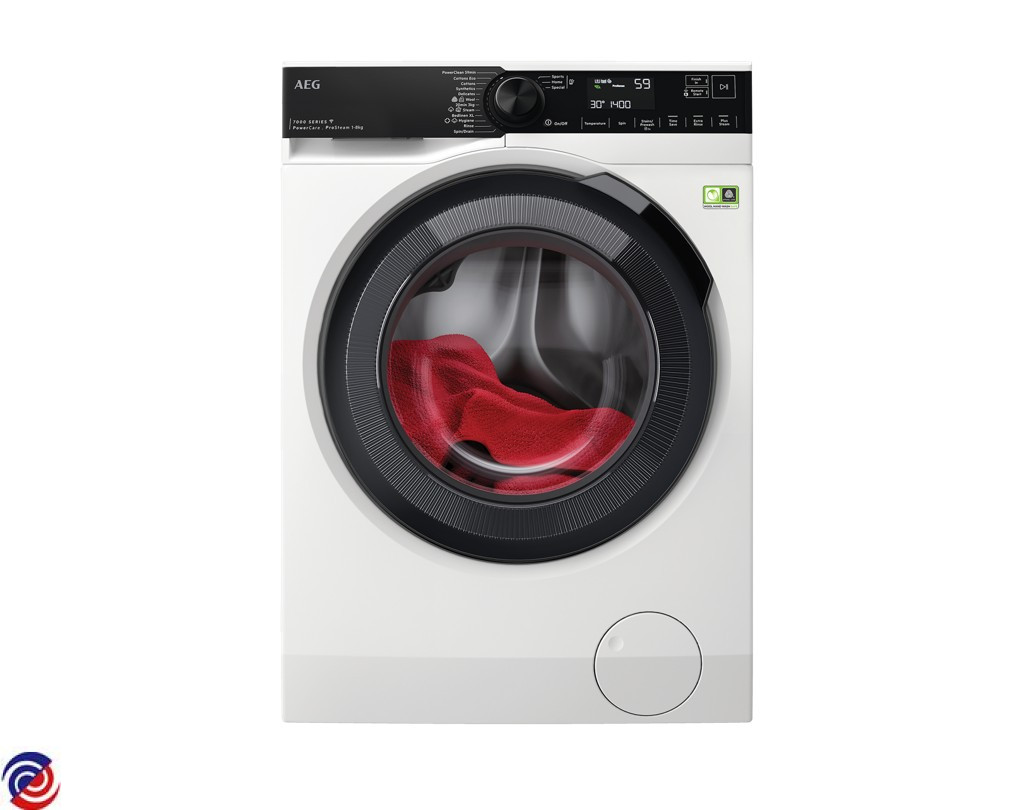

LF7384O4C — 914501812 00
AEG — Washing Machine
Parts for LF7384O4C
W0016933 PIPE UNION, CONVEYOR, 3VIE
$50.00
W0016966 PUMP ASSY RECIRCULATION
$98.00
W0017173 SPRING, SUSPENSION, TUB
$17.00
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 AEG ELECTROLUX FRONT LOADER WASHING MACHINE DRAIN HOSE ASSY L=2540MM
$68.00
W0274400 AEG FRONT LOAD WASHING MACHINE DOOR GASKET G60 JET
$99.00
W0274504 DOOR LOCK FILTER PUMP BODY
$21.00
W0368445 BELT DRIVE
$47.00
.jpg)
W0375415 INLET HOSE, ANTIFLOODING DEVIC
$78.00
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016957 SCREW,4,9X15 TTL TORX
$13.20
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0016983 VALVE 3 WAY. FLOWMETER
$168.00
W0017027 CAP SUPPORT
$11.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017181 COUNTER WEIGHT FRONT,G60W35L
$81.00
W0026940 COVER INVERTER BOARD
$15.00
W0070003 CLAMP HOSE
W0074344 SCREW. MOTOR
$13.20
W0075936 CLAMP,DOMETO PUMP HOSE D=52.5
$18.00
W0076019 CHAMBER WATER ASSY
$47.00
W0076022 CONVEYOR. BOTTOM. HEC
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW. TUB.G33
W0076219 COUNTER WEIGHT UPPER
$53.75
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0128341 KIT, PULLEY, PLASTIC
$86.00
W0274364 RING LOCKING 3XL
$7.00
W0274365 HOSE, RECIRCULATION
$51.00
W0274367 WORKTOP ASSY
$126.00
W0274490 SIPHONE ADDITIVE
$7.00
W0275188 PUMP BODY KIT CW2.0 JET
$19.00
W0275425 BOX HOUSING MAIN BRD
$24.85
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282623 DIVIDER SEPARATOR DET DRAWER
$8.00
W0282758 GUTTER DRAIN
W0282761 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0282762 FRONT COVER PUMP BODY
$12.50
W0361310 COVER DRAIN PUMP
$4.60
W0363895 HOSE FILLER & CLAMPS KIT
$8.55
W0364135 DOOR FILTER PUMP BODY
$11.00
W0364223 HEATING ELEMENT 230V 1950W
$76.00
W0365697 Motor AL PM HP
$284.00
W0365768 LOW FREQENCY ANALOG PRESSUR
W0366331 GLASS, DOOR
$85.00
W0366765 PUMP CW RECIRC DETERGENT
$56.00
W0366766 Aqua-control bottom G60 UIMC
$17.70
W0367444 Hose detergent circulation CW
$9.00
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368017 PIN DOOR HINGE
$5.50
W0368181 LATCH, DOOR
$10.00
W0369060 CLAMP, HOSE CLAMP, .65.5MM
$4.00
W0369070 HARNESS, USER INTERFACE BOARD,
$31.55
W0369073 DRAIN TUB, G60
W0369076 HARNESS, VALVE, PCB, J7,960+87
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.45
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$6.75
W0369141 SCREW, COUNTERWEIGHT, TOP, 3PC
$11.40
W0369142 HOSE, ELECTRIC VALVE, WATER DI
$11.55
W0369143 HOSE, ELECTRIC VALVE, WATER DI
$9.75
W0369144 HOSE, ELECTRIC VALVE, WATER DI
$11.40
W0369147 SHOCK ABSORBER, WITH PIN, 90N
W0369151 DETERGENT DRAWER, KIT, ONE
$38.00
W0369155 TRANSIT STRAPS, SCREWS, KIT
$21.00
W0369202 SCREW, DOOR HINGE, 2 PCS., 4.8
$5.50
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$27.70
W0369949 DRAWER COMPARTMENT
$72.75
W0369966 REINFORCEMENT, HINGE, ONE,OMEG
$11.00
W0370052 HARNESS, VALVE, MAIN ELECTRONI
$12.45
W0370053 HARNESS, MOTOR CONTROL, MAIN E
$17.90
W0370055 HARNESS, MOTOR CONTROL, MOTOR,
$23.00
W0370160 HARNESS, RECIRCULATION PUMP, D
W0370251 PCBA MOTOR CTRL EMC18EVO 800W
W0370281 HARNESS, MOTOR CONTROL, MAIN E
$22.75
W0370894 FLOAT SWITCH, ASSEMBLY
$16.00
W0370903 DRAIN PUMP, WITH, THERMAL CUT-
$52.00
W0374805 PIPE CLAPM 22,1MM
$4.00
W0374842 HOSE CLAMP ID=20.5
$4.40
W0374945 BUTTON, ROUND, ON/OFF, RUBY
$9.95
W0375028 SUPPORT, HANDLE, CONTROL PANEL
$15.30
W0375136 DIFFUSER, LED, KNOB
$24.95
W0375218 KNOB, BLACK, RUBY
$33.30
W0375251 POWER CABLE, AUS,2000MM,3X1.0M
$39.45
W0375261 DOOR FRAME, BACK, GREY, .486MM
$41.00
W0375431 DOOR FRAME, FRONT, BLACK, RUBY
$78.85
W0375554 DIFFUSER, LUMINOUS DIODE, SUPP
$136.50
W0375667 FRONT PANEL, CABINET, WHITE, O
$219.80
W0375749 CONFIGURED ELECTRONIC, EWX20,W
$324.50
W0375774 CONTROL PANEL, WHITE, AEG, EN
$350.35
W0375870 USER INTERFACE BOARD, PROGRAMM
$607.95
W0382547 LIFTERS
W0382700 DOOR LOCK
