LF8C1612A — 914550637 01

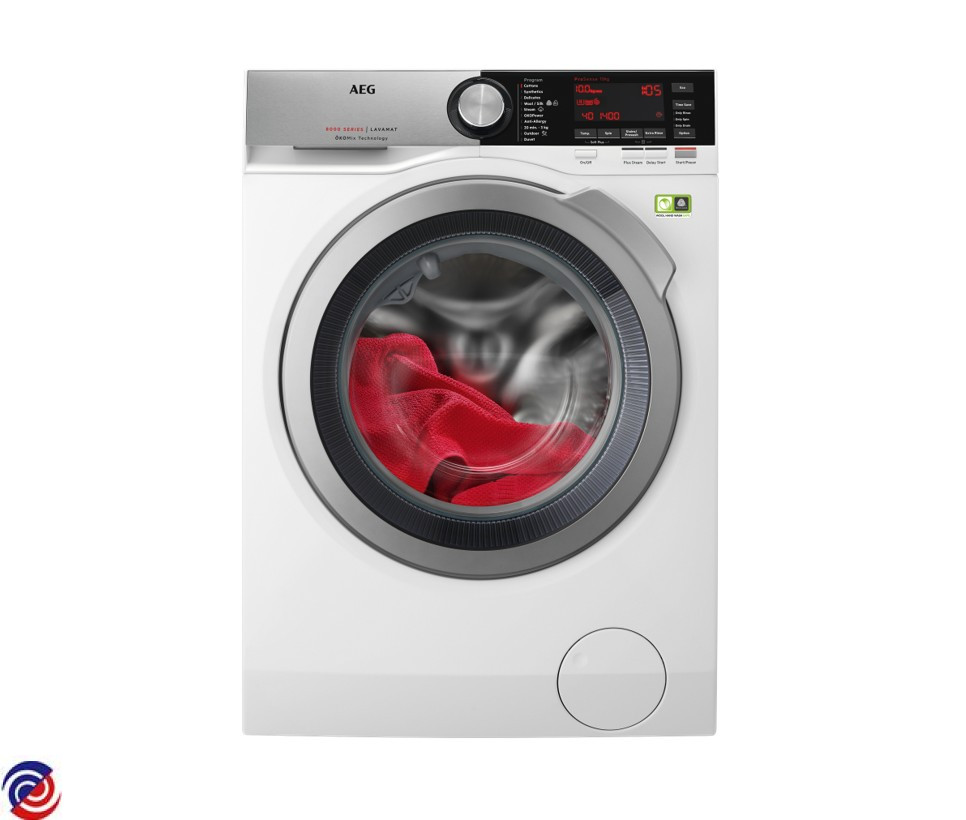

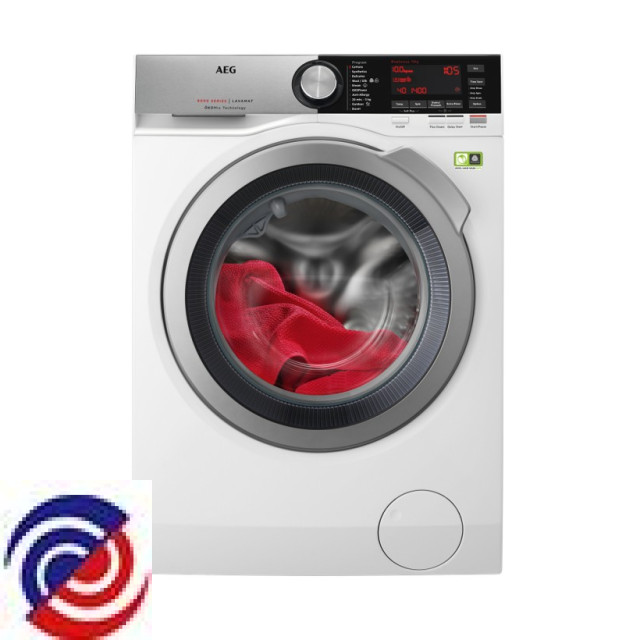

AEG — Washing Machine
Parts for LF8C1612A
W0016933 PIPE UNION, WATER DISTRIBUTOR, 3VIE
$37.50
W0017070 HEATING ELEMENT
$85.58
W0017173 SPRING, SUSPENSION, TUB
$13.50
W0017178 RECIRCULATION HOSE, INTAKE
$27.75
W0017188 DRAIN HOSE, ASSEMBLY, L=2540MM
$54.00
W0075952 BELT DRIVE
W0274401 RUBBER BELLOW,LIGHT,G60,3XL,JET,ONE
$124.50
W0274504 FILTER DOOR PUSH BUTTON
$17.25
W0274532 SPRING,BUTTON,ON/OFF
$4.35
W0274533 FILTER,ASSEMBLY,DIAPHRAGM,ONE
W0274720 CONTROL PANEL, WHITE, AEG, EN
$112.50
W0016928 LEG ASSY
$14.18
W0016944 CAP REAR PANEL
$12.00
W0016977 SPACE COMPENSATOR, FIXING, PUM
$20.63
W0016983 ELECTRIC VALVE,3-WAYS,FLOWMETER
$113.25
W0017027 CAP SUPPORT
$8.25
W0017052 DRAWER COMPARTMENT
$25.50
W0017057 TUBE, PRESSURE SWITCH
$12.75
W0017132 DRUM LIGHTING, ASSEMBLY
$16.50
W0017153 BRACKET SHOCK ABSORBER LH
$6.56
W0017154 BRACKET SHOCK ABSORBER RH
$4.95
W0017157 HOSE DRAIN TUB
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$4.50
W0017180 COUNTER WEIGHT FRONT G60W35H
$110.78
W0017200 SOUNDPROOFING BOTTOM SEAL
$87.00
W0023951 PULLEY,KIT,PLASTIC
$36.00
W0026940 COVER, INVERTER, ELECTRONIC BOARD
$11.03
W0026992 TUBE RUBBER TWO PUMP SOLUTION
$39.75
W0027005 TUBE INTAKE TWO PUMP SOLUTION
$17.25
W0070003 CLAMP HOSE
W0074344 BOLT,ROLLER,5,5X38
$3.00
W0075936 CLAMP, HOSE CLAMP, Ø52.5MM
$16.73
W0075991 POWER CABLE, AUS,2450MM,3X1.0MM
$25.50
W0076019 WATER DISTRIBUTOR
$35.25
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW, TUB,G33
W0076219 COUNTERWEIGHT, UPPER, 8.37KG G60
$39.68
W0076222 PANEL, BACK, HIGH
$35.25
W0076224 CHAMBER AIR
W0274362 RECIRCULATION PUMP 2 PCE
$126.00
W0274364 RING LOCKING 3XL
$6.00
W0274365 RECIRCULATION HOSE
$38.25
W0274366 WORK TOP, ASSEMBLY, WHITE, 596.5X501.4MM
$114.75
W0274403 REINFORCEMENT,HINGE,ONE
$16.69
W0274420 PANEL FRONT P-ONE
$79.99
W0274422 PCBA MAIN EWX14931 FULL RAW
$128.74
W0274445 MOTOR CU PM
$374.25
W0274503 FRONT COVER,PUMP BODY,ONE
$15.79
W0274531 BUTTON,WHITE,RECTANGULAR,ON/OF
$12.00
W0274535 KNOB,PROGRAMME SELECTOR,CHROME
$36.75
W0274536 BOX SELECTOR HOUSING
$11.55
W0274542 COVER HINGE GREY
$4.13
W0274557 DIFFUSER,LUMINOUS DIODE,SUPPOR
$39.75
W0275425 BOX, MAIN ELECTRONIC BOARD, EWX13/EWX14
$18.60
W0282314 BOLT SHOCK ABSORBER
$6.75
W0283178 PUMP BODY,KIT,CW,JET,ONE
$24.75
W0284616 USER INTERFACE BOARD,ASSEMBLY,
$153.75
W0363895 DETERGENT FILL HOSE,KIT,CLAMP
$6.38
W0365768 LOW FREQENCY ANALOG PRESSUR
W0368016 PEG, FRONT PANEL, CATCH
$3.00
W0368207 HOSE HOLDER,DRAIN HOSE
$8.25
W0369060 CLAMP, HOSE CLAMP, Ø65.5MM
$2.63
W0369072 HARNESS, USER INTERFACE BOARD,
$7.20
W0369076 HARNESS, VALVE, PCB, J7,960+870MM
$24.75
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$43.20
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$5.06
W0369141 TOP COUNTER WEIGHT SCREW
$8.55
W0369142 HOSE,ELECTRIC VALVE,WATER DIST
$8.70
W0369143 HOSE,ELECTRIC VALVE,WATER DIST
$7.31
W0369144 TUBE,ELECTRIC VALVE,EV/WD G33
$8.59
W0369155 TRANSIT STRAPS,SCREWS,KIT
$17.25
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$3.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$3.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$4.13
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$20.85
W0370052 HARNESS,VALVE,MAIN ELECTRONIC
$9.38
W0370053 HARNESS,MOTOR CONTROL,MAIN ELE
$13.46
W0370055 HARNESS,MOTOR CONTROL,MOTOR,J2
$17.25
W0370191 SUPPORT,HANDLE,CONTROL PANEL,I
$11.25
W0374805 CLAMP, HOSE CLAMP, 21.5-22.6MM
$2.63
W0374842 CLAMP, HOSE CLAMP, Ø20.5MM
$2.63
W0374957 HARNESS,MAIN ELECTRONIC BOARD,
$7.91
W0375158 SHOCK ABSORBER,WITH PIN,80N
$22.50
W0376489 CONFIGURED ELECTRONIC, EWX14931,WM,FULL
$252.75
W0382483 DRAIN PUMP
W0382545 CLUSTER WELDED ASSY
W0382547 DRUM LIFTER,KIT,3 PCS.,G60
W0382700 DOOR LOCK,40N,230V,50HZ
