LF9A1612A — 914550936 00

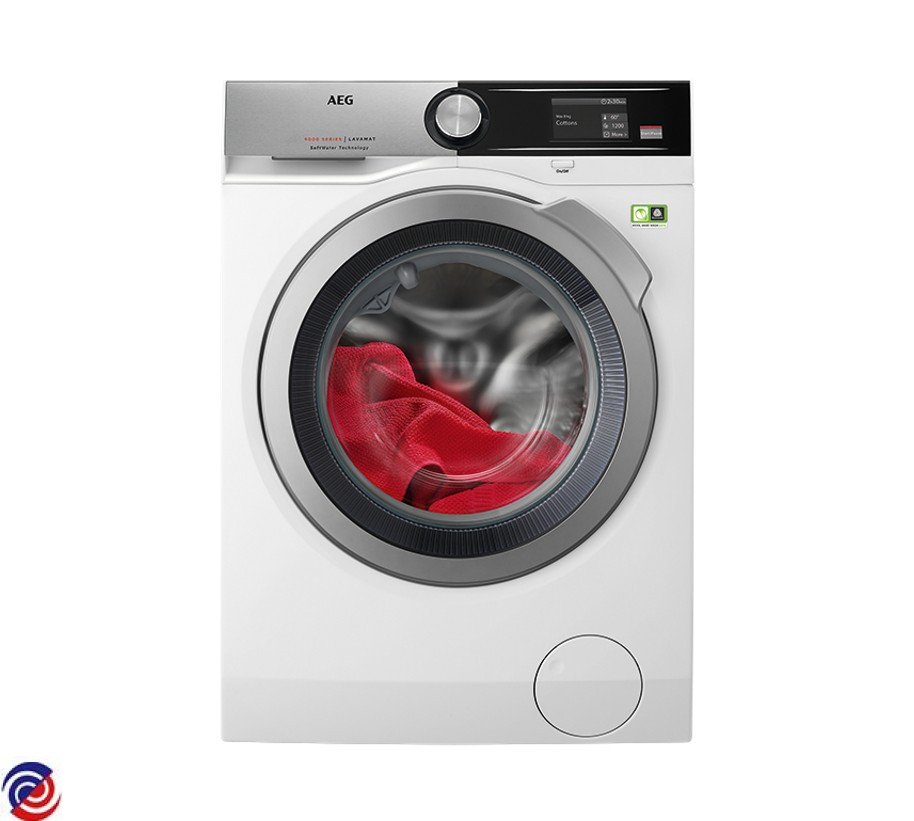

AEG — Washing Machine
Parts for LF9A1612A
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 DRAIN HOSE, ASSEMBLY, L=2540MM
$72.00
W0075952 BELT DRIVE
W0274400 RUBBER BELLOW,G60,3XL,JET,ONE
$175.00
W0274454 AEG FRONT LOADER WASHER AQUASTOP CONTROL INLET HOSE & HOOK
W0274504 FILTER DOOR PUSH BUTTON
$23.00
W0274532 SPRING,BUTTON,ON/OFF
$5.80
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0017027 CAP SUPPORT
$11.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017200 SOUNDPROOFING BOTTOM SEAL
$116.00
W0023951 PULLEY,KIT,PLASTIC
$48.00
W0026940 COVER, INVERTER, ELECTRONIC BOARD
$14.70
W0026992 TUBE RUBBER TWO PUMP SOLUTION
$53.00
W0027005 TUBE INTAKE TWO PUMP SOLUTION
$23.00
W0070003 CLAMP HOSE
W0074344 BOLT,ROLLER,5,5X38
$4.00
W0075936 CLAMP, HOSE CLAMP, Ø52.5MM
$22.30
W0075991 POWER CABLE, AUS,2450MM,3X1.0MM
$34.00
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW, TUB,G33
$26.00
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0274362 RECIRCULATION PUMP 2 PCE
$168.00
W0274364 RING LOCKING 3XL
$8.00
W0274365 RECIRCULATION HOSE
$51.00
W0274403 REINFORCEMENT,HINGE,ONE
$22.25
W0274420 PANEL FRONT P-ONE
$106.65
W0274422 PCBA MAIN EWX14931 FULL RAW
$171.65
W0274445 MOTOR CU PM
$499.00
W0274531 BUTTON,WHITE,RECTANGULAR,ON/OF
$16.00
W0274535 KNOB,PROGRAMME SELECTOR,CHROME
$49.00
W0274536 BOX SELECTOR HOUSING
$15.40
W0274542 COVER HINGE GREY
$5.50
W0275425 BOX, MAIN ELECTRONIC BOARD, EWX13/EWX14
$24.80
W0278589 PCBA USER INTERFACE + SELECTOR
$849.80
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282624 SPRING, SUSPENSION, TUB, WATERSOFTENER
$9.00
W0282697 INVERTER,ELECTRONIC BOARD,ASSE
$405.00
W0282761 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0282762 FRONT COVER,PUMP BODY,DIAMOND
$12.05
W0283145 HOSE,ELECTRIC VALVE,WATER DIST
$26.00
W0283146 HOSE,ELECTRIC VALVE,WATER DIST
$26.00
W0283178 PUMP BODY,KIT,CW,JET,ONE
$33.00
W0283242 ELECTRIC VALVE, 2-WAYS, FLOWMETER
$83.00
W0284152 FLOAT SWITCH, ASSEMBLY
W0284201 SUPPORT,HANDLE,CONTROL PANEL,I
$26.00
W0284406 DETERGENT DRAWER,ASSEMBLY,WATE
$111.00
W0284484 WORKTOP ASSY
$137.00
W0284550 PANEL CONTROL HANDLE LF9A1612A
$357.00
W0284666 WATER SOFTENER, MODULE
$525.05
W0361138 CONVEYOR DETERGENT DRAWER
$13.95
W0361146 CONTAINER CUP,LIQUID DETERGENT
$10.50
W0361147 SYPHON ADDITIVES
$8.00
W0363895 DETERGENT FILL HOSE,KIT,CLAMP
$8.50
W0365768 LOW FREQENCY ANALOG PRESSUR
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368207 HOSE HOLDER,DRAIN HOSE
$11.00
W0369060 CLAMP, HOSE CLAMP, Ø65.5MM
$3.50
W0369072 HARNESS, USER INTERFACE BOARD,
$9.60
W0369073 DRAIN TUB, ASSEMBLY, G60
$28.60
W0369076 HARNESS, VALVE, PCB, J7,960+870MM
$33.00
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.60
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$6.75
W0369141 TOP COUNTER WEIGHT SCREW
$11.40
W0369148 SHOCK ABSORBER
$43.55
W0369149 SHOCK ABSORBER ASSY+S.P
$117.00
W0369155 TRANSIT STRAPS,SCREWS,KIT
$23.00
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$27.80
W0370053 HARNESS,MOTOR CONTROL,MAIN ELE
$17.95
W0370055 HARNESS,MOTOR CONTROL,MOTOR,J2
$23.00
W0374805 CLAMP, HOSE CLAMP, 21.5-22.6MM
$3.50
W0374842 CLAMP, HOSE CLAMP, Ø20.5MM
$3.50
W0381532 CONFIGURED ELECTRONIC, EWX14931,WM,FULL
$305.00
W0382483 DRAIN PUMP
W0382545 CLUSTER WELDED ASSY
W0382547 DRUM LIFTER,KIT,3 PCS.,G60
W0382700 DOOR LOCK,40N,230V,50HZ
