LF9C1612AQ — 914550701 00

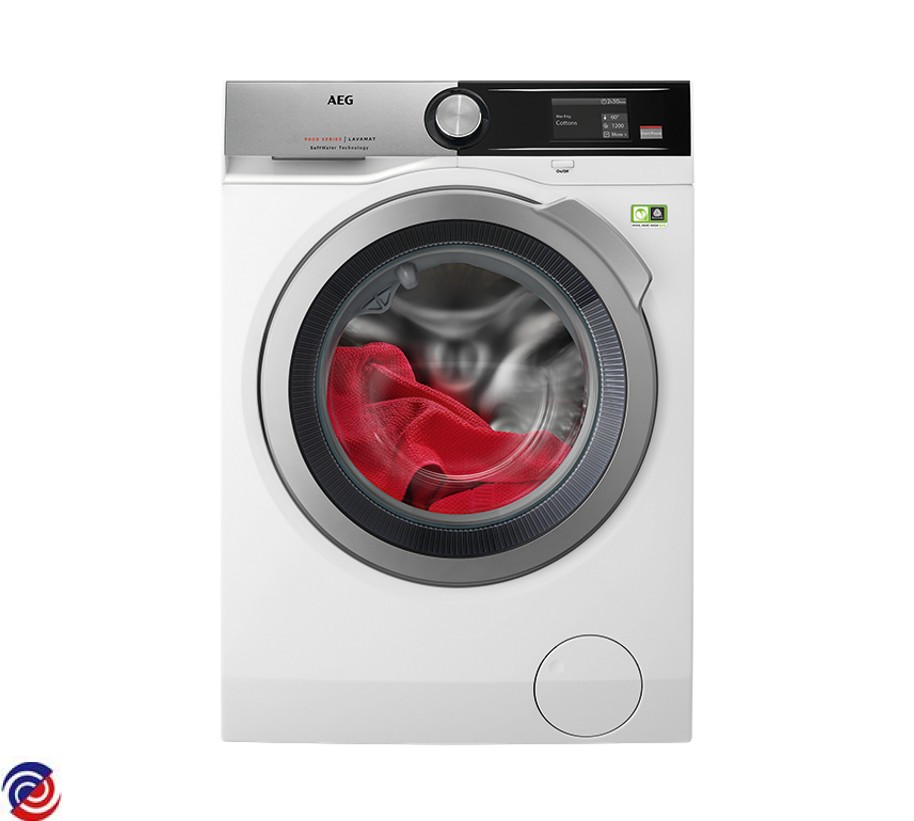

AEG — Washing Machine
Parts for LF9C1612AQ
W0016966 PUMP ASSY RECIRCULATION
$73.50
W0017173 SPRING, SUSPENSION, TUB
$13.50
W0017178 RECIRCULATION HOSE, INTAKE
$27.75
W0017188 DRAIN HOSE, ASSEMBLY, L=2540MM
$54.00
W0075952 BELT DRIVE
W0274401 RUBBER BELLOW,LIGHT,G60,3XL,JET,ONE
$124.50
W0274454 AEG FRONT LOADER WASHER AQUASTOP CONTROL INLET HOSE & HOOK
W0274504 FILTER DOOR PUSH BUTTON
$17.25
W0274532 SPRING,BUTTON,ON/OFF
$4.35
W0373334 PUMP DRAIN ASKOLL
W0016928 LEG ASSY
$14.18
W0016944 CAP REAR PANEL
$12.00
W0016957 SCREW,4,9X15 TTL TORX
$9.90
W0016977 SPACE COMPENSATOR, FIXING, PUM
$20.63
W0017027 CAP SUPPORT
$8.25
W0017057 TUBE, PRESSURE SWITCH
$12.75
W0017132 DRUM LIGHTING, ASSEMBLY
$16.50
W0017153 BRACKET SHOCK ABSORBER LH
$6.56
W0017154 BRACKET SHOCK ABSORBER RH
$4.95
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$4.50
W0017180 COUNTER WEIGHT FRONT G60W35H
$110.78
W0017200 SOUNDPROOFING BOTTOM SEAL
$87.00
W0023951 PULLEY,KIT,PLASTIC
$36.00
W0026940 COVER, INVERTER, ELECTRONIC BOARD
$11.03
W0070003 CLAMP HOSE
W0074344 BOLT,ROLLER,5,5X38
$3.00
W0075936 CLAMP, HOSE CLAMP, Ø52.5MM
$16.73
W0075991 POWER CABLE, AUS,2450MM,3X1.0MM
$25.50
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW, TUB,G33
W0076222 PANEL, BACK, HIGH
$35.25
W0076224 CHAMBER AIR
W0274364 RING LOCKING 3XL
$6.00
W0274365 RECIRCULATION HOSE
$38.25
W0274531 BUTTON,WHITE,RECTANGULAR,ON/OF
$12.00
W0274535 KNOB,PROGRAMME SELECTOR,CHROME
$36.75
W0275188 PUMP BODY,KIT,CW2.0,JET,ONE
$45.00
W0275425 BOX, MAIN ELECTRONIC BOARD, EWX13/EWX14
$18.60
W0282314 BOLT SHOCK ABSORBER
$6.75
W0282758 GUTTER,DRAIN,DIAPHRAGM
$3.75
W0282761 FILTER ASSEMBLY DIAPHRAGM
$15.75
W0282762 FRONT COVER,PUMP BODY,DIAMOND
$9.04
W0284152 FLOAT SWITCH, ASSEMBLY
W0284484 WORKTOP ASSY
$102.75
W0361197 DOOR,WELDED,SILVER,7959,G60,4
$378.00
W0361303 COVER,DOOR HINGE,GREY,ONE
$2.63
W0361310 COVER DRAIN PUMP
$3.45
W0363895 DETERGENT FILL HOSE,KIT,CLAMP
$6.38
W0363909 PANEL FRONT SOUND PROOF P-ONE
$146.18
W0364135 DOOR,DIAPHRAGM,PUMP BODY
$8.25
W0364138 BOX,PROGRAMME SELECTOR,ONE/DIA
$14.25
W0364168 SYPHON,ADDITIVES,DETERGENT DRA
$9.75
W0364169 DISPENSER,DETERGENT,AUTODOSING
$87.00
W0364200 DIFFUSER,LUMINOUS DIODE,SUPPOR
$21.75
W0364223 HEATING ELEMENT,WITH,SENSOR,23
$60.00
W0365768 LOW FREQENCY ANALOG PRESSUR
W0365854 AUTODOSE HARNESS ASSY
$10.61
W0365902 DETERGENT DISPENSER LIQUID RED
$13.50
W0366214 COVER, DETERGENT DRAWER, RED, AUTODOSING
$39.75
W0366369 VALVE MODULE
$78.00
W0366434 ELECTRIC VALVE,ASSEMBLY,AUTODOSING
$108.00
W0366440 DET DRAWER COMPLETE RED AUTO
$118.31
W0366518 CONTROL PANEL, WHITE, AEG, EN
$204.75
W0366587 WIFI PCB CONFIGURED NIU5
$150.04
W0366765 RECIRCULATION PUMP,DETERGENT,T
$42.00
W0366766 AQUA-CONTROL BOTTOM G60 UIMC
$12.83
W0366826 WATER DISTRIBUTOR,AUTODOSING
$42.75
W0366838 PCBA MOTOR CTRL EMC18EVO 800W
W0366860 MOTOR,INDUCTION,MAGNET,190V,1083HZ,80W,F
$281.25
W0366862 MOTOR MODULE, AUTODOSE, POT,FN
$187.50
W0366921 AUTODOSING O-RING
$2.63
W0366922 HANDLE SUPPORT ASSY, BLUE 720
$15.75
W0366927 BUTTON,RELEASE,D/DRAWER
$5.25
W0367444 HOSE,DETERGENT,CIRCULATION,CW
$7.50
W0368007 VALVE FIXING SPRING
$2.63
W0368016 PEG, FRONT PANEL, CATCH
$3.00
W0368207 HOSE HOLDER,DRAIN HOSE
$8.25
W0368501 DRAIN PLUG,RIGHT,DETERGENT DRA
$7.50
W0368502 DRAIN PLUG,LEFT,DETERGENT DISP
$7.50
W0369060 CLAMP, HOSE CLAMP, Ø65.5MM
$2.63
W0369070 HARNESS, USER INTERFACE BOARD, PCB
$23.74
W0369073 DRAIN TUB, ASSEMBLY, G60
$21.45
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$5.06
W0369141 TOP COUNTER WEIGHT SCREW
$8.55
W0369155 TRANSIT STRAPS,SCREWS,KIT
$17.25
W0369202 SCREW,DOOR HINGE,2 PCS.,4.8X11
$3.75
W0369239 PUMP,MODULE,AUTODOSING
$141.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$4.13
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$20.85
W0370053 HARNESS,MOTOR CONTROL,MAIN ELE
$13.46
W0370055 HARNESS,MOTOR CONTROL,MOTOR,J2
$17.25
W0370160 HARNESS,RECIRCULATION PUMP,DRA
$100.65
W0370281 HARNESS,MOTOR CONTROL,MAIN ELE
$17.10
W0370976 CONFIGURED ELECTRONIC, EWX14931,WM,FULL
$225.00
W0371121 PCBA User Interface & selector
$244.50
W0373653 PCBA MAIN EWX14931 FULL RAW
$129.00
W0374805 CLAMP, HOSE CLAMP, 21.5-22.6MM
$2.63
W0374842 CLAMP, HOSE CLAMP, Ø20.5MM
$2.63
W0374957 HARNESS,MAIN ELECTRONIC BOARD,
$7.91
W0375151 HARNESS, USER INTERFACE BOARD,
$19.61
W0375158 SHOCK ABSORBER,WITH PIN,80N
$22.50
W0375315 HARNESS, PRESSURE SWITCH, TEMP
$37.65
W0375666 NOT CONFIGURED ELECTRONIC,USER INTERFACE
$158.81
W0382545 CLUSTER WELDED ASSY
W0382547 DRUM LIFTER,KIT,3 PCS.,G60
W0382700 DOOR LOCK,40N,230V,50HZ
