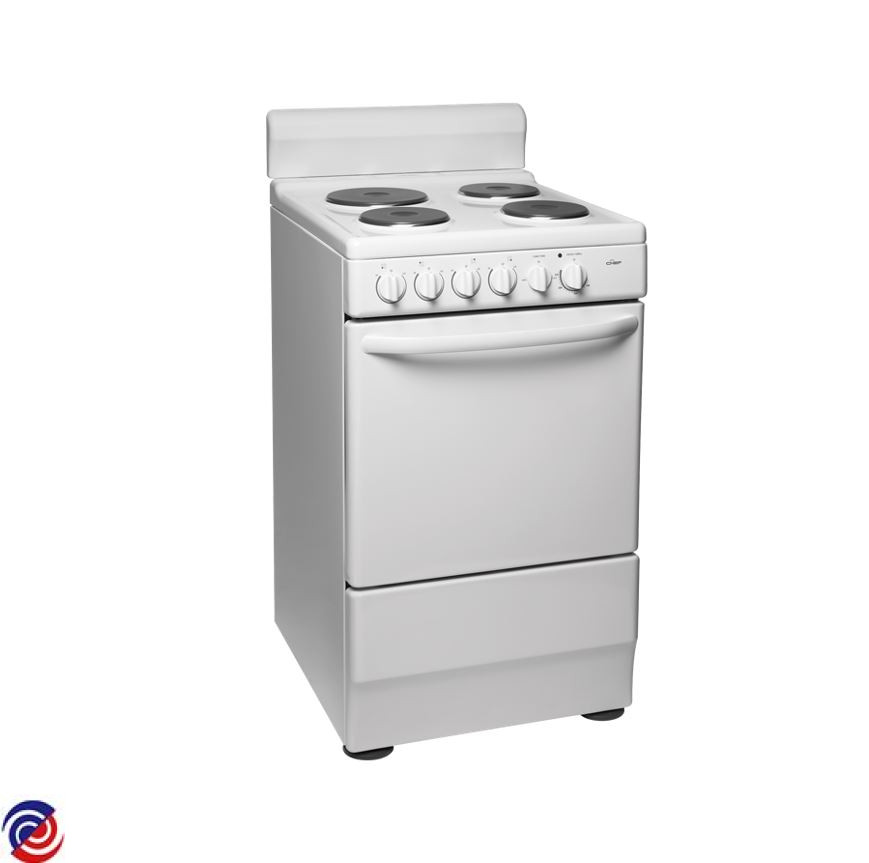

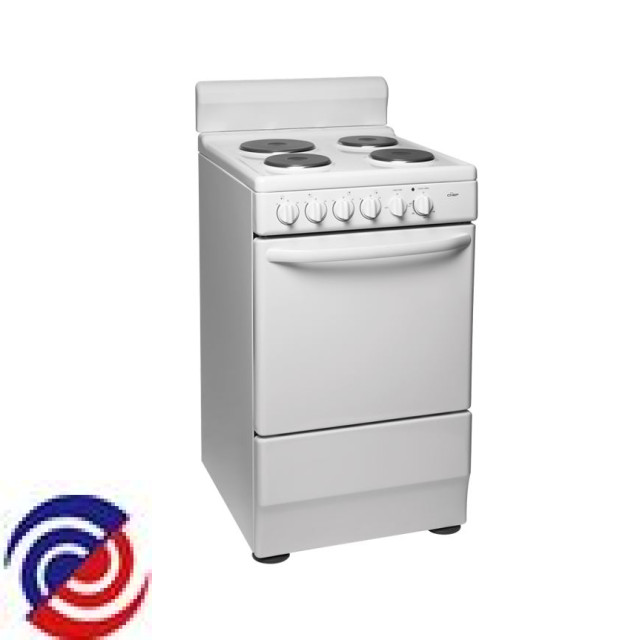

EBC5211W*53
CHEF — Cooker Electric
Parts for EBC5211W*53
W0011404 TRAY SCONE
$19.90
W0012254 ELEMENT C/HEAT 1800W SS321
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
.JPG)
W0012259 ELEMENT EGO 2000W 180DIA (HI)
.JPG)
W0012260 ELEMENT EGO 1000W 145DIA (HI)
$96.00
.JPG)
W0013556 SWITCH GANG 7 POSITION EGO
W0036947 KNOB CONTROL WHT 7803
$22.10
W0046262 ELEMENT EGO 1500W 145DIA (HI)
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
$18.30
W0050006 GASKET CAVITY OVEN
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057771 THERMOSTAT OVEN
W0062420 LIGHT INDICATOR INC LENS
W0100889 CLIP SPRING KNOB
$9.15
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011334 BRACKET ASSY ELEMENT 145MM
$12.60
W0011335 BRACKET ASSY ELEMENT 180MM
$18.00
W0011344 BRACKET STABILITY BOLT 540
$12.60
W0011994 NUT METRIC M12 X 1.00
$32.90
W0012166 WASHER LEAF SPRING 1/4
$4.00
W0012311 CLIP KICKPLATE PANEL
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012321 CLIP HOB ASSY
$5.50
W0012558 END CAP HANDLE WHT
W0012629 HARNESS 7 POS SW UR540 200MM
$17.15
W0012630 HARNESS 7 POS SW UR540 270MM
$18.00
W0013260 SHIELD WIRING
$11.95
W0013568 SWITCH MULTI 3
$44.90
W0013730 BUMPER STOP BLK
$6.55
W0013731 BUMPER STOP GREY
$5.05
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0036213 SUPPORT ELEMENT GRILL
W0037466 PLATE ANTI TILT ASSY 540
$22.00
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038745 BRACKET ANTI ROTATE SOLID UC20
W0038764 BRACKET INSULATION OVEN DOOR
W0039208 DISH GRILL ENAM 540 BIOS
W0039453 DOOR OVEN INNER SOLID
$189.90
W0039516 PANEL OUTER OV/DOOR SOLID A/W
W0039803 PANEL SIDE
$58.55
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0040562 PANEL CONTROL
W0040940 PANEL SPLASHBACK WHT PLAIN
W0041114 PANEL LOWER BRACE ASSY 540
W0041129 PANEL KICK
W0042617 CHANNEL SPILL VENT 540 GIO
W0042919 HANDLE DOOR WHT
W0044571 FRAME FRONT
W0045532 BOLT STABILISING
W0047144 INSULATOR SPILL/SWITCH 7 POS
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0048290 HARNESS WIRE 7POS FL 400MM RED
W0048296 HARNESS 7 POS SW UR540 520MM
W0052926 SPACER FOOT UC20
W0053490 RACK GRILL INSERT
W0053492 RACK GRILL DISH
W0054085 SHIELD WIRING HOB 540 GIO BIOS
W0054645 INSULATION OVEN CABINET
W0054668 INSULATION OVEN BACK 80 BIOS
W0054948 OVEN ENAMEL FRM CONV N/L BIOS
W0056283 OVEN BRACE 540 ASSY
$24.85
W0056768 LEG LEVELLING
$18.90
W0056770 FOOT LEVELLING UPRIGHT
W0062074 HOB SOLID ENAMEL
W0064447 SCREW #10 X 11.5 PAN PH 'Z' P
W0064625 SCREW #8X20 TYP 17 PT TORX BLK
W0064868 WASHER 3/16 X 3/8 ALUM
W0065427 SCREW M5 X 9MM CSK (BLK ZC)
W0065458 NUT HEX M6
$4.50
