CHG606SB — 943254013 06
CHEF — Cooker Gas

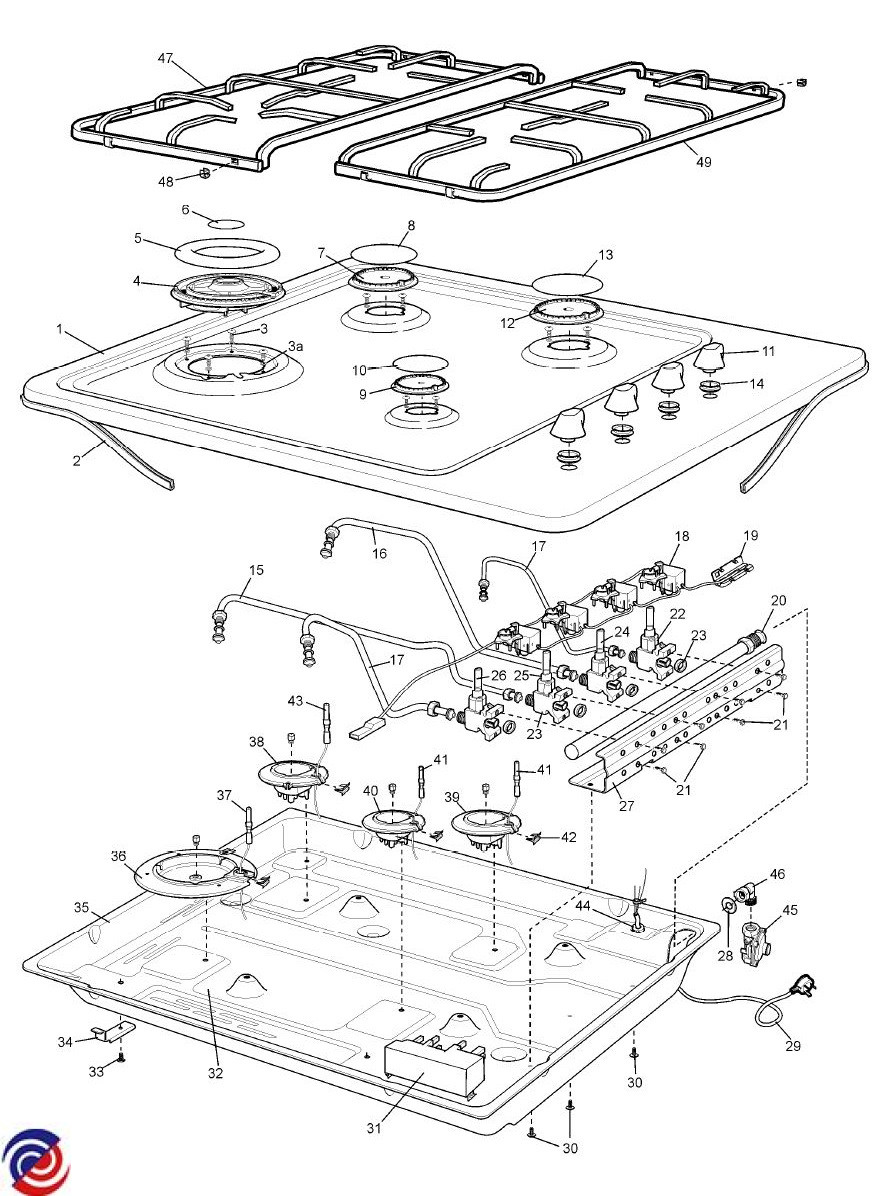

Parts for CHG606SB
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021539 SEAL HOB BLK 2320MM
$27.30
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0045365 WASHER SEALING
$4.50
W0108991 BURNER CAP ENAM RAPID CYLINDER
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0110203 CAP BURNER ENAMEL WOK SET
W0011182 RAIL GAS COOKTOP 4 HOLE CORAL
$13.20
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$8.80
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0013025 REGULATOR GAS NG INTEG TEST PT
W0021309 SCREW PAN HEAD M4 X 8
W0021320 SCREW M3.5X6
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021555 GROMMET 23MP06N40
$6.10
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0021672 THERMOCOUPLE 500 MM WOK
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0029624 PLUG SPARK WOK 500MM
$8.70
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029628 PLUG SPARK 600 MM ENAMELLED
W0029923 KNOB SILVER
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030137 TRIVET WIRE STD/STD CHEF MATT
$84.55
W0030171 TRIVET WIRE STD/WOK CHEF MATT
$81.65
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030612 SERVICE CORD 1200MM
W0030630 GROMMET SEAL
W0046736 INJECTOR 1.00 H/P
$8.80
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0046753 INJECTOR 1.45 ELUX FISH NG
W0053308 STICKER GAS TYPE NG
$4.00
W0053310 STICKER GAS TYPE LPG
$4.50
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0159885 GAS CONVERSION INSTRUCTIONS
W0275672 FITTING INLET TAPERED BSPT
$20.10
W0283048 BRACKET GAS RAIL 600/900 COPRE
$9.05
W0283106 GASKET VALVE COPRICI
W0283748 TUBE BURN ELUX SQR RF/RR
W0283750 TUBE BURN ELUX SQR C/TOP LR
$7.10
W0283764 TUBE BURN ELUX SQR C/TOP LR
$6.85
W0284216 SWITCH HARNESS
W0284310 COPRECI SGL VALVE AUX GN
W0284311 COPRECI SGL VALVE SEMI RAP BL
$44.90
W0284312 COPRECI SGL VALVE RAPID RED
$44.90
W0284313 COPRECI SGL VALVE WOK BK
$41.70
W0284317 IGN BOX 4 POINT
$59.55
W0361821 HOB LASER ETCHED SS CHG606SB
$114.60
