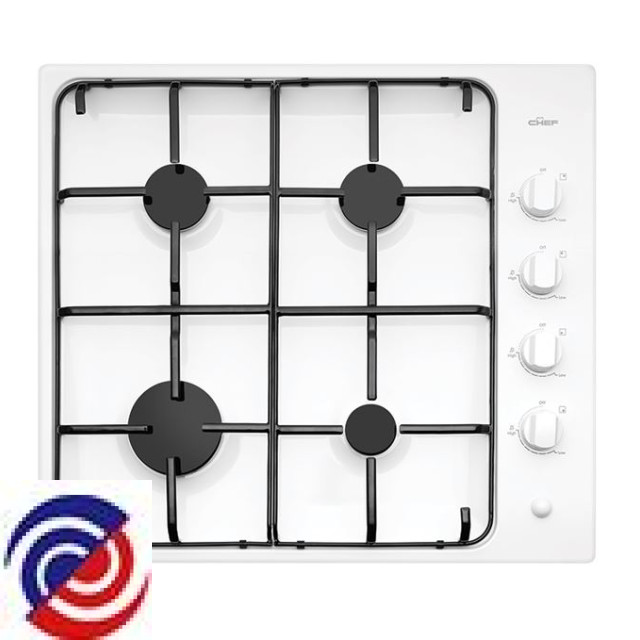

CHG642WB — 943254010 00
CHEF — Cooker Gas

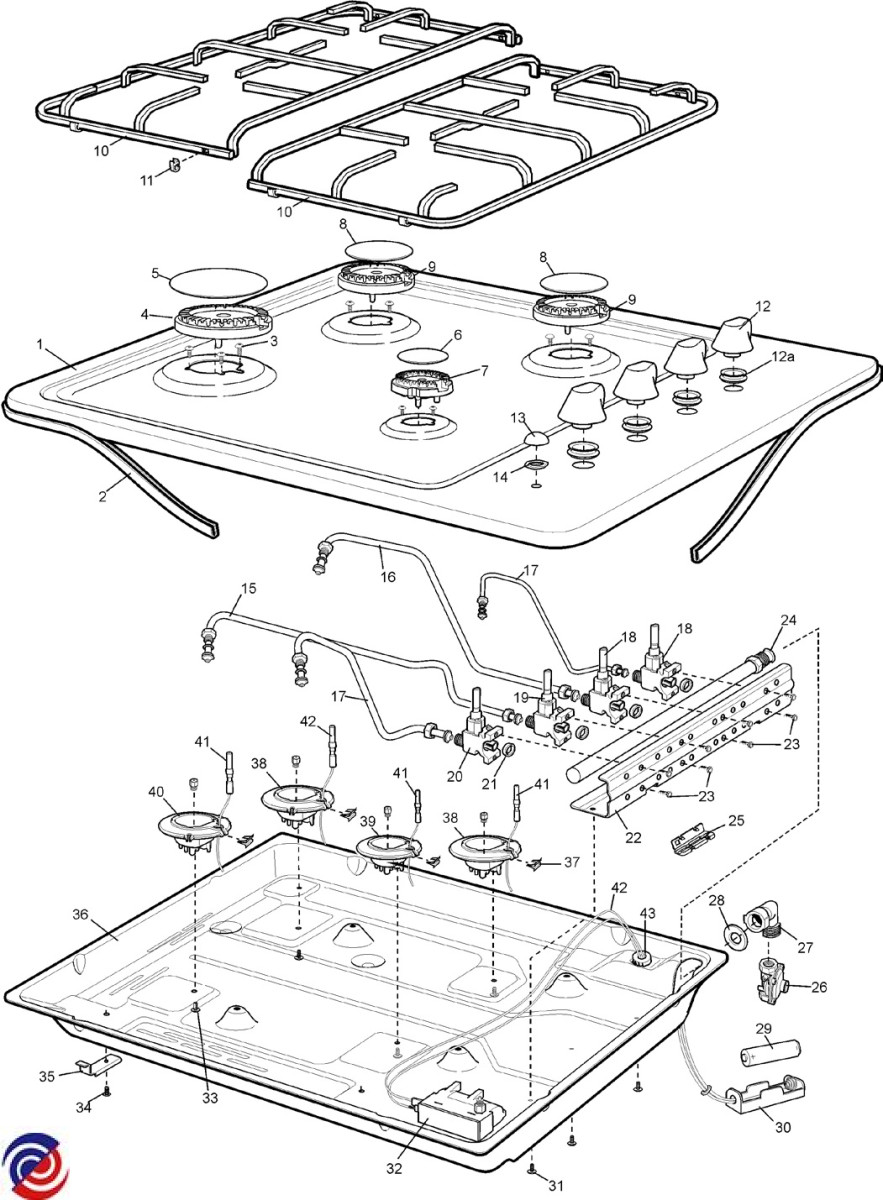

Parts for CHG642WB
W0012724 SEAL VALVE SOURDILLON
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021539 SEAL HOB BLK 2320MM
$27.30
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0030367 IGN BOX 4P 1.5V PUSH BUTTON
W0045365 WASHER SEALING
$4.50
W0060738 WHITE IGNITION BUTTON
$10.00
W0108991 BURNER CAP ENAM RAPID CYLINDER
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0011182 RAIL GAS COOKTOP 4 HOLE CORAL
$13.20
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0013990 BATTERY AA PROCELL 1.5V
W0021309 SCREW PAN HEAD M4 X 8
W0021320 SCREW M3.5X6
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021456 VALVE GAS BSI FSG AUX GREEN
W0021457 VALVE GAS BSI FSG SEMI RAP BL
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021534 HOLDER BATTERY AA 1000/1000MM
W0021556 GROMMET CORD GRIP 23MP06N44
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029628 PLUG SPARK 600 MM ENAMELLED
W0029924 KNOB WHITE
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030136 TRIVET WIRE STD/STD CHEF GLOSS
W0030304 TUBE BURN SQR C/TOP RF/RR FSG
W0030305 TUBE BURN SQR C/TOP LF FSG
W0030391 TUBE BURN ELUX SQR LF
W0030404 HOB 600 TOP PLATE WHT SCREENED
$104.95
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030630 GROMMET SEAL
W0102311 VALVE GAS BSI FSG RAPID RED
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0109046 SCREW TORQ #4 X 12 #6 PAN HEAD
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0274883 BRACKET GAS RAIL 600/900 WELD
W0275672 FITTING INLET TAPERED BSPT
$20.10
