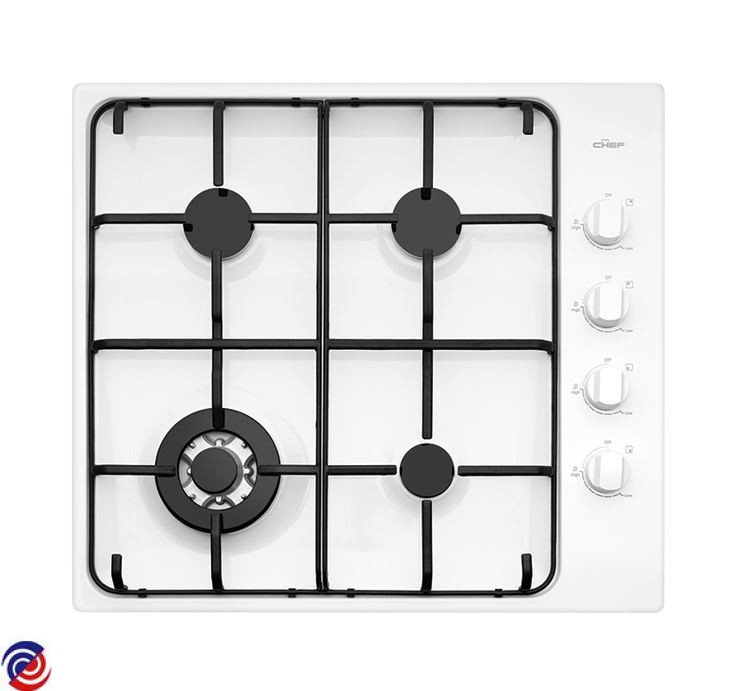

CHG646WB — 943254012 00
CHEF — Cooker Gas

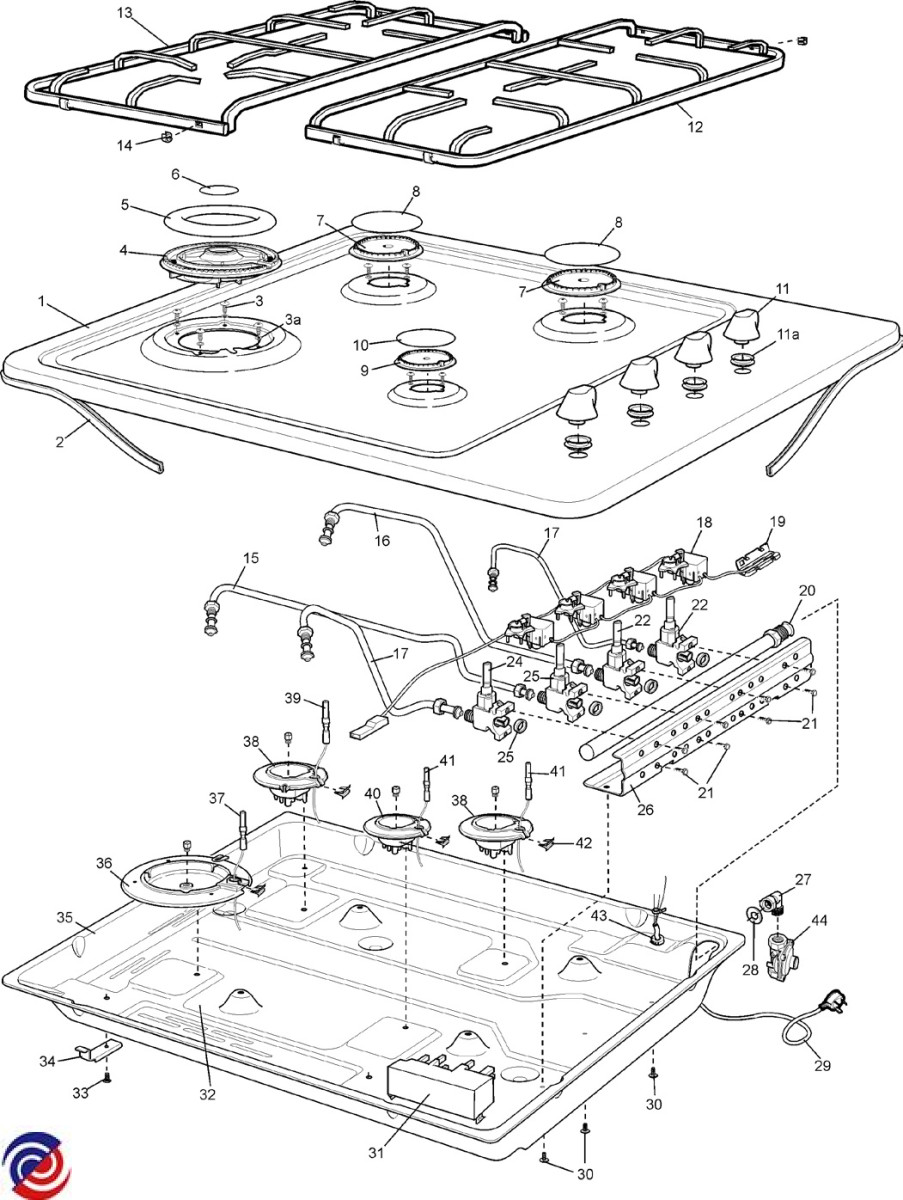

Parts for CHG646WB
W0012724 SEAL VALVE SOURDILLON
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021539 SEAL HOB BLK 2320MM
$27.30
W0022624 BURNER CROWN AUX CYLINDER
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0045365 WASHER SEALING
$4.50
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0110203 CAP BURNER ENAMEL WOK SET
W0011182 RAIL GAS COOKTOP 4 HOLE CORAL
$13.20
W0021309 SCREW PAN HEAD M4 X 8
W0021320 SCREW M3.5X6
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021456 VALVE GAS BSI FSG AUX GREEN
W0021457 VALVE GAS BSI FSG SEMI RAP BL
W0021493 BRACKET GAS RAIL 600/900 WELD
$20.00
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021555 GROMMET 23MP06N40
$6.10
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0021672 THERMOCOUPLE 500 MM WOK
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0027389 IGN BOX 4 POINT 220.240V JAVA
$47.90
W0029503 SWITCH HARNESS 4PT
W0029624 PLUG SPARK WOK 500MM
$8.70
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029628 PLUG SPARK 600 MM ENAMELLED
W0029924 KNOB WHITE
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030137 TRIVET WIRE STD/STD CHEF MATT
$84.55
W0030171 TRIVET WIRE STD/WOK CHEF MATT
$81.65
W0030304 TUBE BURN SQR C/TOP RF/RR FSG
W0030305 TUBE BURN SQR C/TOP LF FSG
W0030306 TUBE BURN SQR C/TOP LR FSG
W0030406 HOB 600 TOP PLATE WHT SCREENED
$95.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030612 SERVICE CORD 1200MM
W0030630 GROMMET SEAL
W0102092 SCREW M4 X 8 PHIL
W0102312 VALVE GAS BSI FSG WOK BLACK
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0109046 SCREW TORQ #4 X 12 #6 PAN HEAD
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0275623 BRACKET HEAT SHIELD
W0275672 FITTING INLET TAPERED BSPT
$20.10
