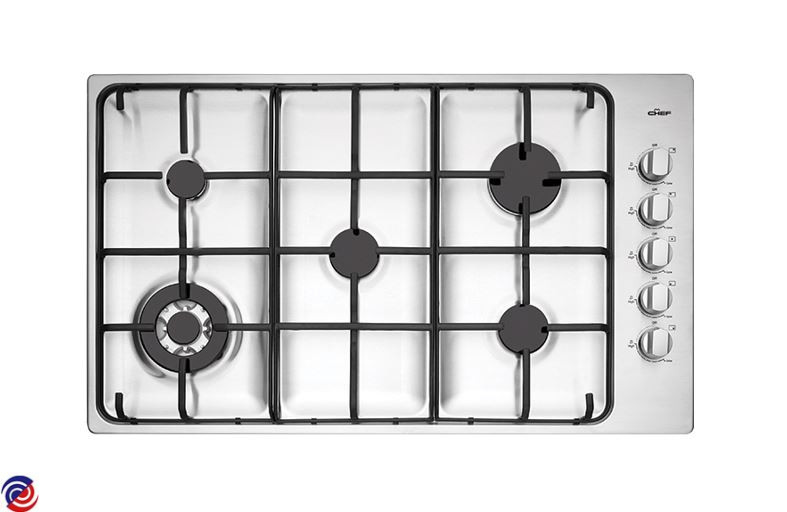

CHG956SB — 943254014 05
CHEF — Cooker Gas

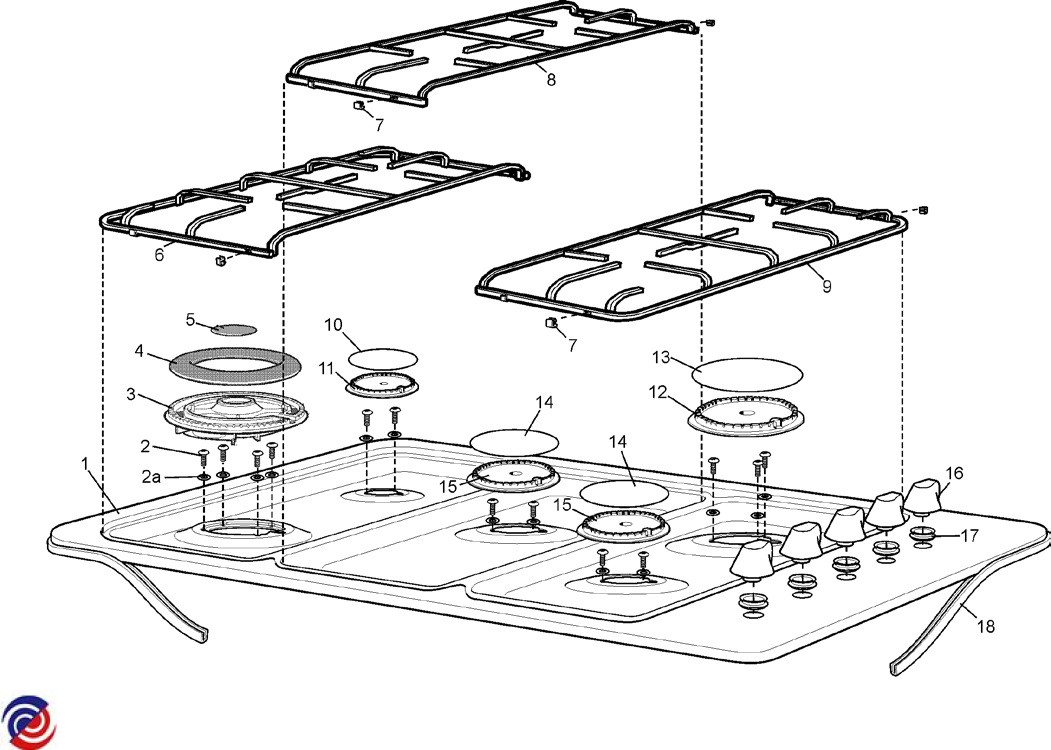

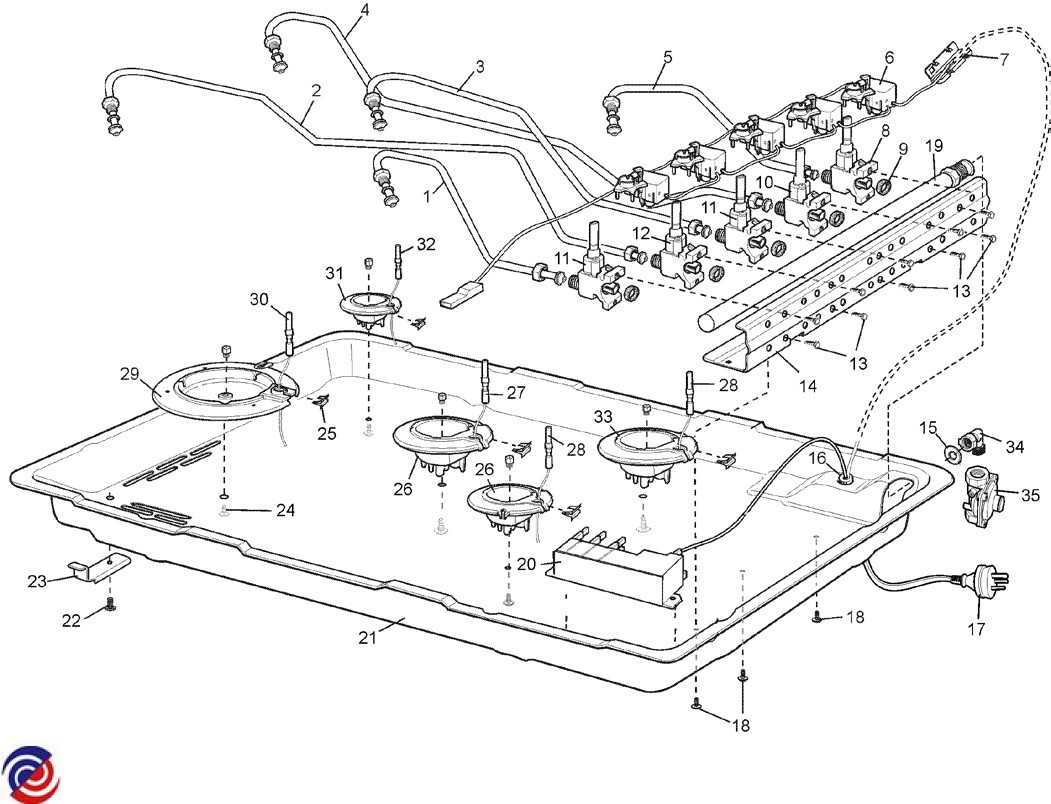

Parts for CHG956SB
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021540 SEAL HOB BLK 1850MM
$52.00
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0045365 WASHER SEALING
$4.50
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0108991 BURNER CAP ENAM RAPID CYLINDER
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0110203 CAP BURNER ENAMEL WOK SET
W0011183 RAIL GAS COOKTOP 5 HOLE GAIL
$11.75
W0011994 NUT METRIC M12 X 1.00
$32.90
W0021309 SCREW PAN HEAD M4 X 8
W0021320 SCREW M3.5X6
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021493 BRACKET GAS RAIL 600/900 WELD
$20.00
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021555 GROMMET 23MP06N40
$6.10
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0029625 PLUG SPARK WOK 900MM ENAMELLED
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029628 PLUG SPARK 600 MM ENAMELLED
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029923 KNOB SILVER
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030281 TRIVET WIRE STD 90 CHEF MATT
W0030282 TRIVET WIRE WOK 90 CHEF MATT
W0030283 TRIVET WIRE CENT 90 CHEF MATT
$59.95
W0030407 HOB 900 TOP PLATE S/S SCREENED
$195.45
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030612 SERVICE CORD 1200MM
W0030630 GROMMET SEAL
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0102418 THERMOCOUPLE 750MM WOK
$65.85
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0275672 FITTING INLET TAPERED BSPT
$20.10
W0283106 GASKET VALVE COPRICI
W0283538 SWITCH HARNESS
W0283720 TUBE RF FSG FORTE COMMERCIAL
$7.55
W0283721 TUBE RR FSG FORTE COMMERCIAL
$6.20
W0283758 TUBE MID FSG FORTE COMMERCIAL
W0283761 TUBE LR FSG FORTE COMMERCIAL
$8.00
W0283762 TUBE RF FSG FORTE COMMERCIAL
$8.00
W0284310 COPRECI SGL VALVE AUX GN
W0284311 COPRECI SGL VALVE SEMI RAP BL
$44.90
W0284312 COPRECI SGL VALVE RAPID RED
$44.90
W0284313 COPRECI SGL VALVE WOK BK
$41.70
