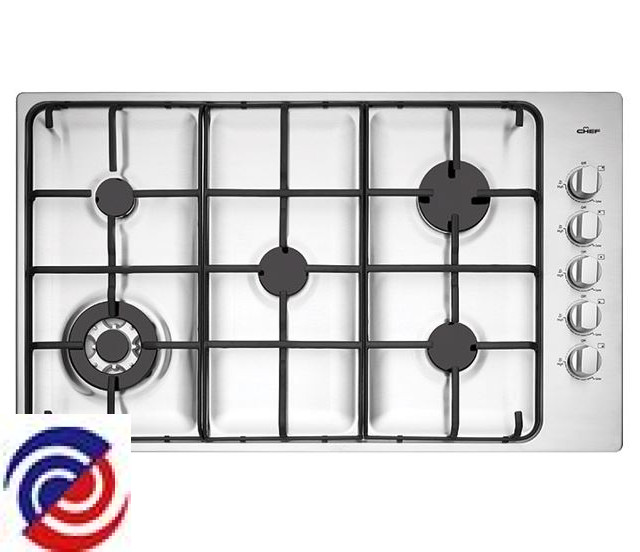

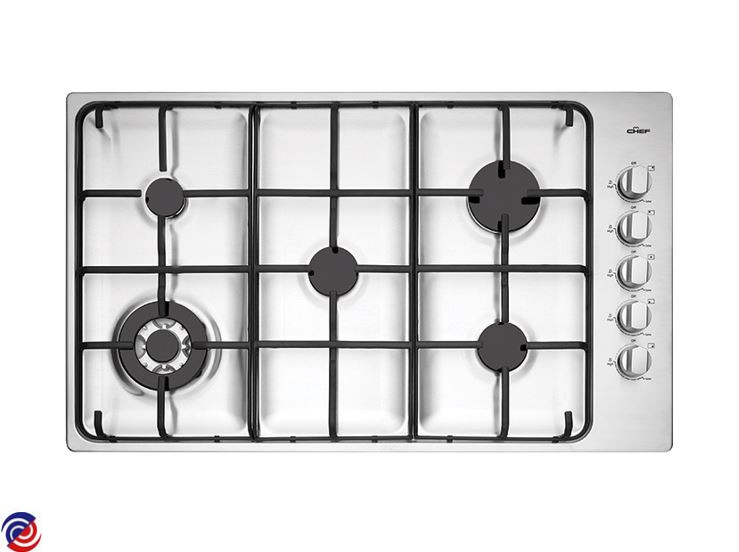

CHG956WB — 943254015 00
CHEF — Cooker Gas
Parts for CHG956WB
W0012724 SEAL VALVE SOURDILLON
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021540 SEAL HOB BLK 1850MM
$52.00
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0045365 WASHER SEALING
$4.50
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0108991 BURNER CAP ENAM RAPID CYLINDER
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0110203 CAP BURNER ENAMEL WOK SET
W0011183 RAIL GAS COOKTOP 5 HOLE GAIL
$11.75
W0011994 NUT METRIC M12 X 1.00
$32.90
W0021309 SCREW PAN HEAD M4 X 8
W0021320 SCREW M3.5X6
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021456 VALVE GAS BSI FSG AUX GREEN
W0021457 VALVE GAS BSI FSG SEMI RAP BL
W0021493 BRACKET GAS RAIL 600/900 WELD
$20.00
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021555 GROMMET 23MP06N40
$6.10
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0029504 SWITCH HARNESS 5PT
$30.00
W0029625 PLUG SPARK WOK 900MM ENAMELLED
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029628 PLUG SPARK 600 MM ENAMELLED
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029924 KNOB WHITE
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030149 TUBE BURN 90 C/TOP RF FSG
W0030150 TUBE BURN 90 C/TOP RR FSG
W0030151 TUBE BURN 90 C/TOP MID FSG
W0030152 TUBE BURN 90 C/TOP LR FSG
$6.55
W0030153 TUBE BURN 90 C/TOP LF FSG
W0030281 TRIVET WIRE STD 90 CHEF MATT
W0030282 TRIVET WIRE WOK 90 CHEF MATT
W0030283 TRIVET WIRE CENT 90 CHEF MATT
$59.95
W0030408 HOB 900 TOP PLATE WHT SCREENED
$125.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030612 SERVICE CORD 1200MM
W0030630 GROMMET SEAL
W0102311 VALVE GAS BSI FSG RAPID RED
W0102312 VALVE GAS BSI FSG WOK BLACK
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0102418 THERMOCOUPLE 750MM WOK
$65.85
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0275672 FITTING INLET TAPERED BSPT
$20.10
