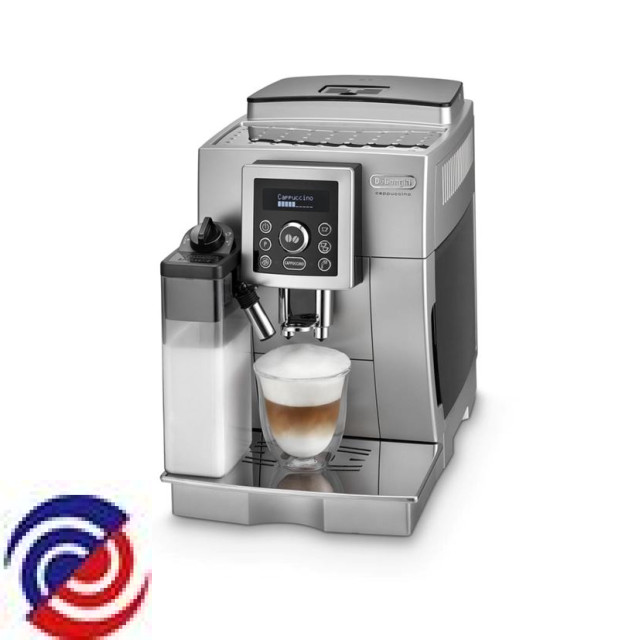

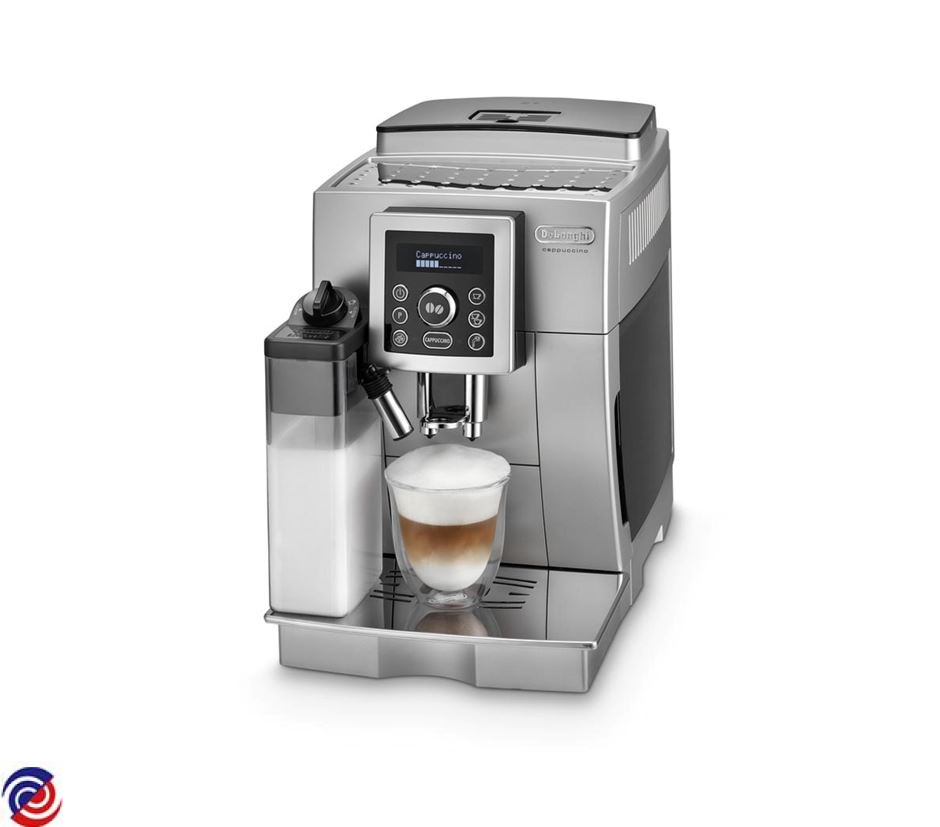

ECAM23.460.S S11 — 0132215271
DELONGHI — Coffee Machine

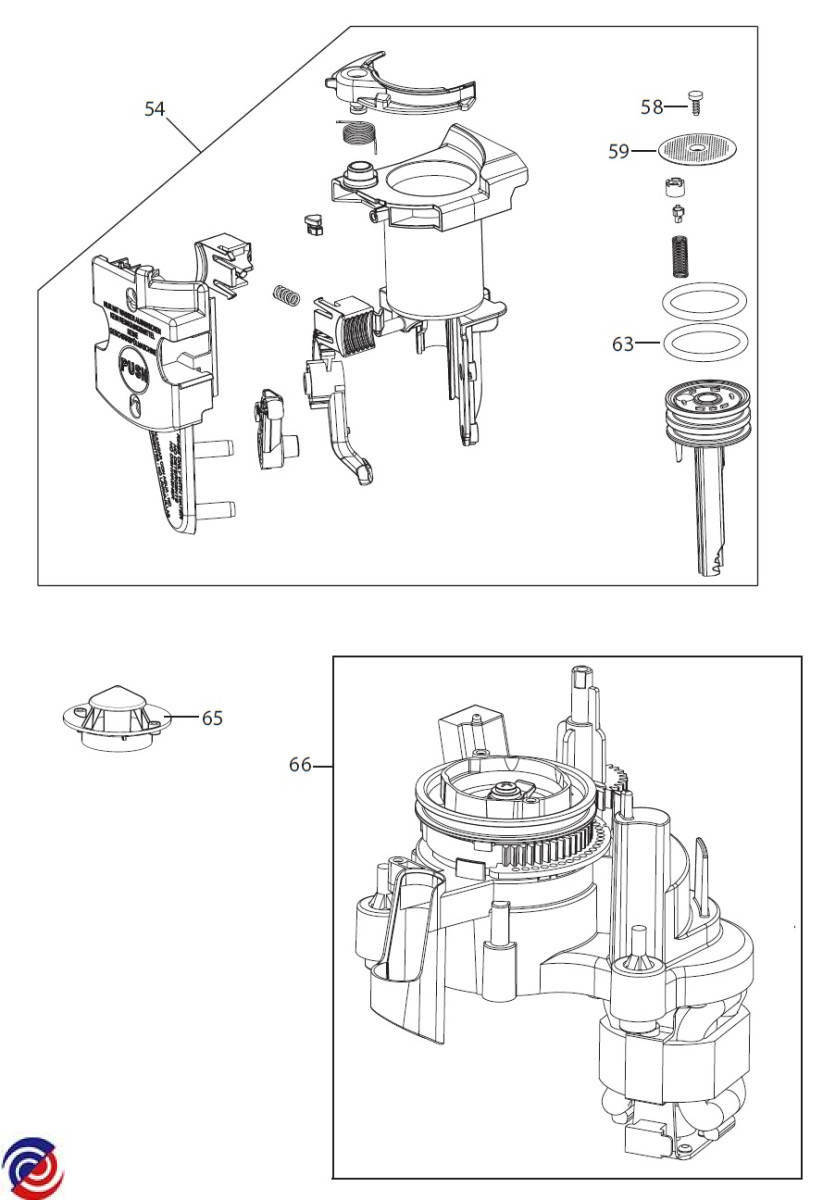

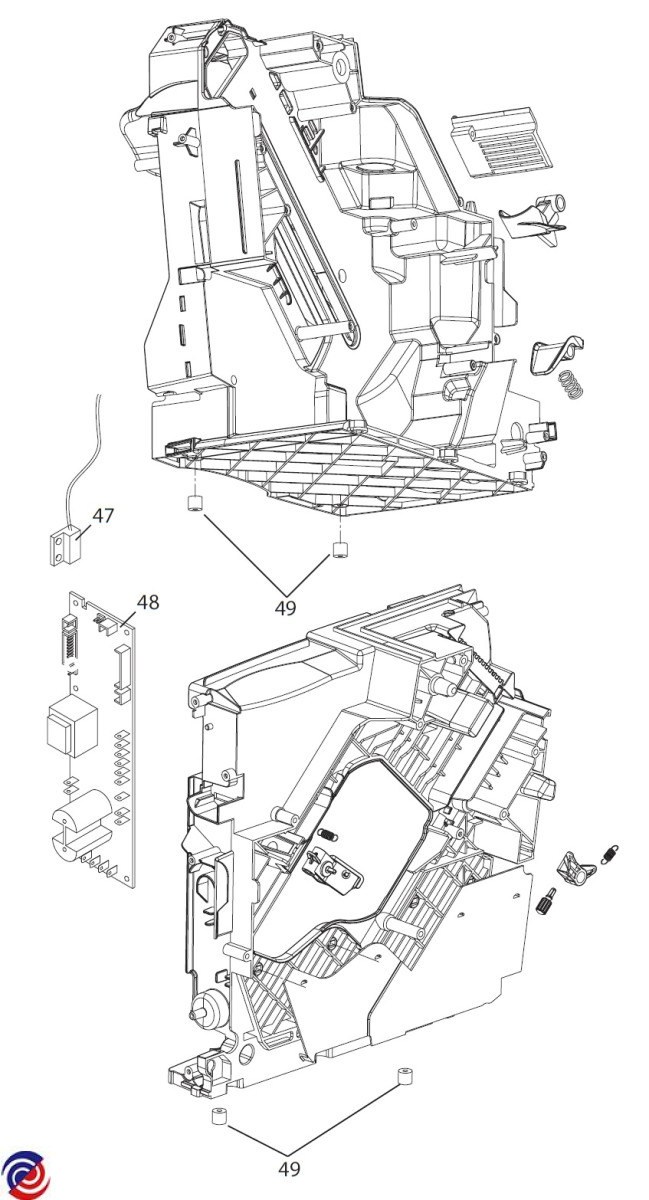

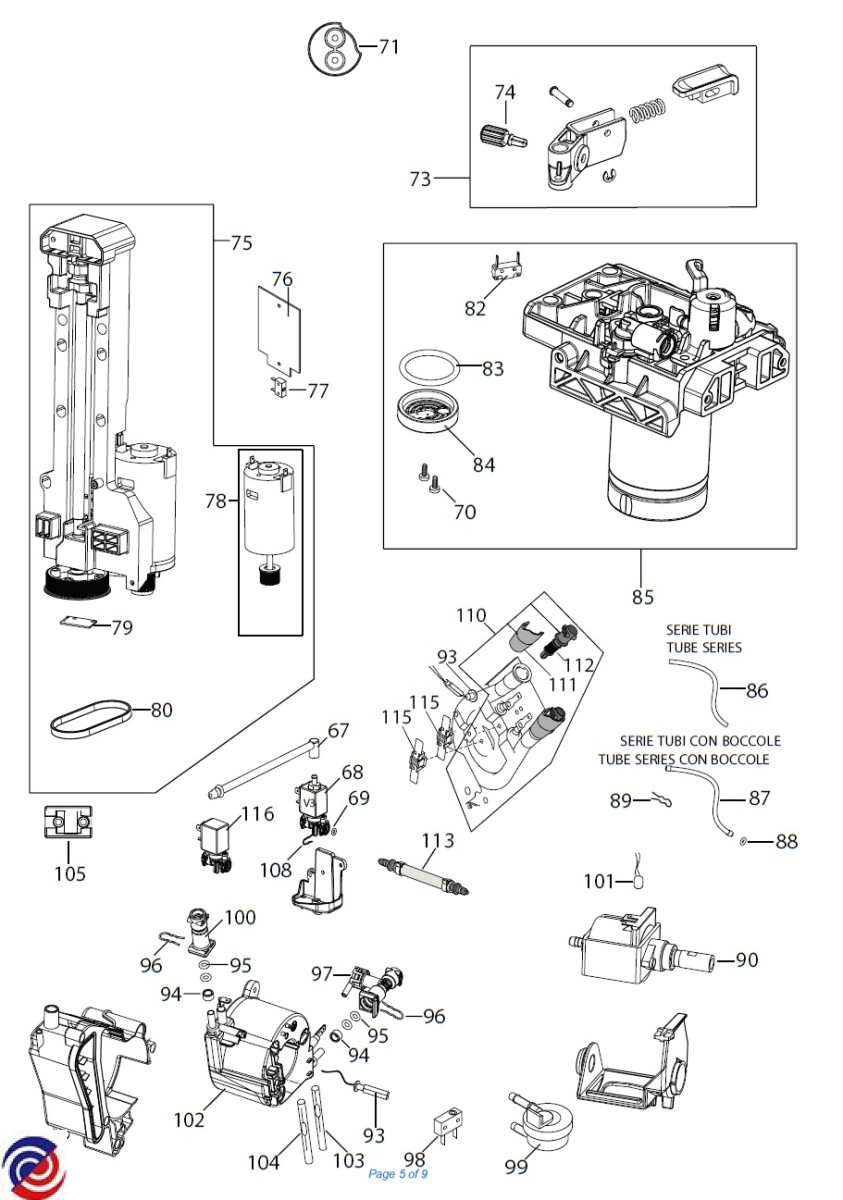

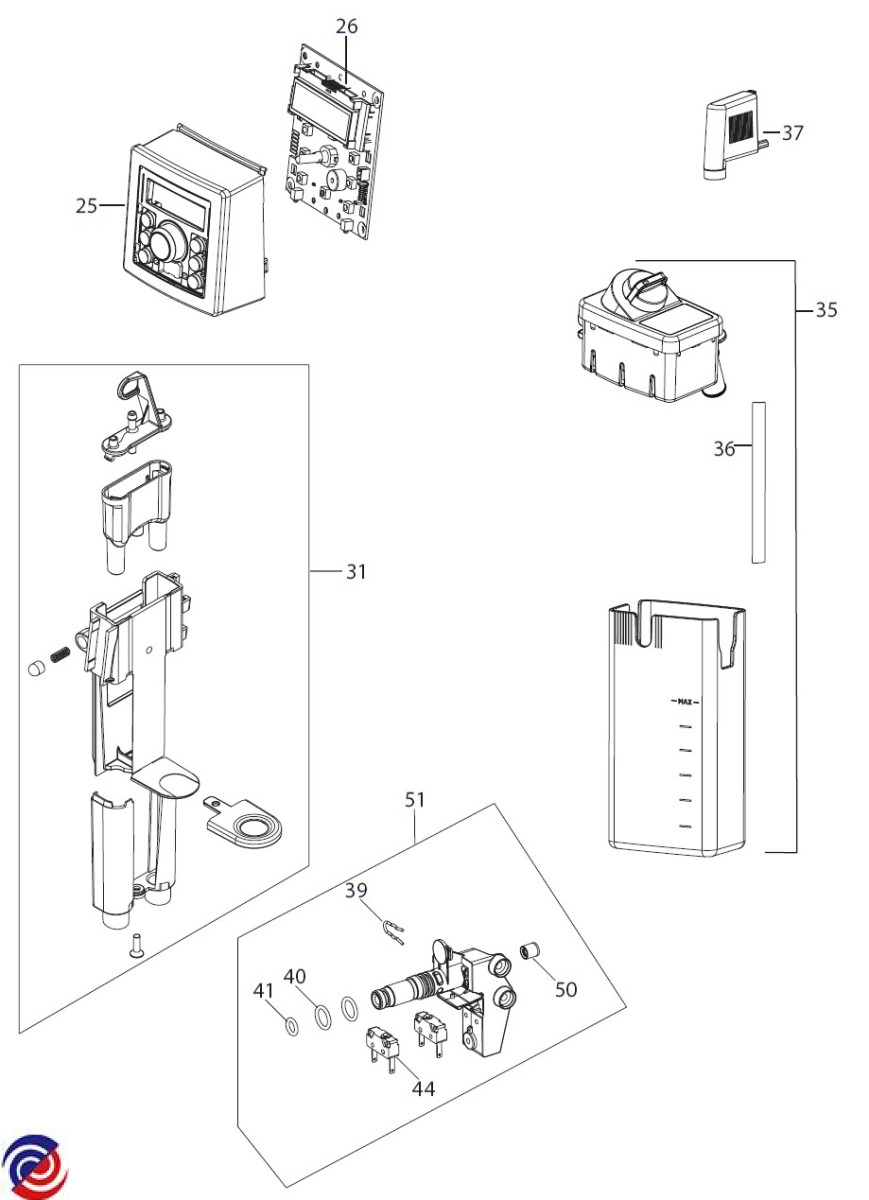

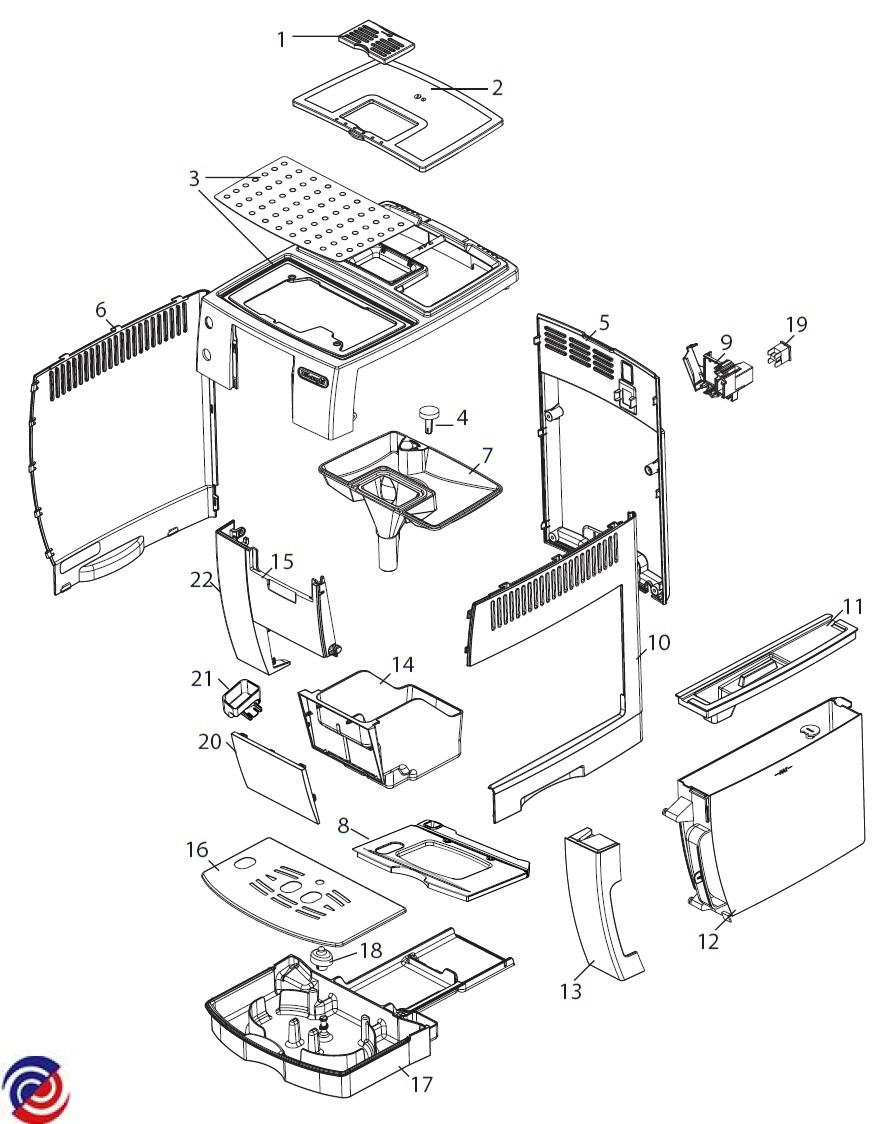

Parts for ECAM23.460.S S11

W0271287 MILK CLEAN SOLUTION 250ML
$19.95
W0276254 WATER TANK
W0276917 GROUND COFFEE TANK COVER
$11.90
W0276918 COFFEE BEANS COVER
W0276921 GRIND REGULATION KNOB
$19.90
W0276922 COFFEE BEANS TANK
$12.80
W0276927 COFFEE DREGS DRAWER
W0276928 DRAIN TRAY
$12.50
W0276929 DREGS DRAWER FRONT PIECE
$31.60
W0276931 WATER TANK COVER
$23.10
W0276932 WATER TANK FRONT PIECE
W0276934 FLOAT
$26.60
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276944 O-RING (D=9.25 T=1.78)
$12.35
W0276949 COFFEE OUTLET TANK COVER
$13.00
W0276958 SCREW (3.5X12)
$11.70
W0276963 FINGER STOP COVER
$12.40
W0276964 DELONGHI COFFEE INFUSER BREW UNIT
$49.00
W0276968 FILTER
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$6.95
W0276974 TROLLEY SLEWING RING
$14.00
W0276976 COMPENSATION SYSTEM
W0276977 PROTECTIVE RUBBER GASKET
$12.20
W0276980 MICROSWITCH
$27.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276984 RIGHT ANGLE WATER OUTLET TUBE
$14.20
W0276985 BLACK FILTER
$12.20
W0276987 TUBE (L145)
$12.20
W0276988 TUBE (DI=3 DE=6 L200)
$12.85
W0276989 SILICONE HOSE (DI=4 DE=8 L=150) TUBE FOR ULKA PUMP
$13.42
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276994 TUBE WITH 2 BUSHES (L290)
$25.00
W0276995 O-RING (D=3.85 T=2)
$6.60
W0276996 SPRING
$12.00
W0276997 FLOWMETER
W0276998 MICROSWITCH
$25.10
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277007 CAM SLIDER
$14.00
W0277008 SPACER
$12.20
W0277009 O-RING D=4,5
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.60
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277015 GREASE TUBE (5GR VERKOFOOD)
$20.00
W0277037 DELONGHI HOT WATER SPOUT
$18.00
W0277083 TOOTHED BELT
$14.00
W0277084 HALL SENSOR (L780)
$15.40
W0277089 GRINDER ASSEMBLY (3D-DL 230V)
W0277090 SWITCH (16A 125/250V)
W0277091 CONNECTOR
$28.00
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277114 TUBE WITH 2 BUSHES (L150)
$13.30
W0277121 THERMAL CUT OUT (13.5A 318°)
$14.25
W0277123 NTC PROBE (L870)
$17.00
W0277128 RIGHT ANGLE CONNECTION
$14.00
W0277129 SOLENOID VALVE (3VA 230V)
$27.02
W0277132 GENERATOR GASKET
$11.70
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277684 COFFEE HOSE CLAMP
$12.90
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277839 CUP HOLDER INSULATION
$13.60
W0277841 KEY SUPPORT
$12.80
W0277845 FRONT PIECE
$18.30
W0277847 CUP HOLDER
$30.40
W0277849 CUP HOLDER TRAY
$30.00
W0277852 CONTROL PANEL ASSEMBLY WITHOUT BOARD
$48.20
W0277870 TRANSMISSION ASSEMBLY (ECM 230V)
$83.60
W0277873 RIGHT ANGLE DRAIN CONNECTION
$12.50
W0277880 TCO WITH WIRING
$13.80
W0277885 FLOWMETER WIRING (L 470)
$24.60
W0277891 MILK INTAKE TUBE
W0277898 SAFETY VALVE
$13.60
W0277899 TUBE WITH NUT AND 1 BUSH (L300)
$14.30
W0277901 SOLENOID VALVE (3VB 230V)
W0277903 TUBE WITH NUT AND 1 BUSH (L180)
$15.45
W0277904 MOTOR BOARD (ECM 230V)
$17.10
W0277907 TCO WITH WIRING
W0277910 COFFEE DISPENSER
$19.00
W0277912 DELONGHI LATTECREMA CAPPUCCINO MILK CARAFE FROTHING JUG
$63.50
W0277914 O-RING (D6.07 T1.78)
$12.20
W0277917 POWER BOARD (SW2.1 DG 230V)
$58.80
W0277921 RUBBER FOOT PAD
$11.70
W0277925 CARAFE COUPLING
W0277930 TUBE WITH 2 BUSHES (L170)
$12.30
W0277933 STEAM CONNECTION WITH GASKET
$12.20
W0277934 TUBE WITH CONNECTIONS ASSEMBLY
$15.00
W0278004 ARCHIMEDES SCREW
$15.30
W0278173 POWER BOARD (SW1.0 230V)
$58.60
W0295785 Genuine DeLonghi Descaler Cleaner Espresso Coffee Machine in 500ml - EcoDecalk DLSC500
$37.00
W0315451 GASKET
$4.50
W0319963 FLOW REGULATOR
$19.00
W0362536 DELONGHI TANK - CONFIGURATION A
$32.00
W0371444 ROUND GENERATOR (230V 1400W F6.3)
$32.00
W0374439 DELONGHI GRINDER ASSEMBLY
$84.00
W0374777 PUMP (ULKA 230V 48W)
$34.20
W0375993 FLOWMETER
$22.50
W0376088 MILK INTAKE TUBE
$14.00
W0376141 COFFEE GROUNDS CONTAINER
$26.00
W0376314 CLIP (WIRE 1,2 AISI302)
$12.00
W0382490 MECHANICS VALVE (ECAM)
$66.00
W0382682 DISPLAY BOARD
$122.20
W0382748 DELONGHI PLATE
$17.80
W0383118 SOLENOID VALVE (3VB 230V)
$32.00
W0383488 WATER TANK - CONFIGURATION B
$32.00
No image available
W0277827 UPPER COVER
$61.10
No image available
W0277836 REAR PANEL
$23.60
No image available
W0277838 LEFT SIDE
$23.90
No image available
W0277843 RIGHT SIDE
$24.80
No image available
W0277850 LEFT FRONT PIECE
$20.30
No image available
W0277868 POWER SUPPLY CORD WITH PLUG (AU)
$16.70
No image available
W0277909 BOARD DISPLAY
No image available
W0277923 NON-RETURN GASKET
$12.30
No image available
W0277927 MECHANICS VALVE
No image available
W0277931 SEE TECNICAL INFORMATION
No image available
W0278178 VAPORIZER CONNECTION CLIP
$11.70
No image available
W0311646 CABLING WITH FUSE FOR GRINDER (1.25A L=240MM)
No image available
W0313025 SENSOR NTC
$16.00
No image available
W0315706 GENERATOR COVER
$16.90
No image available
W0323458 SPRING
$11.70
No image available
W0371588 WATER TANK FRONT PIECE
$20.00
No image available
W0374323 TROLLEY
$18.00
No image available
W0383567 COMPENSATION SYSTEM
$34.50
