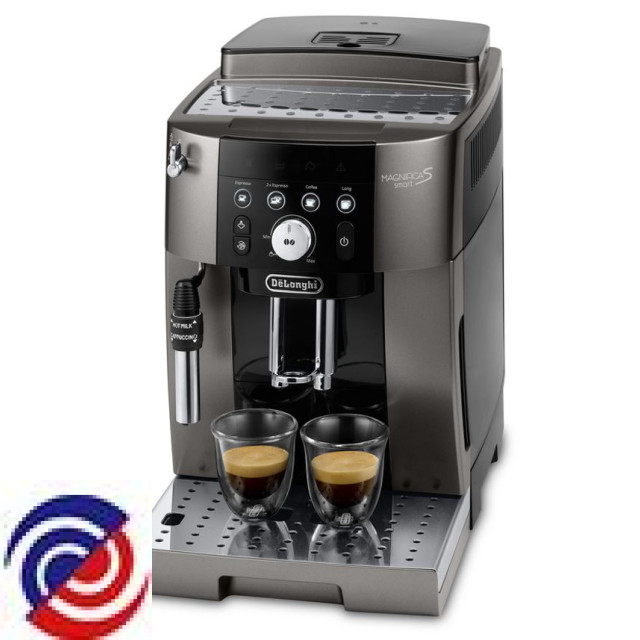

ECAM250.33.TB — 0132213180
DELONGHI — Coffee Machine
Parts for ECAM250.33.TB
W0192869 TUBE (L170)
$12.20
W0276917 GROUND COFFEE TANK COVER
$11.90
W0276920 LEFT SIDE
$17.10
W0276921 GRIND REGULATION KNOB
$19.90
W0276924 SWITCH HOLDER
$22.80
W0276925 SWITCH
$24.30
W0276928 DRAIN TRAY
$12.50
W0276930 RIGHT SIDE
$15.60
W0276940 O-RING (D=6.75 T=1.78)
$4.50
W0276941 FROTHER STOP
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276944 O-RING (D=9.25 T=1.78)
$12.35
W0276945 O-RING (D=6.07 T=1.78)
$4.20
W0276948 STEAM KNOB
W0276949 COFFEE OUTLET TANK COVER
$13.00
W0276951 SPRING
$12.00
W0276952 REGULATOR
$12.00
W0276958 SCREW (3.5X12)
$11.70
W0276959 SENSOR REED
W0276962 GRINDER ASSEMBLY (3D-DL 230V)
W0276964 DELONGHI COFFEE INFUSER BREW UNIT
$49.00
W0276965 EXPULSION LEVER
$12.20
W0276966 SPRING
$12.20
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276971 SPRING
$12.00
W0276974 TROLLEY SLEWING RING
$14.00
W0276975 TROLLEY
$34.30
W0276976 COMPENSATION SYSTEM
W0276977 PROTECTIVE RUBBER GASKET
$12.20
W0276980 MICROSWITCH
$27.00
W0276982 HALL SENSOR (L620)
$16.92
W0276984 RIGHT ANGLE WATER OUTLET TUBE
$14.20
W0276985 BLACK FILTER
$12.20
W0276986 DELONGHI COFFEE MACHINE VALVE
$56.50
W0276987 TUBE (L145)
$12.20
W0276988 TUBE (DI=3 DE=6 L200)
$12.85
W0276991 TUBE WITH 2 BUSHES (L97)
$12.60
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276994 TUBE WITH 2 BUSHES (L290)
$25.00
W0276995 O-RING (D=3.85 T=2)
$6.60
W0276996 SPRING
$12.00
W0276998 MICROSWITCH
$25.10
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
W0277003 NTC PROBE (L760)
W0277004 TCO WITH WIRING
$13.90
W0277005 TCO WITH WIRING
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277007 CAM SLIDER
$14.00
W0277008 SPACER
$12.20
W0277009 O-RING D=4,5
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.60
W0277071 FLOAT
$12.90
W0277083 TOOTHED BELT
$14.00
W0277087 DOOR
$16.30
W0277093 MOBILE FUNNEL
$11.70
W0277094 PISTON LOWERING FLAP
$12.00
W0277095 EXPULSION ARM
$12.30
W0277097 RIGHT FRAME
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277149 MEASURING SPOON
W0277826 TUBE WITH 2 BUSHES (L230)
W0277828 INNER COVER
W0277864 SPRING
$11.70
W0277865 LEFT FRAME
$22.20
W0277910 COFFEE DISPENSER
$19.00
W0277921 RUBBER FOOT PAD
$11.70
W0278005 WIRING FOR FLOWMETER (L300)
W0278127 DRIP TRAY GRID
$15.00
W0278209 MOTOR ASSEMBLY (CHIAPHUA 230V)
$39.90
W0294048 TANK
W0295785 Genuine DeLonghi Descaler Cleaner Espresso Coffee Machine in 500ml - EcoDecalk DLSC500
$37.00
W0315451 GASKET
$4.50
W0315638 WATER TANK COVER
$17.00
W0315866 COFFEE GROUNDS CONTAINER
W0318111 LOWER TUBE
$12.80
W0319963 FLOW REGULATOR
$19.00
W0276923 REAR PANEL
$18.20
W0276967 EXPULSION LEVER RUBBER PAD
W0277002 PUMP SUPPORT
W0277862 SPRING
W0277863 SUPPORT
W0278093 POWER SUPPLY CORD WITH PLUG (AU)
W0313293 MOTOR BOARD (CHIAPHUA)
$64.90
W0313296 POWER BOARD (SW1.0.0 230V)
$64.80
W0313301 DISPLAY PCB
$32.60
W0313303 FLOWMETER
$17.00
W0315210 FRONT PIECE
$13.50
W0315706 GENERATOR COVER
$16.90
W0315869 FRONT PIECE
$18.10
W0315948 FRONT PIECE
$19.60
W0315956 BOTTOM OF COVER
$19.60
W0315966 DRIP TRAY
$33.30
W0319609 FROTHER TUBE
$31.60
W0319898 SAFETY VALVE
$15.50
W0319979 TANK
$16.80
W0320038 COVER
$17.60
W0320054 DISPLAY GLASS
$18.20
W0323112 CUP HOLDER
$20.30
W0325597 TUBE WITH FROTHER
$26.40
W0325598 STEAM VALVE ASSEMBLY
W0325931 TRANSMISSION (CHIAPHUA 230V)
$80.10
W0328669 UPPER COVER
W0328673 CONTROL PANEL ASSEMBLY WITHOUT BOARD
