ECAM290.31.SB — 0132220065

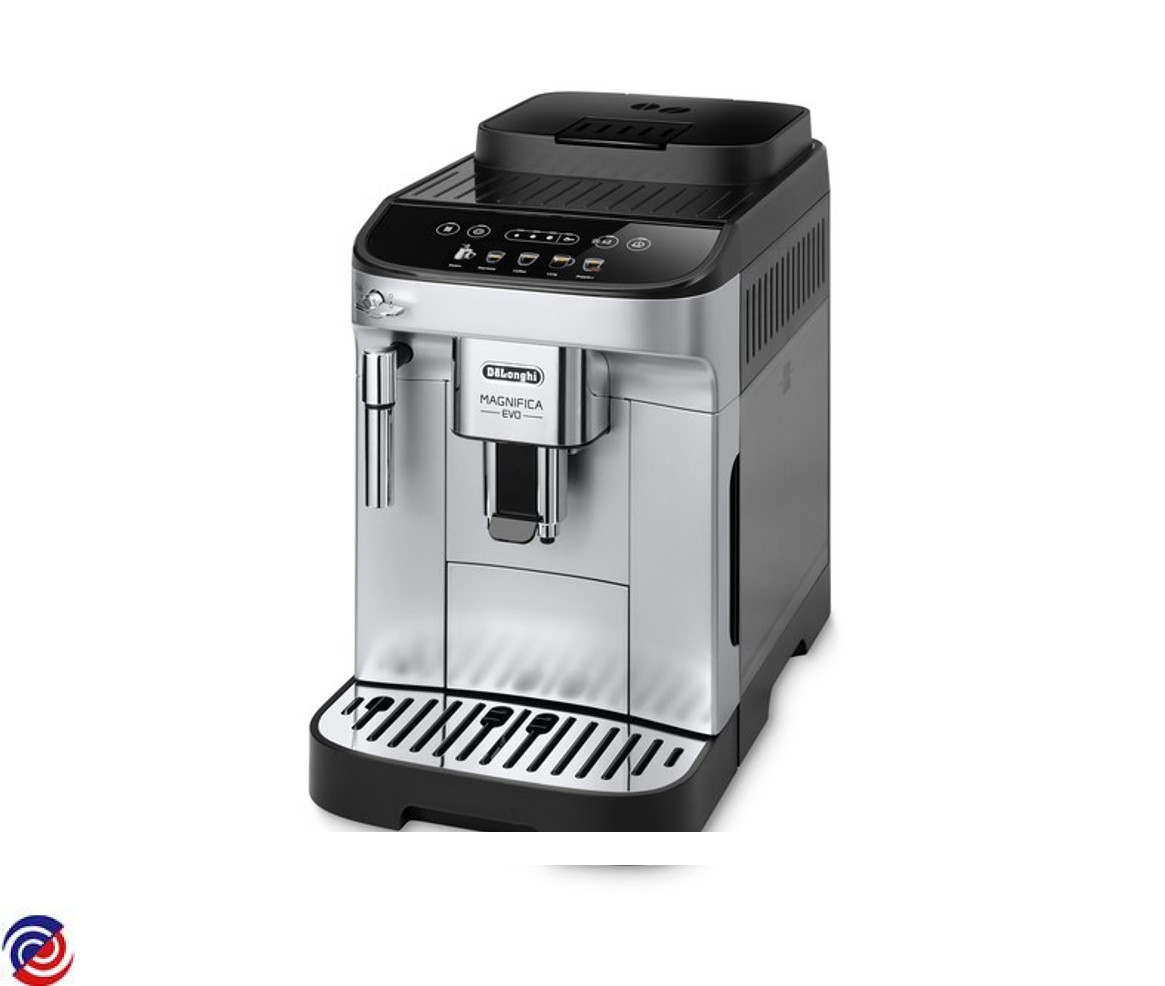

DELONGHI — Coffee Machine

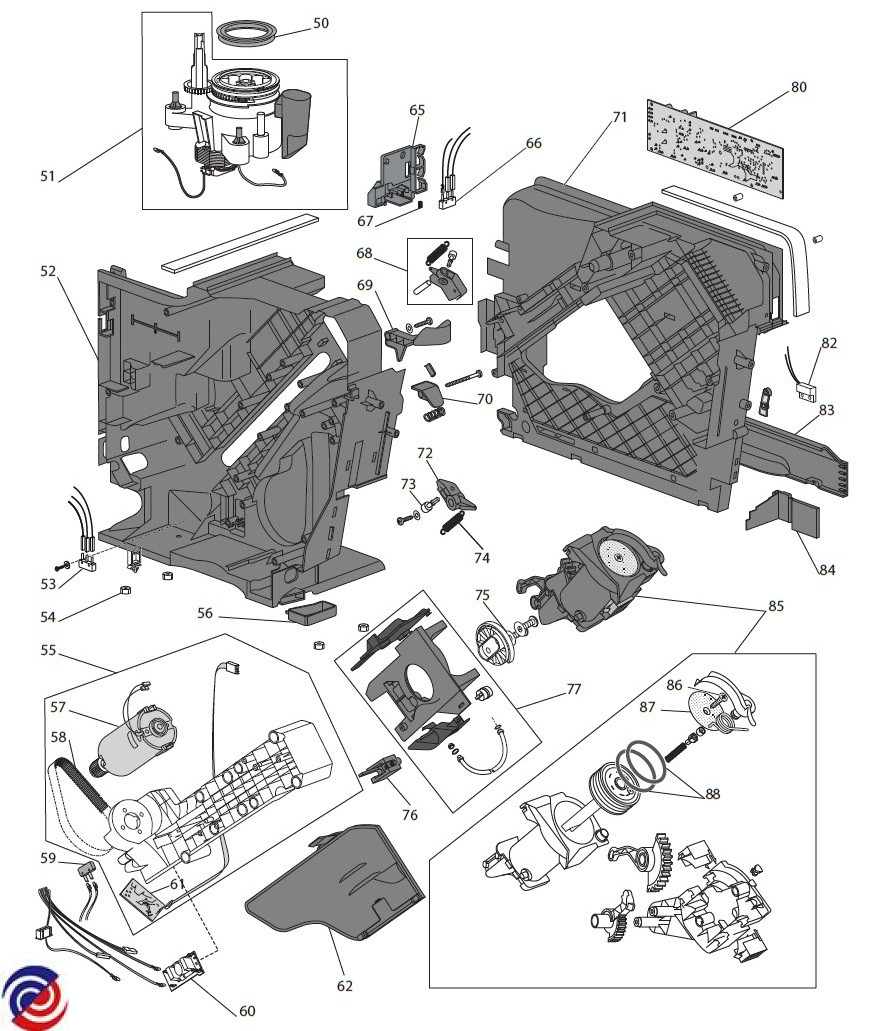

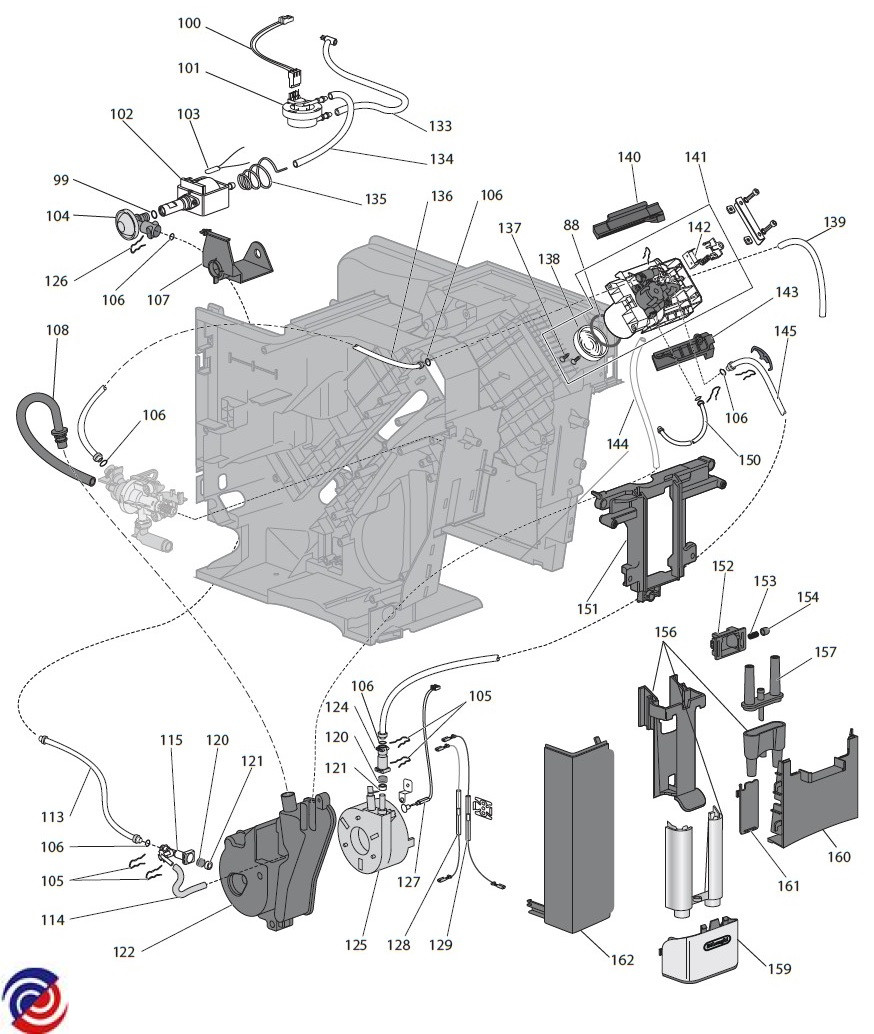

Parts for ECAM290.31.SB
W0276940 O-RING (D=6.75 T=1.78)
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276944 O-RING (D=9.25 T=1.78)
$12.85
W0276951 SPRING
$12.00
W0276952 REGULATOR
$12.00
W0276958 SCREW (3.5X12)
$11.70
W0276964 DELONGHI COFFEE INFUSER BREW UNIT
$49.00
W0276974 TROLLEY SLEWING RING
$12.70
W0276975 TROLLEY
$34.30
W0276976 COMPENSATION SYSTEM
$34.50
W0276977 PROTECTIVE RUBBER GASKET
$12.20
W0276980 MICROSWITCH
$27.00
W0276982 HALL SENSOR (L620)
$16.92
W0276985 BLACK FILTER
$12.20
W0276988 TUBE (DI=3 DE=6 L200)
$12.20
W0276991 TUBE WITH 2 BUSHES (L97)
$12.60
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276994 TUBE WITH 2 BUSHES (L290)
$25.00
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276998 MICROSWITCH
$25.10
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
$36.00
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277007 CAM SLIDER
$12.90
W0277008 SPACER
$12.20
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.00
W0277033 GRIND REGULATION KNOB
$13.80
W0277079 TUBE (IFD)
$14.00
W0277082 RUBBER FOOT PAD
$5.00
W0277083 TOOTHED BELT
$14.00
W0277087 DOOR
$16.30
W0277093 MOBILE FUNNEL
$11.70
W0277094 PISTON LOWERING FLAP
$12.00
W0277095 EXPULSION ARM
$12.30
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277127 TUBE (DI=3 DE=6 L155)
$13.00
W0277132 GENERATOR GASKET
$11.70
W0277133 CONTROL COVER
$17.30
W0277707 TUBE (L350)
$12.20
W0277864 SPRING
$11.70
W0278209 MOTOR ASSEMBLY (CHIAPHUA 230V)
$39.90
W0315451 GASKET
$4.50
W0277002 PUMP SUPPORT
W0277862 SPRING
W0307766 TUBE (L110)
W0312968 SENSOR NTC
$28.00
W0313292 MOTOR BOARD (CHIAPHUA)
W0315059 GASKET
$12.90
W0315469 DRAIN HOSE (L=110)
$13.20
W0315690 CONNECTION
$12.90
W0315953 SUPPORT
W0315954 FLOAT
W0319898 SAFETY VALVE
$15.50
W0319963 FLOW REGULATOR
$19.00
W0323278 SPRING
W0323458 SPRING
$11.70
W0325931 TRANSMISSION (CHIAPHUA 230V)
$80.10
W0328681 FROTHER TUBE
$16.90
