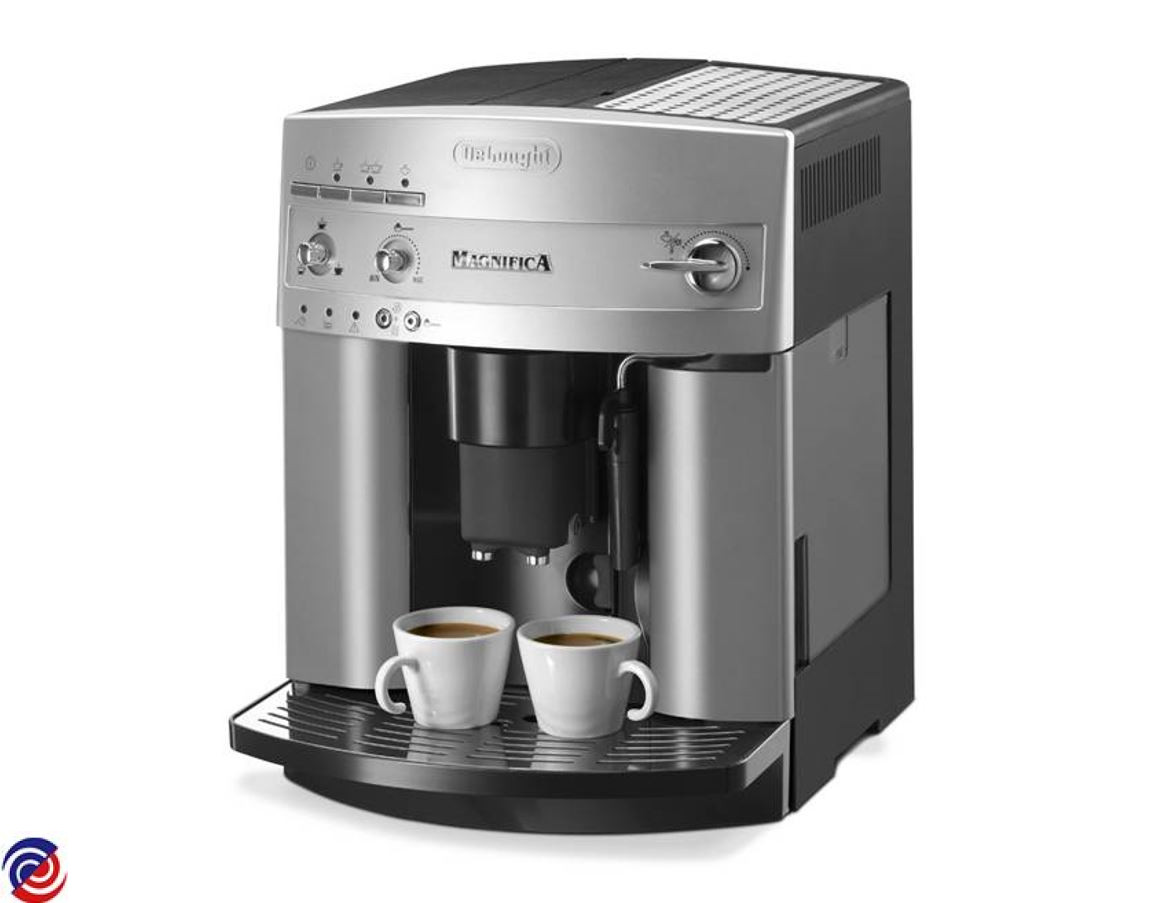

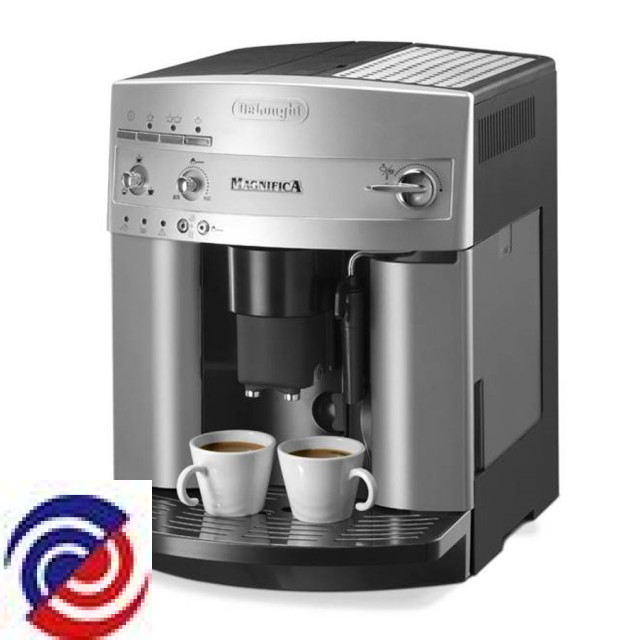

ESAM3200.S — 0132212050
DELONGHI — Coffee Machine
Parts for ESAM3200.S
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276958 SCREW (3.5X12)
$11.70
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$12.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276982 HALL SENSOR (L620)
$16.92
W0276996 SPRING
$12.00
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277015 GREASE TUBE (5GR VERKOFOOD)
$22.90
W0277020 GRINDER ASSEMBLY (2D-DL 230V)
$88.70
W0277022 GASKET
$7.02
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277149 MEASURING SPOON
W0277196 MICROSWITCH
$13.00
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277223 SENSOR (NTC L400)
$16.50
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277735 VALVE
$6.60
W0277750 SUPPORT
$12.30
W0277751 LOWER TUBE
$13.00
W0277752 COVER
$14.00
W0277761 IMPURITY FILTER
$14.30
W0277779 GASKET
$11.90
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00

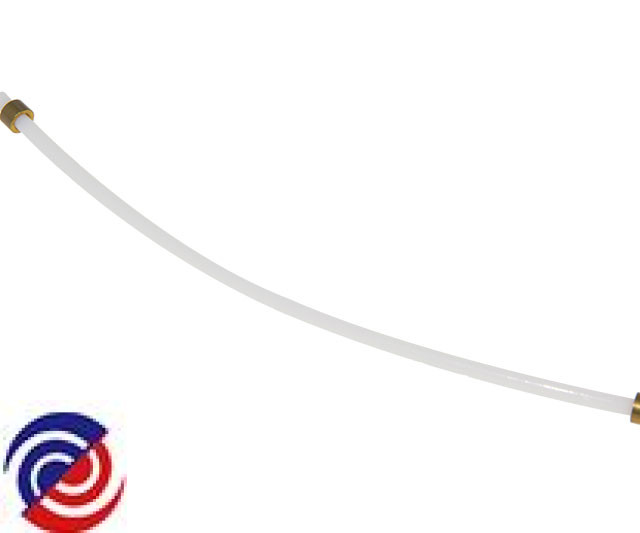

W0277877 TUBE WITH 2 BUSHES (L190)
$12.30
W0277885 FLOWMETER WIRING (L 470)
$24.60
W0278031 FINGER STOP COVER (B)
$12.20
W0278119 MOTOR BOARD (ECM 230V)
$18.00
W0295783 LEVER
$11.70
W0296740 INFUSER
$43.00
W0305689 STEAM KNOB
$12.70
W0317798 HOOK
$12.50
W0317800 COVER
$13.30
W0317801 COVER
$22.90
W0318028 DRAIN HOSE (90°)
$14.00
.jpg)
W0319926 DELONGHI GENERATOR WITH MECHANICS VALVE ASSEMBLY (6X1 230V)
$104.00
W0320630 TANK
$35.60
W0321467 GRINDING ADJUSTMENT KNOB
$12.20
W0323782 SOLENOID VALVE SUPPORT (2V)
$12.80
W0323783 SOLENOID VALVE SUPPORT (3V)
$29.00
.jpg)
W0325392 VALVE ASSEMBLY WITH FROTHER
W0325430 DELONGHI COFFEE MACHINE SAFETY VALVE
$14.00
W0273641 SLIDER
$16.00
W0273642 TRANSMISSION ASSEMBLY (CHIAPHUA 230V)
$95.30
W0276983 BELT
$12.20
W0311588 WIRING FOR FLOWMETER (L630)
W0311859 TCO WITH WIRING
$24.50
W0312478 MICROSWITCH (10A/ 250V/ 125°)
$13.60
W0312977 POWER BOARD (SW8.1 230V)
$71.60
W0313557 PROTECTOR
$25.00
W0313577 ELECTRONIC CONTROL BOARD
$69.70
W0314984 SCUFF-PROOF RUBBER PAD
$13.00
W0315015 O-RING (D=5.28 T=1.78)
$12.90
W0315459 GRINDER PANEL
W0317791 FILTER
$12.00
W0317792 PISTON
$26.80
W0317795 SUPPORT
$11.90
W0317796 BUSH
$11.70
W0317797 BUSH
$11.70
W0317802 RIGHT SIDE
$27.80
W0317803 LEFT SIDE
$29.30
W0317804 CUP HOLDER TRAY
$27.20
W0317806 GASKET
$12.00
W0317808 COVER
$12.80
W0317809 EXTENSION
$11.70
W0317818 COVER
$36.50
W0317819 PROFILE
$31.80
W0317820 GLASS HANDLE
W0317857 RUNNER FRAME
$12.80
W0317863 REAR PANEL
$27.50
W0317881 DISPENSER GLASS
$13.10
W0317922 DRAIN HOSE (90°L180)
$13.40
W0317981 PIN
$11.70
W0317982 SPACER
$11.70
W0318013 SUPPORTO
W0318014 BOTTOM
W0318072 FLOAT
$11.70
W0318077 COVER
$12.00
W0323178 CUP HOLDER
$29.00
W0323457 SPRING
$11.70
W0323458 SPRING
$11.70
W0323461 SPRING
$11.70
W0323462 SPRING
$11.70
W0323781 POD SUPPORT
$14.30
W0325443 DOOR ASSEMBLY
$21.10
W0325531 UPPER COVER
W0326818 CONTROL PANEL ASSEMBLY WITH BOARD
W0342645 SEE TECNICAL INFORMATION
