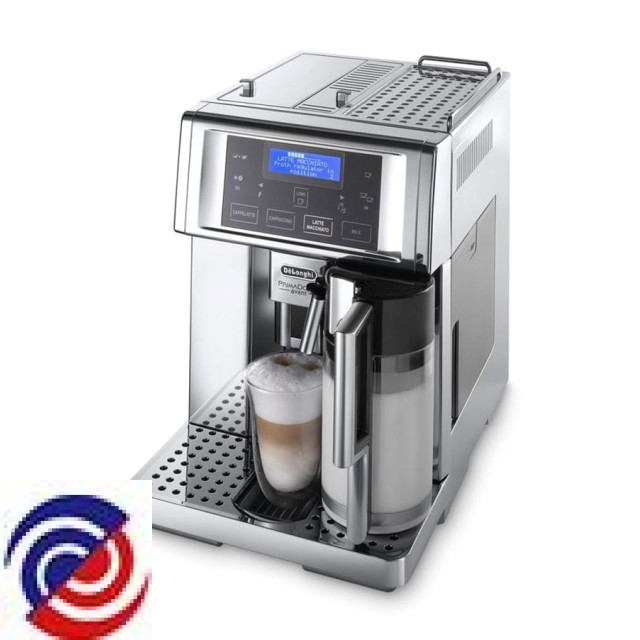

ESAM6750 — 0132217023
DELONGHI — Coffee Machine
Parts for ESAM6750
W0276925 SWITCH
$24.30
W0276940 O-RING (D=6.75 T=1.78)
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276958 SCREW (3.5X12)
$11.70
W0276963 FINGER STOP COVER
$12.40
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276971 SPRING
$12.00
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$12.00
W0276980 MICROSWITCH
$27.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276982 HALL SENSOR (L620)
$16.92
W0276991 TUBE WITH 2 BUSHES (L97)
$12.60
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276999 PUMP PROTECTOR
$24.80
W0277010 CLIP (WIRE 1,2 AISI302)
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277083 TOOTHED BELT
$14.00
W0277098 GRINDER BELLOW GASKET
$13.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277114 TUBE WITH 2 BUSHES (L150)
$12.10
W0277128 RIGHT ANGLE CONNECTION
$14.00
W0277162 TERMINAL BOARD
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277223 SENSOR (NTC L400)
$16.50
W0277707 TUBE (L350)
$12.20
W0277735 VALVE
$6.60
W0277750 SUPPORT
$12.30
W0277753 TUBE PTFE DI2-DE4 L=90 2BUSHES
$12.50
W0277754 SILICONE HOSE (DI=4 L=270)
$12.80
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277854 O-RING
$12.10
W0277879 DOUBLE CONNECTION
$11.70
W0278070 NUT
$12.00
W0278071 BRASS BUSH
W0278073 RING
$11.90
W0278119 MOTOR BOARD (ECM 230V)
$18.00
W0295783 LEVER
$11.70
W0296740 INFUSER
$43.00
W0313562 SAFETY THERMOSTAT (13.5A 318°)
$28.00
.jpg)
W0315270 DELONGHI COFFEE MACHINE COFFEE DREGS CONTAINER
$15.08
W0317798 HOOK
$12.50
W0318028 DRAIN HOSE (90°)
$14.00
W0319778 TUBE WITH NUT AND 1 BUSH (L335)
$16.30
W0319891 DELONGHI SOLENOID VALVE KIT 2 WAY
$38.00
W0323782 SOLENOID VALVE SUPPORT (2V)
$12.80
W0323783 SOLENOID VALVE SUPPORT (3V)
$29.00
W0273641 SLIDER
$16.00
W0273642 TRANSMISSION ASSEMBLY (CHIAPHUA 230V)
$95.30
W0277861 SEE TECNICAL INFORMATION
W0278072 CONNECTION
W0311607 TCO WITH WIRING
W0311608 TCO WITH WIRING
W0312478 MICROSWITCH (10A/ 250V/ 125°)
$13.60
W0313048 POWER BOARD (SW1.0 230V)
$172.90
W0313066 NTC PROBE (L500)
$18.00
W0313147 SOLENOID VALVE
$27.30
W0313303 FLOWMETER
$17.00
W0313587 REED SENSOR
$16.60
W0314929 GRINDING ADJUSTMENT KNOB
$12.00
W0314934 BLACK REAR PANEL CAP
W0314944 REAR PANEL
$30.20
W0314984 SCUFF-PROOF RUBBER PAD
$13.00
W0314992 PUMP SUPPORT
$23.30
W0314993 A T CONNECTION (PRES BLOCK)
W0315014 SHAPE FOR TUBE
W0315029 FLOWMETER TUBE GUIDE
W0315031 SUPPORT
$87.90
W0315040 DISPENSER GLASS (ABS) (ESAM67)
W0315218 SWITCH HOLDER
W0315265 FRAME
$26.90
W0315268 SOLENOID VALVE A T CONNECTION
$11.70
W0315269 REED SUPPORT
W0315301 COVER
$11.70
W0315303 COUPLING MICRO SUPPORT (IFD)
W0315327 WATER TANK COVER
$24.40
W0315413 CAM
W0315459 GRINDER PANEL
W0315515 TANK PRESENCE CAM
$13.00
W0317616 CONNECTION
$11.70
W0317791 FILTER
$12.00
W0317792 PISTON
$26.80
W0317795 SUPPORT
$11.90
W0317796 BUSH
$11.70
W0317797 BUSH
$11.70
W0317857 RUNNER FRAME
$12.80
W0317886 SILICONE HOSE (DI=4 L=200)
$12.10
W0317945 O-RING
$12.10
W0317981 PIN
$11.70
W0318012 BOTTOM
$24.40
W0318015 MEASURING SPOON
$11.70
W0318065 WATER INTAKE TUBE
$12.00
W0318073 CUP HOLDER TRAY
$59.50
W0318074 FLOAT
$12.00
W0318075 INSERT
$12.00
W0318077 COVER
$12.00
W0319631 TUBE WITH 2 BUSHES (L180)
$12.20
W0319661 COFFEE BEANS TANK WITH RUBBER PADS
$14.10
W0319674 COFFEE BEANS COVER
$11.70
W0319675 GROUND COFFEE COVER
W0319676 COVER WITH CUP WARMER
W0319677 WATER TANK FRONT PIECE
W0319678 RIGHT SIDE
W0319679 LEFT SIDE
$11.70
W0319767 WATER TANK FRONT PIECE
$294.80
W0319777 TUBE WITH NUT AND 1 BUSH (L135)
$14.00
W0319909 TUBE WITH 2 BUSHES (L500)
$14.70

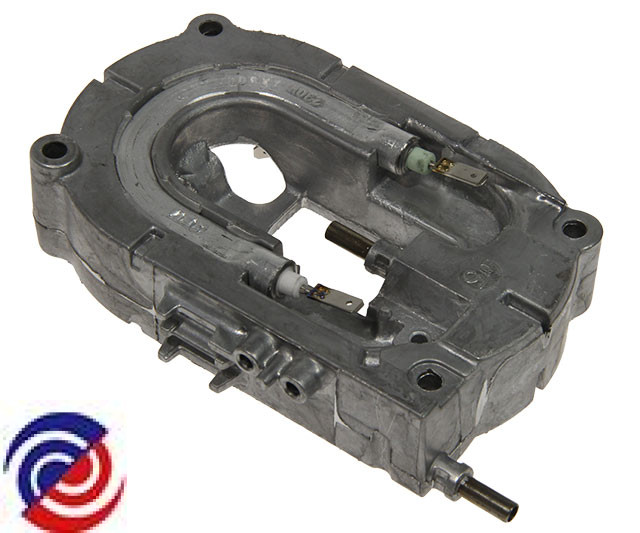

W0319929 GENERATOR (R1200W 230V)
$44.30
W0319963 FLOW REGULATOR
$19.00
W0320634 FILTER
$12.80
W0323195 CUP HOLDER
$33.30
W0323288 SPRING
W0323289 SPRING
$11.70
W0323457 SPRING
$11.70
W0323458 SPRING
$11.70
W0323460 BRACKET
$11.70
W0323462 SPRING
$11.70
W0323463 TCO BRACKET
W0323465 BRACKET
$11.70
W0323781 POD SUPPORT
$14.30
W0324536 CUP HOLDER
$133.50
W0325357 COVER
W0325365 MECHANICAL VALVE (ESAM)
$137.50
W0325429 SAFETY VALVE
$14.50
W0325576 WATER TANK
$25.00
W0325592 CARAFE COUPLING
$26.50
W0325632 DOOR ASSEMBLY
$59.60
W0325634 CARAFE ASSMBLY
W0325654 PIPETTE
W0325655 GRINDER ASSEMBLY (3D-DL 230V)
$71.00
W0325754 CONTROL PANEL ASSEMBLY
$192.10
W0327150 CLIP CLAMP
$12.00
