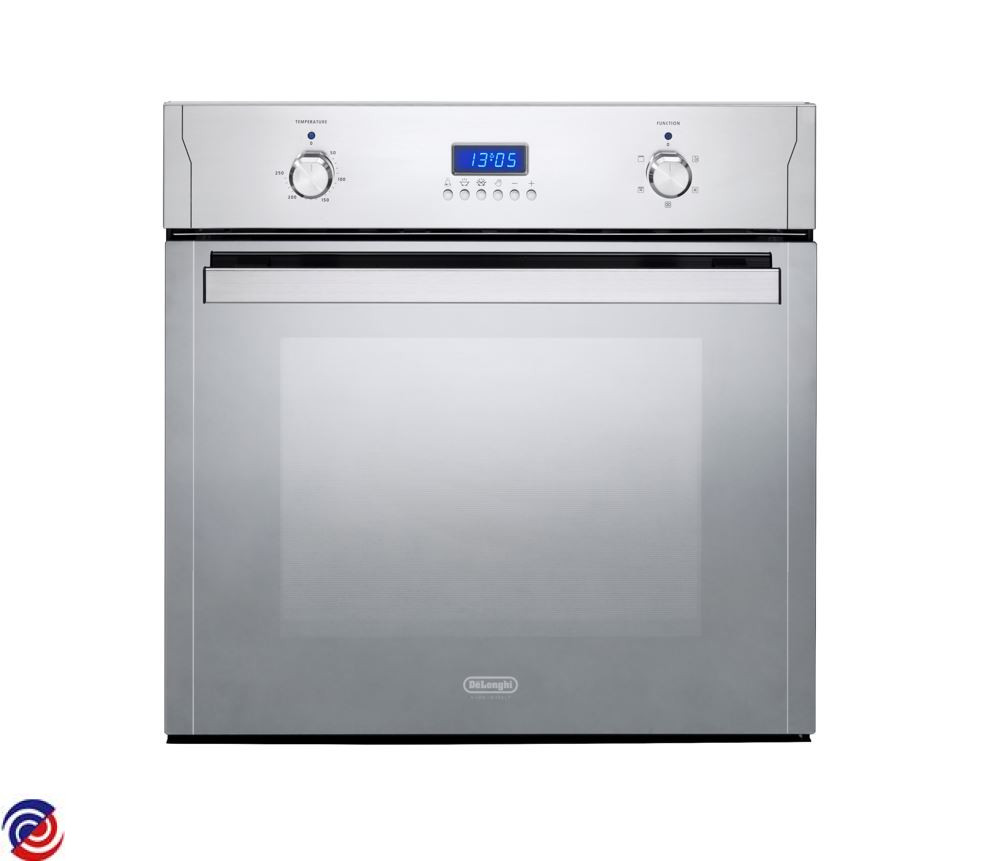

DE604PSC — F6E0DA052X
DELONGHI — Cooker Electric

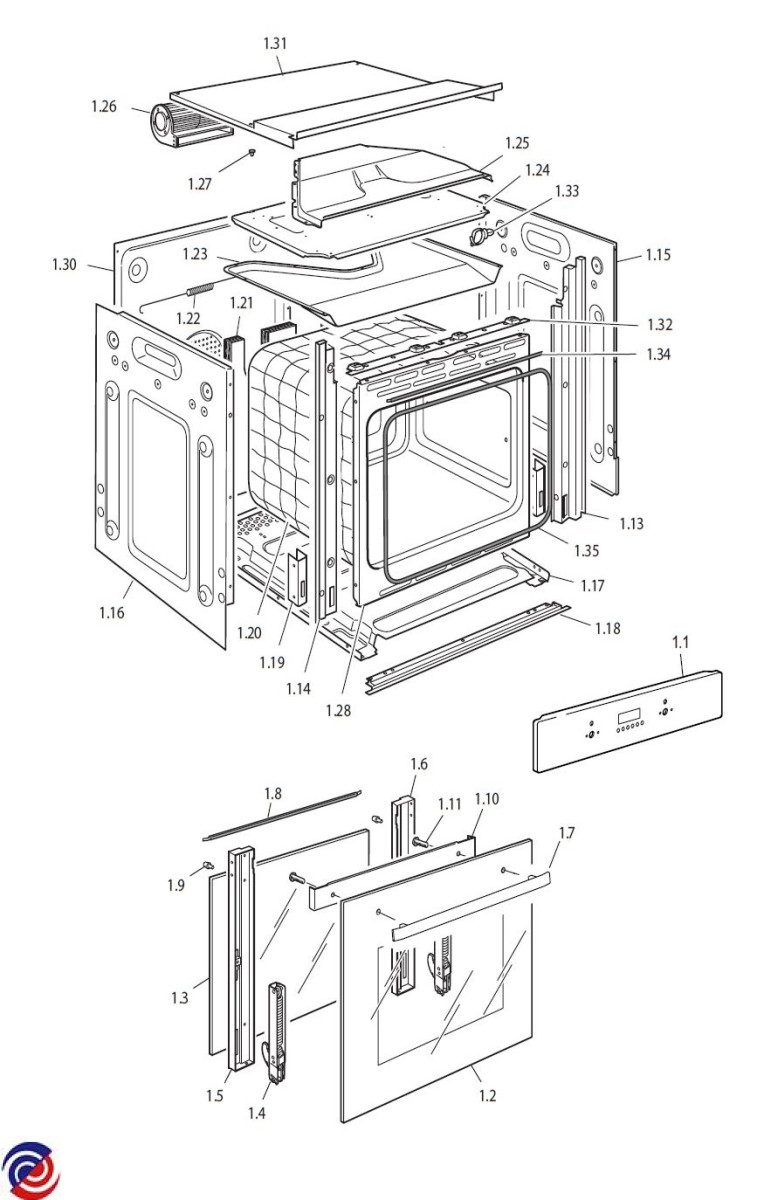

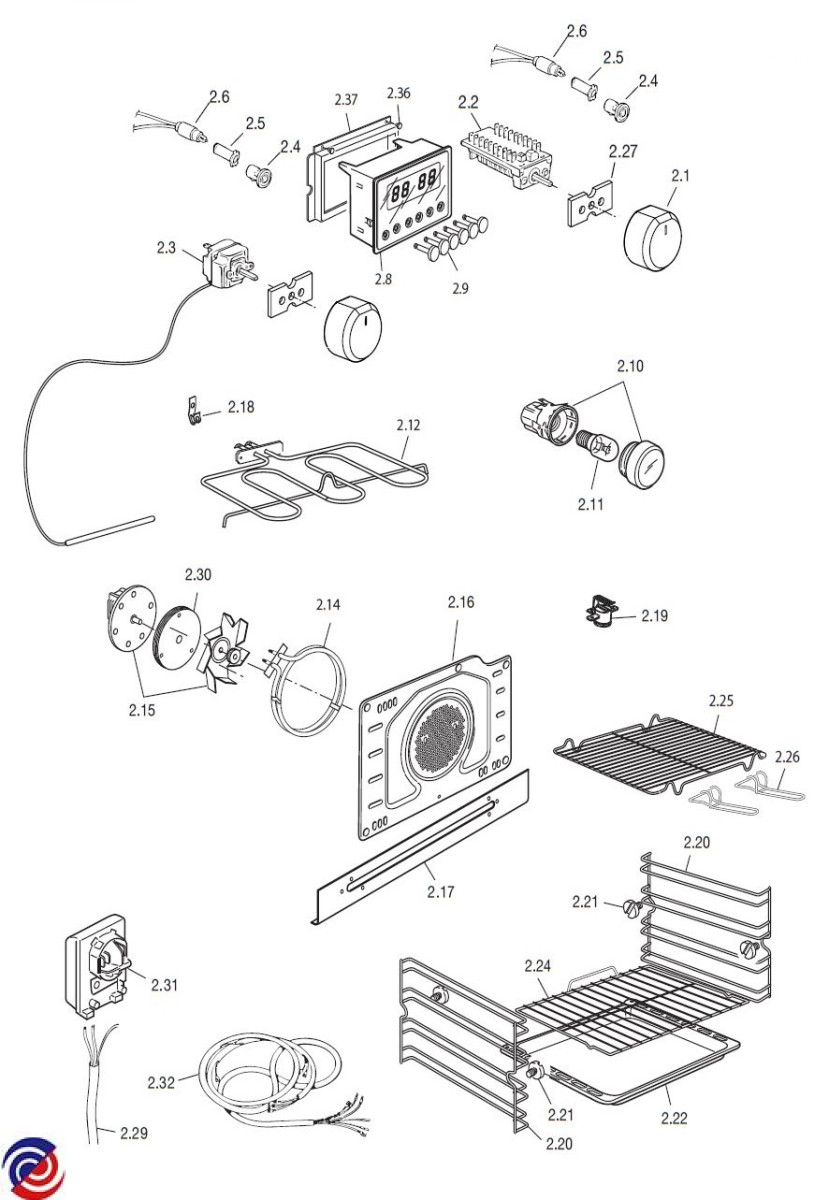

Parts for DE604PSC
W0271194 DELONGHI FISHER & PAYKEL FAN FORCED OVEN ELEMENT 2200W 062097004
$65.00
W0271257 HINGE (MALE)
$22.50
W0271297 SEAL
$48.00
W0271298 TANGENTIAL FAN
W0274137 UPPER SEAL
W0276335 INNER GLASS
W0281628 THERMOSTAT
$121.00
W0281694 WIRE SHELF
W0281904 DOOR HINGE (FEMALE)
$12.80
W0293067 ELECTRONIC PROGRAMMER
$198.00
W0294368 LAMP
$24.40
W0294370 LAMP HOLDER
$20.70
W0294863 GRILL ELEMENT 230 V
$34.00
W0296224 CUT-OFF THERMOSTAT 120 DEGREE
$16.60
W0299827 ELECTRONIC PROGRAMMER HOUSING
W0299897 WIRE CLAMP
W0300608 RIGHT DOOR TRIM
W0300659 RIGHT FRONT TRIM
W0300661 LEFT FRONT TRIM
W0302818 CONTROL LAMP COVER
$12.20
W0302828 CLIP
$12.30
W0302847 RUBBER
$12.40
W0302859 RUBBER
$12.40
W0302868 SWITCH SPACER
$12.40
W0302871 ADAPTOR
$12.40
W0302872 HANDLE PLAQUE
$12.40
W0303066 SHELF SUPPORT SCREW
$13.00
W0303127 INSULATION SPRING
$13.40
W0303135 BUTTON
$13.40
W0303241 BOTTOM ELEMENT SUPPORT
$14.50
W0303252 DOOR HANDLE SCREW
$14.70
W0303255 FAN MOTOR INSULATION
$14.70
W0303276 TERMINAL BLOCK
$14.90
W0303300 GRILL PAN GRID HANDLE
$15.20
W0303325 SEAL
$15.30
W0303335 CONTROL LAMP L = 230
$15.50
W0303409 CONTROL LAMP L 600/230
$16.10
W0303526 CUT-OFF THERMOSTAT 55 DEGREE
$16.80
W0303681 OVEN INSULATION
$29.50
W0303690 REAR INSULATION
$19.70
W0303714 SWITCH
$22.60
W0303737 CORD 3X1.5
$21.10
W0303827 FAN MOTOR 230 V
$44.50
W0304030 GRILL-PAN GRID
$22.40
W0304055 SHELF SUPPORT
$18.90
W0304172 WIRING
$93.40
W0304239 DOOR HANDLE
$44.80
W0304439 DOOR GLASS
$66.40
W0304480 LOWER TRIM
$19.10
W0304526 CONTROL KNOB
$21.20
W0304645 PANEL
$49.30
W0304756 BOTTOM PANEL
$26.00
W0304757 REAR PANEL
$26.50
W0304758 UPPER SHELTER
$25.90
W0304759 AIR CONVEYOR
$24.20
W0304761 LOWER AIR CONVEYOR
$21.50
W0304765 RIGHT SIDE PANEL
$26.20
W0304766 LEFT SIDE PANEL
$26.20
W0304824 CONVEYOR SUPPORT
$25.20
W0304843 OVEN CUBE
$112.20
W0304893 FAN DIFFUSER
$30.00
W0304919 OVEN TRAY
$37.40
W0304940 LEFT DOOR TRIM
$27.40
W0304989 DEFLECTOR
$22.60
W0304990 HANDLE BAR
$21.70
