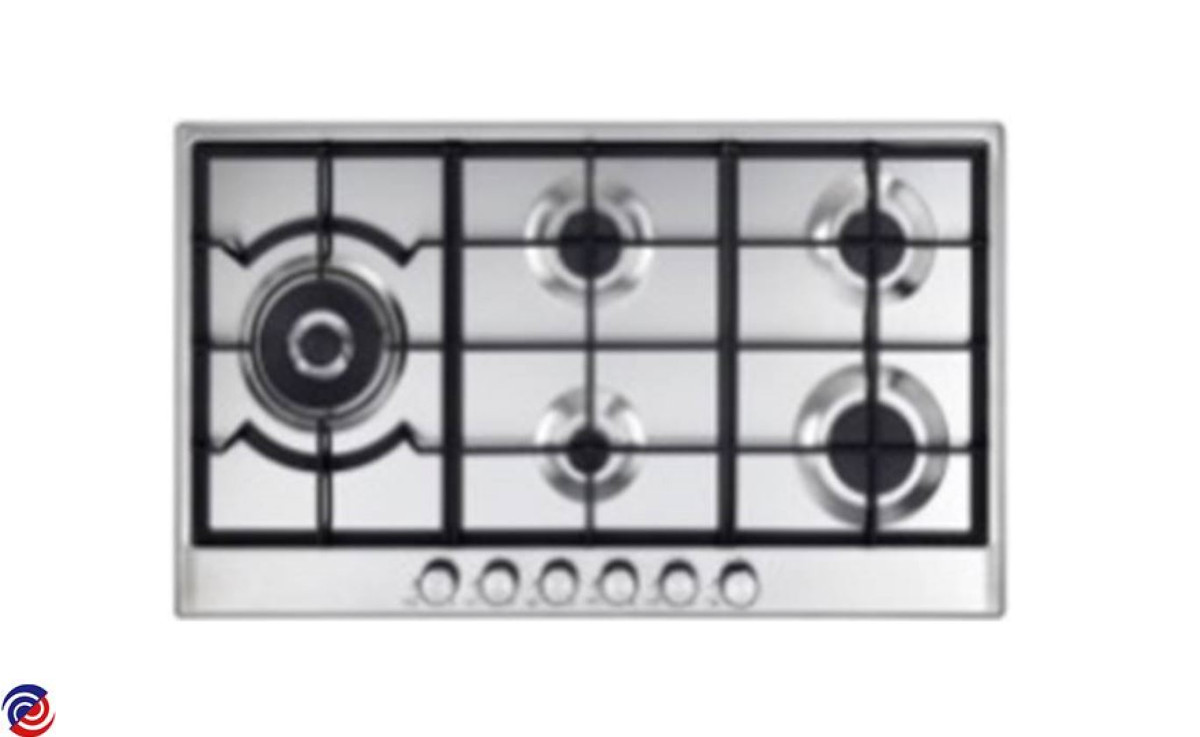

DEGHSL90 — P91DDA001X
DELONGHI — Cooker Gas

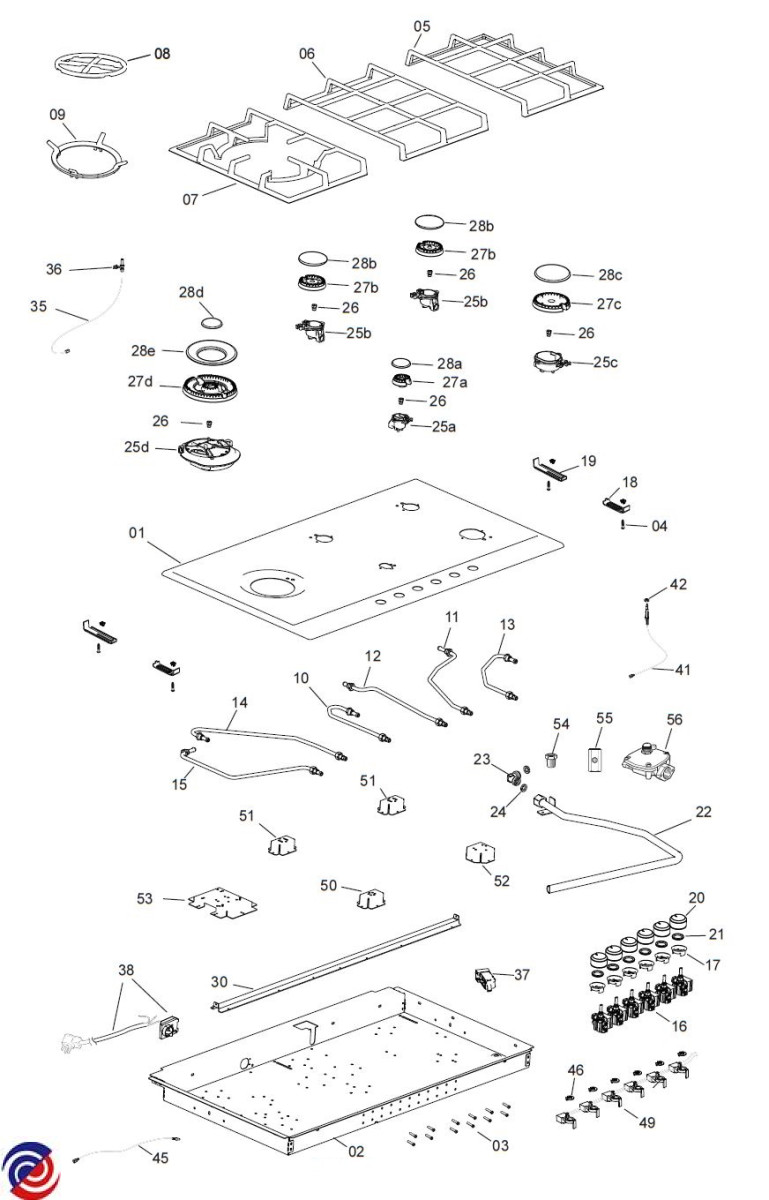

Parts for DEGHSL90
W0294900 KNOB
$39.00
W0299839 BURNER SUPPORT A
W0299840 BURNER SUPPORT SR
W0299841 BURNER SUPPORT R
W0299868 BURNER SUPPORT DB
W0299870 INJECTOR DIAM 0.92 - A (NG)
W0300471 HOB TOP
W0302734 GAS TAP FIXING SCREW
$12.10
W0302741 SCREW
$12.10
W0302813 RETAINING RING
$12.30
W0302814 IGNITER SPRING
$12.30
W0302825 SEALING WASHER
$12.30
W0302912 RUBBER JOINT
$12.60
W0302946 FIXING BRACKET
$12.70
W0302950 THERMOCOUPLE NUT
$12.70
W0302951 THERMOCOUPLE NUT DUAL
$12.70
W0302958 FRONT FIXING BRACKET (TO FIX THE APPLIANCE TO THE CABINET)
$12.70
W0303039 INJECTOR DIAM 0.72 - DB INNER (NG)
$13.00
W0303040 INJECTOR DIAM 0.66 - DB OUTER (2X) (ULPG)
$13.00
W0303041 INJECTOR DIAM 0.70 - SR
$13.00
W0303042 INJECTOR DIAM 1.17 - SR
$13.00
W0303045 INJECTOR DIAM 1.54 - R
$13.00
W0303046 INJECTOR DIAM 0.98 - R
$13.00
W0303047 INJECTOR DIAM 1.23 - DUAL OUT
$13.00
W0303049 INJECTOR DIAM 0.43 - DB INNER (ULPG)
$13.00
W0303052 INJECTOR DIAM 0.56 - A
$13.00
W0303166 SPARK PLUG L = 250 MM
$13.80
W0303192 SPARK PLUG L = 500 MM
$14.00
W0303222 BURNER-CAP A
$14.30
W0303234 SPARK PLUG L = 630 MM
$14.40
W0303236 CABLE
$14.50
W0303244 ELBOW
$14.60
W0303271 BURNER-CAP SR
$14.80
W0303305 IGNITER SPRING/NUT DB INNER (NUT)
$15.20
W0303354 BURNER HEAD A
$15.60
W0303360 BURNER-CUP A
$15.70
W0303417 KNOB RING
$16.10
W0303453 BURNER PIPE AU
$16.30
W0303456 BURNER-CAP R
$16.30
W0303459 BURNER-CUP SR
$16.30
W0303507 BURNER PIPE SR (RH)
$16.70
W0303508 BURNER PIPE SR (LH)
$16.70
W0303509 BURNER PIPE R
$16.70
W0303528 CONICAL ADAPTOR
$16.80
W0303551 BURNER PIPE DB (INNER)
$16.90
W0303552 BURNER PIPE DB (OUTER)
$16.90
W0303615 BURNER HEAD SR
$17.40
W0303622 BURNER-CUP R
$17.50
W0303625 BURNER-CAP INSIDE DUAL
$17.60
W0303846 ELECTRONIC IGNITION
$24.00
W0303851 SPARK PLUG DB OUTER L = 900 MM
$19.00
W0303852 SPARK PLUG DB INNER L= 900 MM
$18.90
W0303897 GAS PRESSURE REGULATOR 1/2
$35.00
W0303899 TEST POINT ADAPTOR
$26.70
W0303984 BURNER THERMOCOUPLE L = 600
$19.30
W0303985 BURNER THERMOCOUPLE DU - L = 600
$19.60
W0304002 BURNER-CUP DB
$95.80
W0304064 RH TRIVET
$73.30
W0304066 CENTRAL GRATE
$72.50
W0304067 LH TRIVET
$75.60
W0304068 WOK PAN ADAPTER
$27.10
W0304069 SMALL PAN ADAPTER
$27.10
W0304128 IGNITION SWITCHES
$28.80
W0304297 BURNER HEAD R
$19.80
W0304300 BURNER-HEAD DB
$40.70
W0304337 TERMINAL BLOCK + POWER CORD WITH PLUG 3X0.75 MM2
$24.50
W0304506 TAP DIAM 0.33 - A- DB (INNER)
$42.40
W0304507 TAP DIAM 0.34 - SR
$42.40
W0304508 TAP DIAM 0.43 - R
$42.20
W0304509 TAP DIAM 0.64 - DB (OUTER)
$42.40
W0304520 BURNER-CAP OUTSIDE DUAL
$24.10
W0304601 5 GAS INLET PIPE
$29.70
W0304790 BURNER CASING
$43.00
W0305008 BURNER CASING STIFFENING BRACKET
$21.20
