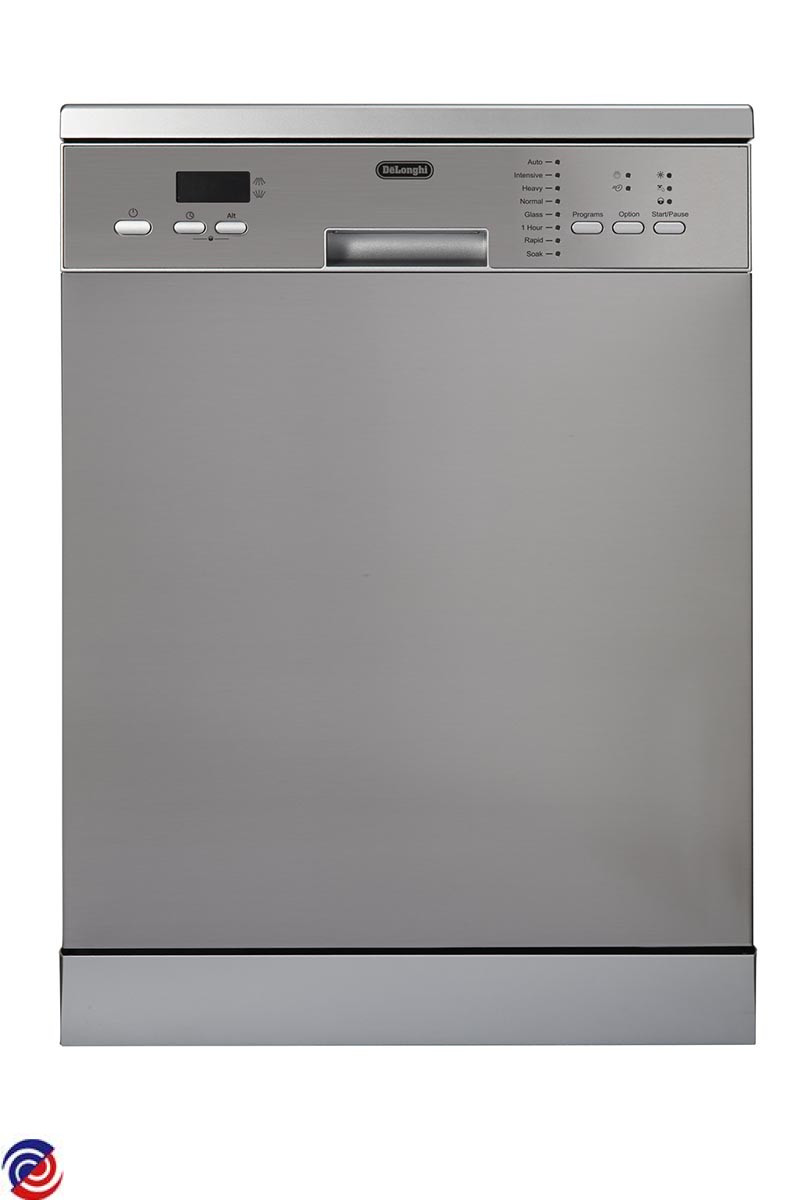

DEDW645S — 9901590017
DELONGHI — Dishwasher
Parts for DEDW645S
W0276245 MIDDLE SPAYER
$68.04

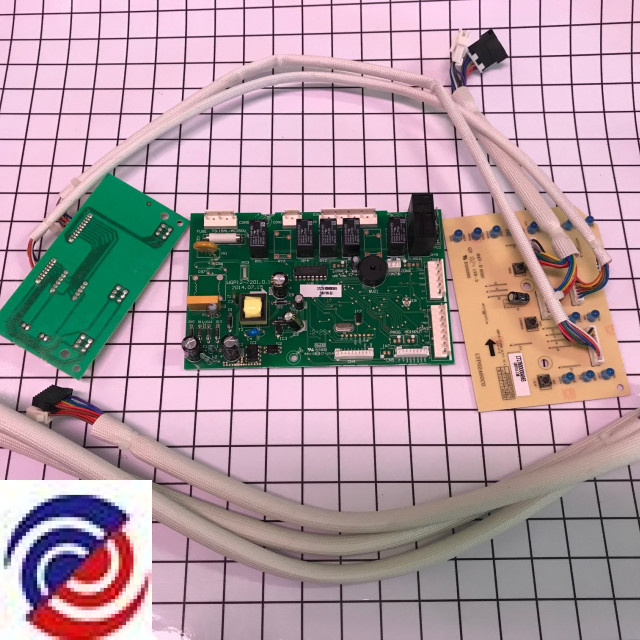

W0276512 PCB
W0278709 CUTLERY SHELF GUIDER LINK STOPPER(BACK)
$14.95
W0281849 INLET HOSE ASSEMBLY
$150.40
W0293187 DOOR SWICTH ASSEMBLY
$33.90

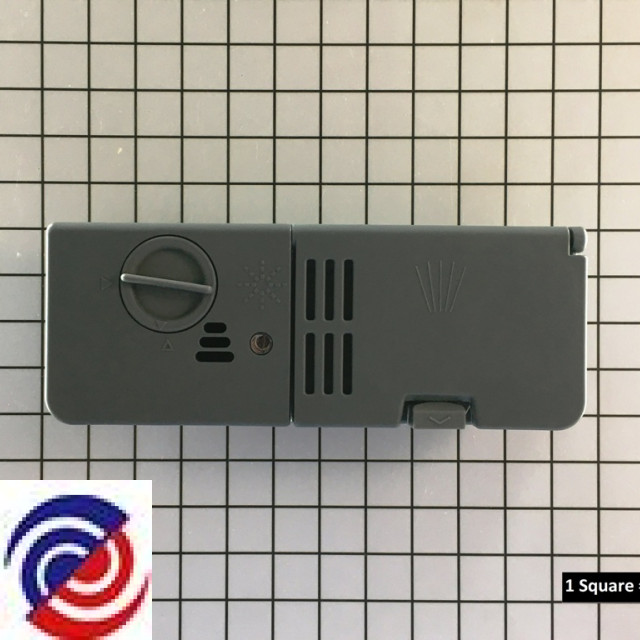

W0293198 DISHWASHER DISPENSER
$179.21
W0293240 INNER PIPE
$107.70
W0293241 WATER DISPENSER ASSEMBLY
$36.00

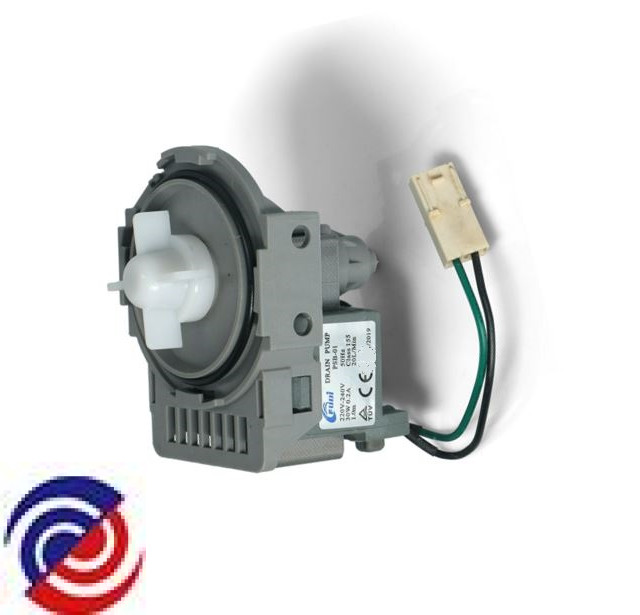

W0293250 DRAINAGE PUMP
$104.00

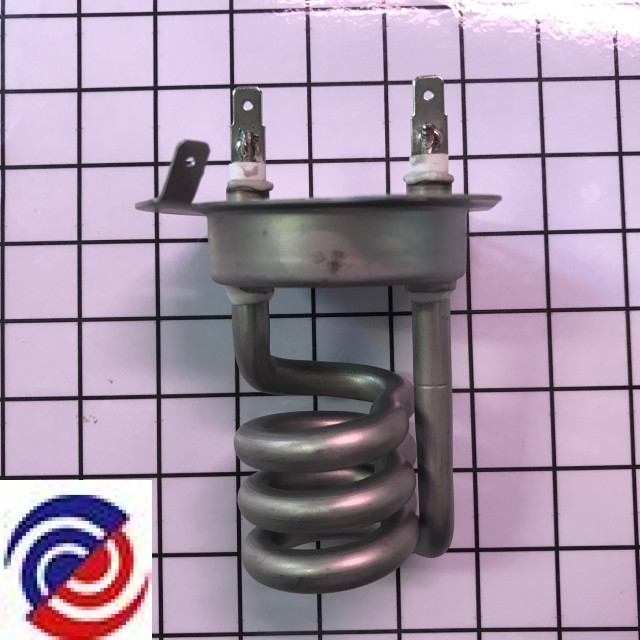

W0293268 HEATING ELEMENTS ASSEMBLY
W0293270 WATER PRESSURE SWITCH ASSEMBLY
$19.40
W0293272 17176000012008-THERMOSTAT
$28.00
W0276511 DIVERTER
$170.00
W0278711 12676000000138-DRAIN HOSE ASSEMBLY
W0281971 AIR BREAKER ASSEMBLY
$39.20
W0282029 FRICTION STRIP GUIDING
$12.20
W0292924 WIRING HARNESS
$48.20
W0293075 DISPENSER BRACKET
$12.00
W0293131 PVC PIPE
$13.20
W0293174 WASH PUMP ASSEMBLY
$199.95
W0293176 ADHESIVE FOR CONTROL PANEL
$35.00
W0293178 LAMP COVER
$11.30
W0293179 HANDLE COVER
$12.30
W0293180 BUTTON A
$11.70
W0293183 BUTTON B
$12.40
W0293184 CONTROL PANEL COVER STICKER (SEE ALSO COMPLETE CONTROL PANEL POSITION 107+108 P/N DAU1591120)
W0293185 CONTROL PANEL WITHOUT STICKER (SEE ALSO COMPLETE CONTROL PANEL 107+108)
$24.10
W0293188 INNER DOOR ASSEMBLY
$71.60
W0293189 FRICTION STRIP HOOKING
W0293190 12176000003629-FRICTION STRIP HOOKING CLAMPING
$12.70
W0293196 12276000001731-LEFT HINGE ASSEMBLY
$15.80
W0293199 12276000001778-RIGHT HINGE ASSEMBLY
$17.50
W0293201 HINGE JOIN BOARD
$13.60
W0293204 UPPER BACK SUPPORT
$15.20
W0293205 CUTLERY SHELF GUIDER(LEFT)
$15.00
W0293206 CUTLERY SHELF GUIDER(RIGHT)
$13.60
W0293207 12176000010412-RAIL SUPPORT ASSEMBLY
$12.90
W0293208 12176000008444-CUTLERY SHELF GUIDER SUPPORTING HOLDER
$12.20
W0293209 12176000010336-CUTLERY SHELF RAIL SUPPORT ASSEMBLY
$4.25
W0293210 BASKET GUIDER SUPPORTING HOLDER
$12.20
W0293212 UPPER BASKET GUIDER LINK STOPPER(BACK
$12.40
W0293213 UPPER BASKET GUIDER (LEFT)
$16.40
W0293214 UPPER BASKET GUIDER (RIGHT)
W0293219 DOOR LOCK HOOK
$12.80
W0293220 BACK COVER BOARD
$14.30
W0293224 POWER CORD
$21.10
W0293225 12176000013663-AIR BREAKER NUT
$12.70
W0293226 DRAIN PIPE CLAMPING
$35.50
W0293227 TUB SUPPORT
$12.70
W0293230 ADJUST SCREW OF DOOR SPRING
W0293232 FOOT
$12.50
W0293233 PCB SEAT COVER
$12.40
W0293234 PCB SEAT
$14.00
W0293236 12876000000050-FLOAT
$12.70
W0293237 12176000003125-OVERFLOW SWITCH SEAT
$14.20
W0293238 17476000001137-OVERFLOW SWITCH
$15.70
W0293242 LOWER SPRAYER
$50.00
W0293243 LOWER SPRAYER SEAT
$12.70
W0293244 PLASTIC FILTER
$13.30
W0293245 SUMP NUT
$13.20
W0293246 SUMP GASKET
$14.10
W0293247 DIVERTER GASKET
$12.70

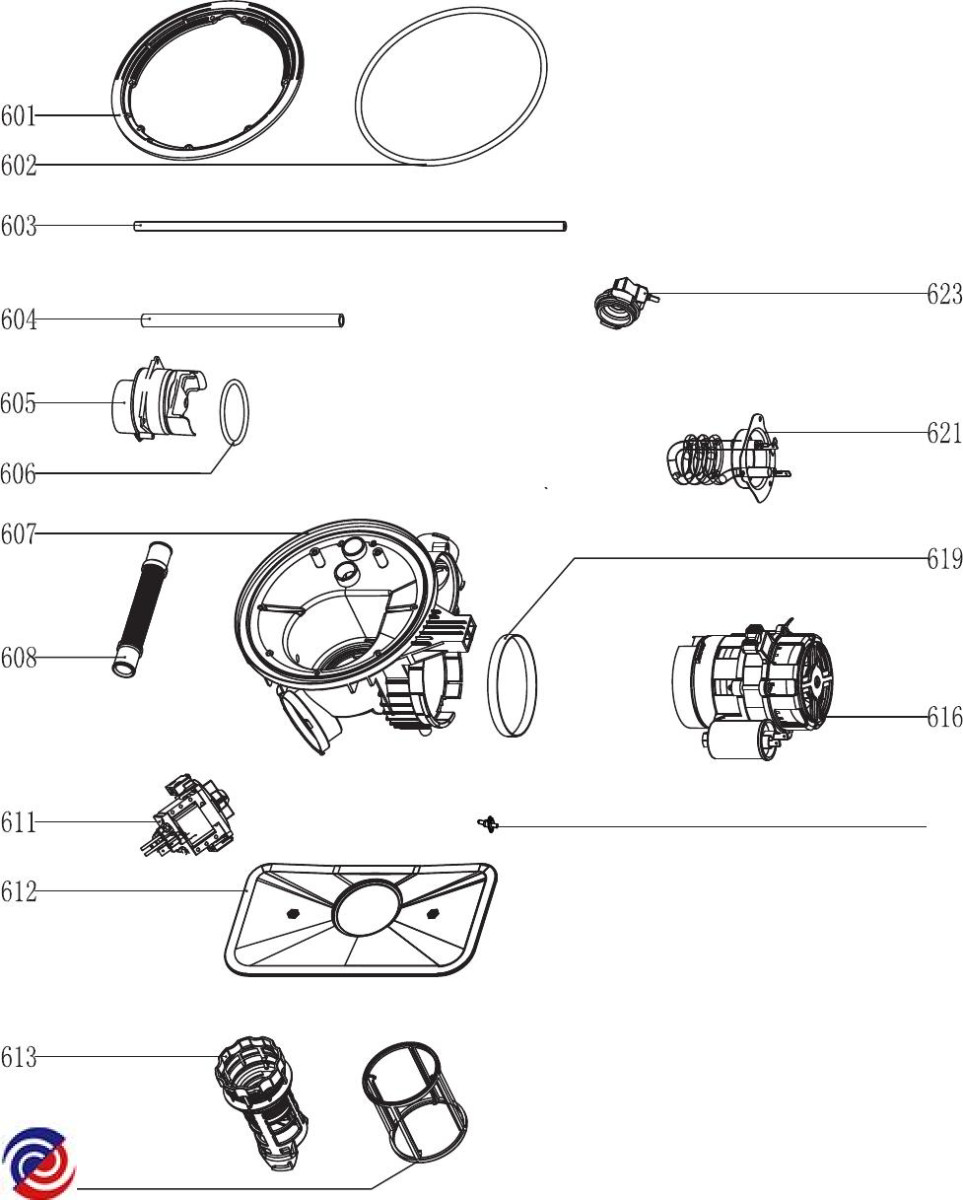

W0293248 SUMP ASSEMBLY
W0293249 INNER DRAIN PIPE
$14.30
W0293251 MAIN FILTER
$20.80
W0293252 FILTER HANDLE
$18.54
W0293253 12176000003676-CYLINDER FILTER
W0293254 940 CLAMPING
$14.70
W0293274 12176000002819-CUTLERY ASSEMBLY
$167.75

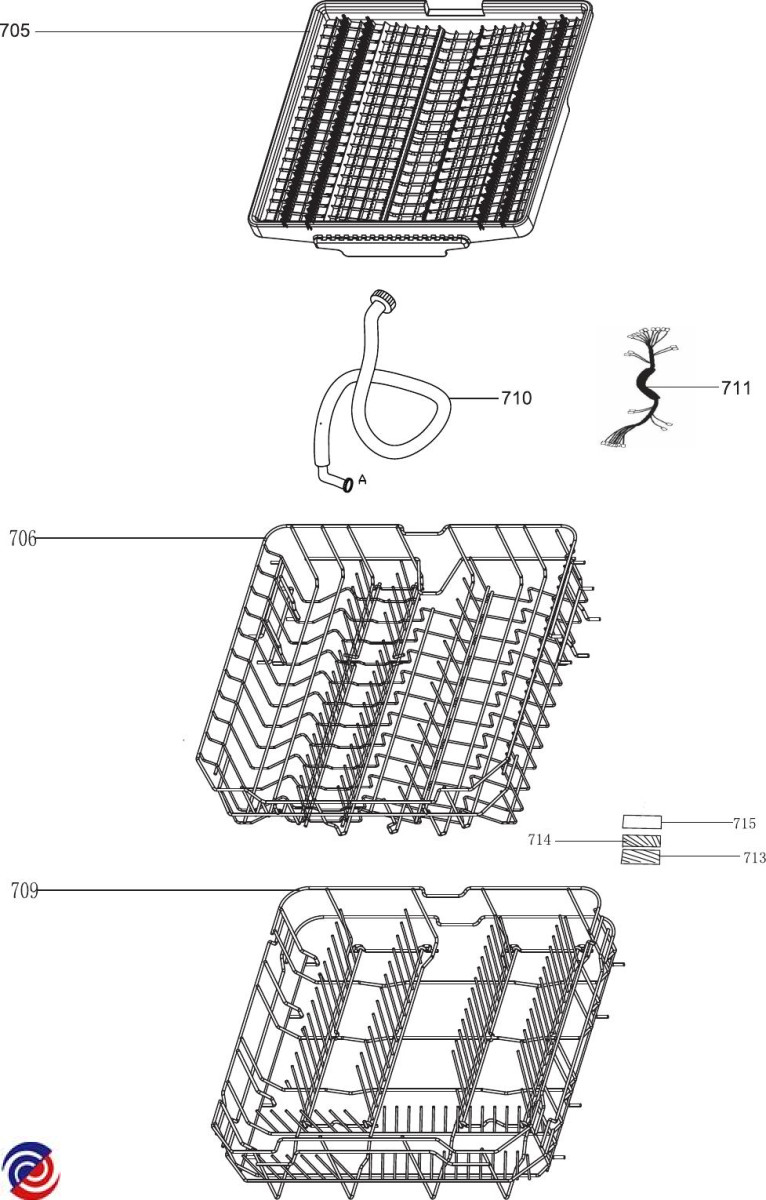

W0293278 UPPER BASKET ASSY
$379.00
W0293288 BASKET HANDLE LID (FRONT)
$34.70
W0293289 BASKET HANDLE ADHIBIT PIECE
$12.70
W0293292 BASKET HANDLE LID (BACK)
$12.90
W0293323 RETAINING PATCH
$12.70
W0293335 ANTI-NOISE BORAD
$13.00
W0293336 TANK GASKET
$19.40
W0293337 BASE
$34.90
W0293338 FRICTION STRIP
$24.90
W0293339 DOOR SPRING
$16.00
W0293340 BASE COVER
$18.30
W0293341 PRESSURE SWITCH
W0293342 LOWER BASKET ASSEMBLY
W0293369 OUT DOOR
$78.90
W0293370 BASEBOARD
$23.50
W0293378 LEFT SIDE PANEL
$32.30
W0293379 RIGHT SIDE PANEL
$37.00
W0293448 17176000000306-TURBIDITY TRANSDUCER
$19.50

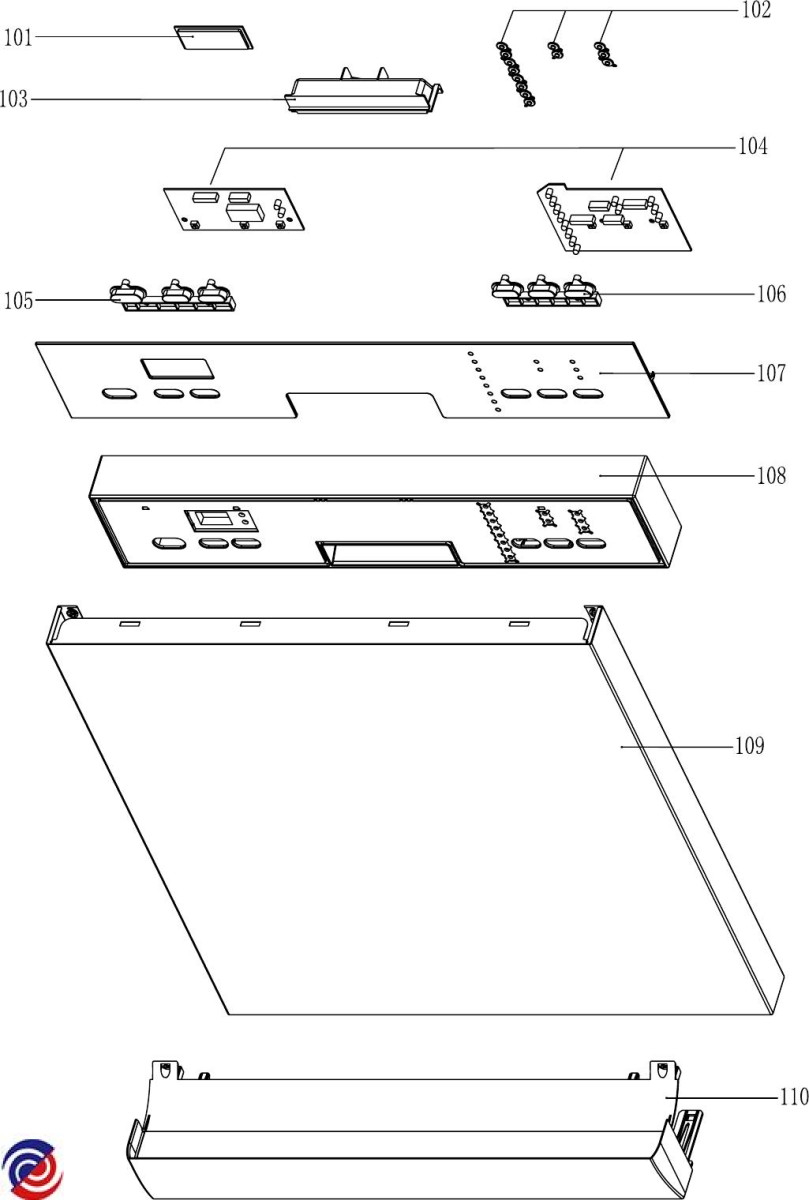

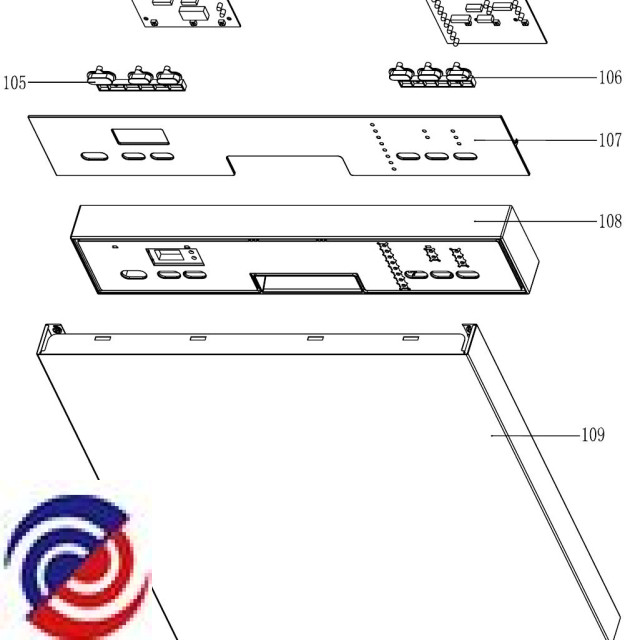

W0293458 CONTROL PANEL ASSY DEDW645S
$74.40
W0293459 TOP PANEL
$59.80
