DSF6104WA — 956004097 00
DISHLEX — Dishwasher
Parts for DSF6104WA
W0362576 CUTLERY BASKET

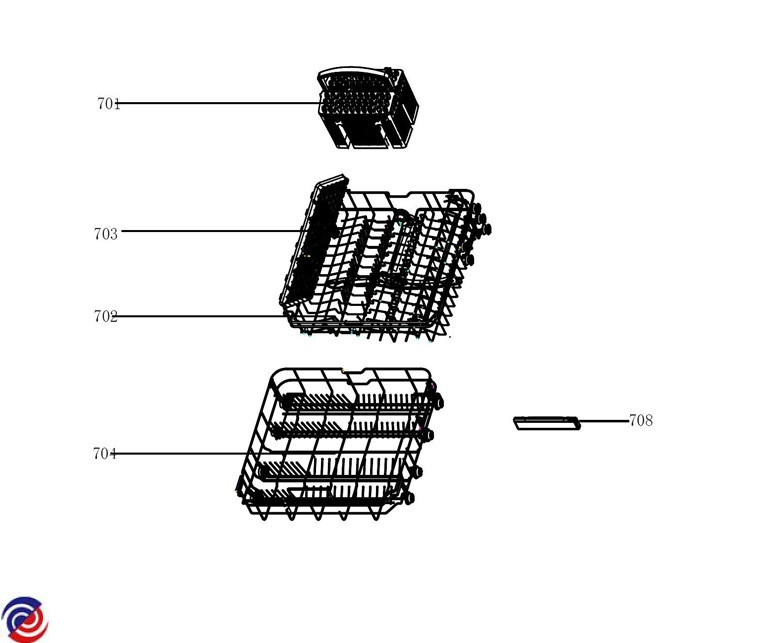

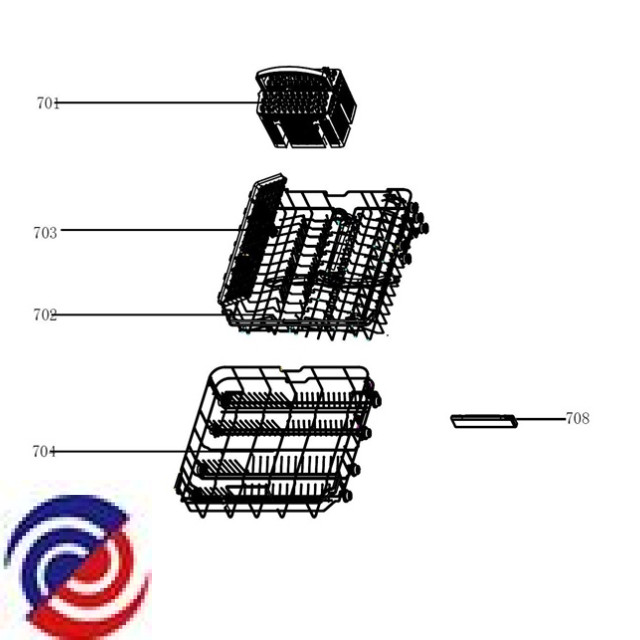

W0362639 UPPER BASKET ASSEMBLY
W0362640 KNIFE AND FORK RACK
W0362641 LOWER BASKET ASSEMBLY
W0362642 LOWER BASKET HANDLE ASS

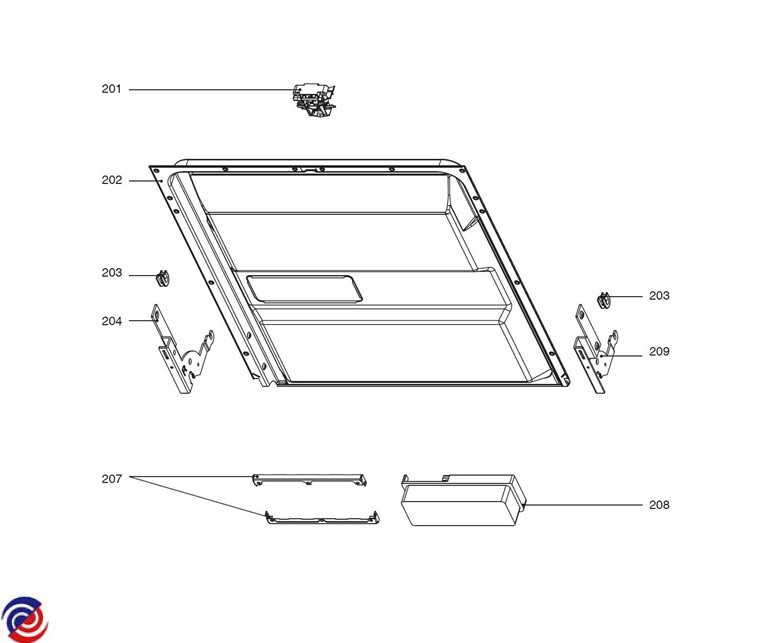

W0362643 INNER DOOR ASSEMBLY
W0362644 SNAP RING
$4.50
W0362645 LEFT HINGE ASSEMBLY
$30.80
W0362646 DISPENSER BRACKET
$4.95
W0362647 DISPENSER
W0362648 RIGH HINGE ASSEMBLY
$30.80
W0362649 UPPER BACK SUPPORT
$10.10
W0362650 UPPER BACK SUPPORT
$10.10
W0362651 TOP PANEL ASSEMBLY WHITE
$232.20
W0362653 LEFT SIDE PANEL WHITE
$114.05
W0362655 RIGHT SIDE PLATE WHITE
$121.80
W0362657 SUPPORT BASKET GUIDER HOLDER
$4.50
W0362658 RAIL SUPPORT ASSEMBLY
$4.50
W0362659 STOPPER
$4.50
W0362660 DOOR LOCK HOOK
$4.50
W0362661 SEAL
W0362662 UPPER BASKET GUIDER(LEFT)
W0362663 UPPER BASKET GUIDER(RIGHT)
$18.90
W0362664 CAP
W0362665 LEFT HINGE HOLEDER
$26.20
W0362666 RIGHT HINGE HOLDER
$26.20

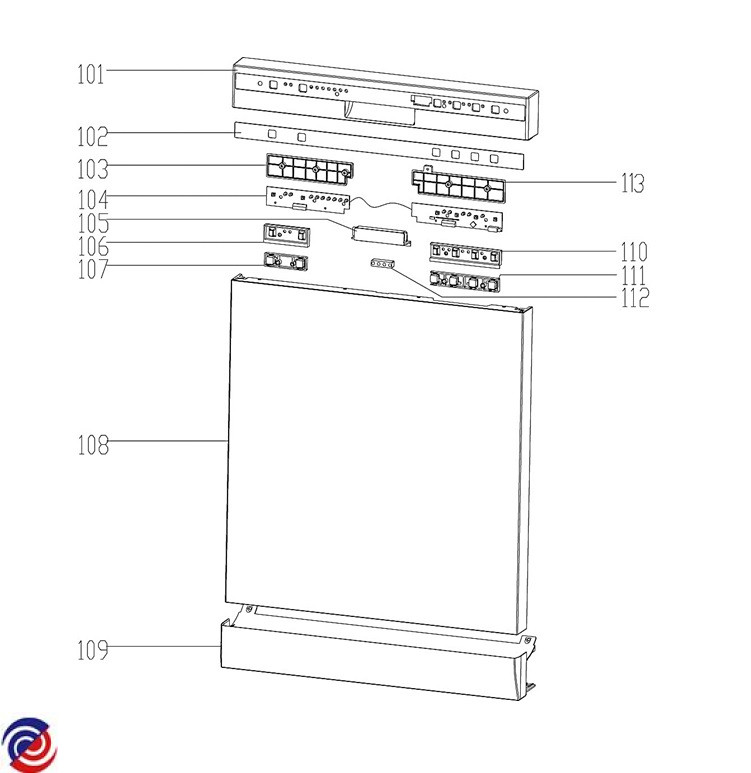

W0362667 CONTROL PANEL WHITE
$70.90
W0362669 CONTROL PANEL PATCH WHITE
$44.65
W0362671 BOX
$7.95
W0362672 DISPLAY PANEL
W0362673 HANDLE COVER WHITE
$4.00
W0362675 WATERPROOF COVER
$9.95
W0362676 BUTTON WHITE
$5.35
W0362678 OUTER DOOR WHITE
W0362680 BASEBOARD WHITE
$78.20
W0362681 WATERPROOF COVER
$12.20
W0362682 BUTTON WHITE
$5.70
W0362684 LENS HOOD
$7.65
W0362685 BOX
$7.95
W0362686 INNER PIPE ASSEMBLY
W0362687 MIDDLE SPAYER ASSEMBLY
W0362688 LOWER SPRAYER
$19.95
W0362689 FILTER
W0362690 CLAMP
$4.50
W0362691 WASHING PUMP OUTLET PIPE
$8.45
W0362692 INDUCTION PUMP
$422.90
W0362693 HEATING ELEMENTS
$138.05
W0362694 INLET PIPE
$12.65
W0362695 CLAMP
$4.50
W0362696 VALVE CHECK SEAT ASSEMBLY
$4.50
W0362697 POWER CORD
$39.40
W0362698 DRAIN PIPE ASSEMBLY
W0362699 OVERFLOW CAP
$4.50
W0362700 DOOR ROPE
$8.85
W0362701 PIN
$4.50
W0362702 ROPE PULLEY
$4.50
W0362703 WHEEL
$4.50
W0362704 AIR BREATHER
W0362705 WASHERS
$4.50
W0362706 NUT AIR BREAKER
$4.50
W0362707 O 'RING
$4.50
W0362708 SENSOR ASSEMBLY
$29.65
W0362709 PUMP PM SYNCHRONOUS
W0362710 SHUNT VALVE CHAMBER COVER
$4.50
W0362711 SPRING
$9.90
W0362712 WASH PUMP HOLDER
$6.25
W0362713 FOOT
$16.35
W0362714 TRAY BASE ASSEMBLY
$72.45
W0362715 DRAIN HOSE
W0362716 CLAMP
W0362717 PIPE
$15.50
W0362718 COUNTER WEIGHT
$40.30
W0362719 INLET VALVE
W0362720 PCB MAIN CONTROL BOARD
W0362721 PCB BOX
$13.50
W0362722 FLOAT
$4.50
W0362723 MICROSWITCH
$9.95
W0362724 FLOAT HOLDER
$4.50
W0362725 INLET HOSE ASSEMBLY
$36.15
