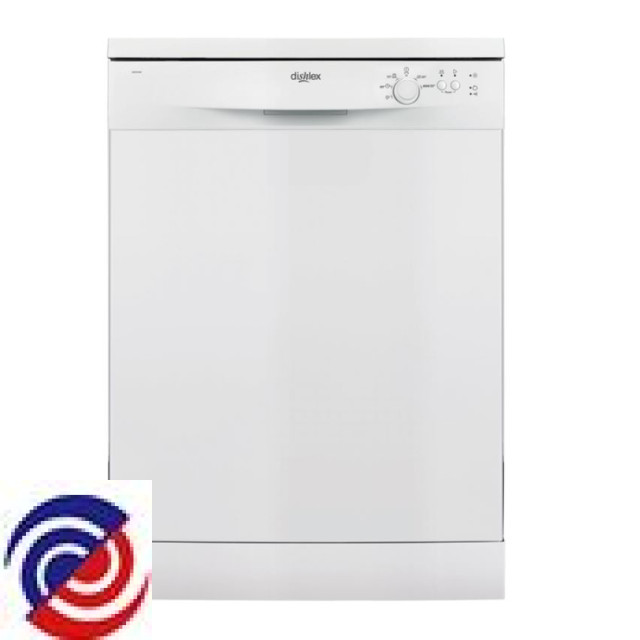

DSF6105W — 911519181 04
DISHLEX — Dishwasher
Parts for DSF6105W
W0015188 LATCH DOOR LOCK
$70.00
W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY
$98.00
W0017618 BASKET UPPER DISHWASH ASSY
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017626 PCB USER INTERFACE EDW500
W0017627 PUMP DRAIN 50HZ.
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0017640 SENSOR PRESSURE SWITCH
W0017642 SPRAY ARM LOWER DARK GREY
$98.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019177 ROLLER BASKET ADJUSTMENT FRNT
$16.00
W0025858 ROLLER KIT LOWER PKT 8
.JPG)
W0030810 BASKET CUTLERY UNIVERSAL
W0071641 DISPENSER DETERGENT
$116.00
W0071723 CAPAC 3UF MOTOR DISHWASHER
$48.00
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0072845 GASKET DOOR 1730MM
W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG
$68.00
W0077072 VALVE FILL 2.5L/MIN

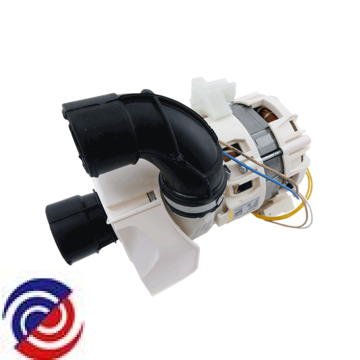

W0077091 PUMP RE-CIRC/HEATER COMP 1800W
W0090747 GASKET DOOR LOWER BLK L=550
W0015342 BRACKET STIFFENING
$34.50
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015374 FILTER FLAT
W0015713 HOLDER PLINTH
W0015720 BRACE CROSSBAR UPPER REAR
$14.95
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017622 BRACE CROSSBAR FRONT LOWER
W0017635 TRAY BOTTOM SPILLAGE
$54.00
W0017649 TUBE MANIFOLD INNER DARK GREY
$59.05
W0017650 COVER ELEC CONTROL BOX
$44.00
W0017654 SUPPORT CUP GREY
$13.00
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017676 HEATER WITH O-RING 230V/1800W
$184.00
W0017678 COVER HEATER
$30.00
W0017682 KNOB WHITE
$39.00
W0017686 BUTTON PUSH LEFT - WHITE
$16.10
W0017688 BUTTON PUSH RIGHT - WHITE
$25.00
W0017690 HANDLE WHITE
$78.00
W0017692 MOUNTING HANDLE - WHITE
$27.00
W0017721 RAIL BASKET UPPER
$34.00
W0017831 HOOK BASKET UPPER DISPENSER
$4.00
W0018958 SPRING KNOB
$9.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0018988 LATCH DOOR LOCK
W0018989 COVER WIRING PROTECTION
$11.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019170 BRACE FRONT UPPER
$35.05
W0019178 ROLLER BASKET ADJUSTMENT REAR
$16.00
W0019179 WORKTOP - WHITE
$160.00
W0019182 CHANNEL FEED UPPER SPRAYARM
$52.00
W0024199 KIT OVERFLOW HOSE
$150.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024452 KIT HINGE DOOR LH/RH
$108.05
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026941 BUFFER BASKET UPPER
$12.30
W0026946 PLINTH WHITE
$73.00
W0027046 HARNESS PCB HEATER
$72.00
W0027059 FOOT ADJUSTABLE M8 X 48MM LONG
$18.90
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027161 COVER MOTOR DRIP PREVENTION
$26.05
W0027262 PANEL CONTROL WHITE DSF6105W
W0027319 HARNESS PCB PUMP
$170.05
W0027331 HARNESS PCB DOOR
$54.00
W0028893 BOARD PC MAIN PB300 PROGRAMMED
$300.00
W0072593 PANEL SIDE LEFT - WHITE
$150.00
W0072595 PANEL SIDE RH - WHITE
$147.35
W0072706 CONTAINER CUP SMALL
$50.00
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0076863 SUPPORT SPIKES RUBBER - GREY
W0077056 SUMP WATER ASSEMBLY / AIR TRAP
$50.00
W0077058 BASEMENT REAR
W0077065 SWITCH & FLOAT ASSY
W0077167 HOSE DRAIN X 2230MM
W0077240 DOOR INNER INOX 577X617
$231.00
W0090280 TIE HINGE
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090637 COVER LATCH HOLE
$11.00
W0090657 TRIM TUB BLACK
$30.00
W0090683 TUBE AIR CHAMBER
W0090967 PANEL DOOR OUTER - WHITE
$205.00
W0090968 BASKET DISHWASHER BOTTOM GREY
$120.15
W0129222 SEAL AIR CHAMBER
W0147301 FILTER DRAIN ASSEMBLY - FINE
