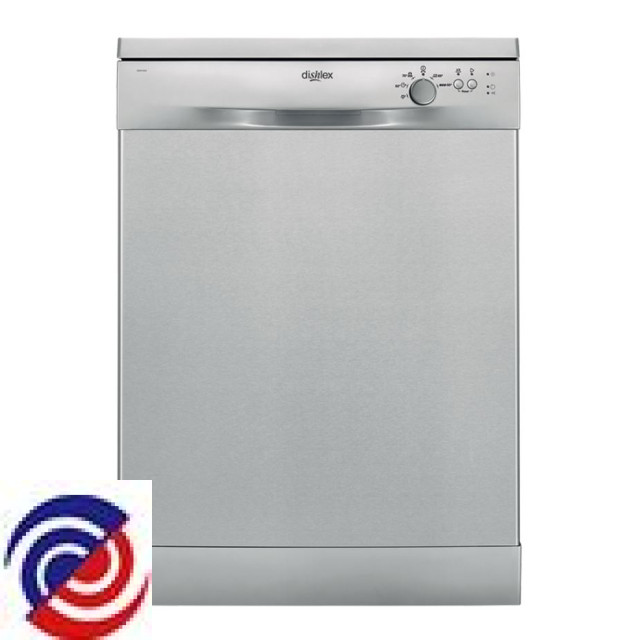

DSF6105X — 911519182 04
DISHLEX — Dishwasher

W0015188 LATCH DOOR LOCK

$56.00

W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY

$78.40

W0017614 HOSE SUMP TO TANK X370MM

$8.80

W0017618 BASKET UPPER DISHWASH ASSY

W0017624 SENSOR TEMPERATURE TURBIDITY

W0017626 PCB USER INTERFACE EDW500

W0017627 PUMP DRAIN 50HZ.

W0017639 VALVE NON-RETURN FLAP SUMP

$24.00

W0017640 SENSOR PRESSURE SWITCH

W0017642 SPRAY ARM LOWER DARK GREY

$78.40

W0018964 FOOT ADJUSTABLE X 36MM LONG

W0019177 ROLLER BASKET ADJUSTMENT FRNT

$12.80

W0025858 ROLLER KIT LOWER PKT 8

W0030810 BASKET CUTLERY UNIVERSAL

W0071641 DISPENSER DETERGENT

$92.80

W0071723 CAPAC 3UF MOTOR DISHWASHER

$38.40

W0071935 SUPPORT SPRAY ARM LOWER DRK GR

$26.40

W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG

$54.40

W0077072 VALVE FILL 2.5L/MIN

W0077090 PUMP RE-CIRC/HEATER COMP 1800W

W0090747 GASKET DOOR LOWER BLK L=550

W0015342 BRACKET STIFFENING

$27.60

W0015367 TRAP SUMP PUMP RECIRC - BLACK

$10.40

W0015368 O-RING SUMP

$14.40

W0015374 FILTER FLAT

W0015713 HOLDER PLINTH

W0015720 BRACE CROSSBAR UPPER REAR

$11.96

W0015723 PANEL SIDE LEFT - SILVER

$120.00

W0017622 BRACE CROSSBAR FRONT LOWER

W0017635 TRAY BOTTOM SPILLAGE

$43.20

W0017649 TUBE MANIFOLD INNER DARK GREY

$47.24

W0017650 COVER ELEC CONTROL BOX

$35.20

W0017654 SUPPORT CUP GREY

$10.40

W0017665 CORD SERVICE AU 2.15M

$38.40

W0017676 HEATER WITH O-RING 230V/1800W

$147.20

W0017678 COVER HEATER

$24.00

W0017683 KNOB INOX

$31.20

W0017687 BUTTON PUSH - LEFT INOX

$14.88

W0017689 BUTTON PUSH - RIGHT INOX

$11.60

W0017691 HANDLE GREY

$33.60

W0017693 MOUNTING HANDLE GREY

W0017721 RAIL BASKET UPPER

$27.20

W0017831 HOOK BASKET UPPER DISPENSER

$3.20

W0018958 SPRING KNOB

$7.20

W0018963 STOP BASKET UPPER FRONT D/GREY

$7.20

W0018988 LATCH DOOR LOCK

W0018989 COVER WIRING PROTECTION

$8.80

W0019024 VENT VAPOUR OUTLET

$16.80

W0019170 BRACE FRONT UPPER

$28.04

W0019178 ROLLER BASKET ADJUSTMENT REAR

$12.80

W0019180 TOP WORKING ASSEMBLY INOX

W0019182 CHANNEL FEED UPPER SPRAYARM

$41.60

W0024199 KIT OVERFLOW HOSE

$120.00

W0024257 SUPPORT ROLLER KIT (PKT 4)

$46.40

W0024452 KIT HINGE DOOR LH/RH

$86.44

W0026672 STOP BASKET UPPER REAR D/GREY

$8.00

W0026941 BUFFER BASKET UPPER

$9.84

W0026945 PLINTH INOX

$96.80

W0027046 HARNESS PCB HEATER

$57.60

W0027059 FOOT ADJUSTABLE M8 X 48MM LONG

$15.12

W0027129 CLAMP DRAIN HOSE Ï30MM

$7.20

W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM

$16.80

W0027131 CLAMP CIRCULATION PUMP-SUMP

$8.80

W0027161 COVER MOTOR DRIP PREVENTION

$20.84

W0027261 PANEL CONTROL . INOX DSF6105X

$112.44

W0027319 HARNESS PCB PUMP

$136.04

W0027331 HARNESS PCB DOOR

$43.20

W0028893 BOARD PC MAIN PB300 PROGRAMMED

$240.00

W0072672 PANEL SIDE RIGHT - SILVER

$128.00

W0072706 CONTAINER CUP SMALL

$40.00

W0072894 SUPPORT BRACKET MOTOR RUBBER

W0076863 SUPPORT SPIKES RUBBER - GREY

W0077056 SUMP WATER ASSEMBLY / AIR TRAP

$40.00

W0077058 BASEMENT REAR

W0077065 SWITCH & FLOAT ASSY

W0077167 HOSE DRAIN X 2230MM

W0077240 DOOR INNER INOX 577X617

$184.80

W0090280 TIE HINGE

W0090413 SEAL CHANNEL DRAINAGE

W0090423 NUT SPEED CLIP

W0090475 GASKET DOOR 17300MM

W0090612 CLAMP HOSE

W0090636 COVER LATCH HOLE

W0090657 TRIM TUB BLACK

$24.00

W0090683 TUBE AIR CHAMBER

W0090966 PANEL OUTER DOOR INOX

$134.40

W0090968 BASKET DISHWASHER BOTTOM GREY

$96.12

W0129222 SEAL AIR CHAMBER

W0147301 FILTER DRAIN ASSEMBLY - FINE
