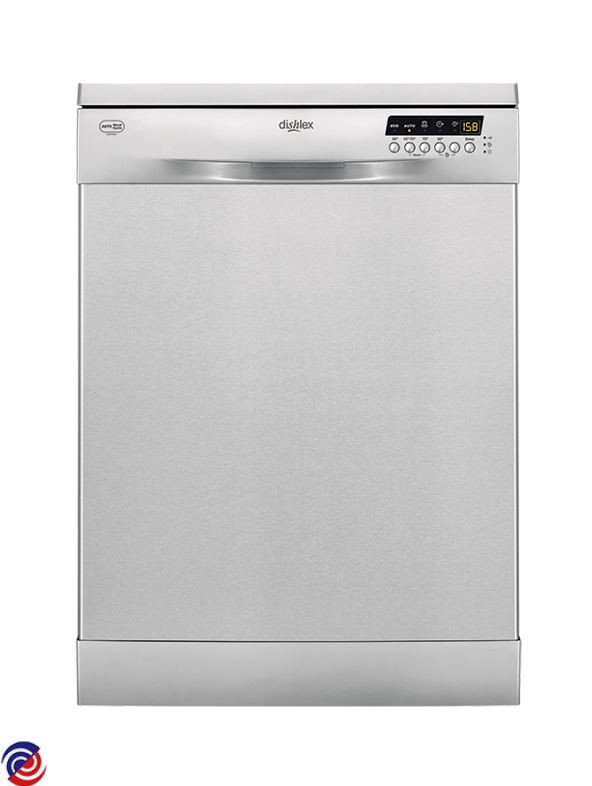

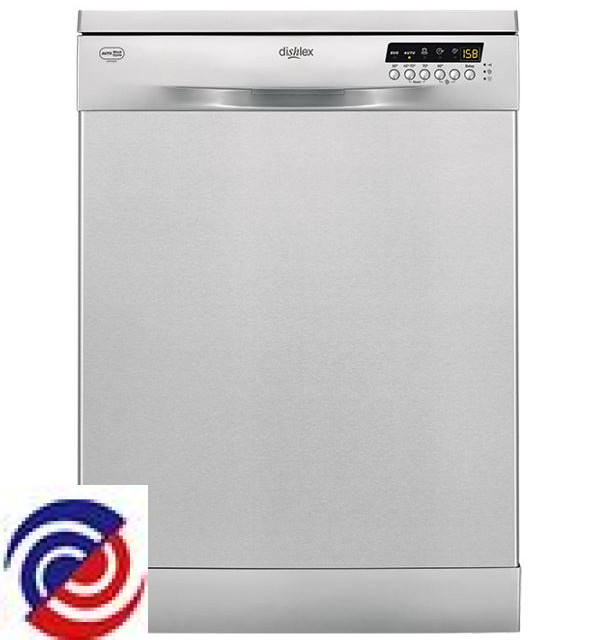

DSF6306X — 911516245 00
DISHLEX — Dishwasher
Parts for DSF6306X
W0015188 LATCH DOOR LOCK
$70.00
W0015204 BOARD INTERFACE AMBER EDW1500
$221.00
W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY
$98.00
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017618 BASKET UPPER DISHWASH ASSY
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017627 PUMP DRAIN 50HZ.
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0017640 SENSOR PRESSURE SWITCH
W0017642 SPRAY ARM LOWER DARK GREY
$98.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019066 ROLLER BASKET RH QUIK LIFT
$40.00
W0019067 ROLLER BASKET LH QUIK LIFT
$40.00
W0025858 ROLLER KIT LOWER PKT 8
W0030797 SUPPORT SPIKES RUBBER - GREY
.JPG)
W0030810 BASKET CUTLERY UNIVERSAL
W0071641 DISPENSER DETERGENT
$116.00
W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$46.00
W0071723 CAPAC 3UF MOTOR DISHWASHER
$48.00
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0072845 GASKET DOOR 1730MM
W0077090 PUMP RE-CIRC/HEATER COMP 1800W
W0090747 GASKET DOOR LOWER BLK L=550
W0015342 BRACKET STIFFENING
$34.50
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015374 FILTER FLAT
W0015388 DISPLAY LED 7MM
$91.95
W0015713 HOLDER PLINTH
W0015720 BRACE CROSSBAR UPPER REAR
$14.95
W0015723 PANEL SIDE LEFT - SILVER
$150.00
W0015827 ON/OFF BUTTON SILVER
$18.60
W0015828 SPRING ON/OFF BUTTON
$13.00
W0017622 BRACE CROSSBAR FRONT LOWER
W0017635 TRAY BOTTOM SPILLAGE
$54.00
W0017649 TUBE MANIFOLD INNER DARK GREY
$59.05
W0017650 COVER ELEC CONTROL BOX
$44.00
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017691 HANDLE GREY
$42.00
W0017693 MOUNTING HANDLE GREY
W0017698 BUTTON PUSH SET OF 6 - INOX
$29.05
W0017699 SUPPORT BUTTON PUSH SET6
$27.50
W0017714 HANDLE BASKET REAR DISHLEX
$40.00
W0017715 HANDLE BASKET FRONT DISHLEX
$45.85
W0017721 RAIL BASKET UPPER
$34.00
W0017770 RACK FOLD DOWN LEFT 321MM
$40.00
W0017771 RACK FOLD DOWN RIGHT 321MM
$40.00
W0017831 HOOK BASKET UPPER DISPENSER
$4.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0018988 LATCH DOOR LOCK
W0018989 COVER WIRING PROTECTION
$11.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019170 BRACE FRONT UPPER
$35.05
W0019180 TOP WORKING ASSEMBLY INOX
W0019182 CHANNEL FEED UPPER SPRAYARM
$52.00
W0024199 KIT OVERFLOW HOSE
$150.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024452 KIT HINGE DOOR LH/RH
$108.05
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026941 BUFFER BASKET UPPER
$12.30
W0026945 PLINTH INOX
$121.00
W0026989 PLUG DRAIN HOSE
$12.10
W0027046 HARNESS PCB HEATER
$72.00
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027161 COVER MOTOR DRIP PREVENTION
$26.05
W0027271 PANEL CONTROL INOX DSF6306X
$265.05
W0027355 BASKET LOWER COMPLETE ASSY
$313.25
W0027387 HARNESS PCB PUMP
$34.30
W0028888 PCB MAIN CONFIGURED DSF6306 973911516245009
$266.85
W0072672 PANEL SIDE RIGHT - SILVER
$160.00
W0072705 CONTAINER CUP SMALL
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072944 ON/OFF BUTTON PROTECTION
$18.60
W0077056 SUMP WATER ASSEMBLY / AIR TRAP
$50.00
W0077058 BASEMENT REAR
W0077065 SWITCH & FLOAT ASSY
W0077073 SUPPORT CUP GREY
$10.00
W0077151 HARNESS PCB DOOR
W0077167 HOSE DRAIN X 2230MM
W0077240 DOOR INNER INOX 577X617
$231.00
W0090280 TIE HINGE
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090637 COVER LATCH HOLE
$11.00
W0090657 TRIM TUB BLACK
$30.00
W0090746 PLUG DRAIN HOSE
W0090966 PANEL OUTER DOOR INOX
$168.00
W0129222 SEAL AIR CHAMBER
W0147285 HOSE INLET WITH SAFETY VALVE
W0147301 FILTER DRAIN ASSEMBLY - FINE
