DX300KA*03

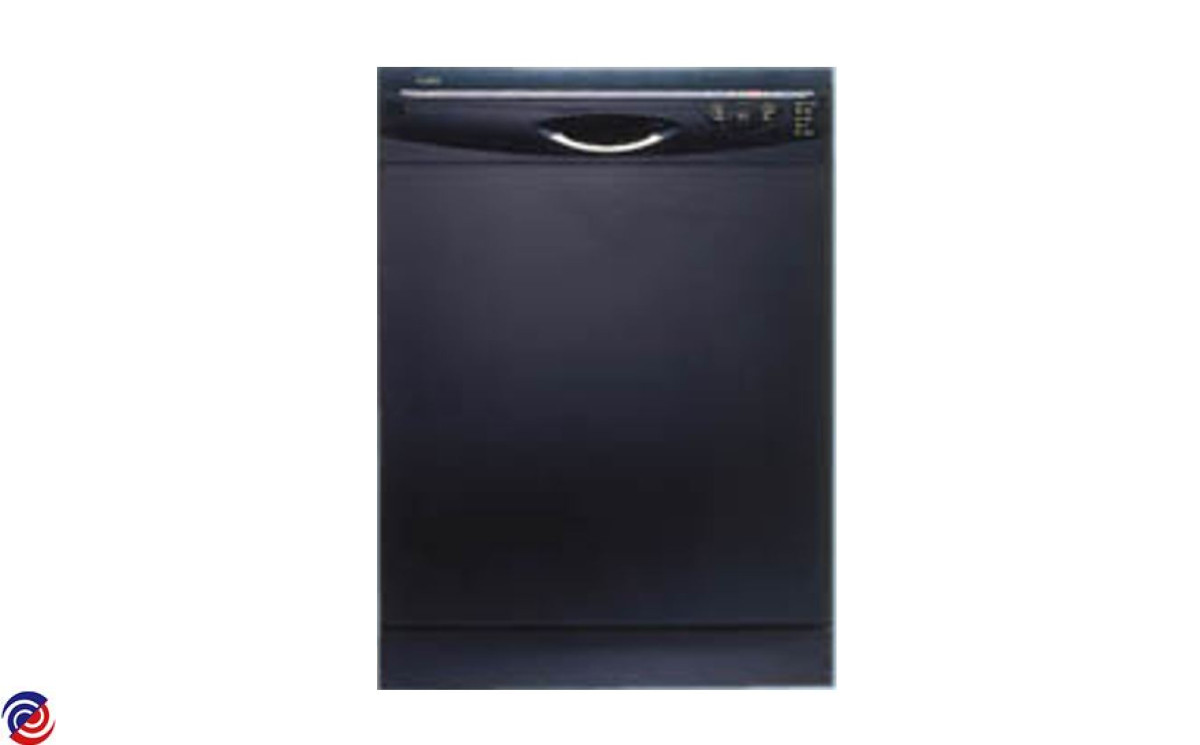

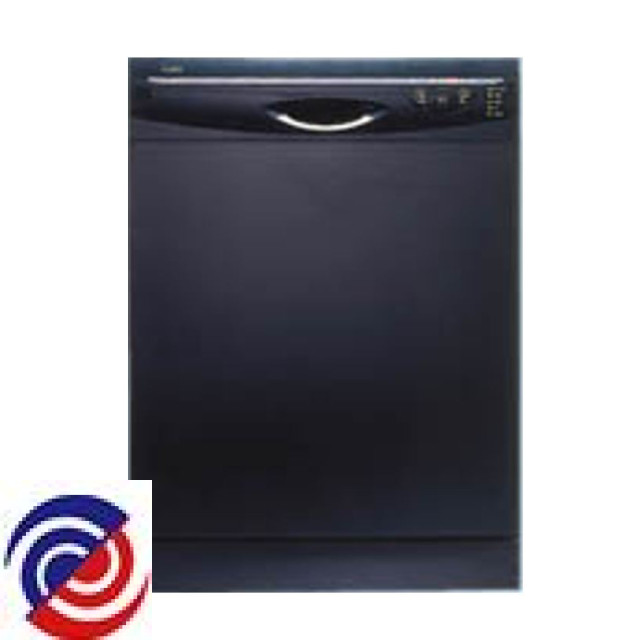

DISHLEX — Dishwasher

W0012668 FERRULE HOSE JOINER 19MM

$6.00

W0012742 SEAL DOOR LOWER

$43.00

W0013303 BOARD MAIN

W0031410 FUNNEL VENTURI ASSY UPPER

W0031424 FUNNEL VENTURI ASSY LOWER

W0031985 ROLLER & AXLE LOWER PKT 4

W0045455 WASHER HOSE 1/2 X 1

W0047244 DISPENSER DETERGENT

W0047649 SCREW M5 TAPTITE TRUSS HD 6*

W0050499 MOTOR & PUMP ASSY 3 OUTLET

$186.00

W0060483 DISHWASHER HOSE 2M 90DEG NUT/TAIL BTH

$39.55

W0147162 FILTER HOSE INLET RUBBER

$8.45

W0149472 GROMMET SPRAY NOZZLE

$3.00

W0149495 PUMP DRAIN 240V/50HZ

W0149554 BASKET CUTLERY

W0155946 HANDLE & BRACKET ASSY BLK

W0156451 FILTER CUP DRAIN

W0156464 SPRAY ARM UPPER

W0156610 SPRAY ARM LOWER

W0170402 TIE CABLE MINIATURE

$4.00

W0012743 SEAL FOAM

W0013883 TAIL ELBOW 10MM 90 DEGREE

W0013936 LINER ASSY

W0035505 CLAMP HOSE - WORM DRIVE

W0035600 CLAMP SERVICE CORD

W0035626 CLAMP 18.2MM

W0035795 DEFLECTOR

$8.80

W0036236 SUPPORT FRAME ASSY L/H

W0036245 SUPPORT FRAME ASSY R/H

W0036248 SUPPORT PRESSURE SWITCH TUBE

W0036330 DAMPER MOTOR MOUNTING

$5.50

W0038955 BRACKET DISP

W0038992 BRACKET RETAINING I/VALVE

W0038998 BRACKET PRESSURE SWITCH

W0039109 LEG ADJUSTABLE

W0041711 PANEL SUPPORT FRONT

W0041712 PANEL SUPPORT REAR

W0041720 PANEL JUNCTION BOX (AUST)

W0041724 PANEL COVER J BOX

W0041728 PANEL DOOR INNER

W0041729 PANEL BASE

W0041733 PANEL CONTROL BLK

$177.70

W0041735 PANEL BACK (COREX)

W0041780 PANEL FRONT COVER

W0041812 PANEL DOOR OUTER (BLACK)

W0041837 PANEL WRAP (BLACK)

W0041860 PANEL K/PLATE TOP (ADJ)(BLACK)

W0041866 PANEL K/PLATE BTM (ADJ)(BLACK)

W0042443 HINGE KIT DOOR LH

W0042444 HINGE KIT DOOR RH

W0042567 VENT AIR (PG)

W0042672 SUPPORT CHANNEL LINER FRONT

W0042676 SUPPORT CHANNEL LINER REAR

W0043666 TUBE PRESSURE SWITCH 660MM

W0043903 PIVOT HINGE

W0044087 NUT WHITE

W0044121 NUT M5 X 0.8 WHIZ LOCK NUT ZY

W0044125 NUT M6 HEX ZN

W0044240 SPANNER LEVELLING LEG

W0045201 COUNTER WEIGHT (O/DOOR PANEL)

W0045464 WASHER SEALING

W0045475 WASHER BLANKET RETAINING

W0045863 SUPPORT SPRING

$9.90

W0045864 SPRING HINGE

W0046298 ELEMENT

W0046454 SPEED CLIP DISHWASHER

$4.50

W0046462 CLIP REAR PANEL

W0046553 SLEEVE SPRING (EXT)

W0046683 DOME AIR ASSY OTHERBRAND

W0047004 HOUSING SUMP (3 OUTLETS)

W0047096 VALVE NON RETURN DRAIN PUMP

W0047500 SCREW 7_19 X 1/2 HI LO ZC PAN

W0047605 SCREW 3/16 X 1/2 BSW CSK

W0047608 SCREW NO 6 T25 X 3/8 CSK SS

W0047614 SCREW M4 X 10MM PN HD

W0047616 SCREW M5 X 12 MM TRUSS HD

W0047629 SCREW SUMP PLATE

W0047631 SCREW NO 7-19*8 FLNG HD HI-LO

W0047638 SCREW #8*11 AB C/S #6 HD

W0047639 SCREW CAB TRIM

W0047655 SCREW DOOR LATCH

W0048156 BAFFLE DOOR INNER

W0048158 BAFFLE DOOR (OUTER)

W0048587 WIRE GLASS SUPPORT

W0048940 TERMINAL SINGLE (FREESTYLE)

W0049257 GASKET AIR VENT

W0049781 BASKET LOWER INCLUDES ROLLERS

W0049783 BASKET UPPER

W0050091 SEAL THERMOSTAT

W0050097 SEAL O RING

W0050100 SEAL ELEMENT

W0050119 SEAL

W0050126 SEAL 'O' RING

W0050180 O RING DRAIN PUMP ASSY

$17.60

W0050182 SEAL DOOR (CO EXTRUDED)

W0050764 INLET WATER

W0050769 DELIVERY TUBE TOP SPRAY

W0052808 GUIDE DOOR LH (BLACK)

W0052809 GUIDE DOOR RH (BLACK)

W0053632 RETAINER DOOR SEAL (LH)

W0053634 RETAINER DOOR SEAL (RH)

W0053635 RETAINER MOTOR MOUNTING

W0054683 INSULATION ACOUSTIC DOOR

W0054684 INSULATION ACOUSTIC BLANKET

W0055249 CONE DOOR GUIDE (X2)(FLAT)

W0055559 RACK DISH LOWER BASKET

W0055560 RACK CUTLERY LOWER BASKET

W0056047 FILLER PANEL CONTROL (LH) BLK

W0056049 FILLER PANEL CONTROL (RH) BLK

W0057418 SWITCH PRESSURE (DUAL)

W0057828 THERMOSTAT 85C 2 POLE

W0059408 TRIM CABINET RH SS

W0059410 TRIM CABINET LH SS

W0059465 TRIM CABINET TOP SS

W0060026 HARNESS 1 PIECE

W0060487 HOSE 10MM (PER METRE)

W0060505 HOSE DRAIN 1.8M

W0060512 HOSE PUMP TO LOWER SPRAY ARM

W0060524 HOSE INLET TO SYPHON BREAK

$44.00

W0060529 HOSE PUMP TO DELIVERY TUBE

W0060532 HOSE DRAIN

W0060537 HOSE WASH PUMP/BYPASS FILTER

W0061321 PAD GUARD D/HINGE LH

W0061323 PAD GUARD D/HINGE RH

W0061443 CAPAC 4UF 440V 2PIN CLIP

W0061599 PLATE SUMP (3 OUTLETS)

W0062779 TAIL STRAIGHT 10MM

$22.00

W0062795 CORD SERVICE

W0063279 BAG ASSY ACCESS PACK

W0064747 NUT HEX 3/16 BSW

$4.50

W0064785 NUT CAGE 10 UNF

W0069882 CLAMP HOSE W DRIVE 1/2 X 3/4

W0110584 SWITCH

$15.20

W0111507 SCREW NO 8 X 3/8 WAFER ZNC

W0111663 WASHER SHAKE PROOF

W0137372 CLAMP PLATE ELEMENT

W0148023 SCREW 7/19 HI LO C/S S/S 18

W0148025 SCREW NO 7 19 LONG

W0148843 SPRING HANDLE DOOR C/R/L

W0148854 AXLE GUIDE WHEEL

W0148866 WASHER GUIDE RAIL

W0149123 BRACKET THERMISTOR

$22.00

W0149340 HOSE SUMP TO W/PUMP INLET

W0149344 CLAMP HOSE DIA 37_2 MM

W0149345 CLAMP HOSE DIA 44_4 MM

W0149347 CLAMP-HOSE DIA 14.8 MM BLK

W0149348 CLAMP HOSE DIA 27_5

W0149352 CLAMP HOSE DIA 28_7 MM

W0149361 CLAMP HOSE 15.5MM BLK

$1.80

W0149365 SCREW SUMP

W0149368 VALVE INLET 240V/50HZ 4.0L/MIN

W0149403 SEAL DRAIN PUMP

W0149439 FILTER LH S/S REMOVABLE

W0149445 RETAINER SUMP P/GREY

W0149536 GUIDE ADJUSTABLE KICKPLATE

W0149542 SPRING ADJUSTABLE KICKPLATE

W0149630 CLIP GLASS SUPPORT P/GREY

W0149636 FILTER RH S/S WITH CUTOUT

W0149666 LENS PROGRESS INDICATOR

W0154704 S/CLIP M10430/4 CLEAR ZN FINI

W0156422 STOP GUIDE RAIL P/GREY

W0156423 GUIDE RAIL BASKET UPPER

W0156425 WHEEL & AXLE G/RAIL

W0156442 RACK CUP HINGED

W0156443 WHEEL & AXLE U/BASKET

W0156454 FILTER BARREL MICROMESH

W0156457 BREATHER FILTER

W0156459 SEAL SUMP

W0156467 SPRAY NOZZLE & GASKET

W0156493 SCREW #8*13 ALKON TT0812 BLK

W0156513 BRACKET KIT K/PLATE LH & RH

W0156612 FILTER BYPASS

W0156771 CLIP COLLAR LOWER VENTURI

W0157983 KIT FLOOR MOUNTING

W0170317 SCREW #7X12MM LG FLANGE HD PH

W0170404 HOSE RETAINER
