EDC2086PDW — 916097083 00
ELECTROLUX — Clothes Dryer

W0014777 PROGRAM SELECTOR TC2/3

W0016685 FITTINGS DRAINAGE,CONDENSATION,OUTER,KIT

W0016701 BUSH, ROLLER, DRUM, 29MM

$6.75

W0016717 CAPAC 4UF 425V 2PIN MOT&FAN

W0017372 FLUFF FILTER

$39.00

W0017380 HUMIDITY SENSOR

$29.25

W0017400 DISCHARGE PIPE, L=331.5MM

$14.25

W0017403 GASKET, FILTER

$27.75

W0017408 SPRING, DOOR, PLINTH

$9.75

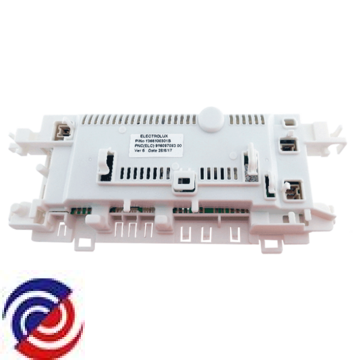

W0017425 MAIN BOARD,EDC2086PDW

W0017432 HEATER, 240V,1400+600W

$120.75

W0017433 MOTOR,230-240V,50HZ,167W

W0017435 DOOR LOCK

$22.50

W0017445 MICROSWITCH, FLOAT

$25.50

W0017467 CONE

$15.94

W0017475 DOOR HINGE, PLASTICDOOR

$23.25

W0017477 HINGE BUSHING

$6.00

W0017505 TAPPET, DOOR

$7.50

W0017522 OUTER DOOR, PLINTH, TIR

$85.58

W0017523 PLINTH, BASEMENT, TIR

$94.09

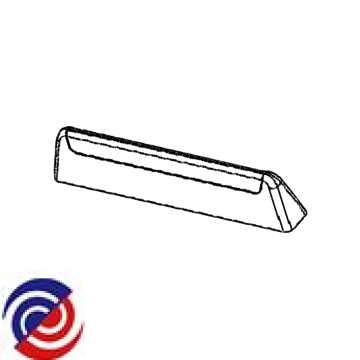

W0017525 DRUM, LIFTER

$20.63

W0017530 OUTER DOOR, COVER, WHITE

$58.65

W0017541 KNOB ASSY,WHITE, TIR

$29.70

W0017552 CONTROL PANEL, HANDLE,COMPLETE

$59.93

W0074659 ROLLER CLAMPING ASSY

W0074876 CAPACITOR, MOTOR, DRUM 7UF

W0074941 AEG DRYER CONDENSATION PUMP

$65.25

W0076579 AEG ELECTROLUX CONDENSOR DRYER DRUM ROLLER

$29.25

W0076582 GASKET, DRUM, BACK, 1683MM

$26.25

W0076689 DRUM,FRONT,LARGE OPENING,17.5X20X1683MM

W0150019 LEG ADJUSTABLE

W0016608 SEAL TEMPERATURE SENSOR

$17.40

W0016656 BUFFER (MOTOR)

$6.00

W0016657 BUSH MAIN MOTOR

W0016659 GASKET FRONT HEAT EXCHANGER

W0017234 BUTTON SILVER ON/OFF

$10.88

W0017345 SIDE PANEL,WITH INSULATION

$127.54

W0017361 PANEL REAR

$127.88

W0017364 DOOR FRAME

$31.35

W0017367 REINFORCEMENT, TOP

$33.00

W0017369 REINFORCEMENT, MIDDLE,TOP

$20.63

W0017370 SUPPORT, TANK

$43.50

W0017371 TANK, UPPER

$40.50

W0017376 SUPPORT,BUTTON, DOOR

$6.75

W0017377 COVER, HEATING ELEMENT

$43.50

W0017378 PROTECTION, HEATING ELEMENT

$20.25

W0017379 TANK. CONNECTOR

$17.18

W0017383 BELT DRIVE L=1791

W0017384 TUBE HOLDER

$9.30

W0017386 COVER, REAR PANEL, PLASTIC

$18.79

W0017387 COVER SCROLL FRONT

$11.25

W0017388 COVER SCROLL BACK

$12.38

W0017389 BRACKET FIXING MOTOR FRONT

$14.25

W0017390 IMPELLER, COOLING

$20.63

W0017391 BRACKET HARNESS

$20.63

W0017393 BRACKET FIXING MOTOR REAR

$12.00

W0017394 DOOR HINGE,REINFORCEMENT

$17.40

W0017395 SUPPORT, PUMP

$12.00

W0017396 SUPPORT, WIRING, CONNECTOR

$20.63

W0017399 SEALING, AIR DUCT, BASEMENT

$15.75

W0017401 SUPPORT, HUMIDITY SENSOR

$15.00

W0017404 COVER, PUMP, FLOAT

$9.75

W0017406 BUSH TANK

$7.50

W0017407 GASKET, DOOR, BASEMENT

$26.25

W0017412 COVER PLATE, DOOR LOCK

$3.00

W0017414 DOOR, CONDENSER,BASEMENT

W0017416 KNOB LOCK,DOOR,BASEMENT

$18.15

W0017417 FAN WHEEL, FRONT

$41.25

W0017419 INNER DOOR, PLASTIC, SEE SB 599771019

$81.34

W0017430 COVER, ELECTRONIC BOARD

$9.75

W0017431 DRUM, ASSEMBLY

$166.88

W0017434 CLAMP CABLE

$5.36

W0017443 WORK TOP ASSEMBLY

$93.75

W0017450 HARNESS, BASE

$44.96

W0017451 HARNESS. AIR DUCT

$24.75

W0017463 COVER PLATE, BOTTOM

$44.55

W0017466 CONE, BASE

$27.00

W0017524 HINGE, DOOR, PLINTH

$13.20

W0017527 SUPPORT, INNER DOOR

$10.73

W0017528 DIFFUSER, KNOB

$15.00

W0017539 STEAM CONDENSER, ASSEMBLY

$138.00

W0023730 BUTTON PUSH

$9.45

W0025696 BUSH KIT (MOTOR)

W0072032 HINGE PIN EDI96150W

$4.95

W0074436 SENSOR EDI96150W

W0074914 TENSION SPRING, MOTOR, ENV06

W0076541 USER INTERFACE BOARD.TC3.TIR

W0076585 DUCT. AIR. FRONT

W0076603 OVERFLOW HOSE. L=1040

$17.18

W0076606 HOSE, PUMP, TANK, L=1130

W0076609 GASKET FRONT. LARGE OPENING

W0076611 HANDLE, STEAM CONDENSER

$20.40

W0076616 DOOR SWITCH

W0076618 POWER CABLE, AUS, 2600MM

$52.50

W0076665 DIFFUSER. LUMINOUS DIODE.SUPP

W0076671 PANEL FRONT

W0116541 DOOR HANDLE. ASSY
