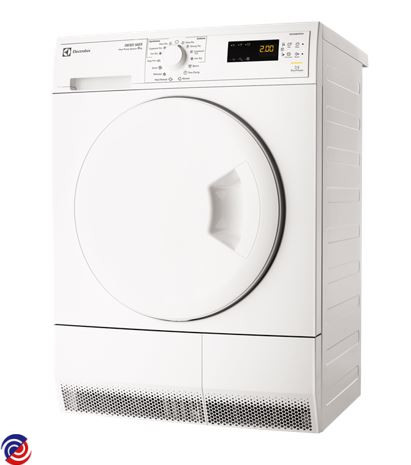

EDH3284PDW — 916097086 03
ELECTROLUX — Clothes Dryer
Parts for EDH3284PDW
W0015463 FAN COOLING COMPRESSOR
$74.00
W0016685 HOSE DRAIN KIT DRYER 2.5M
W0016701 BUSH SUPPORT ROLLER
$8.00
W0017346 SIDE PANEL,INSULATED,RIGHT
$126.20
W0017365 HINGE DOOR
$20.00
W0017380 HUMIDITY SENSOR
$37.00
W0017397 HOSE, PUMP,TANK, L=770
$17.45
W0017403 GASKET FILTER
$37.00
W0017408 SPRING, DOOR, PLINTH
$13.00
W0017409 PIVOT DOOR HINGE
$10.00
_1.png)
W0017421 DRUM, LIFTER
$14.95

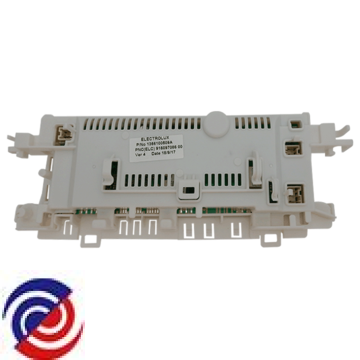

W0017426 MAIN BOARD,EDH3284PDW
W0017435 DOOR LOCK
$30.00
.png)
W0017445 MICROSWITCH, FLOAT
$31.00
W0017447 MOTOR
W0017467 CONE
$21.10
W0017469 BOARD INVERTER
$279.00
W0017477 HINGE BUSHING
$8.00
W0017484 FLUFF FILTER
$48.00
W0017498 FILTER,BASEMENT,SMALL,HP
$40.00
W0017505 TAPPET, DOOR
$10.00
W0017522 OUTER DOOR, PLINTH
$113.40
W0017523 PLINTH, TIR
$125.05
W0017530 OUTER DOOR,COVER,WHITE
$80.05
W0019381 KNOB, WHITE, TIR
$24.20
W0019382 PROGRAM SELECTOR TC4/5
W0019384 USER INTERFACE BOARD,TC4,TIR
$263.00
W0074659 ROLLER CLAMPING ASSY
W0074941 AEG DRYER CONDENSATION PUMP
$87.00
W0076582 GASKET DRUM BACK
$35.00
W0076610 GASKET FRONT, LARGE OPENING
$37.00

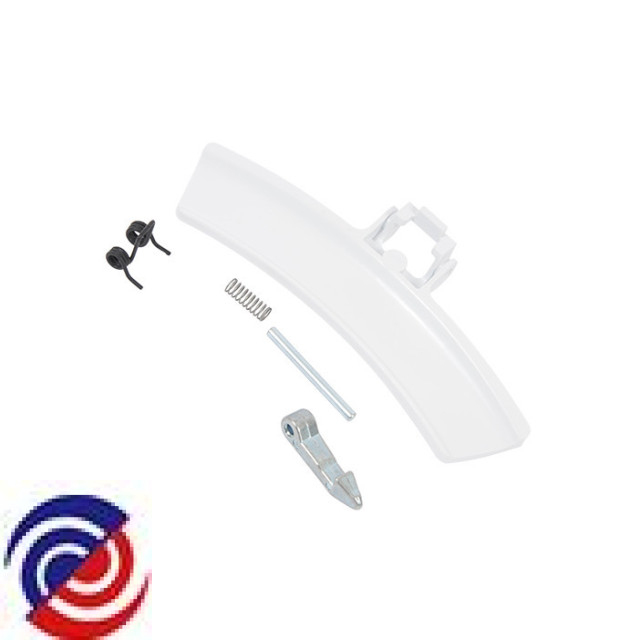

W0116644 DOOR HANDLE, ASSY
$51.00
W0150019 LEG ADJUSTABLE
W0016564 CAPAC 18UF 425V 2 PIN WASHER
W0016656 BUFFER (MOTOR)
$8.00
W0016657 BUSH MAIN MOTOR
W0017345 SIDE PANEL,WITH INSULATION
$170.05
W0017354 ROLLER ASSY CHANNEL DRAIN
$29.00
W0017362 PANEL REAR
$170.50
W0017364 DOOR FRAME
$41.80
W0017367 REINFORCEMENT, TOP
$44.00
W0017369 REINFORCEMENT, MIDDLE,TOP
$27.50
W0017370 SUPPORT, TANK
$58.00
W0017371 TANK, UPPER
$51.00
W0017376 SUPPORT,BUTTON, DOOR
$9.00
W0017379 TANK. CONNECTOR
$22.90

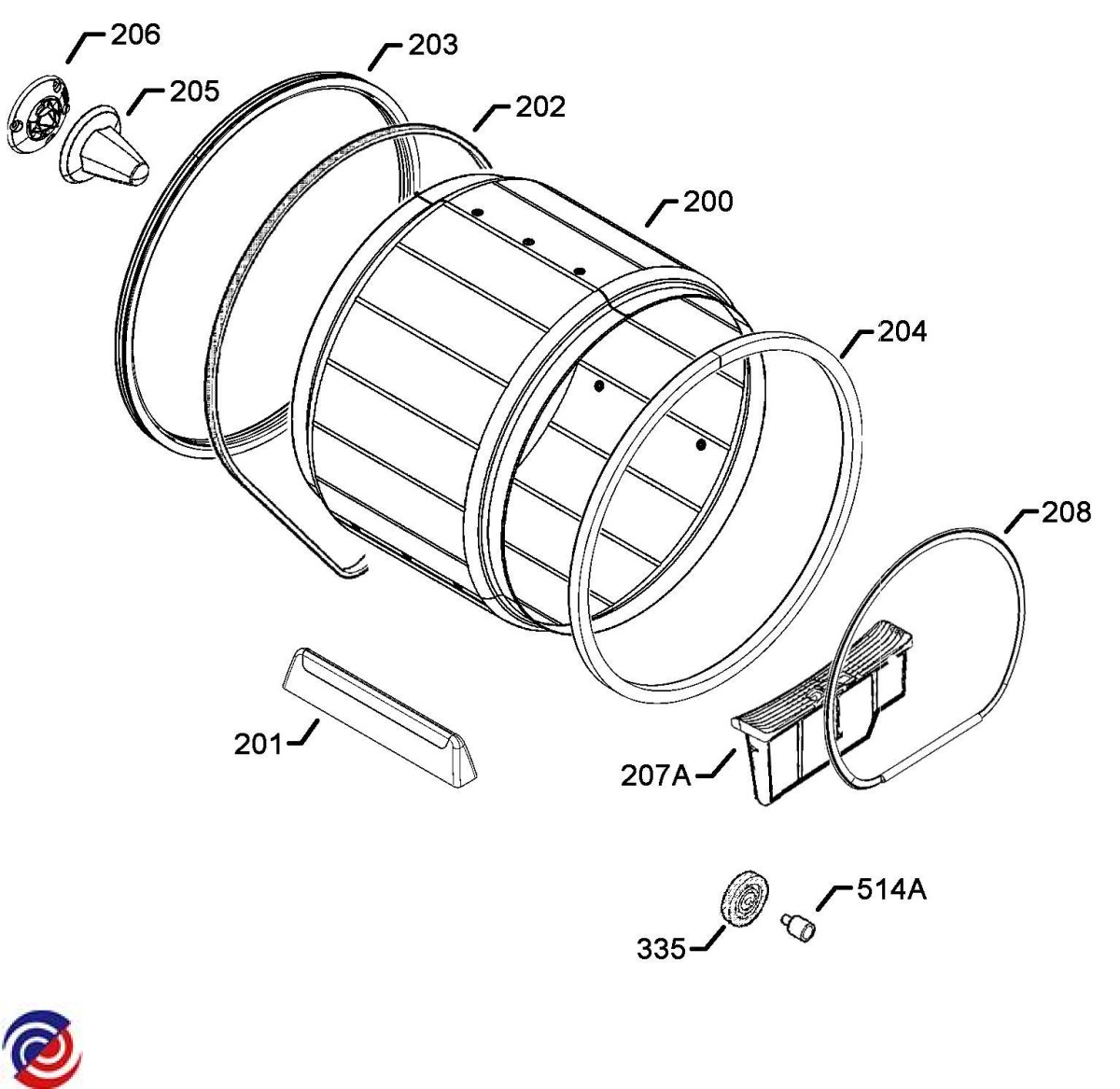

W0017381 DRUM, COMPLETE
$147.00
W0017383 BELT DRIVE L=1791
W0017384 TUBE HOLDER
$14.30
W0017389 BRACKET FIXING MOTOR FRONT
$19.00
W0017391 BRACKET HARNESS
$27.50
W0017394 DOOR HINGE,REINFORCEMENT
$23.20
W0017399 SEALING,BASEMENT,AIR DUCT
$21.00
W0017401 SUPPORT, HUMIDITY SENSOR
$20.00
W0017406 BUSH TANK
$10.00
W0017412 COVER, PLATE, DOOR LOCK
$5.50
W0017420 INNER DOOR
$93.50
W0017430 COVER ELECTRONIC BOARD
$13.05
W0017434 CLAMP CABLE
$7.15
W0017443 WORK TOP ASSEMBLY
$125.00
W0017451 HARNESS. AIR DUCT
$33.00
W0017466 CONE, BASE
$36.00
W0017470 BRACKET BOARD MOUNTING
$27.50
W0017471 COVER ELECTRONIC BOARD, INV
$16.50
W0017481 SUPPORT, PUMP
$32.00
W0017482 COVER, PUMP, FLOAT
$46.45
W0017483 FAN WHEEL, FRONT
$55.00
W0017491 DRAWER BASEMENT,GREY
$25.15
W0017492 GASKET, DOOR, FILTER,HP
$30.00
W0017493 GASKET, DOOR, BASEMENT
$35.00
W0017495 DOOR, BASEMENT,HP,GREY
$98.00
W0017497 KNOB LOCK,DOOR,BASEMENT,7801
$24.20
W0017499 BRACKET WIRING
$27.50
W0017501 BRACKET WIRING
$9.90
W0017502 SUPPORT FRAME, COMPRESSOR
$31.90
W0017520 TENSION SPRING, MOTOR
$13.00
W0017524 HINGE, DOOR, PLINTH
$17.60
W0017527 SUPPORT, INNER DOOR
$14.30
W0017529 DIFFUSER, LUMINOUS DIODE.SUPP
$28.00
W0017550 CONTROL PANEL, HANDLE,COMPLETE
$145.05
W0023730 BUTTON PUSH
$12.60
W0025696 BUSH KIT (MOTOR)
W0072032 HINGE PIN EDI96150W
$6.60
W0074436 SENSOR EDI96150W
W0076585 DUCT. AIR. FRONT
W0076604 OVERFLOW HOSE, L=640
$30.00
W0076616 DOOR SWITCH
W0076618 POWER CABLE, AUS, 2600MM
$70.00
W0076654 FILTER BASEMENT HP, GREY
$34.00
W0076655 FIXING BRACKET, MOTOR, REAR
$14.00
W0076657 COVER, BACK,AIR DUCT
$44.00
W0076672 PANEL FRONT
$121.00
W0116629 CAPAC ANTI INTERFERENCE FILTER
