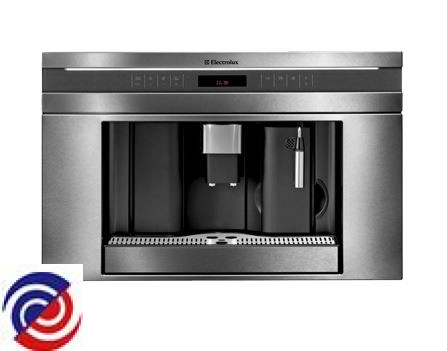

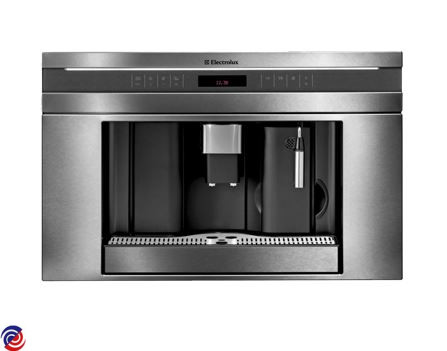

EBA63810X — 942492409 00
ELECTROLUX — Coffee Machine
Parts for EBA63810X
W0023475 INSERT EBA63810X
W0023476 DOOR LOCK EBA63810X
$34.65
W0023478 TANK EBA63810X
W0023479 REAR PANEL EBA63810X
W0023481 PROFILE EBA63810X
W0023482 TRAY DRIP ASSY
$100.03
W0023483 SUPPORT EBA63810X
$42.35
W0023484 FLOAT EBA63810X
W0023485 FRAME EBA63810X
W0023486 VENTILATOR EBA63810X
W0023487 CONTAINER CUP EBA63810X
W0023488 CONTAINER CUP EBA63810X
W0023489 RAIL, RIGHT EBA63810X
$182.00
W0023490 RAIL, LEFT EBA63810X
$182.00
W0023491 BOARD DISPLAY
$172.59
W0023492 KIT, DIFFUSER EBA63810X
$91.00
W0023493 THERMAL FUSE EBA63810X
$16.94
W0023494 GENERATOR HEAT & STEAM ASSY
$676.20
W0023497 SUPPORT EBA63810X
W0023499 NUT EBA63810X
W0023500 BUSH EBA63810X
W0023501 PIPE UNION EBA63810X
W0023502 RING EBA63810X
W0023503 BEZEL EBA63810X
W0023505 PIPE UNION, VALVE, SOLENOID
$4.66
W0023506 CONNECTION EBA63810X
$7.00
W0023508 SPRING EBA63810X
W0023509 PIPE UNION, VALVE, SOLENOID
$28.00
W0023512 COVER EBA63810X
W0023513 HOSE CLAMP EBA63810X
W0023515 MICROSWITCH EBA63810X
$30.80
W0023516 SUPPORT EBA63810X
W0023517 SPRING EBA63810X
W0023518 PUSH BUTTON, ON/OFF EBA63810X
$5.39
W0023519 SCREW EBA63810X
W0023520 SPRING EBA63810X
W0023521 FRONT PIECE EBA63810X
$7.00
W0023522 SUPPORT EBA63810X
W0023523 O-RING EBA63810X
$5.60
W0023527 DOOR LOCK EBA63810X
$5.39
W0023528 SUPPORT EBA63810X
$3.15
W0023529 LIST EBA63810X
$61.60
W0023530 ADJUSTER EBA63810X
$32.94
W0023531 SIDE PANEL, LEFT EBA63810X
W0023532 SIDE PANEL, RIGHT EBA63810X
W0023555 O-RING PE3820-M
$8.30
W0023558 O-RING PE3820-M
W0023666 TUBE
$27.69
W0023729 CONTROL & DISPLAY BOARD
$277.20
W0023760 TUBE PTFE 150 DL2-4 2BUSH
W0023761 TUBE PTFE D12-DE4 135 1B
W0023877 VALVE
$17.40
W0023878 FLOWMETER
$23.80
W0023879 TUBE WITH BUSH PTFE D12-D14
W0023880 FRAME ASSEMBLY
$269.50
W0023881 CONNECTOR
$7.70
W0023882 CHASSIS, PRODUCTION 2011
$80.54
W0024586 HOOK EBA63810X
$5.39
W0024587 SPRING, CLAMP EBA63810X
W0024588 TEMPERATURE FUSE EBA63810X
$11.13
W0024589 SUPPORT EBA63810X
W0024590 MICROSWITCH EBA63810X
$32.90
W0024591 SPRING EBA63810X
W0024592 SENSOR EBA63810X
$56.74
W0024593 PUMP
W0024594 FUSE, TEMPERATURE LIMITER
$8.47
W0024596 LENGTH EBA63810X (INJECTOR)
$12.18
W0024597 MICROSWITCH EBA63810X
$30.80
W0024598 FILTER WATER
$10.43
W0024599 SENSOR, REED EBA63810X
$13.86
W0024600 O-RING EBA63810X
W0024601 SHAFT EBA63810X
W0024602 SEALING EBA63810X
$3.85
W0024603 FILTER
$5.39
W0024604 VALVE EBA63810X
$7.70
W0024605 SPRING EBA63810X
W0024606 BUSH EBA63810X
W0024607 BUSH, SHORT EBA63810X
W0024608 BELT
$19.99
W0024609 O-RING EBA63810X
$7.00
W0024610 SPRING, SHORT EBA63810X
W0024611 LEVER, LOCK EBA63810X
W0024612 SIEVE, DIFFUSER EBA63810X
$24.64
W0024613 CAP EBA63810X
$13.09
W0024614 VALVE EBA63810X
$7.70
W0024615 PISTON EBA63810X
W0024616 PUMP BRACKET EBA63810X
W0024617 SLIDE EBA63810X
W0024623 O-RING, LARGE, RED EBA63810X
$8.40
W0024626 GRINDER COMPLETE
$268.80
W0024634 MICROSWITCH EBA63810X
$35.00
W0024635 SUPPORT EBA63810X
W0024652 FUSE TEMPERATURE
$21.00
W0024653 ELEMENT ASSY STEAM
$60.83
W0024654 NOZZLE CAPPUCCINO
$12.22
W0024655 BEZEL, CENTRAL, NARROW
W0024656 COVER, COFFEE EBA63810X
W0024658 MEASURING TUBE EBA63810X
$15.40
W0024659 MICROSWITCH EBA63810X
$30.80
W0116440 KNOB EBA63810X
$12.60
W0116441 DOOR ASSY
$84.70
W0116442 SUPPORT. CUP EBA63810X
$69.30
W0116444 SHAFT EBA63810X
W0116445 SEAL
W0116446 SOLENOID EBA63810X
W0116447 SOLENOID EBA63810X
W0116451 BOARD USER INTERFACE RH
W0116453 BOARD USER INTERFACE LH
$53.13
W0116454 LED PCB EBA63810X
$76.23
W0116501 BOARD MAIN
W0116579 BOARD. POWER
W0116583 TUBE WITH BUSH PTFE D12-DE4
W0116590 POWER CORD BLK NEW AU PLUG
$31.50
W0116885 LID TANK EBA63810X
$7.70
W0116886 TANK WATER
$42.35
W0116887 SENSOR HALL
$30.80
W0116889 TRANSMISSION KIT
W0116915 PCB. PRINTED CIRCUIT
W0116958 SWITCH EBA63810X
$42.35
