EFEP916DSD — 940598487 00
ELECTROLUX — Cooker Dual Fuel

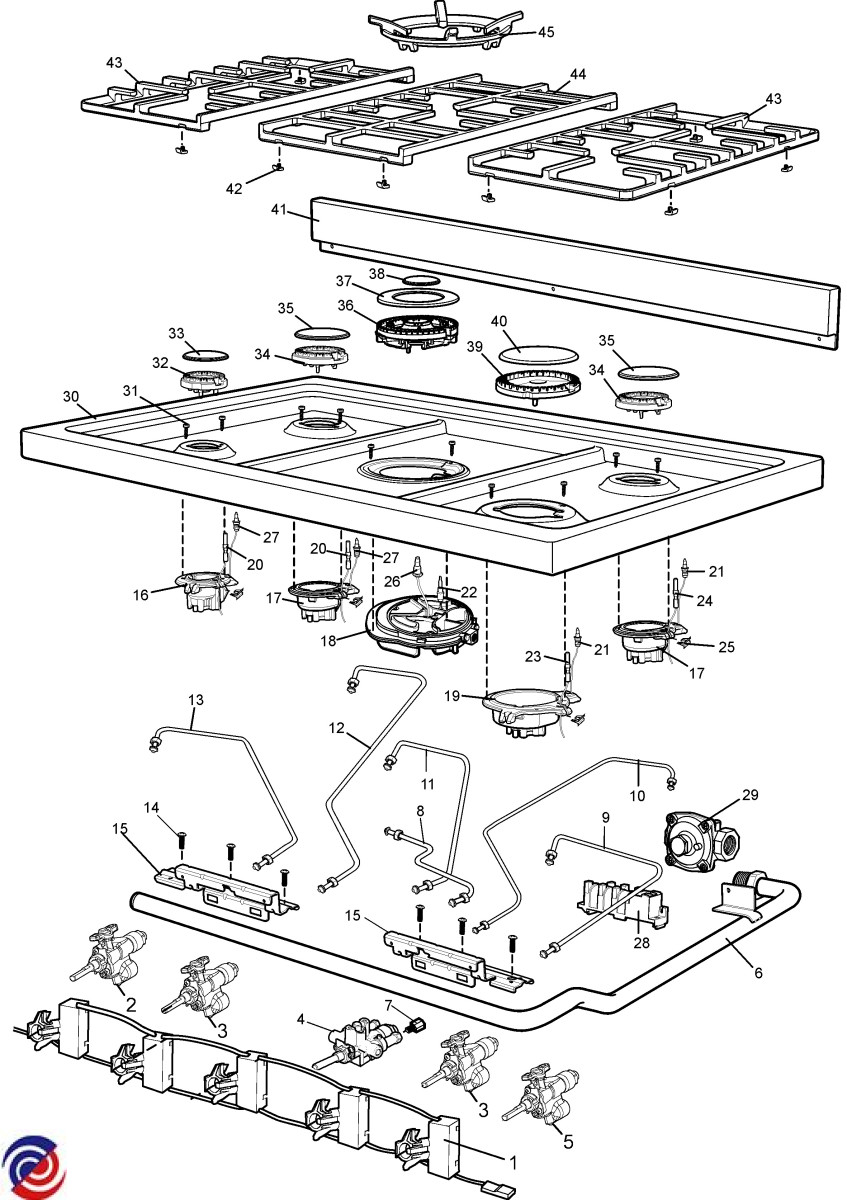

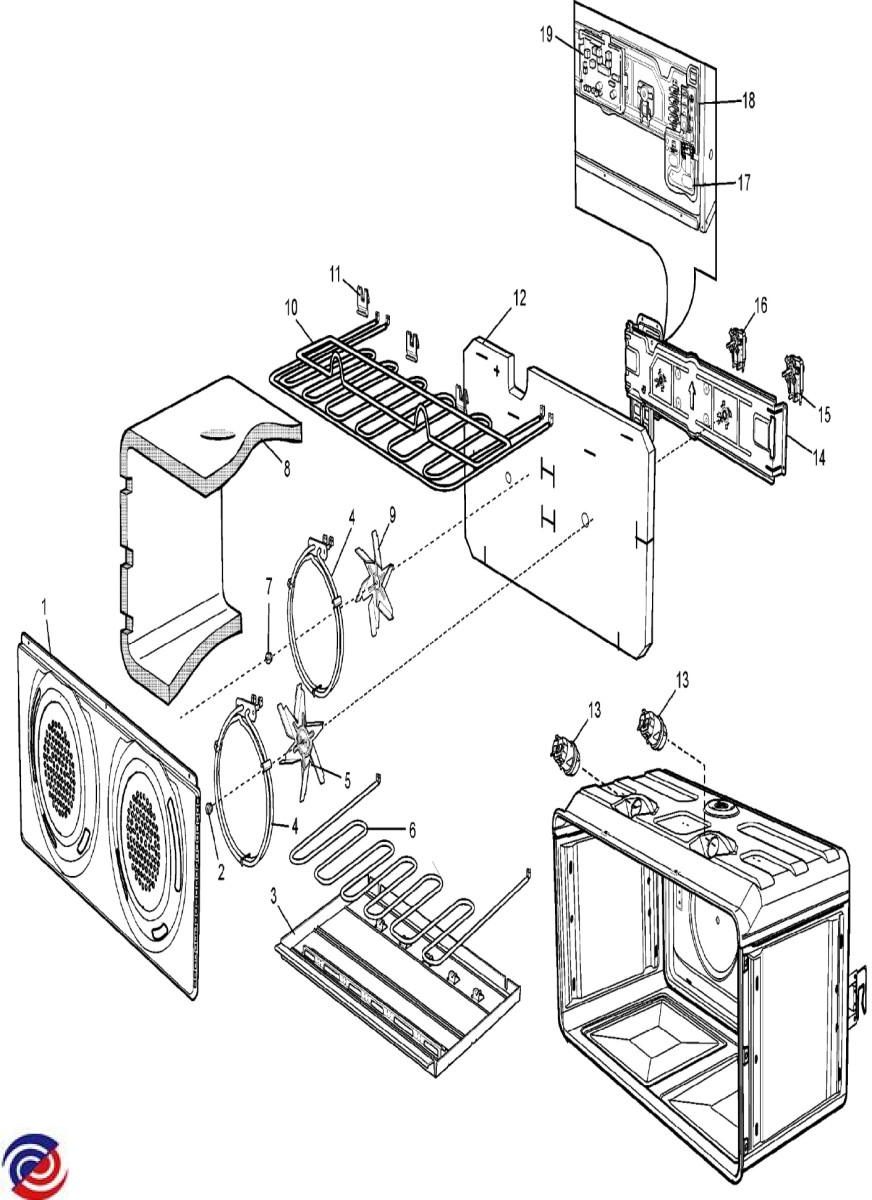

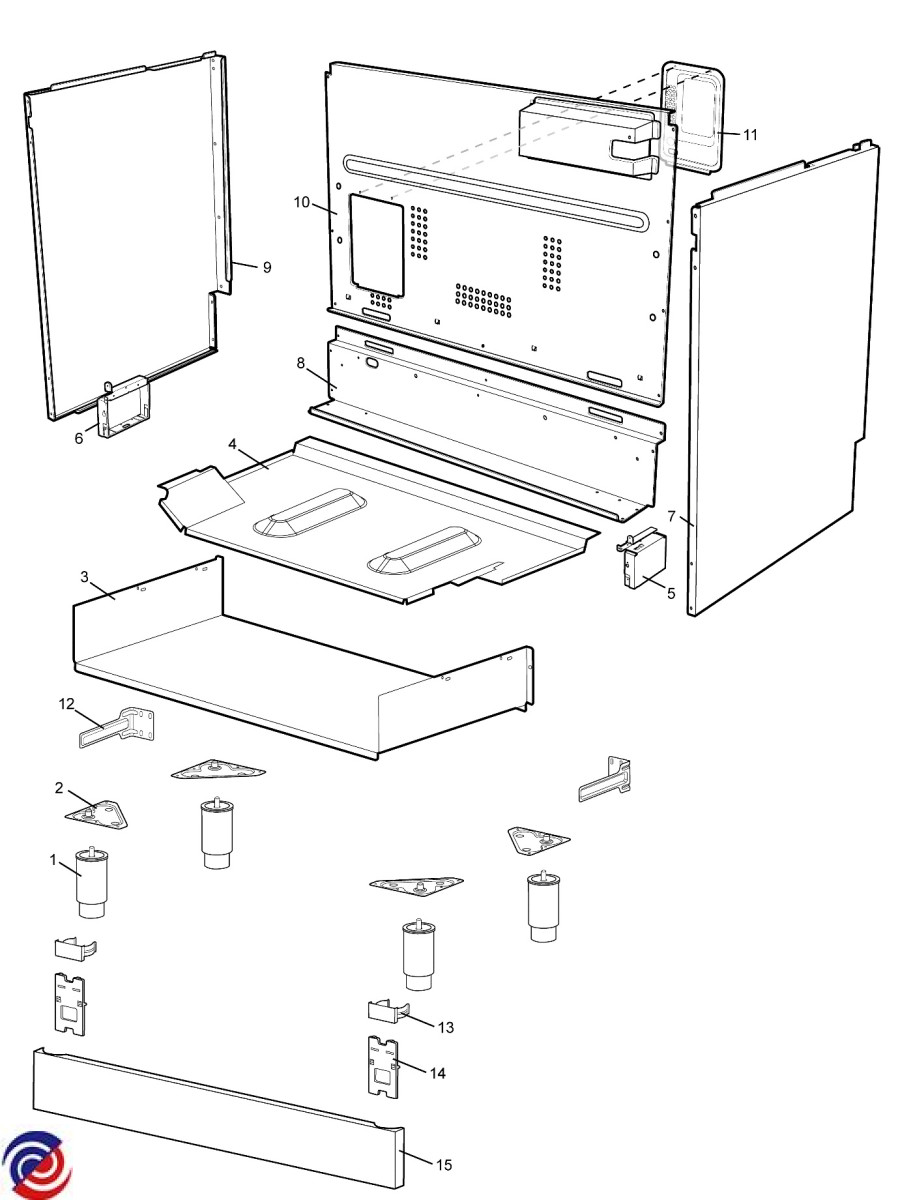

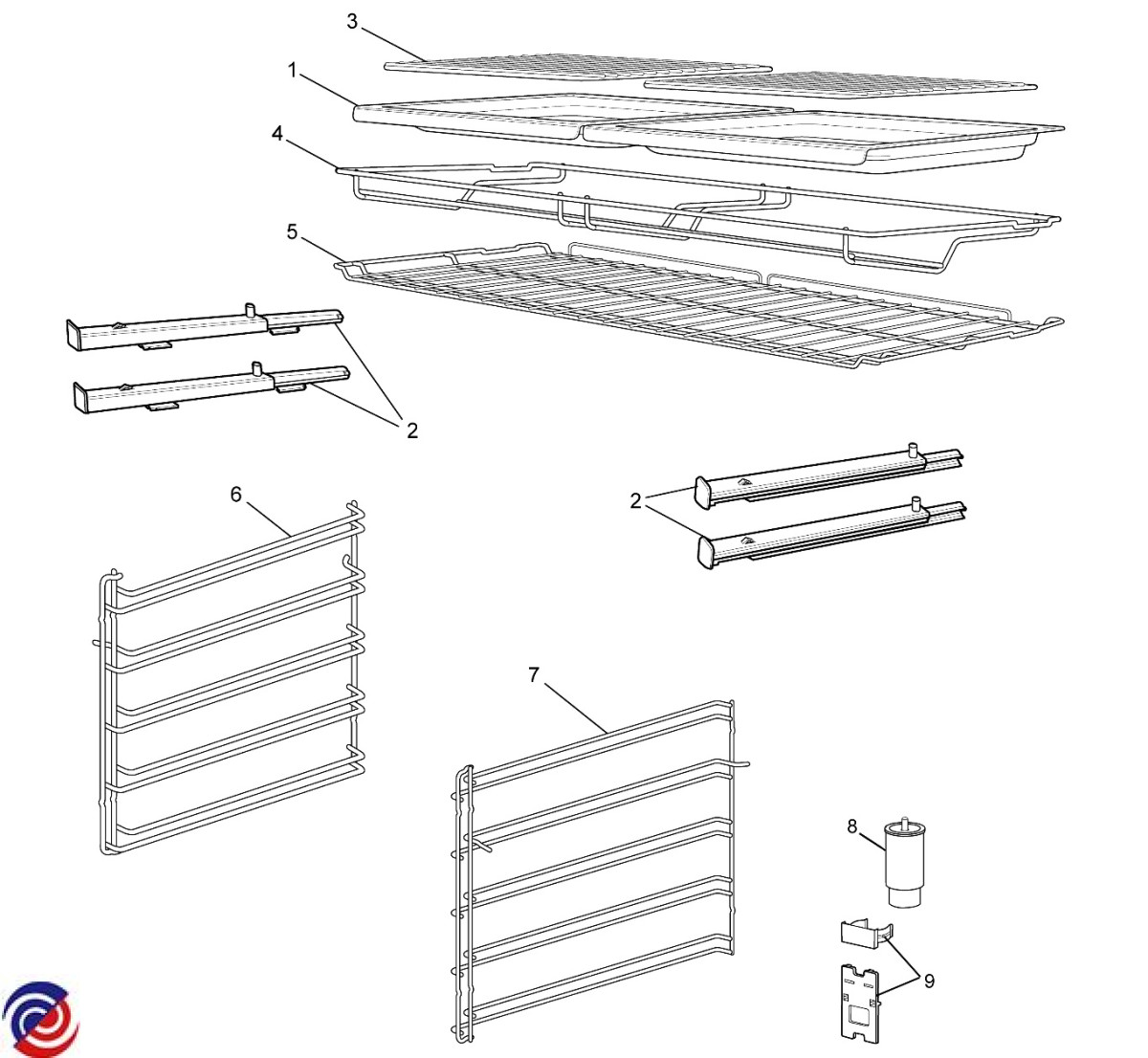

Parts for EFEP916DSD
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012755 MOTOR FAN OVEN
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0023195 LAMP OVEN HALOGEN 25W
$30.00
W0026431 SPRING DAMPER MOTOR
$12.55
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0283367 T'COUPLE TT ELUX BURNER 275
W0283368 T'COUPLE TT ELUX BURNER 500
W0283888 POWERBOARD OVC-R5000 SC
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011476 PANEL DECK GLUE ASS PYRO COBRA
$139.00
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011696 PNL FAN COVER VULCAN CATALYTIC
$142.40
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012395 NIPPLE INJ 0.90
$8.80
W0012404 INJECTOR/JET 0.85 ELUX FISH LP
$4.50
W0012409 INJECTOR/JET NA 1.25
$8.30
W0012410 INJECTOR/JET 0.46
W0012411 INJECTOR/JET 0.73
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012642 HARNESS K2 INTERFACE VULCAN
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012734 SEAL OVEN VULCAN PYRO
$69.90
W0012757 MOTOR FAN COOLING PYRO VULCAN
W0012806 STOP ANTI TILT
$3.30
W0013025 REGULATOR GAS NG INTEG TEST PT
W0013063 INSTALL ANTI -TILT CHAIN
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021433 FOOT TRIVET
$7.05
W0021583 BRACKET GAS RAIL RH ELECTROLUX
W0021732 VALVE SAFETY FS DUAL COPRECI
$210.95
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0022974 RESISTOR 1050 OHM 20W PYRO
$58.40
W0023255 SENSOR OVEN
$44.00
W0029626 PLUG SPARK 250 MM ENAMELLE
$7.45
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029882 CAP VENT DOOR TOP ASSY COBRA
$87.05
W0029930 GLASS OV DR MID 2 COBRA
W0030084 HOB WELD ASY 5B ELUX COBRA
$820.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030615 GLASS OV DR INNER BOROSILICATE
W0030616 GLASS OV DR MID1 REFL VULCAN
W0046664 TRIVET WOK SUPPORT WH VULCAN
W0046743 NIPPLE INJECTOR AUX NG 1.00
W0046744 NIPPLE INJECTOR SEMI R NG 1.35
W0046754 NIPPLE INJECTOR AUX LP 0.55
W0046755 NIPPLE INJECTOR SEMI LP 0.70
W0053308 STICKER GAS TYPE NG
$4.00
W0053310 STICKER GAS TYPE LPG
$4.50
W0053535 RACK INSERT GRILL DISH VULCAN
W0063371 CLIP STANDOFF POWERBOARD
W0108997 CAP BURNER INNER WOK DEFENDI
W0109986 SPARK PLUG DEFENDI 5KW 500MM
W0114251 DOOR LOCK ASSEMBLY
W0114509 BOARD OVC3000
W0274246 ANTI TILT KIT 90CM VULCAN
$8.70
W0274926 RECEPTACLE ASSY FOOD SENSOR
W0274935 BURNER CAP RAP MATT BLACK ENAM
$22.35
W0274936 BURNER CAP SR MATT BLACK ENAM
$26.30
W0274937 BURNER CAP AUX MATT BLACK ENAM
$22.35
W0275331 SCREW M4 X 50 PAN GENESYS
$5.50
W0275606 TRIVET KIT CAST SIDE ELX COBRA
$305.00
W0275660 HINGE SOFT CLOSE GENESYS
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0275785 CONTROL IOI GEN3 PRG
W0283064 ADAPTOR VALVE GAS ELUX VULCAN
$19.85

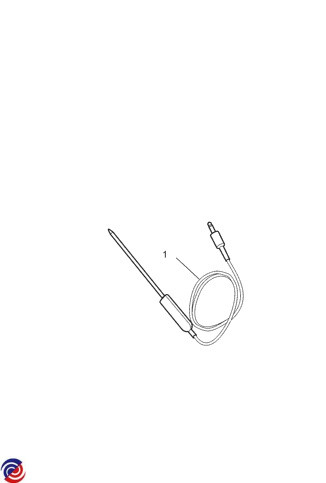

W0283246 PROBE FOOD ASSY 3.5X700MM
W0283381 INSULATION OVEN WRAP STD COBRA
$42.40
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283412 SPRING NIP
$5.50
W0283452 PNL RH SIDE 90CM F/S DARK ARCT
$154.00
W0283453 PNL LH SIDE 90CM F/S DARK ARCT
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283468 COVER VULCAN STORAGE CORNER
$4.50
W0283475 SPACER HANDLE E100 DARK S/S
W0283479 HANDLE PAD E100
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283554 WIRE HARNESS DR LOCK E100 90CM
$19.60
W0283560 TUBE BURNER RF WH VULCAN
W0283562 TUBE BURNER LR ELUX COBRA
W0283563 TUBE BURNER LF ELUX COBRA
W0283564 SWITCH HARNESS 5PT ELUX
$52.25
W0283597 F/FRONT ENAM E100 90CM PYRO FP
$153.40
W0283609 CLEAN HEAT COVER E100 90CM
W0283658 PNL CNT GLUE EFEP916DS DARK ST
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283698 PNL BCK F/S WELD GAS E100 90CM
$59.55
W0283733 TUBE BURNER WOK OUTER ELUX
$8.85
W0283741 TUBE BURNER WOK INNER ELUX
$8.35
W0283769 GRILL DISH CARRIER E100 90CM
W0283771 OUTER CAP DEFENDI 7KW
W0283772 INJECTOR SHIED DEFENDI
$7.40
W0283774 BURNER BODY DEFENDI 7KW
W0283776 BURNER CROWN DEFENDI 7KW
W0283788 FOOT MT BRACKET TAURUS+ 90CM
$14.50
W0283789 COUNTER SUPPORT LHS TAURUS+ 90
$11.65
W0283790 COUNTER SUPPORT RHS TAURUS+ 90
$11.65
W0283791 LOWER BRACE FS TAURUS+ 90CM
$34.75
W0283794 THERMOCOUPLE DEFENDI 7KW 500MM
W0283876 FEET PLASTIC PACK OF 4
W0283880 PLINTH PANEL TAURUS+ 90CM DARK
$116.05
W0283887 ANTI TILT BRACKET TAURUS+ 90CM
$14.50
W0283897 PLINTH CLIP COMP BAG TAUR+90CM
$28.25
W0283905 DOOR STORAGE E100 90CM DARK
W0284064 CLIP SIDEGRIDS
$4.50
W0284246 VALVE COPRECCI FSG AUX
$29.45
W0284247 VALVE COPRECCI FSG SEMIRAPID
$29.45
W0284248 VALVE COPRECCI FSG RAPID
$29.45
W0284339 HANDLE DOOR E100 90CM DARK ST
W0284474 ELEMENT C/H STEAM VULCAN E100
$100.85
W0284492 SLIDE SINGLE EXT 2 SETS
$184.10
W0284516 PNL DR OUT ASS E100 90CM DARK
