EKM6700X — 947740952 00
ELECTROLUX — Cooker Dual Fuel

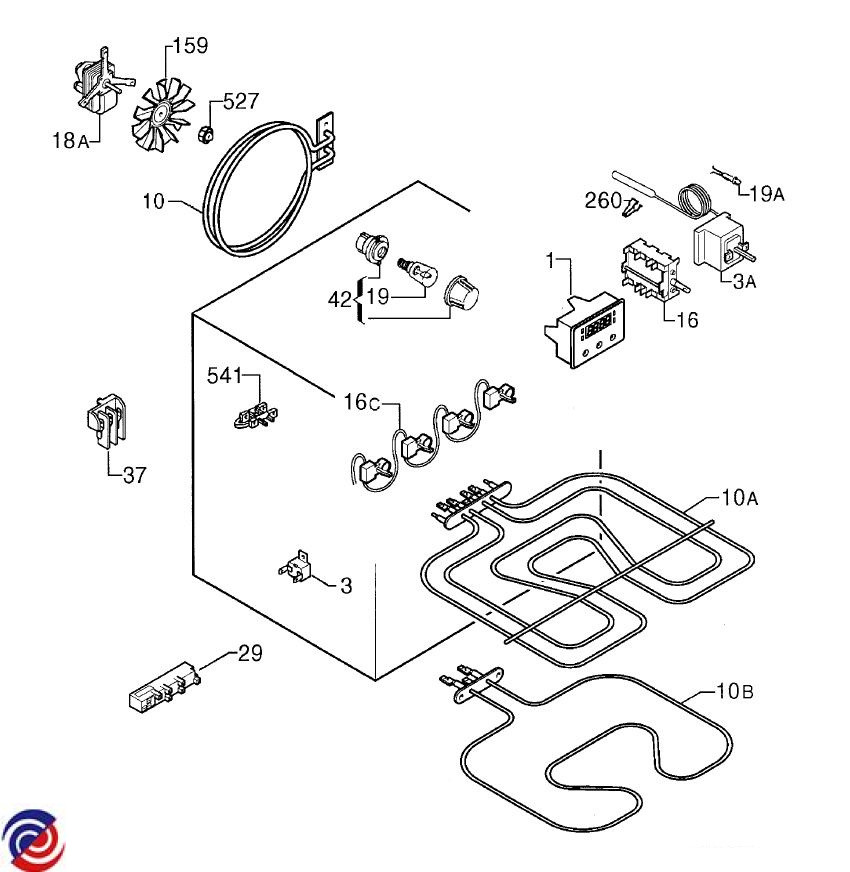

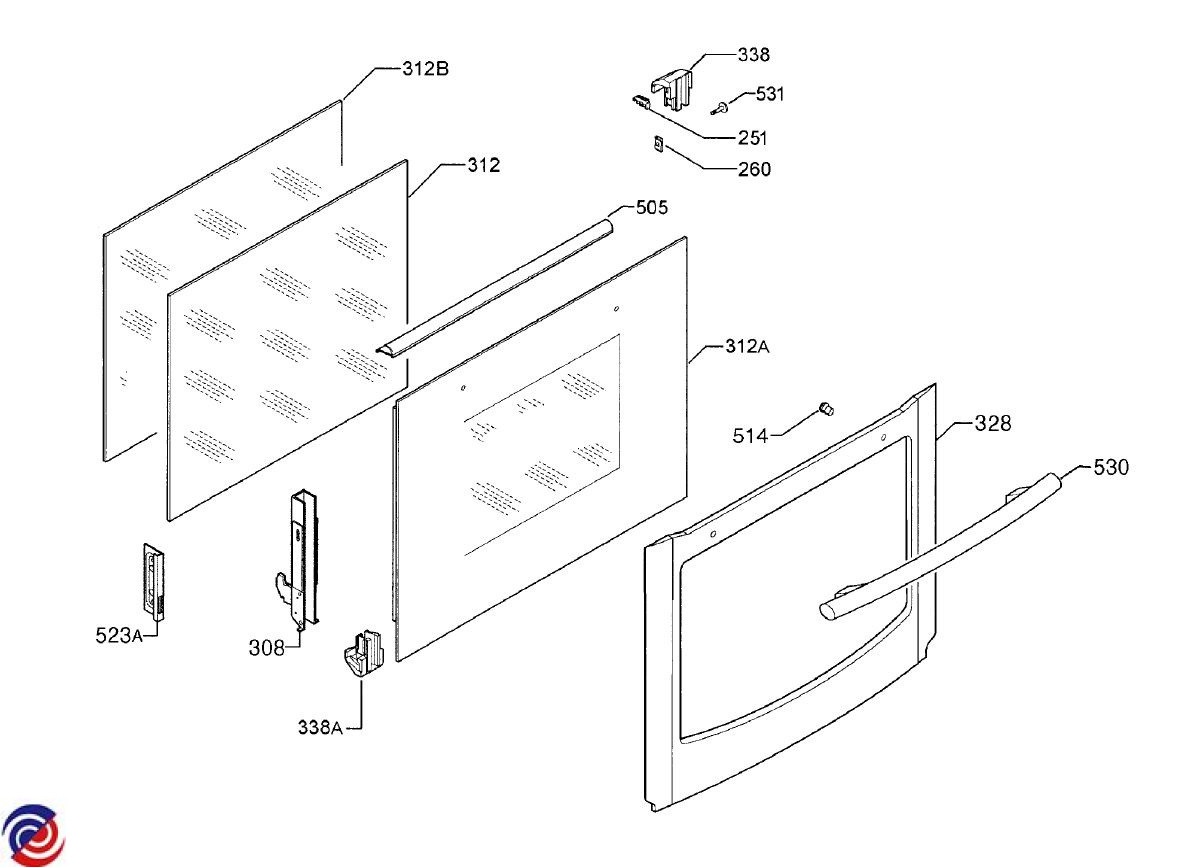

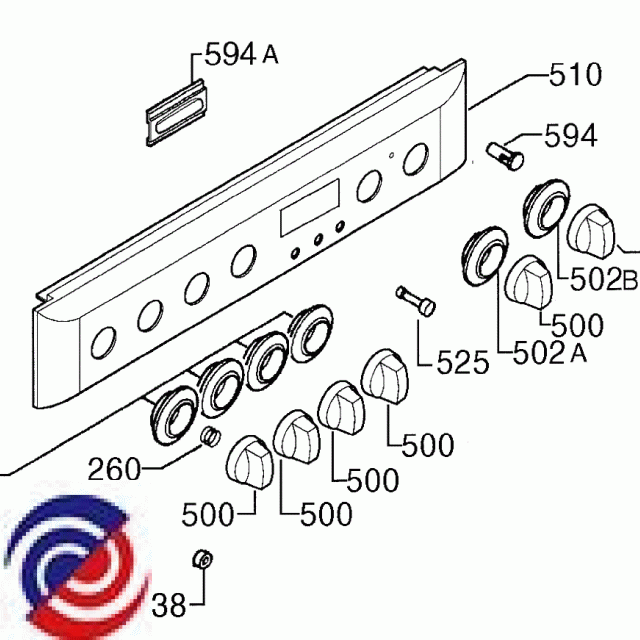

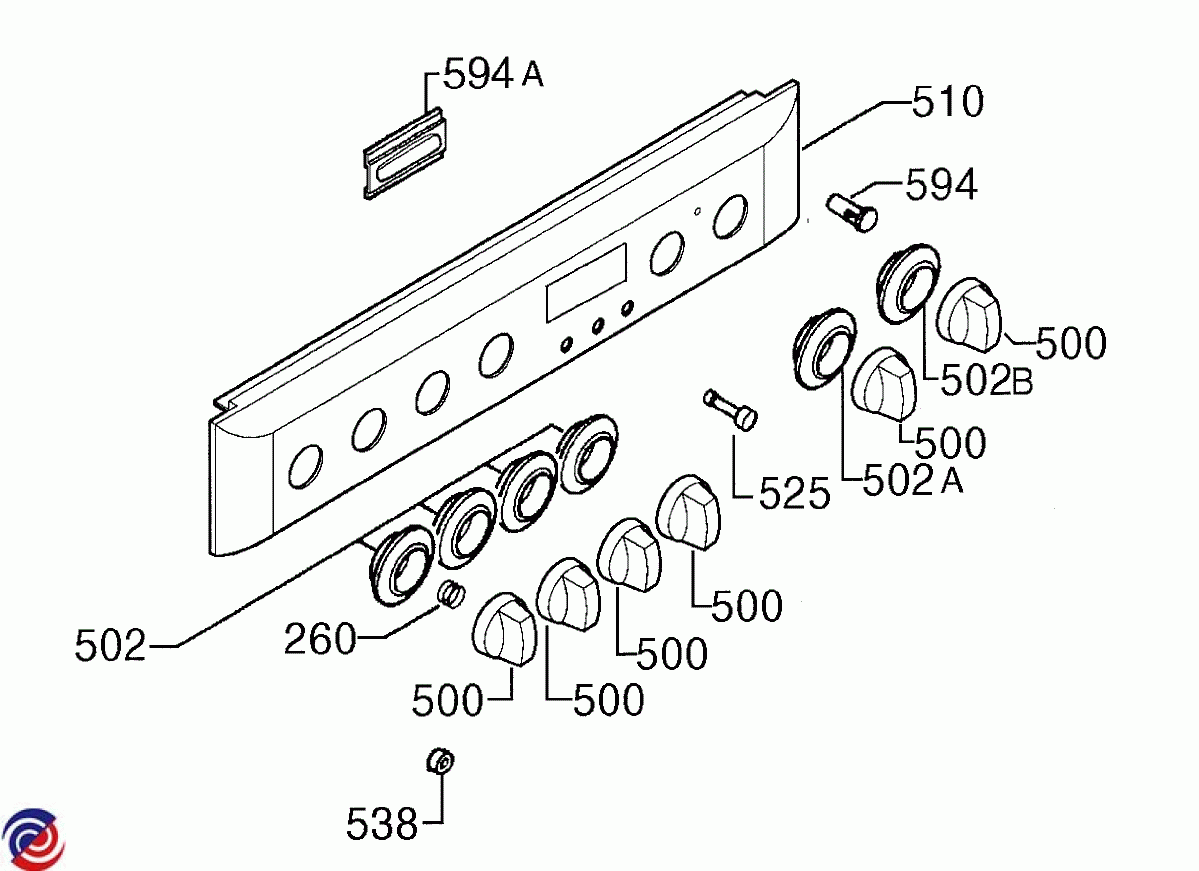

Parts for EKM6700X
W0022688 HANDLE, OVEN DOOR, INOX
$132.00

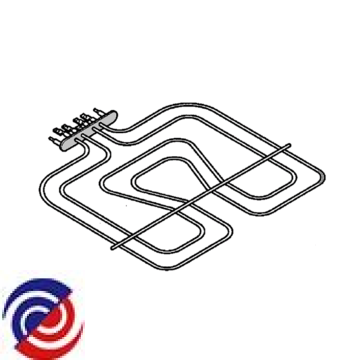

W0022725 ELEMENT OVEN TOP GRILL

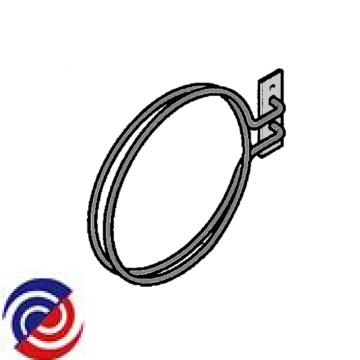

W0022726 RING ELEMENT, 230V/2000W
$101.25
W0022734 THERMOCOUPLE 500MM WOK
$31.65
W0022804 CROWN TRIPLE WOK BNR CYL NAT
W0022806 GASCOCK, TRIPLE CROWN BURNER
$121.00
W0035479 CAP BURNER ENAMEL MATT
$20.00
W0053260 REGULATOR GAS NG PTP INTEGR
W0102417 THERMOCOUPLE T ELUX BURNER 750

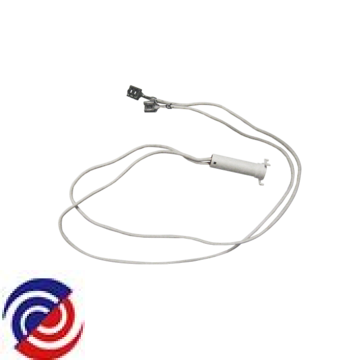

W0109831 CONTROL LAMP, L=400MM
$18.70
W0109893 SPARK PLUG, L=1100MM EKM6701X
$16.50
W0109923 MOTOR FAN OVEN EKC6707X
$88.00
W0109977 ELEMENT OVEN LOWER 1000W
$88.00
.JPG)
W0114261 CLOCK 3 BUTTON 3 W/RELAY
W0114569 LAMP OVEN COMPL 25W HALOGEN G9
$29.00
W0166032 LAMP 25W SES E14 300C CLEAR
W0011126 BASE BURNER AUX IGN NG
$29.05
W0035458 BASE BURNER SEMI RAPID IGN NG
$13.20
W0035472 CAP BURNER WOK INNER MATT
W0035473 BURNER CAP ELUX WOK OUTER MATT
W0046413 CLIP SPARK PLUG E/LUX
W0060092 ADAPTER LP TEST POINT
W0090145 CONECTOR TEST POINT LP
W0095847 CAP SCREW COVER BLK
W0100925 GOVERNOR NG
W0108681 SLEEVE. HINGE. RIGHT EKC6707X
W0108682 SLEEVE. HINGE. LEFT EKC6707X
W0108779 REAR PANEL EKM6700X
W0108782 RAIL. DRAWER EKC6707X

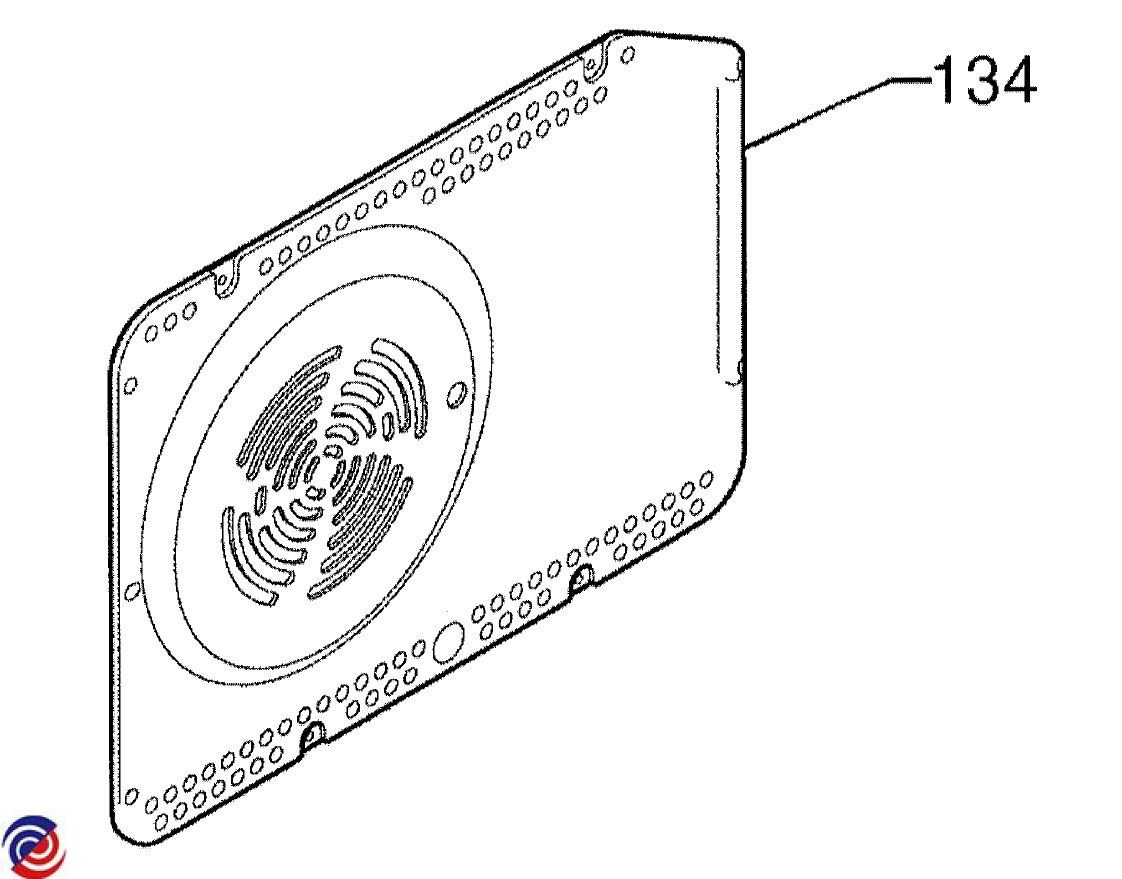

W0108787 COVER FAN ASSY
W0108797 ROASTING TRAY.H=33MM EKC6707X
W0108804 WORK TOP. INOX EKM6700X
W0108880 DRAWER PANEL. INOX EKC6707X
W0108881 DRAWER PANEL, INOX
$141.90
W0108886 PANEL. OVEN DOOR. INOX
W0108887 SIDE PANEL. RIGHT. INOX
W0108888 SIDE PANEL. LEFT. INOX
W0108889 PROFILED BAR. UPPER.GLASS DOOR
W0108938 FRONT PIECE.CONTROL PANEL.INOX
W0108956 CAP BURNER SMALL 55MM
W0108957 CAP BURNER MEDIUM 72MM
W0108959 ELBOW 1/2
W0108960 CUP BURNER SMALL
W0108961 CUP BURNER MEDUM
W0108965 SKIRT BURNER SMALL
W0108969 BURNER
$44.00
W0108970 CROWN. MEDIUM BURNER. SR
W0108977 CUP DOUBLE CROWN BURNER
W0108979 END PIECE. SHOULDER. LEFT
W0108980 END PIECE. SHOULDER. RIGHT
W0109013 PIPE. REAR. RIGHT. S/R M13X1
W0109014 PIPE. FRONT. RIGHT EKM6700X
W0109015 PIPE. FRONT. LEFT EKM6700X
W0109016 PIPE. BACK. LEFT EKM6700X
W0109029 SPRING KNOB
W0109031 CLIP THERMOSTAT BULB
W0109034 CLIP SPARKPLUG & THEMOCOUPLE
W0109042 SPRING DOOR OVEN
W0109047 NUT EOC6800X
W0109049 SCREW, STUD, OVEN DOOR
$4.00
W0109050 SHAFT. FIXING. GRATING
W0109097 GRILL. SIDE. LEFT EOB6730X
W0109098 GRILL. SIDE. RIGHT EOB6730X
W0109102 GRILL. ANTI-SPLASH EOC6800X
W0109104 GRILL. CAST IRON EKM6700X
W0109107 RACK GRILL INSERT
$50.60
W0109207 KNOB ASSY. BLACK EKC6707X
W0109221 PUSH BUTTON. RHEA. INOX. L=29
W0109571 INDICATING PLATE. BLACK
W0109572 INDICATING PLATE. OVEN THERMO
W0109573 INDICATING PLATE. SELECTOR. BL
W0109680 END CAP LOWER LEFT DOOR
$58.05
W0109681 END CAP LOWER RIGHT DOOR
W0109683 END PIECE, UPPER RIGHT, DOOR
$19.80
W0109684 END PIECE, UPPER LEFT, DOOR
$14.30
W0109694 LENS ORANGE
W0109696 BUFFER
W0109703 FOOT EKM6701X
W0109706 VIEWER. PROGRAME SWITCH
W0109708 BUFFER KNOB H=2.5MM
W0109709 BUFFER GLASS PANEL
W0109710 BUMPER BUFFER GLASS PANEL
W0109711 SPACE COMPENSATOR. BEZEL L
W0109712 SPACE COMPENSATOR. BEZEL R
W0109720 CLAMP CABLE
W0109732 DRAWER. BLACK EKC6707X
W0109769 GLASS PANEL. INTERNAL. O/DOOR
W0109772 GLASS PANEL. O/DOOR. 503X396MM
W0109791 GASKET. COCK EKM6700X
W0109802 SEALING. SEAL EKM6700X
W0109891 SPARK PLUG.INGNITION.TC 110OMM
W0109897 OVEN BOTTOM ELEMENT. 1000W
W0109913 SPARKPLUG. IGNITION. B. 800MM
W0109929 THERMOCOUPLE. L=500 EKM6700X
W0109937 THERMOCOUPLE. L=275 EKM6700X
W0109942 SWITCH. 8+0 EKC6707X
W0109950 PUSH BUTTON SWITCH. COMPLETE
W0109960 THERMOSTAT. N.C. 270/100
W0110004 BOX IGNITION
W0110072 HINGE. OVEN DOOR EKC6707X
W0110079 CROWN. TRIPLE CROWN BURNER
W0110090 GASCOCK. SMALL BURNER. COPRECI
W0110091 GASCOCK. MED BURNER. COPRECI
W0110103 BURNER ASSY WOK NG
$40.00
W0110140 GLASS PANEL ASSY. OVEN DOOR
W0110190 ROUND SEAL.FRONT PANEL. L=1441
W0110191 BLADE FAN
W0110194 SHOULDER. COMPLETE EKM6700X
W0110197 TERMINAL BLOCK EKM6700X
W0114260 TIMER SET EKC6707X
W0114632 CAP BURNER INNER WOK
W0114634 CAP BURNER OUTER WOK
W0114682 HOLDER LAMP COMPLETE
$44.00
W0114687 THERMOSTAT OVEN
W0116425 MOTOR OVEN 220/240V-20W(FIME)
$147.00
W0127161 ROLL. DRAWER EKC6707X
W0127696 KIT. BUFFER. GRATE. 20PZ
W0127971 LAMP 25W OVEN EOB6730X
W0128220 NOZZLE SET, NATURAL GAS
$9.90
W0128221 INJECTOR SET LPG EKM6700X
