EFEP956DSD — 940598488 00
ELECTROLUX — Cooker Electric
Parts for EFEP956DSD
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012755 MOTOR FAN OVEN
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0026431 SPRING DAMPER MOTOR
$12.55
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0054725 SCRAPER CERAMIC GLASS
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0283128 HARNESS JUMPER WIRE BC5 - BC1
$5.50
W0283888 POWERBOARD OVC-R5000 SC
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011476 PANEL DECK GLUE ASS PYRO COBRA
$139.00
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011703 PNL FAN COVER ENAM PYRO COBRA
$235.25
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012642 HARNESS K2 INTERFACE VULCAN
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012732 SEAL CONTROL PANEL
$11.15
W0012734 SEAL OVEN VULCAN PYRO
$69.90
W0012757 MOTOR FAN COOLING PYRO VULCAN
W0012806 STOP ANTI TILT
$3.30
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0022761 BOARD CONFIGURED CHEETA EOS201
$269.70
W0022784 COIL INDUCTION COMP FRONT210MM
$321.10
W0022785 COIL INDUCTION COMP REAR 210MM
$524.10
W0022974 RESISTOR 1050 OHM 20W PYRO
$58.40
W0023118 HARNESS COMPLETE INDUCTION
$50.00
W0023130 CABLE HAR. 220MM TPE.
$19.65
W0023133 CABLE HAR. 500MM TPE.
$6.60
W0023218 SUPPORT USER INTERFACE
W0026403 BOARD CONF CHEET EOS201 RH
W0026559 USER INTERFACE PROGRAMD PELICA
W0029305 CATALYSER 77DIA,12.5H, 64 CSI
$23.10
W0029848 RETAINER PYRO CATALYSE VULCAN
W0029882 CAP VENT DOOR TOP ASSY COBRA
$87.05
W0029930 GLASS OV DR MID 2 COBRA
W0030135 DUCT VENT INDUCTION COBRA
$22.05
W0030165 ELEMENT GRILL SPLIT ELUX VUL
$90.20
W0030421 LAMP OVEN HALOGEN 25W COBRA
$10.00
W0030615 GLASS OV DR INNER BOROSILICATE
W0030616 GLASS OV DR MID1 REFL VULCAN
W0053535 RACK INSERT GRILL DISH VULCAN
W0114251 DOOR LOCK ASSEMBLY
W0274246 ANTI TILT KIT 90CM VULCAN
$8.70
W0274926 RECEPTACLE ASSY FOOD SENSOR
W0275331 SCREW M4 X 50 PAN GENESYS
$5.50
W0275660 HINGE SOFT CLOSE GENESYS
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0275785 CONTROL IOI GEN3 PRG
W0282414 GLASS & TAPE EVEP916DSD
W0283109 COIL IND CPL 140 CCA
$81.50
W0283110 COIL IND CPL 180 CCA
$168.00
W0283113 COIL IND CPL 280 CHEET
$226.00
W0283132 HARNESS CONTROL AND DISPLAY BO

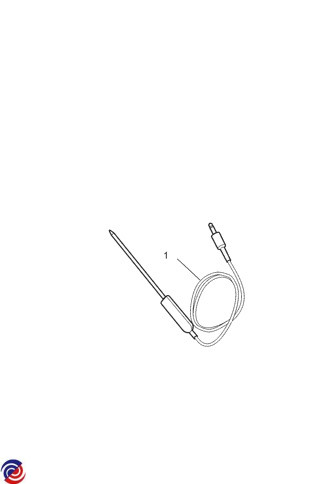

W0283246 PROBE FOOD ASSY 3.5X700MM
W0283314 INSULATION OVEN WRAP COBRA
$70.05
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283435 FAN COOLING INDUCTION
W0283452 PNL RH SIDE 90CM F/S DARK ARCT
$154.00
W0283453 PNL LH SIDE 90CM F/S DARK ARCT
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283468 COVER VULCAN STORAGE CORNER
$4.50
W0283475 SPACER HANDLE E100 DARK S/S
W0283479 HANDLE PAD E100
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283554 WIRE HARNESS DR LOCK E100 90CM
$19.60
W0283597 F/FRONT ENAM E100 90CM PYRO FP
$153.40
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283713 PANEL BACK INDUCT E100 90CM
$54.20
W0283769 GRILL DISH CARRIER E100 90CM
W0283788 FOOT MT BRACKET TAURUS+ 90CM
$14.50
W0283789 COUNTER SUPPORT LHS TAURUS+ 90
$11.65
W0283790 COUNTER SUPPORT RHS TAURUS+ 90
$11.65
W0283791 LOWER BRACE FS TAURUS+ 90CM
$34.75
W0283876 FEET PLASTIC PACK OF 4
W0283880 PLINTH PANEL TAURUS+ 90CM DARK
$116.05
W0283887 ANTI TILT BRACKET TAURUS+ 90CM
$14.50
W0283897 PLINTH CLIP COMP BAG TAUR+90CM
$28.25
W0283905 DOOR STORAGE E100 90CM DARK
W0284055 PLUG BRIDGING PLUG DUMMY NTC
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284339 HANDLE DOOR E100 90CM DARK ST
W0284474 ELEMENT C/H STEAM VULCAN E100
$100.85
W0284488 RACK PACK E100 90CM EASY ACCES
$150.50
W0284492 SLIDE SINGLE EXT 2 SETS
$184.10
W0284516 PNL DR OUT ASS E100 90CM DARK
