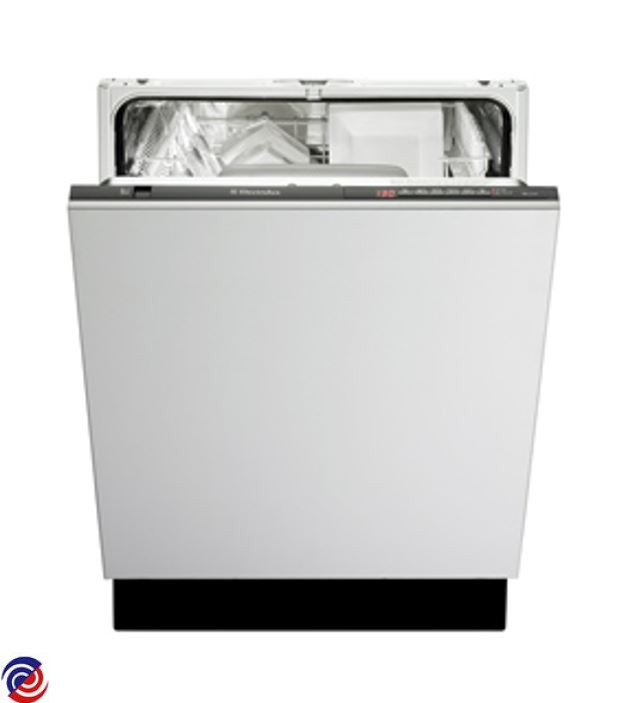

ESL6163 — 911986227 00
ELECTROLUX — Dishwasher
Parts for ESL6163
W0019070 BUTTON PUSH
W0025858 ROLLER KIT LOWER PKT 8
W0090412 COUPLING MANIFOLD LIGHT GREY
W0090623 HOSE OUTLET COMPLETE L=1930
W0090747 GASKET DOOR LOWER BLK L=550
W0127503 PEG DOOR PANEL KIT OF 2 LG HD
$10.00
.JPG)
W0128067 CHANNEL DRAINAGE. COMPLETE
W0149911 STOP BASKET REAR DK GREY
W0015279 GRATING, CUTTLERY BASKET, GREY
$7.45
W0015280 BASKET CUTLERY GREY COMPLETE
W0015340 PIPE UNION HEATING ELEMENT
W0018988 LATCH DOOR LOCK
W0019021 SUPPRESSOR INTERFERENCE
$28.00
W0019023 VENT VAPOUR OUTLET
$14.90
W0019034 CORD POWER AUSTRALIA
W0019035 SPRAY ARM UPPER ESL6163
W0019048 LEG ADJUSTABLE CENTRAL
$22.95
W0019054 COG LEG ADJUSTABLE CENTRAL
W0019084 SUPPORT, MEASURE CUP, GREY
$35.85
W0019085 MANIFOLD OUTER
$53.95
W0025794 O RING
W0025809 SUPPORT BASKET UPPER
$121.00
W0028144 NOZZLE SPRAYER UPPER
$17.15
W0071545 LAMP DOOR INDICATOR
W0071565 WASH MOTOR. TACHOMETRIC
W0071710 TEMPERATURE SENSOR ESL9163
W0071814 COLUMN. SUPPORT. LOWER SPRAYAR
W0071820 SEAL TEMPERATURE SENSOR
W0071856 RUBBER DAMPER.CIRCULATION PUMP
W0072580 HANDLE. BASKET. SILVER
W0090249 SUPPORT. FLOAT
W0090270 FUNNEL GREY
W0090280 TIE HINGE
W0090294 STOPPER. FRONT. DARK GREY
W0090299 RAIL BASKET UPPER
W0090300 BRACKET SWITCH
$7.00
W0090323 PUSH BUTTON. BLACK ESL6163
W0090328 GASKET. DECALCIFIER
W0090331 BRACKET ROLLER REAR SIFFENING
W0090370 TRIMMING. SIDE. L=642
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090409 HANDLE. OUTER. SILVER ESL4143
W0090410 HANDLE. INNER. SILVER ESL4143
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090427 SCREW ADJUSTING CENTRAL FOOT
$7.70
W0090452 GUIDE FOOT
$12.00
W0090465 FILTER. INOX ESL9163
W0090476 SEALING PIECE. OUTER
W0090564 CONTAINER CUP.SMALL.ELECTRONIC
W0090567 BOTTOM. CABINET ESL6163
W0090573 CROSSBAR. REAR. UPPER
W0090575 DOOR LOCK. FRONT. BOTTOM. DIVA
W0090577 FOOT SUPPORT. FRONT. LEFT
W0090579 SUPPORT FOOT FRONT RH
$10.00
W0090585 CAPACITOR ESL9163
W0090590 SWITCH PRESSURE. LEVEL 65/45
W0090593 SWITCH PRESSURE. SAFETY 123/98
W0090596 LATCH. BRIDGING PLUG ESL4143
W0090605 MANIFOLD. HORIZONTAL. DIVA/60
W0090606 STOPPLE. DECALCIFIER ESL9163
W0090607 HOLDER. PRESSURE SWITCH
W0090611 PLUG BRIDGING
$4.50
W0090612 CLAMP HOSE
W0090616 HOSE INLET WATER BLOCK. L=1500
W0090621 RING NUT. DECALCIFIER
W0090627 GROMMET, DECALCIFIER ESL9163
$4.50
W0090628 HOSE. PRESSURE SWITCH. SAFETY
W0090629 HOSE. PRESSURE SWITCH. LEVEL
W0090634 SPRAY ARM LOWER LIGHT GREY
W0090636 COVER LATCH HOLE
W0090639 LAMP CAP, PUSH BUTTON PANEL
$4.00
W0090642 DRAIN FILTER. COMPLETE
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090654 TRIM. TUB. CABINET L=1810
W0090658 PIPE UNION. DECALCIFIER. SUMP
W0090662 FLOAT SWITCH
$10.00
W0090685 DOOR. WHITE. INTERGRATED
W0090688 SIDE PANEL. LEFT. WHITE. BIG
W0090689 SIDE PANEL. RIGHT. WHITE. BIG
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090709 RACK DISH
W0090710 RACK DISH
$30.00
W0090726 CROSSBAR FRONT BOTTOM
W0090746 PLUG DRAIN HOSE
W0090752 MICROSWITCH. ANTIOVERFLOW
W0090762 SUPPORT. CUP. GREY ESL4143
W0090764 CHAMBER ACTIVE DRYING
$13.20
W0090776 HOSE DRYING. L=730 ESL6163
W0090781 SUMP. PIPE UNION. COMPLETE
W0090793 SPRING. DOOR HINGE ESL9163
W0090813 TUBE. SPRAYER. L=1350
W0090817 SUPPORT CUP
$6.60
W0090824 CONTROL PANEL, COMPLETE
$99.00
W0090835 VALVE SOLENOID WATER SOFTENER
W0090836 SALT SENSOR.DECALCIFIER.BITRTO
W0090837 VALVE SOLENOID DECALCIFIER
W0090838 SALT SENSOR. DECALCIFIER. T&P
W0090841 INDICATING GLASS.CONTROL PANEL
W0090869 BASKET. UPPER. GREY
W0090882 BASKET LOWER INCLUDES ROLLERS
W0127221 O RING MANIFOLD INNER
W0127513 SWITCH MICRO DOOR
W0128041 HEATER. 230V/2000W 32MM O/LETS
$85.40
W0128081 INNER DOOR. COMPLETE ESL6163
W0128103 SUPPORT ROLLER KIT PKT 4
$55.35
W0128149 KIT. DISPENSER. DETERGENT
W0128153 NUT WATER DISTRIBUTOR
W0128154 DECALCIFIER COMPLETE ASSEMBLY
W0128162 DRAIN PUMP. 50HZ ESL9163
W0128169 HINGE KIT DOOR RIGHT-LEFT
W0129222 SEAL AIR CHAMBER
W0149895 O RING SUMP
W0149902 BODY. BOTTOM. SPRAYER ESL6163
W0149903 GASKET. SPRAYER ESL6163
W0149912 COVER CAP ESL9163
W0153328 BOARD CONFIGURED EDW1503
