ESL7510RO — 911434396 00
ELECTROLUX — Dishwasher
Parts for ESL7510RO
W0013692 UNIVERSAL WASHING MACHINE & DISHWASHER DRAIN HOSE STRAIGHT CUFFS 2M
$33.75
W0015367 SCREEN, SUMP
$10.50
W0015778 DOOR GASKET, L=1770MM
$36.00
W0015843 GASKET DOOR LOWER BLK
W0017612 FLOW CONTROL REGULATOR
$67.50
W0017614 HOSE,SUMP,WATER SOFTENER,L=370
$9.00
W0017620 ADJUSTING SCREW,FOOT,CENTRAL,L
$16.50
W0017624 TEMPERATURE SENSOR,TURBIDITY S
W0017627 PUMP DRAIN 50HZ.
W0017639 FLAP,VALVE,WATER SUMP,D=23,2MM
$24.00
W0017640 SENSOR PRESSURE SWITCH
W0017663 BASKET CUTLERY - GREY
$66.75
W0026942 SPRAY ARM BEARING, CUTLERY TRAY
$6.00
W0026962 DUCT, L=253MM
$39.00
W0026996 TOP SPRAY ARM, CUTLERY TRAY, NUT
$10.50
W0027008 CLIP RACK FOLD DOWN BSKT LOWER
$6.00
W0030759 DISHWASHER SALT 1KG PACK
$3.75
W0030763 DESCALER SACHET 75GM
$4.13
W0030797 SUPPORT SPIKES RUBBER - GREY
W0030805 DETERGENT DISHWASHER 1KG
$11.25
W0030806 RINSE AID ADDITIVE 500MLS
.JPG)
W0030810 BASKET CUTLERY UNIVERSAL
W0032198 HOSE DRAIN KIT (1M)
$51.75
W0071643 MAIN SWITCH, AUTO OFF
$36.75
W0071723 CAPACITOR, MOTOR, 3 UF
$38.25
W0071935 LOWER SPRAY ARM SUPPORT
$24.75

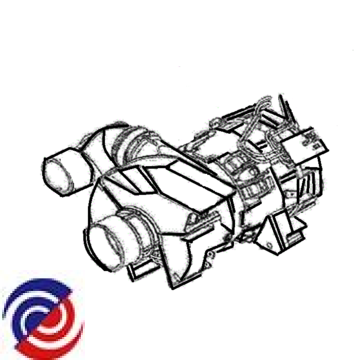

W0077090 CIRCULATION PUMP,HEATER,COMPLE
W0154351 DESCALER POWDER 350G
$14.25
W0015189 LOCK DOOR
$52.50
W0015368 GASKET, SUMP
$13.50
W0015372 SPRAY ARM LOWER
$84.94
W0015374 FLAT DRAIN FILTER
W0015759 BUTTON ON/OFF
$21.00
W0015777 BRACE FRONT UPPER
$25.91
W0015784 PANEL FRONT LOWER
$17.21
W0015788 COVER WIRING HARNESS
$7.39
W0015792 RAIL BASKET UPPER
$12.75
W0015829 RIVET PLASTIC DOOR DIA 12X19MM
$18.75
W0015863 ADJUSTABLE FOOT, REAR, 129X20MM
$15.75
W0015865 FOOT ADJUSTABLE FRONT X115
$14.18
W0015886 CLIP, RIVET, SIDE PANEL, 20.8X19.5MM
$5.25
W0015889 SIDE PANEL, RIGHT, ZINC-PLATED
$90.75
W0017581 USER INTERFACE BOARD, WHITE, EDW1503
$201.49
W0017629 SUPP.CUPS A-WH -M140-
$6.00
W0017631 SEAL,CHANNEL DRAINAGE
$4.50
W0017633 SUMP WATER ASSEMBLY
$37.50
W0017644 BASEMENT
$43.54
W0017646 TRAY BOTTOM SPILLAGE - BLK
W0017651 COVER PCB METAL REAR
$22.28
W0017655 DISPENSER DETERGENT AEG
W0017656 DOOR INNER PANEL, DOROTEA/60
$137.21
W0017660 FIXING CLAMP,PARTITION,UPPER
$3.75
W0017665 CORD SERVICE AU 2.15M
$36.00
W0017672 HANDLE BASKET FRONT LOWER ELUX
$30.00
W0017673 HANDLE BASKET FRONT UPPER
$30.00
W0017674 HANDLE BASKET REAR UPPER
$30.00
W0017675 HANDLE BASKET REAR LOWER
$30.00
W0017676 HEATER WITH O-RING 230V/1800W
$138.00
W0017678 COVER HEATER
$22.50
W0017681 BASKET TINES,L=293MM
$30.00
W0017702 BASKET LOWER A-WH -M40-
W0017705 BASKET DW UPPER
$295.50
W0017708 TEMPLATE BUILT IN
$6.00
W0017719 KIT MOUNTING BUILT IN SLIDING
$15.00
W0017785 PANEL CONTROL INOX
$193.50
W0017797 DRAIN HOSE IC A-WHS
$60.75
W0017798 TUBE VENTILATING X 1645MM
$15.26
W0018963 STOPPER, BASKET RAIL, FRONT
$7.50
W0018984 SIDE TRIM, L=609
$25.50
W0018988 LATCH DOOR LOCK
W0019024 VENTILATION GRID, VAPOUR OUTLET
$17.25
W0019054 COG LEG ADJUSTABLE CENTRAL
W0023584 ROLLER KIT LOWER BSKT PKT 8
$60.00
W0023828 KIT OVERFLOW HOSE
$11.93
W0024257 SUPPORT ROLLER KIT (PKT 4)
$43.50
W0024438 SCREW SUPPORT SPRAY ARM LOWER
$4.13
W0024439 SCREW,HOLDER,ROLLER,8 PCS.
$13.50
W0026672 STOPPER, BASKET RAIL, BACK
$7.50
W0026956 RACK FOLD DOWN BSKT UPPER LH
$27.00
W0026957 BASKET TINES, RIGHT, L=123MM
$33.00
W0026966 MANIFOLD, VERTICAL
$83.25
W0026989 PLUG DRAIN HOSE
$9.08
W0026999 SUPPORT CUP WIRE - SILVER
$30.00
W0027022 SPRAY ARM CABINET TOP 3RD
$102.75
W0027042 SOFT SPIKES, BLUE
$21.00
W0027044 HARNESS PCB - HEATER
$43.54
W0027053 ROLLER BASKET QUIK LIFT RIGHT
$21.26
W0027054 ROLLER BASKET QUIK LIFT LEFT
$21.26
W0027129 CLAMP DRAIN HOSE Ï30MM
$6.75
W0027130 CLAMP CIRC PUMP FLOW REG Ø36MM
$15.75
W0027131 CLAMP CIRCULATION PUMP-SUMP
$8.25
W0027161 COVER MOTOR DRIP PREVENTION
$19.54
W0027168 BRACE SUPPORT CUP HOLDER - GRE
$14.25
W0027182 HARNESS PCB PUMP
$60.00
W0027227 UPPER SPRAY ARM, L=456MM
$65.66
W0027366 STICKER PROG GUIDE ESL7510RO
$7.50
W0028867 CONFIGURED ELECTRONIC, PB200
$209.25
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0072706 CONTAINER CUP SMALL
$37.50
W0072863 BRACE FRONT LOWER
$10.88
W0072869 PANEL DOOR OUTER ZINCPLATED
$148.43
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072915 BRACE REAR UPPER
$15.75
W0072937 FIXING BRACKET, WORK TOP
$7.50
W0072984 PANEL SIDE LEFT - ZINC PLATED
$90.75
W0072988 DOOR INDICATOR LAMP, BOF, RED, BOF
$39.75
W0077065 ANTI-FLOOD.A-WH M100 *TR*
W0090333 BRACKET ROLLER REAR SIFFENING
$7.50
W0090423 NUT SPEED CLIP
W0090637 COVER LATCH HOLE
$8.25
W0116544 HOSE INLET WATER BLOCK X1800
W0116691 KIT DOOR HINGE LH/RH SLIDING
$153.75
W0129222 SEAL AIR CHAMBER
W0147279 HARNESS, (B)
$66.75
W0147301 FILTER DRAIN ASSEMBLY - FINE
