ESL79200RO — 911434778 00
ELECTROLUX — Dishwasher
Parts for ESL79200RO
W0015778 GASKET DOOR 1800MM
$45.00
W0017612 REGULATOR FLOW DIRECTION CNTRL
$85.00
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017620 SCREW ADJUSTING - FOOT CENTRAL
$22.00
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0026942 AEG ELECTROLUX DISHWASHER UPPER SPRAY ARM LOCK NUT
$7.00
W0026962 CHANNEL FEED UPPER SPRAY ARM
$49.00
W0026996 NUT FASTENING TOP SPRAY ARM
$14.00
W0027008 CLIP RACK FOLD DOWN BSKT LOWER
$7.00
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0274391 AEG ELECTROLUX DISHWASHER PRESSURE SWITCH
$51.00
W0274404 AEG ELECTROLUX DISHWASHER DRAIN HOSE 2340mm LONG
$38.50
W0274480 TAPE STEAM PROTECT PLAS x750mm
$16.05
W0283253 ARM SPRAY UPPER GREY ASSY
$49.00
.jpg)
W0295999 AEG ELECTROLUX DISHWASHER HEATER ELEMENT 1800W
$93.00
W0368840 DRAIN PUMP,BLDC, 50/60HZ
W0370413 INLET HOSE AQUA CONTROL 1825MM
$83.00
W0015368 O-RING SUMP
$15.50
W0015792 RAIL BASKET UPPER
$17.00
W0015863 LEG ADJUSTABLE CENTRAL 129MM
$20.00
W0015886 GROMMET SIDE MOUNT/DOOR GUIDE
$6.00
W0015889 PANEL SIDE RIGHT - ZINC PLATED
$121.00
W0017631 GROMMET FEED UPPER SPRAY ARM
$6.00
W0017651 COVER PCB METAL REAR
$29.70
W0017660 CLIP RACK FOLD DOWN BSKT UPPER
$5.50
W0017668 BRACKET ROLLER REAR SIFFENING
$10.00
W0017917 SEAL O-RING HEATER-PUMP RECIRC
$16.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0018984 TRIM TUB CABINET X 609MM
$34.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0023584 ROLLER KIT LOWER BSKT PKT 8
$80.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024438 SCREW SUPPORT SPRAY ARM LOWER
$5.50
W0024439 SCREW FIXRAIL ROLLER PACK X 8
$18.00
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026966 TUBE FEED SPRAY ARM UPPER&3RD
$111.00
W0026989 PLUG DRAIN HOSE
$12.10
W0027022 SPRAY ARM CABINET TOP 3RD
$137.00
W0027051 ROLLER BASKET ADJUSTMENT LH
$44.00
W0027052 ROLLER BASKET ADJUSTMENT RH
$41.00
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027237 FILTER FLAT + INDICATOR
$69.00
W0072915 BRACE REAR UPPER
$21.00
W0072941 SUPPORT MOTOR RUBBER
$14.30
W0072984 PANEL SIDE LEFT - ZINC PLATED
$121.00
W0072988 INDICATOR DOOR LAMP
$53.00
W0090333 BRACKET ROLLER REAR SIFFENING
$10.00
W0274389 BASKET UPPER CUP SUPPORT
$18.00
W0274648 GASKET DOOR LOWER BLACK-546mm
$45.00
W0274921 PANEL KICK FRONT LOWER
$37.00
W0275436 HARNESS PCB . HEATER ( C )
$44.00
W0282812 BRIDGE LOWER BASKET LEFT
$5.05
W0282813 BRIDGE LOWER BASKET RIGHT
$5.05
W0284062 DAMPER SLIDING HINGE
$12.00
W0284078 SCREW HINGE M5X18 TSP KIT OF 4
$6.00
W0284275 TRAY BOTTOM BLACK
$58.00
W0284284 HANDLE BASKET COMPLETE
$9.00

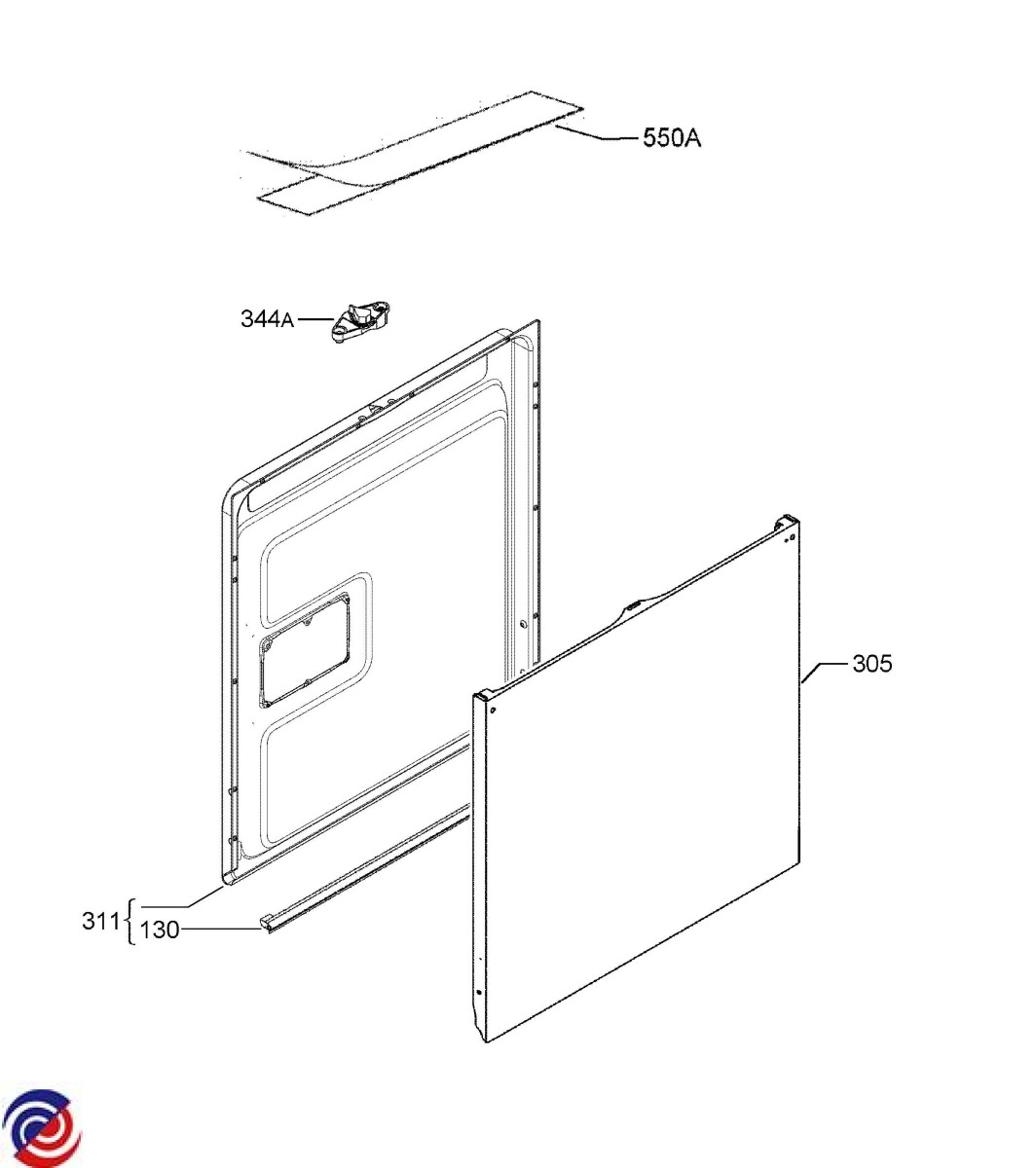

W0284606 PANEL DOOR INNER DOROTEA 60
$310.00
W0361128 COVER HEATER
$8.00
W0361200 DRAIN FILTER,ASSEMBLY
$61.00
W0363866 LOWER SPRAY ARM,GREY/BLUE
$48.00
W0363870 CROSSBAR,FRONT,UPPER,60CM
$56.00
W0363871 SLIDER,SLIDING PANEL,PLASTIC
$5.50

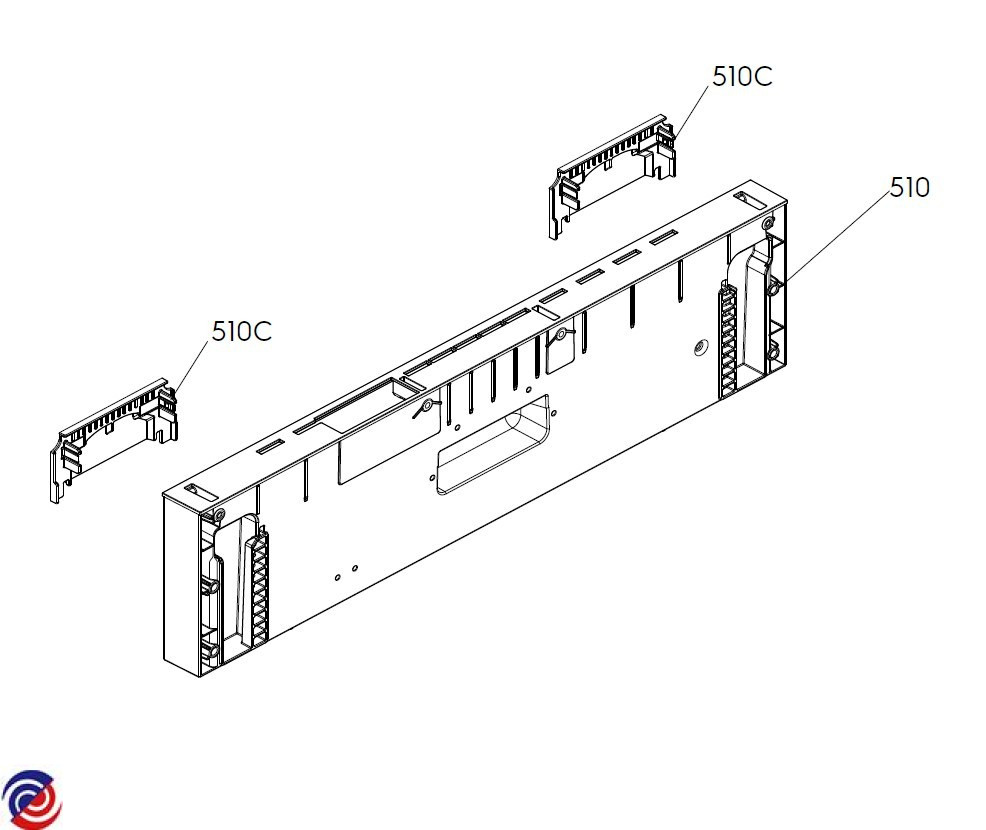

W0363874 CONTROL PANEL,BLACK,ELECTROLUX
$168.00
W0363901 BASKET TINES,KIT LEFT & RIGHT
$75.00
W0363903 BASKET HANDLE,KIT FRONT & REAR
$17.45
W0363904 BASKET TINES,KIT LEFT & RIGHT
$95.00
W0363930 DOOR HINGE,KIT,LEFT-RIGHT
$130.00
W0364037 HOSE HOLDER,DOUBLE
$4.00
W0364114 WATER SUMP
$25.00
W0364115 BASEMENT,DNL
$54.00
W0364117 POWER CABLE,AUSTRALIA, 1,85M
$47.00
W0364118 LOWER BASKET,SILVER,DOROTEA/60
$310.00
W0364125 CONVEYOR,WITH,OVERFLOW HOSE
$4.00
W0364156 SCREEN,SUMP
$6.00
W0364157 CIRCULATION PUMP,BLK 80W
$142.00
W0364159 QUICK LIFT HANDLE,BLUE
$4.00
W0364160 FRAME,INDICATOR,BLUE
$11.70
W0364161 HARNESS,PUMP,(A)
$87.85
W0364166 SUPPORT,MAGNET SWITCH,ASSEMBLY
$5.10
W0364167 MAGNET SWITCH,ASSEMBLY
$45.05
W0364170 SPRING CLIP,INDICATOR,BLUE
$15.70
W0364176 LOWER SPRAY ARM SUPPORT
$6.00
W0364218 SOFT SPIKES,BLUE
$11.00
W0364227 COVER,CONTROL PANEL,USER I/FAC
$7.00
W0364229 UPPER BASKET,SILVER
$342.00
W0364230 BASKET TINES,RIGHT,REAR,
$30.00
W0364231 BASKET TINES,LEFT,REAR,
$30.00
W0364233 BASKET WIRE,SILVER
$30.00
W0369042 CROSSBAR, FRONT, BOTTOM
$23.40
W0369204 DOOR LOCK,CASING,WITH OPENER
$114.00
W0369892 MOUNTING KIT, SLIDING TYPE
$14.00
W0369950 FLOAT DEVICE, ASSEMBLY
$14.00
W0369953 DET.DISP.A-WH *TR*
$93.00
W0370080 STRIKER DOOR - DIAMOND
$11.00
W0370227 BOARD PC UNPROG PB101
$377.20
W0370250 KNIFE HOLDER, BLUE
$7.50
W0370259 CUTLERY DIVIDER, FORK, BLUE
$4.85
W0370260 CUTLERY DIVIDER, SPOON, BLUE
$4.85
W0370261 CUTLERY DIVIDER, KNIFE, BLUE
$4.85
W0370263 HARNESS, DOOR, (B)
$36.25
W0370379 CUTLERY TRAY WHEEL, GREY
$4.00
W0370418 USER INTERFACE BOARD, EDW7200
$163.00
W0370441 CAP, SAFETY, DOOR
$5.50
W0370444 TEMPLATE, DOOR PANEL, SLIDING
$7.00
W0370462 METAL PANEL, CUTLERY TRAY, INO
$32.00
W0370515 CUTLERY TRAY, WITH WHEELS, GRE
$116.00
W0370703 DOOR OUTER PANEL, ZINC-PLATED,
$94.00
W0370721 SUPPORT, RAIL BASKET, CUTLERY
$7.35
W0370885 CONTAINER CUP, SMALL, AUS
$19.00
W0370964 CONFIGURED ELECTRONIC, PB101
$295.00
W0373275 SENSOR TEMPERATURE TURBIDITY
$25.00
W0376641 HOSE HOLDER
$4.50
W0377669 ADJUSTABLE FOOT, FRONT, 121MMXM8
$20.00
W0377670 COG WHEEL
$20.00
W0378072 GASKET,CONTAINER CUP
$28.00
