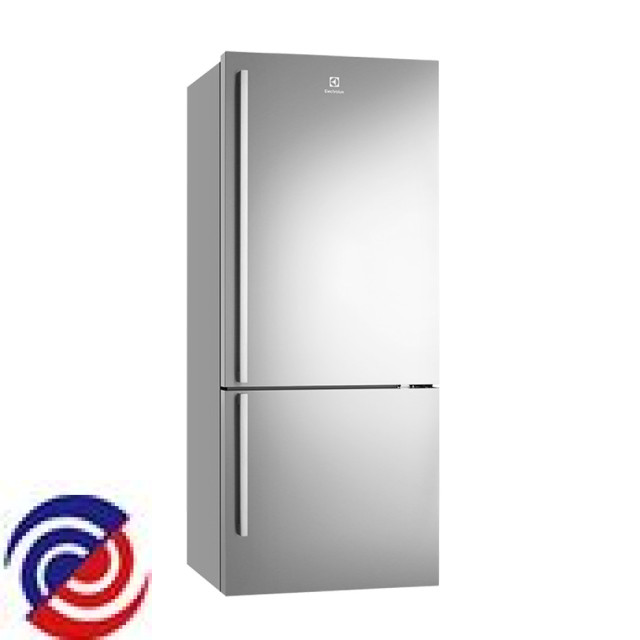

EBE4507SA-L — 925060105 00
ELECTROLUX — Fridge
Parts for EBE4507SA-L
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$3.38
W0027222 TUBE PROCESS
$14.36
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$3.38
W0027460 BIN ICE
W0027522 COVER SCREW
$3.38
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029739 HANDLE KIT TF/BF EAU ELINE
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0368463 ELECTROLUX WESTINGHOUSE FRIDGE FREEZER DEFROST SENSOR HARNESS
$18.71
W0018166 GROMMET FAN MOTOR
$12.34
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0027015 DEODORIZER BLOCK THIN
$13.50
W0027119 SCREW TRILOB M6X18
$3.38
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$3.38
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027410 BOTTLE CADDY PINOT
W0027411 BLADE FAN,NAT
$24.19
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$9.49
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027601 GASKET FRZ BF70
$76.16
W0027603 GASKET FC BF70
$87.04
W0029310 HINGE TOP LEFT
$4.80
W0029351 COVER DEO BAFFLE SILVER-ART
$13.84
W0029358 MULTIFLOW ASSY BF EAU
W0029375 SEALING MFLOW BACK BF 1725
$9.11
W0029376 DRAWER BODY BF70
$25.58
W0029378 DRAWER FRONT BF70 ELUX ASSY
W0029393 BIN DOOR DAIRY BODY TF70 EL
W0029394 BIN DOOR DAIRY LOW LID TF70 EL
$9.98
W0029399 BIN DOOR DAIRY UP LID TF70 EL
$32.25
W0029404 BIN DOOR FLEX 70 2-HOTFOIL
W0029409 BIN DOOR FC SHALL 70 2-HOTFOIL
$44.29
W0029418 BIN DOOR FC BOTTLE 70 2-HOTFOI
$57.75
W0029434 TRAY EGG 70W
W0029447 SHELF FC TF70 EAU ASSY
$63.45
W0029467 COVER TOP HINGE LEFT GR
$3.38
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029482 EVAPORATOR COVER BF70 ASY 2-Z
$48.75
W0029490 BIN ICE AIM BF ELUX
$19.43
W0029536 BEARING AUTO CLOSER R TF SL
W0029539 DRAWER LOWER BODY BF70
$63.08
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029572 TRAY EVAP DRAIN BM/SD 70W
$12.38
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029640 EXTENSION SLIDE INSERT FZR LH
$7.05
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029659 COMPRESSOR EMBRACO VESD7C
$378.71
W0029660 PCBA DRIVE EMBRACO VESD7C
$160.88
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029676 CENTRE HINGE PIN DRAWER DOOR
$3.38
W0029697 COVER FOOT LEFT HINGE GREY
$9.71
W0029698 COVER FOOT RIGHT HINGE GREY
$3.38
W0029702 HINGE BASE RIGHT ASSY
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029751 COVER CRISPER ASSY BF70 EAU
$48.04
W0029758 SUPPORT DRAWER ELUX LH
W0029759 SUPPORT DRAWER ELUX RH
$11.25
W0029761 BRACKET ICE MAKER
$10.88
W0029764 SUPPORT PASTRY SLIDE LH
$13.76
W0029799 GROMMET FAN PANA DC FAN
$12.04
W0029820 EPS FZ AIR STOPPER
$3.75
W0029844 TUBE CORRUGATE SD
$3.38
W0029855 DRAWER DELI FRONT 70 EAU ASSY
$58.73
W0029894 BIN DR DAIRY FOLDABLE 70EL ASY
$70.91
W0029926 CRISPER GASKET 80
$16.50
W0029968 DRAWER FZR FR LWR ASY 70 ELUX
$51.15
W0029972 DRAWER FZR FR MID ASY 70 EAU
$37.50
W0029975 DRAWER FZR PASTRY ASY 70 ELUX
$48.75
W0029996 MAT DOOR BIN FLEX 1/2 TF70
W0029997 MAT DOOR BIN BOTTLE TF70
W0030014 DRAWER DELI BODY 70 ASSY
$44.74
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$18.75
W0030112 HEATER TUBE DRAIN PAN SD
$68.48
W0030113 SPACER 3 TURN HEATER
$3.38
W0030261 DOOR SPARE FZR+FC EBE4507SA-L
$502.50
W0030287 EVAPORATOR FF BF70
$71.81
W0030295 DISPLAY UI STD ELUX INTL ASSY
$198.00
W0030339 COVER CRISPER ASSY BF70 EAU DW
$120.00
W0030341 INSERT DRAWER CRISPER BF70 EAU
$29.55
W0030343 CRISPER DIVIDER BF EAU
$12.53
W0030629 COVER WATER TANK BF/MD ASSY
W0087750 WASHER SLINGER NYLON
W0087781 SPRING TWIST&SERVE
W0087794 SCOOP ICE
W0096152 TRAY ICE CUBE
W0096153 KNOB ICE T&S WHITE
W0147552 ROLLER REAR WTB4600WA RAYONG
$5.40
W0147553 SHAFT ROLLER
W0154025 HARNESS-ASSY M/FLOW BF EAUO
W0154034 PCBA_P_ERF2003 8W FCT
