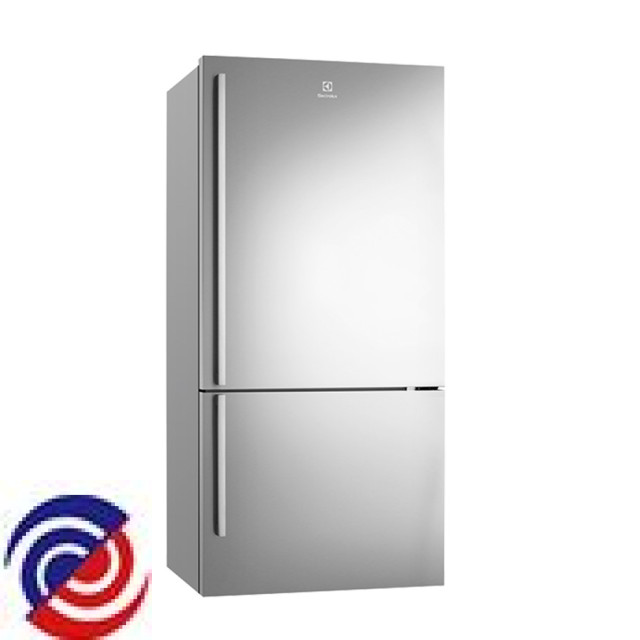

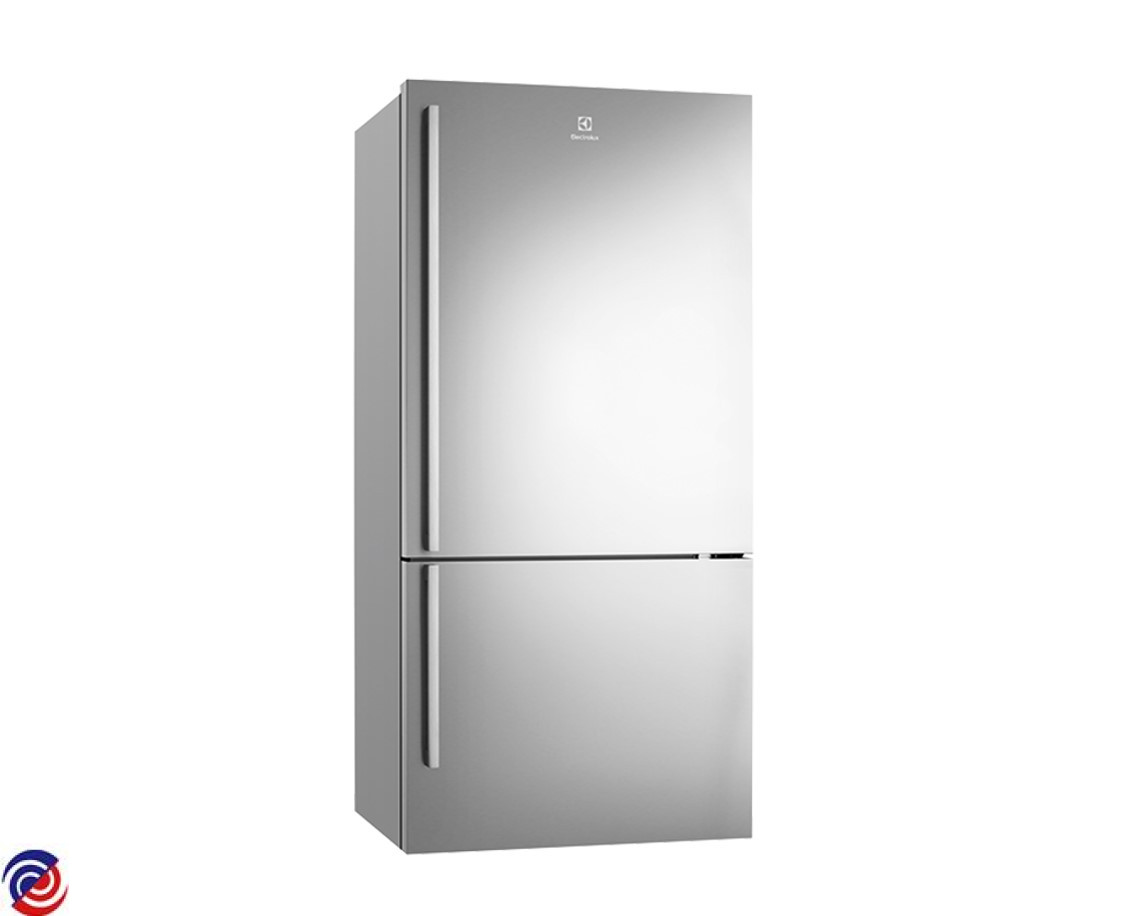

EBE5307SA-R — 925060110 00
ELECTROLUX — Fridge
Parts for EBE5307SA-R
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$3.38
W0027222 TUBE PROCESS
$14.36
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$3.38
W0027460 BIN ICE
W0027522 COVER SCREW
$3.38
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029435 TRAY EGG 80W
W0029558 HEATER RAD DEF R600 240V BF80W
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029739 HANDLE KIT TF/BF EAU ELINE
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0368463 SENSOR,HARNESS,DEFROST
$21.00
W0018166 GROMMET FAN MOTOR
$12.34
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0027015 DEODORIZER BLOCK THIN
$13.50
W0027119 SCREW TRILOB M6X18
$3.38
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$3.38
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027410 BOTTLE CADDY PINOT
W0027411 BLADE FAN,NAT
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$9.49
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027602 GASKET FRZ BF80
$82.58
W0027604 GASKET FC BF80
$119.66
W0029308 DRAWER MIDDLE BODY BF80
$34.09
W0029309 HINGE TOP RIGHT
$6.49
W0029351 COVER DEO BAFFLE SILVER-ART
$13.84
W0029358 MULTIFLOW ASSY BF EAU
W0029375 SEALING MFLOW BACK BF 1725
$9.11
W0029377 DRAWER BODY BF80
W0029381 DRAWER FRONT BF80 ELUX ASSY
W0029405 BIN DOOR FLEX 80 2-HOTFOIL
W0029411 BIN DOOR FC SHALL 80 2-HOTFOIL
$41.59
W0029419 BIN DOOR FC BOTTLE 80 2-HOTFOI
W0029425 BIN DOOR DAIRY LOW LID TF80 EL
$9.98
W0029448 SHELF FC TF80 EAU ASSY
$63.83
W0029465 COVER TOP HINGE RIGHT GR
$3.38
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029479 EPS EVAPORATOR BF 80
$111.86
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029483 EVAPORATOR COVER BF80 ASY 2-Z
$59.44
W0029490 BIN ICE AIM BF ELUX
W0029536 BEARING AUTO CLOSER R TF SL
W0029540 DRAWER LOWER BODY BF80
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029572 TRAY EVAP DRAIN BM/SD 70W
$12.38
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029640 EXTENSION SLIDE INSERT FZR LH
$7.05
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029659 COMPRESSOR EMBRACO VESD7C
$378.71
W0029660 PCBA DRIVE EMBRACO VESD7C
$160.88
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029676 CENTRE HINGE PIN DRAWER DOOR
$3.38
W0029697 COVER FOOT LEFT HINGE GREY
$9.71
W0029698 COVER FOOT RIGHT HINGE GREY
$3.38
W0029702 HINGE BASE RIGHT ASSY
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029752 COVER DELI ASSY BF80 EAU
$93.94
W0029758 SUPPORT DRAWER ELUX LH
W0029759 SUPPORT DRAWER ELUX RH
$11.25
W0029761 BRACKET ICE MAKER
$10.88
W0029764 SUPPORT PASTRY SLIDE LH
$13.76
W0029799 GROMMET FAN PANA DC FAN
$12.04
W0029820 EPS FZ AIR STOPPER
$3.75
W0029844 TUBE CORRUGATE SD
$3.38
W0029856 DRAWER DELI FRONT 80 EAU ASSY
W0029895 BIN DR DAIRY FOLDABLE 80EL ASY
$74.85
W0029926 CRISPER GASKET 80
$16.50
W0029970 DRAWER FZR FR LWR ASY 80 ELUX
$51.15
W0029973 DRAWER FZR FR MID ASY 80 EAU
$54.00
W0029977 DRAWER FZR PASTRY ASY 80 ELUX
$66.38
W0029999 MAT DOOR BIN FLEX 1/2 TF80
$26.29
W0030000 MAT DOOR BIN BOTTLE TF80
W0030015 DRAWER DELI BODY + GLASS BASE
$51.00
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$18.75
W0030112 HEATER TUBE DRAIN PAN SD
$68.48
W0030113 SPACER 3 TURN HEATER
$3.38
W0030262 DOOR SPARE FZR+FC EBE5307SA-R
W0030287 EVAPORATOR FF BF70
$71.81
W0030295 DISPLAY UI STD ELUX INTL ASSY
$198.00
W0030340 COVER CRISPER ASSY BF80 EAU DW
W0030342 INSERT DRAWER CRISPER BF80 EAU
$32.25
W0030343 CRISPER DIVIDER BF EAU
$12.53
W0030356 SEAL FOAM EPDM BF 80
$6.56
W0030629 COVER WATER TANK BF/MD ASSY
W0087750 WASHER SLINGER NYLON
W0087781 SPRING TWIST&SERVE
W0087794 SCOOP ICE
W0096152 TRAY ICE CUBE
W0096153 KNOB ICE T&S WHITE
W0147552 ROLLER REAR WTB4600WA RAYONG
$5.40
W0147553 SHAFT ROLLER
W0154025 HARNESS-ASSY M/FLOW BF EAUO
W0154034 PCBA_P_ERF2003 8W FCT
W0273539 BIN DOOR DAIRY UP LID TF80W EL
$9.98
W0275533 BIN DOOR DAIRY BODY TF80 EL
$15.00
W0295012 SHELF TRIM
