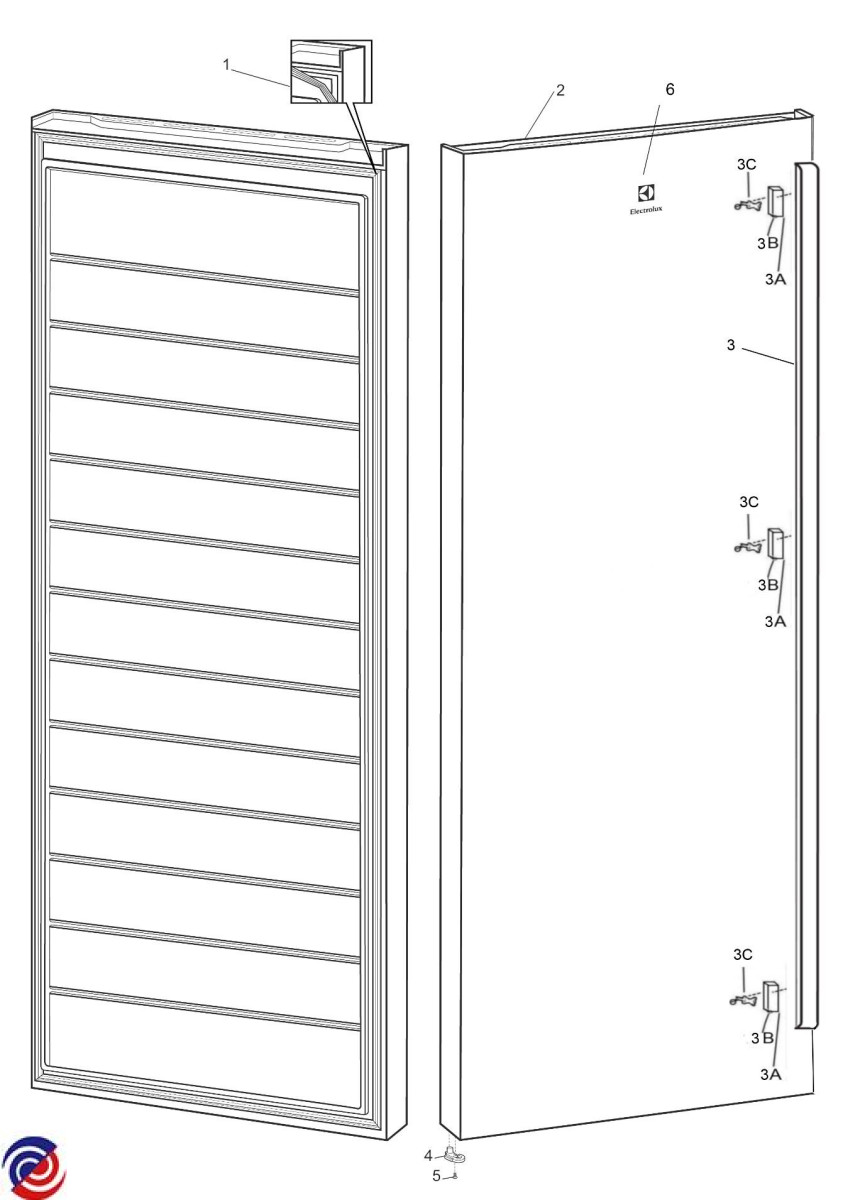

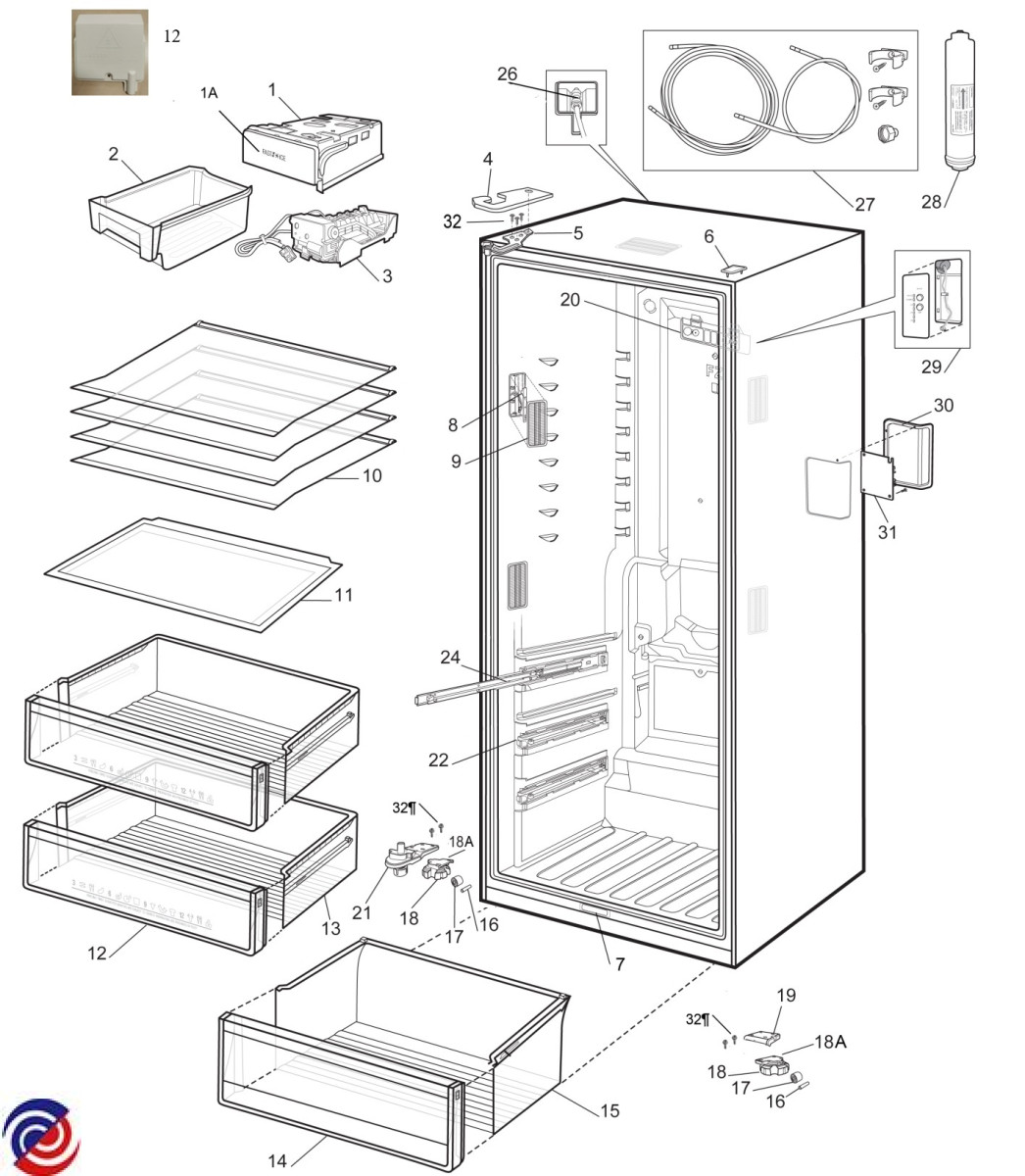

EFE4227SC-L — 925060829 00
ELECTROLUX — Fridge
Parts for EFE4227SC-L
.JPG)
W0018255 FILTER WATER INLINE ELECTROLUX
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027222 TUBE PROCESS
$19.15
W0027522 COVER SCREW
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027608 COVER TOP CABINET WH GR
$6.95
W0027610 CLAMP COMPRESSOR
$4.50
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$27.50
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0020714 ICE MAKER (SANKYO)
W0027114 BASE COMP ASSY 70W RAYONG
$44.90
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027429 POWERCORD RF AU EMBRACO
$26.70
W0027441 SCREW TRUSS 4.2X13
W0027443 SEAL FOAM 6X8
$7.70
W0027605 GASKET SD 70
W0029310 HINGE TOP LEFT
$6.40
W0029351 COVER DEO BAFFLE SILVER-ART
$18.45
W0029363 COVER MFLOW UPPER BF1725 ELUX
$30.00
W0029467 COVER TOP HINGE LEFT GR
$4.50
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$84.10
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029603 REAR HOUSING PCB COVER
$164.80
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029657 DISPLAY UI SDAF ELUX ASSY
$265.00
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029762 ICE MAKER COVER ELUX ARTWORK
$11.75
W0029796 FOOT BASE BF
$7.55
W0029806 COVER BOTTOM MULTIFLOW SD
$29.40
W0029808 DUCT EPS EVAP TOP ALL SD
$8.90
W0029809 DUCT EPS EVAP BOTTOM ALL SD
$11.15
W0029812 SHELF SHORT SD FZ 70W
$84.30
W0029813 SHELF ASSY ELUX FZ SD 70W
$89.20
W0029842 TUBE CORRUGATE TF
$16.95
W0029860 DRAWER ICE
$74.00
W0029874 FAN SHROUD DC ASSY SD
$105.75
W0029876 COVER EVAPORATOR ASSY SD FZ
$132.25
W0029877 COVER EVAPORATOR LID SD 70
$5.00
W0029878 MULTIFLOW ASY SD FZ ELUX
$90.00
W0029907 ICE MAKER BRACKET
$24.50
W0029968 DRAWER FZR FR LWR ASY 70 ELUX
$68.20
W0029972 DRAWER FZR FR MID ASY 70 EAU
$50.00
W0030007 COVER BODY SINGLE VALVE
W0030008 COVER LID SINGLE VALVE
$115.05
W0030021 PCB MAIN ERF2003 5LED FZ_S
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030047 I&W INSTALLATION KIT SD FZ
W0030048 VALVE SD
$82.05
W0030064 COMPRESSOR EMB66CLC
W0030181 DRAIN PAN & HEATER TUBE ASSY
$40.00
W0030289 EVAPORATOR FF SD FZ
$130.00
W0030312 TERMINAL BLOCK EMBRACO
$19.10
W0030313 TERMINAL COVER EMBRACO
$25.00
W0030314 OVERLOAD PROTECTOR EMBRACO
$30.50
W0030355 MULITIFLOW COVER SUPPORT
$203.90
W0030499 HARNESS-ASSY SENSOR DEFROST SD
W0147520 SWITCH DOOR
$26.50
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0281772 CONNECTOR 1/4
W0282345 HARNESS-ASSY M/FLOW
W0283865 DOOR SPARE FZR EFE4227SB-L
$688.90
W0284057 SCREW MOUNTING HANDLE MD36
W0284504 HANDLE BODY
$200.00
W0284505 HANDLE PEDESTAL KIT
