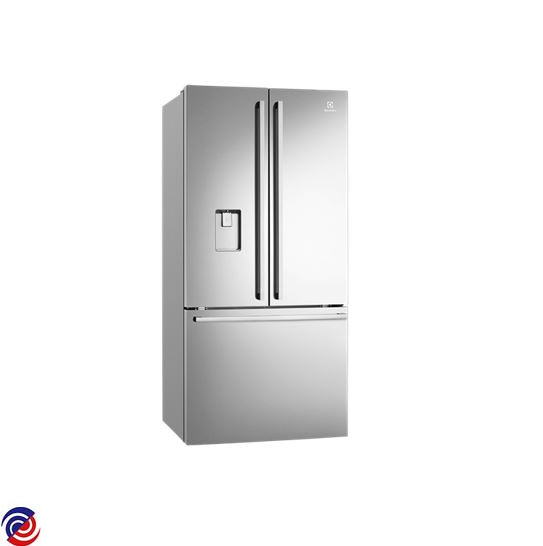

EHE5267SA — 925060114 00
ELECTROLUX — Fridge
Parts for EHE5267SA
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$3.38
W0027140 FILTER WATER (PINOT)
W0027222 TUBE PROCESS
$14.36
W0027373 MOTOR FAN DC 3W
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029558 HEATER RAD DEF R600 240V BF80W
W0029622 ASSEMBLY FLIP MULLION MD
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029701 FOOT LEVER
W0029880 ELECTROLUX WESTINGHOUSE FRIDGE WATER VALVE INLET 2-WAY
W0029938 SENSOR MAGNET REED SW
$26.81
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0030565 VALVE ASSEMBLY SINGLE
W0154020 PCB MAIN ERF2003 15W _MD
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0281794 ELECTROLUX WESTINGHOUSE FRIDGE UNILUX REPLACEABLE FILTER
W0018166 GROMMET FAN MOTOR
$12.34
W0018631 LEVER DISPENS I & W -
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0020671 SWITCH DOOR REED
W0027015 DEODORIZER BLOCK THIN
$13.50
W0027119 SCREW TRILOB M6X18
$3.38
W0027138 CONNECTOR FILTER MANIFOLD
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$3.38
W0027382 SENSOR + COVER HUMIDITY MD
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027410 BOTTLE CADDY PINOT
W0027411 BLADE FAN,NAT
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$9.49
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027596 GASKET FC MD80
$101.40
W0027602 GASKET FRZ BF80
$82.58
W0029308 DRAWER MIDDLE BODY BF80
$34.09
W0029309 HINGE TOP RIGHT
$6.49
W0029310 HINGE TOP LEFT
$4.80
W0029351 COVER DEO BAFFLE SILVER-ART
$13.84
W0029358 MULTIFLOW ASSY BF EAU
W0029375 SEALING MFLOW BACK BF 1725
$9.11
W0029377 DRAWER BODY BF80
W0029381 DRAWER FRONT BF80 ELUX ASSY
W0029393 BIN DOOR DAIRY BODY TF70 EL
W0029394 BIN DOOR DAIRY LOW LID TF70 EL
$9.98
W0029399 BIN DOOR DAIRY UP LID TF70 EL
$32.25
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$63.75
W0029434 TRAY EGG 70W
W0029448 SHELF FC TF80 EAU ASSY
$63.83
W0029473 DRAWER PASTRY BODY BF 80
$30.68
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029479 EPS EVAPORATOR BF 80
$111.86
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029483 EVAPORATOR COVER BF80 ASY 2-Z
$59.44
W0029490 BIN ICE AIM BF ELUX
W0029536 BEARING AUTO CLOSER R TF SL
W0029538 BEARING AUTO CLOSER L TF SL
W0029540 DRAWER LOWER BODY BF80
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029566 BEARING HINGE FZR TOP OPEN
$4.73
W0029573 TRAY EVAP DRAIN BM/SD 80W
$28.84
W0029576 BRACKET ADJUSTMENT BF IDP RH
$21.79
W0029577 BRACKET ADJUSTMENT BF IDP LH
$21.79
W0029579 COVER TOP HINGE IW RH GR
$8.25
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029635 SPRING FLIP MULLION MD
W0029640 EXTENSION SLIDE INSERT FZR LH
$7.05
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029659 COMPRESSOR EMBRACO VESD7C
$378.71
W0029660 PCBA DRIVE EMBRACO VESD7C
$160.88
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029676 CENTRE HINGE PIN DRAWER DOOR
$3.38
W0029690 COVER MAGNET ENDCAP MD80 GR
$3.38
W0029697 COVER FOOT LEFT HINGE GREY
$9.71
W0029707 COVER TOP HINGE IW LH GR
$3.00
W0029708 FOOT LEFT ASSY
$15.08
W0029709 FOOT RIGHT ASSY
$15.08
W0029731 SCREW TRILOBULAR M4X12
$3.00
W0029752 COVER DELI ASSY BF80 EAU
$93.94
W0029758 SUPPORT DRAWER ELUX LH
W0029759 SUPPORT DRAWER ELUX RH
$11.25
W0029761 BRACKET ICE MAKER
$10.88
W0029762 ICE MAKER COVER ELUX ARTWORK
$8.81
W0029764 SUPPORT PASTRY SLIDE LH
$13.76
W0029785 HOUSING TELESCOPIC RAIL LH
W0029786 HOUSING TELESCOPIC RAIL RH
W0029787 SLIDER TELESCOPIC RAIL LH ASY
W0029788 SLIDER TELESCOPIC RAIL RH ASY
W0029792 SHAFT TELESCOPIC RAIL WH80
W0029799 GROMMET FAN PANA DC FAN
$12.04
W0029814 SUPPORT PASTRY SLIDE RH
$10.50
W0029818 BEARING PAD
$14.89
W0029820 EPS FZ AIR STOPPER
$3.75
W0029829 HANDLE KIT ASSY MD AU
W0029844 TUBE CORRUGATE SD
$3.38
W0029856 DRAWER DELI FRONT 80 EAU ASSY
W0029858 DRAWER DELI BODY 80 (NO GLASS)
$51.15
W0029894 BIN DR DAIRY FOLDABLE 70EL ASY
$70.91
W0029903 GEAR
W0029926 CRISPER GASKET 80
$16.50
W0029971 DRAWER FZR FR PAS ASY 80 ELUX
$51.15
W0029973 DRAWER FZR FR MID ASY 80 EAU
$54.00
W0029990 TUBE COIL ADD WATER TRAY ABOVE
$18.90
W0029996 MAT DOOR BIN FLEX 1/2 TF70
W0030008 COVER LID SINGLE VALVE
$86.29
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030040 I&W INSTALLATION KIT BF MD RF
W0030100 POWERCORD INVERTER REF AU/NZ
$18.75
W0030112 HEATER TUBE DRAIN PAN SD
$68.48
W0030113 SPACER 3 TURN HEATER
$3.38
W0030279 DOOR SPARE FZR EHE5267SA-D
W0030280 DOOR SPARE FC L+R EHE5267SA-D
W0030288 EVAPORATOR FF BF80
$108.34
W0030294 DISPLAY UI I&W ELUX INTL ASSY
W0030340 COVER CRISPER ASSY BF80 EAU DW
W0030342 INSERT DRAWER CRISPER BF80 EAU
$32.25
W0030343 CRISPER DIVIDER BF EAU
$12.53
W0030356 SEAL FOAM EPDM BF 80
$6.56
W0030477 BIN DOOR FINGER MD ASSY WH
$26.63
W0030585 CONNECTOR QUICK5/16 PPM220808
W0030627 CONNECTORCHECK VAL 5/16'- 1/4
W0030629 COVER WATER TANK BF/MD ASSY
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$3.38
W0087750 WASHER SLINGER NYLON
W0087794 SCOOP ICE
W0088556 SWITCH PUSH I&W LEVER
W0096127 TUBE IM & SUPPLY TUBE ESE6077S
W0096155 ICE MAKER ASSY (FLEX ARM)
W0147552 ROLLER REAR WTB4600WA RAYONG
$5.40
W0147553 SHAFT ROLLER
W0154025 HARNESS-ASSY M/FLOW BF EAUO
W0275431 SCREW 6X20 SELF TAPPING
$3.38
W0275560 TANK & WATERLINE ASSY WHE5260
$105.00
