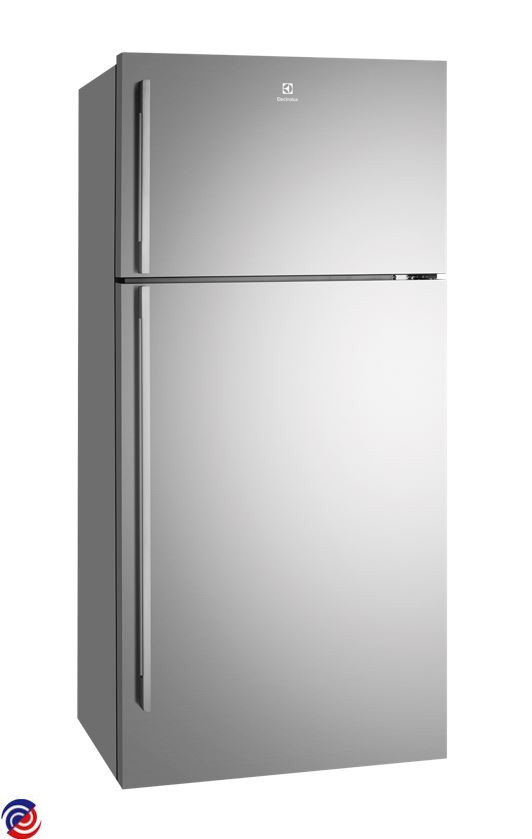

ETE5407SB — 925060420 00
ELECTROLUX — Fridge
Parts for ETE5407SB
W0027081 SCREW TRILOB M3X6
$3.38
W0027222 TUBE PROCESS
$14.36
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$3.38
W0027460 BIN ICE
W0027522 COVER SCREW
$3.38
W0027540 SHROUD FAN
$41.25
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029415 BIN DOOR FC SHALL 80 1-HOTFOIL
W0029435 TRAY EGG 80W
.jpg)
W0029560 HEATER RAD DEF R600 240V TF80W
W0029693 RACK BOTTLE TO SUIT 80CM WIDE
$42.68
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029701 FOOT LEVER
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0274123 ELECTROLUX FRIDGE MOTORISED BAFFLE 241518501
$66.00
W0284066 FOOT STABILIZER ETE4607
W0018166 GROMMET FAN MOTOR
$12.34
W0027015 DEODORIZER BLOCK THIN
$13.50
W0027119 SCREW TRILOB M6X18
$3.38
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$3.38
W0027411 BLADE FAN,NAT
$24.19
W0027441 SCREW TRUSS 4.2X13
W0027528 FAN SHROUD ASSY TF BIC
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027602 GASKET FRZ BF80
$82.58
W0027604 GASKET FC BF80
$119.66
W0029310 HINGE TOP LEFT
$4.80
W0029332 DUCT EVAPORATOR
W0029336 COVER EVAP ASSY TF80 AU
$42.00
W0029340 MULTIFLOW ASSY TF AU
W0029351 COVER DEO BAFFLE SILVER-ART
$13.84
W0029373 SUPPORT EVAPORATOR LEFT TF
$4.65
W0029407 BIN DOOR FLEX 80 1-HOTFOIL
W0029425 BIN DOOR DAIRY LOW LID TF80 EL
$9.98
W0029440 SHELF FZR TF70 EL ASSY
$49.91
W0029442 SUPPORT ICE T&S SHELF TF
W0029456 BARRIER DRAWER CRISPER TF80W
$3.75
W0029465 COVER TOP HINGE RIGHT GR
$3.38
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029527 PCB PROGRAMMED ETE4607
W0029536 BEARING AUTO CLOSER R TF SL
W0029556 EXTENSION SLIDE ASSY LH 250MM
$29.63
W0029557 EXTENSION SLIDE ASSY RH 250MM
$29.63
W0029586 FRAME T & S TRAY ASSY WHITE
$25.13
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029613 DRAWER C/COVER TF70 EAU ASY
$108.79
W0029659 COMPRESSOR EMBRACO VESD7C
$378.71
W0029660 PCBA DRIVE EMBRACO VESD7C
$160.88
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029709 FOOT RIGHT ASSY
$15.08
W0029752 COVER DELI ASSY BF80 EAU
$93.94
W0029799 GROMMET FAN PANA DC FAN
$12.04
W0029817 RETAINER CLIP
$3.38
W0029830 SUPPORT EVAPORATOR RIGHT TF
$4.65
W0029844 TUBE CORRUGATE SD
$3.38
W0029850 DRAWER DELI BODY ASSY 80 EAU
$41.18
W0029895 BIN DR DAIRY FOLDABLE 80EL ASY
$74.85
W0029926 CRISPER GASKET 80
$16.50
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$18.75
W0030112 HEATER TUBE DRAIN PAN SD
$68.48
W0030295 DISPLAY UI STD ELUX INTL ASSY
$198.00
W0087750 WASHER SLINGER NYLON
W0273539 BIN DOOR DAIRY UP LID TF80W EL
$9.98
W0274872 PCBA # LED CLUSTEER GALGA
$17.40
W0282345 HARNESS-ASSY M/FLOW
W0283307 BIN DOOR FC BOTTLE 80 2-HOTFOI
W0283477 LENS 3 LEDS CLUSTER GALAGA
$14.81
W0283679 MEMBRANE TYVEK
$3.53
W0283680 MEMBRANE HUMIDITY CTRL ASSY
$8.25
W0283854 DOOR SPARE FZR+FC ETE5407SB-L
$497.10
W0284057 SCREW MOUNTING HANDLE MD36
W0284603 HANDLE & PEDESTAL KIT S/STEEL
