ERCE9025BA — 942001229 00
ELECTROLUX — Rangehood

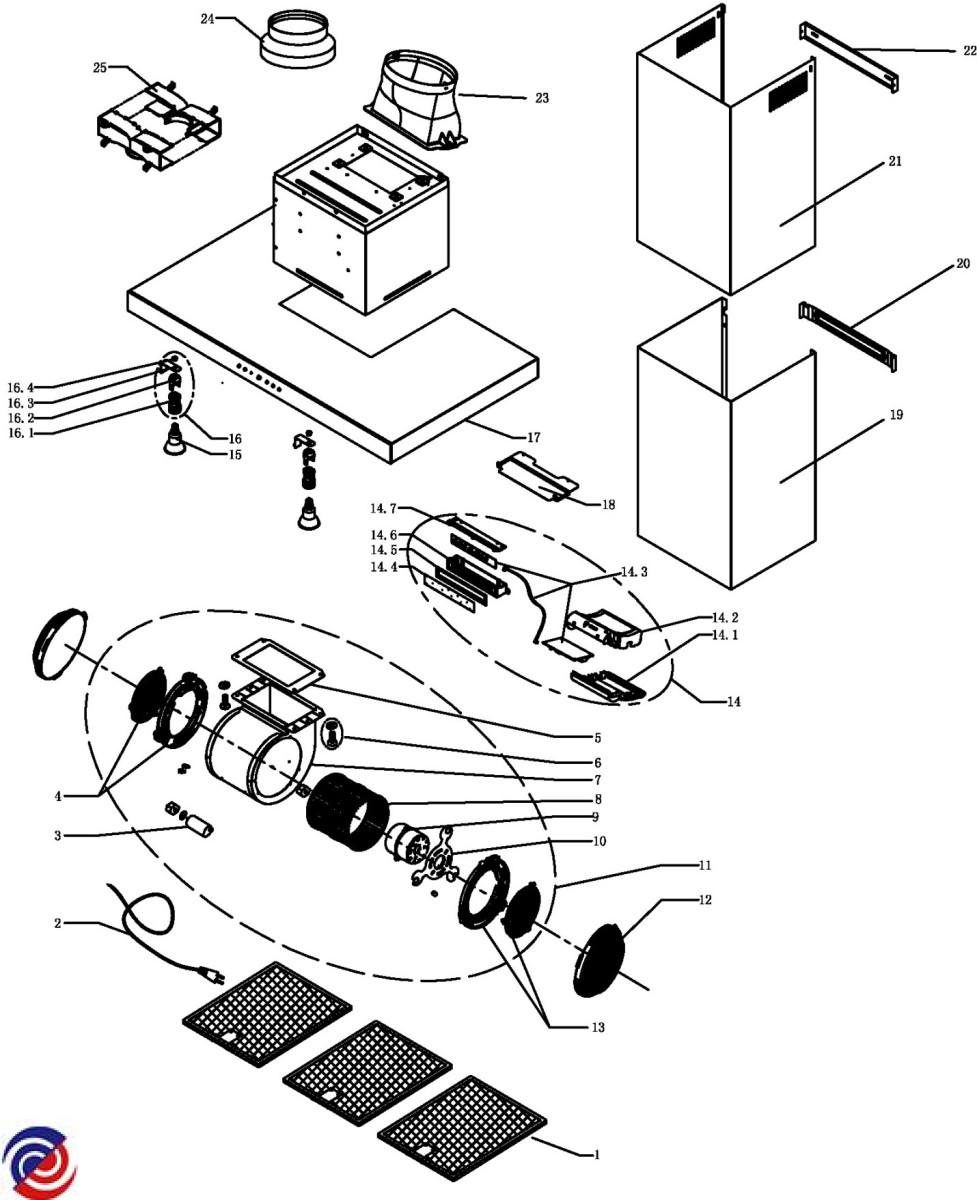

Parts for ERCE9025BA
W0030902 FLUE PIPE 150MM X 1200MM
W0030903 FLUE PIPE FLEXI 150MM X 1400MM
W0030905 COWL ROOF 150MM FLUE
$43.00
W0030907 VENT WALL 150MM FLUE
W0030927 COVER FLUE EXT SS 1200MM
$314.00
W0032001 MOTOR ASSY TA 220V CLASS II
W0032013 FAN TURBINE BLOWER
$62.00
W0032015 ADAPTOR FLUE DIA 150MM
$15.20
W0032018 ADAPTOR 150MM - 120MM REDUCER
$16.10
W0032064 BRACKET FIXING COVER UPPER
$18.90
W0032065 BRACKET FIXING COVER LOWER
$20.20
W0032067 COVER LOWER ST/ST
$250.00
W0032080 SWITCH ASSY 3V TC TA CONT+PWR
W0154440 FILTER CARBON PAIR
W0030904 ADAPTOR 150MM JOINER
$13.90
W0032011 CORD SERVICE
$35.50
W0032012 ANTIVIBRATION JOINT
$8.60
W0032016 COVER MOTOR RIGHT
$16.00
W0032017 COVER MOTOR LEFT
$16.00
W0032055 CAPAC 5.5UF 450V 2WIRES & NUT
W0032058 SCREW K MOTOR GROUP CASING
$4.00
W0032059 BRACKET MOTOR MOUNTING
$14.95
W0032063 BRACKET SWITCH
$14.30
W0032069 COVER FLUE ST/ST UP VENT 550MM
W0032081 MOTOR TA 220V 50HZ
W0154445 VENT RECIRCULATION KIT
W0158026 HOLDER LAMP ASSY HALOGEN
W0158046 KIT RECIRCULATING TEE - PIECE
W0158068 FILTER W/CLIP - 6 LAYERS
$35.90
W0158071 LAMP HALOGEN 40W E14 220V
