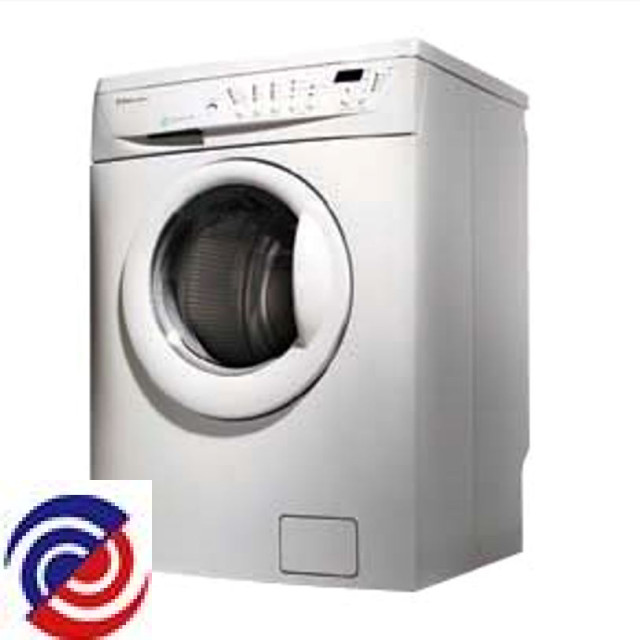

EWF1080 — 914517016 00
ELECTROLUX — Washing Machine

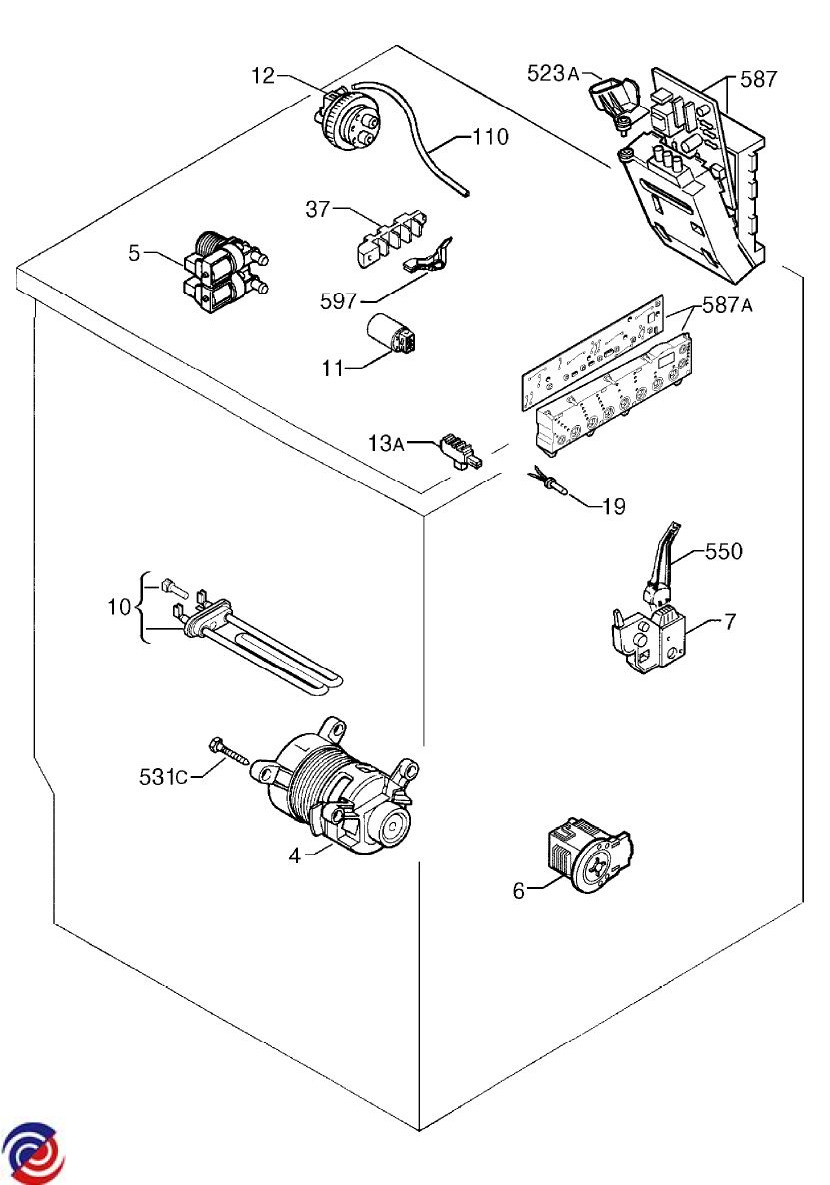

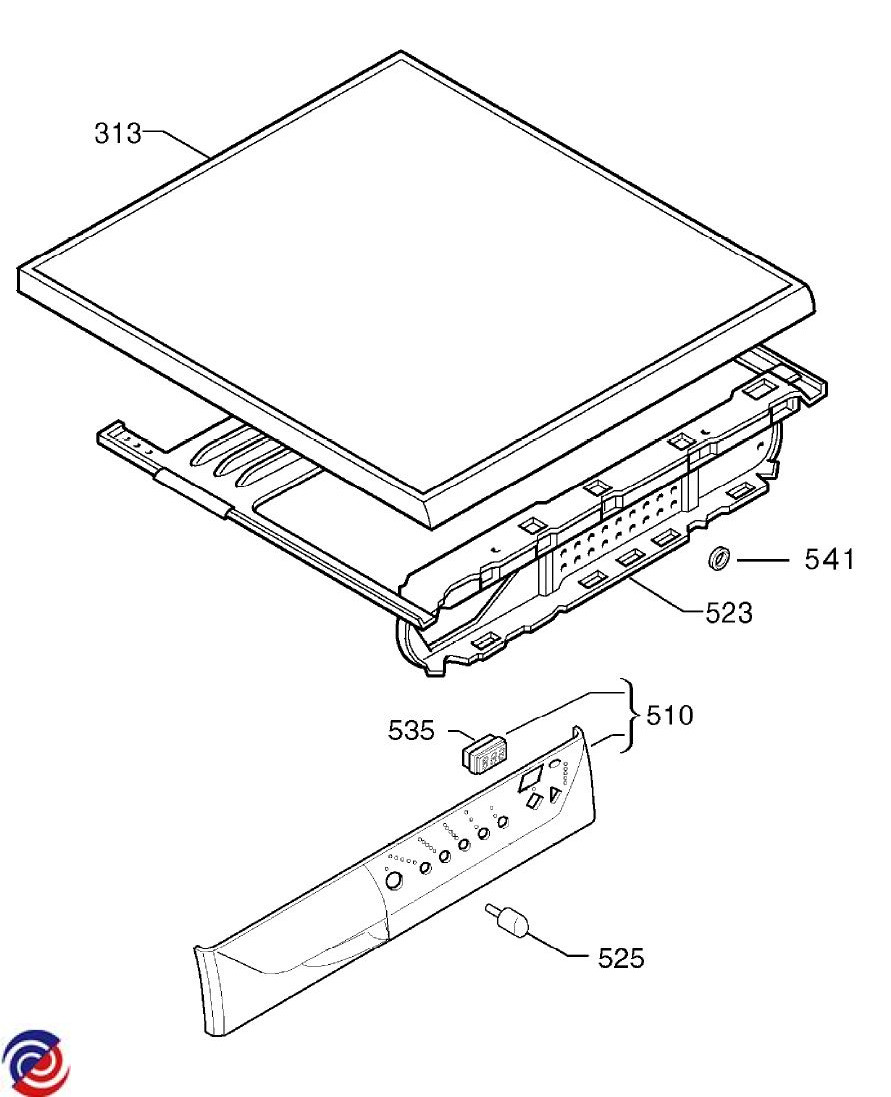

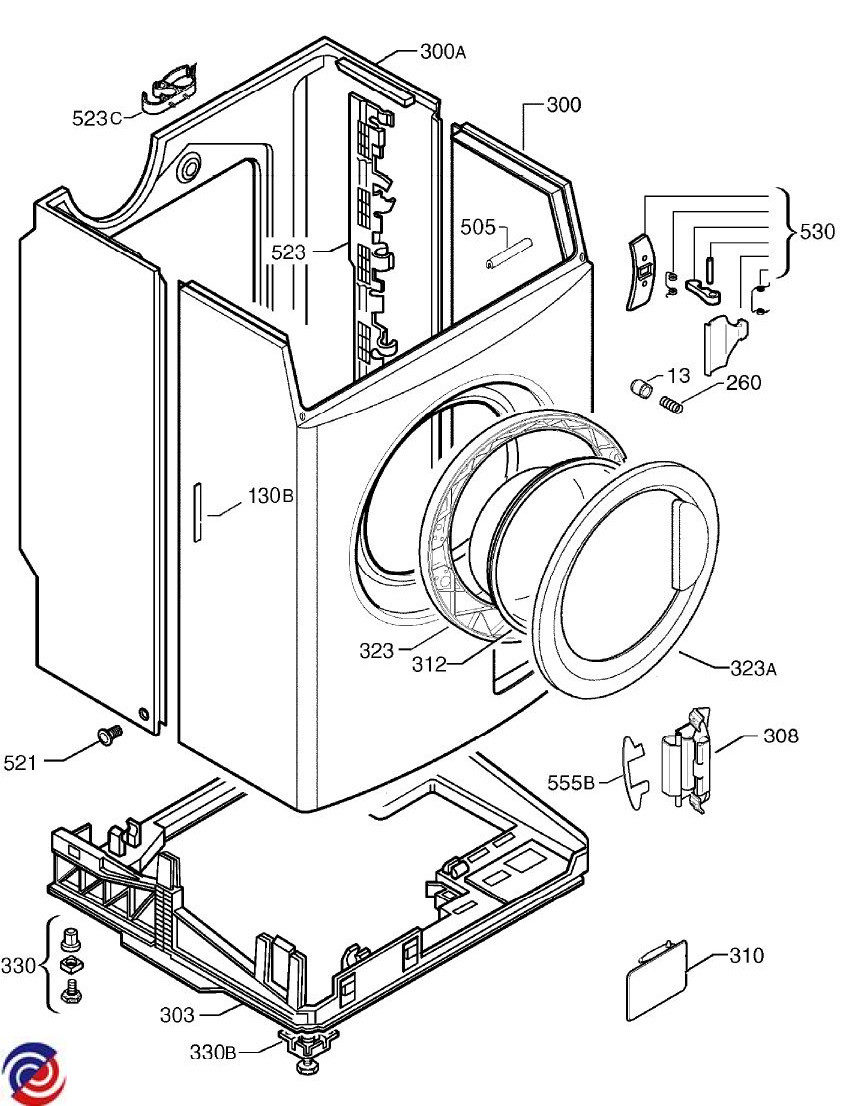

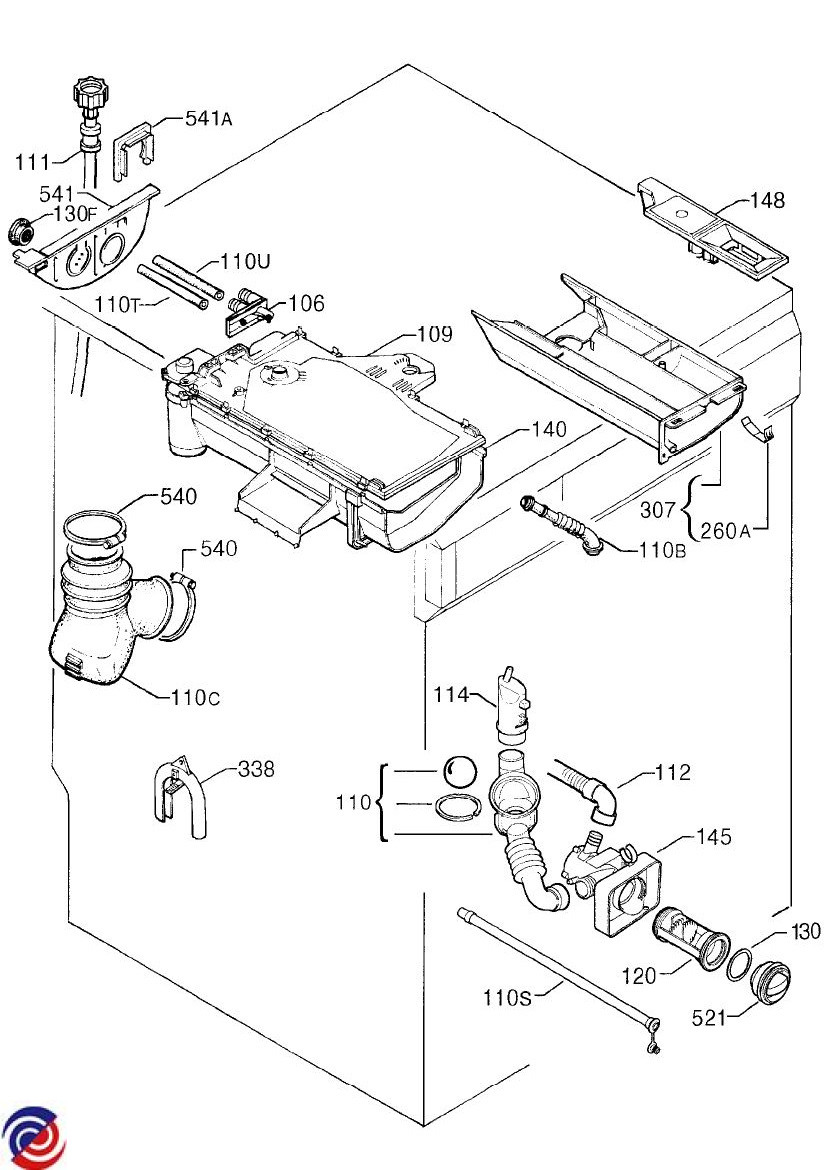

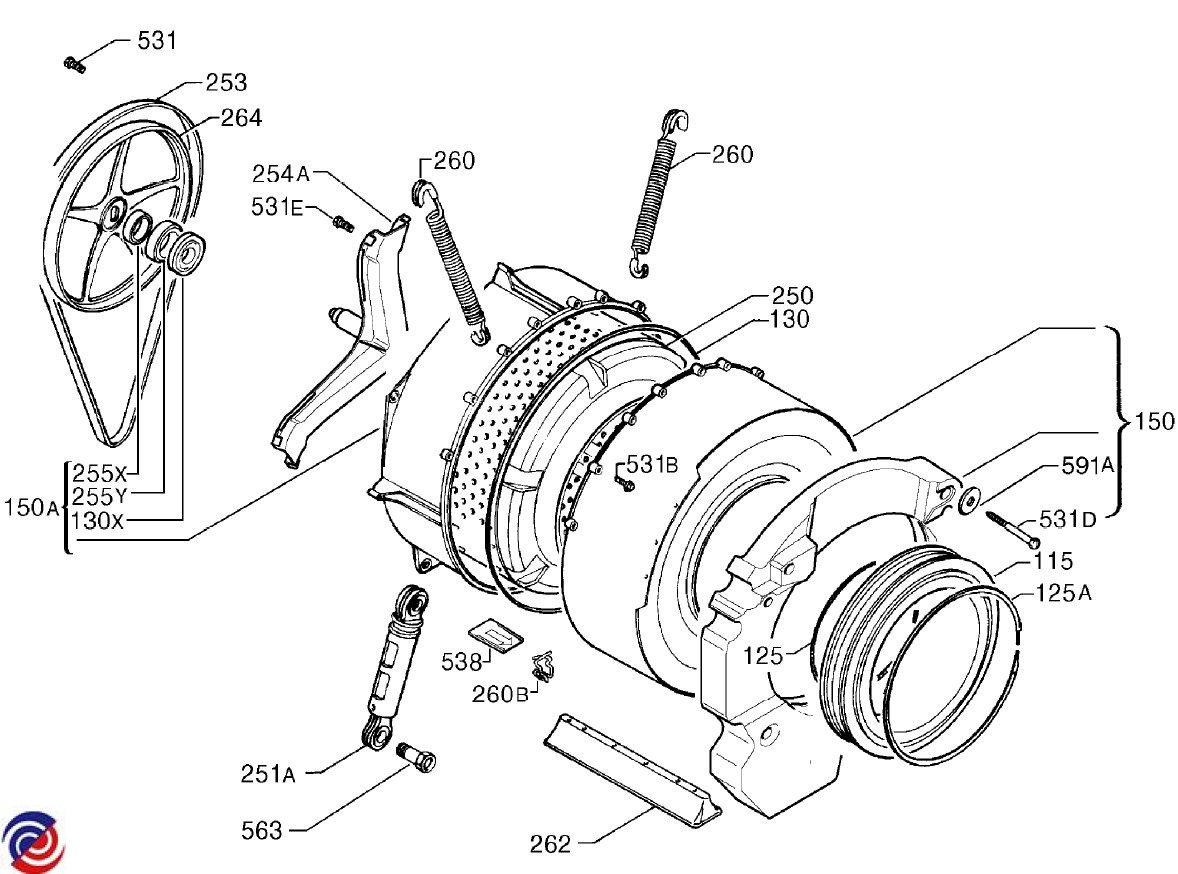

Parts for EWF1080
.JPG)
W0012668 FERRULE HOSE JOINER 19MM
$6.00
W0013692 UNIVERSAL WASHING MACHINE & DISHWASHER DRAIN HOSE STRAIGHT CUFFS 2M
$45.00
W0016572 HOSE DRAIN L= 2870
W0016619 HOSE ELECTRIC VALVE CONT L=125
W0016638 GASKET DRUM SHAFT
$28.55
W0016838 DOOR FILTER ACCESS
W0016866 PROTECTION DOOR INTERLOCK

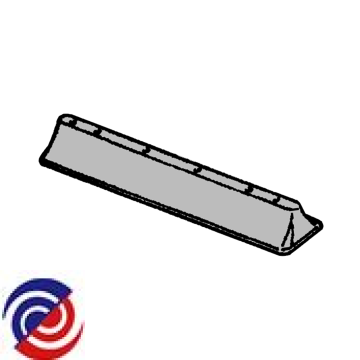

W0025474 FIN INNER DRUM
$20.00
W0034761 HOSE INLET 2_5 D/W NUT/TAIL 2
W0074970 GASKET FILTER

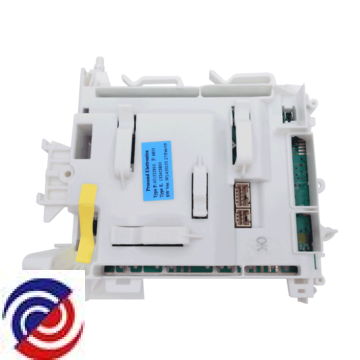

W0153349 BOARD CONFIGURED EWM1000+
$250.00
W0016554 GASKET DRUM INNER REAR
W0016616 HOLDER SOLENOID
$8.15
W0016830 RING LOCKING
$8.80
W0016832 COVER FILTER
W0016834 HOSE ASSY DISCHARGE
W0016837 BRACKET SCREENING
$12.80
W0016872 DRUM OUTER REAR ASSY
$231.00
W0025692 HANDLE DOOR KIT
$36.50
W0035505 CLAMP HOSE - WORM DRIVE
W0071244 SWITCH PRESSURE 1L+AE+AT ELBI
$297.05
W0071352 RING CONNECTION BELLOW TO DRUM
$12.60
W0071355 HOSE INLET WATER COMPARTMENT
W0071378 PULLEY (G22/85)
W0071391 BELT 1184J6
W0074253 BOLT CUSHION
W0074259 CLAMP HOSE
W0074262 STOPPER CAPACITOR CABLE
W0074286 ASSY CONVEYOR WATER
W0074295 GASKET HOSE
W0074302 HOSE STEAM VENT
W0074308 HOSE INLET (1500MM)
W0074309 SHOCK ABSORBER
W0074319 SPRING SUSPENSION TUB 14/5 ZIN
W0074322 BLOCK TERMINAL CONNECTOR
W0074339 SCREW BEARING SPIDER
W0074342 SCREW MAIN MOTOR
W0074359 SUPPRESSOR INTERFERENCE
W0074369 SPRING PUSH BUTTON
W0074378 HOSE PRESSURE SWITCH
W0074397 WASHER FRONT BOB
W0074401 MOTOR COMMUTATOR
W0074425 SCREW LOCK TUB
W0074434 HOOK DRAIN HOSE
W0074440 BRACKET USER INTERFACE
W0074453 CHAMBER AIR 1 WAY
W0074479 FOOT ASSY FRONT 20MM
W0074484 BRACKET HOSES & HARNESS
W0074488 SCREW FRONT BOB
W0074492 STAND P62S/RIM
W0074501 CLAMP CABLE
W0074503 DRAWER ASSY DETERGENT
W0074507 SYPHON ADDITIVES
W0074535 PLUG CABINET WHT
W0074541 SPACER HEATER ELEMENT G22
W0074561 BRACKET HOSE/HARNESS
W0074574 SPRING RETAINING HEATER
$2.20
W0074578 SPRING DETERGENT DRAWER
W0074579 GROMMET HARNESS
W0074584 DISPENSER DETERGENT NEAT RIM
W0074596 DECORATION CABINET
W0074601 SWITCH PUSH BUTTON
$29.55
W0074607 HARNESS. PCB TO USER INTERFACE
W0074608 CONNECTOR 2 WAY
W0074614 HOSE SOLENOID VALVE CONTAINER
W0074630 DELAYER KIT PORTHOLE
W0075546 BELLOWS DOOR GASKET
W0075572 DRUM COMPLETE G22 BD 850
W0075610 PLATE DECORATIVE CABINET
W0075612 BUTTON PUSH (PORTHOLE)
W0075618 A FRAME FRONT PORTHOLE
W0075625 FRAME REAR PORTHOLE
W0075629 HOSE FILTER DRAIN
W0075659 FILTER DRAIN
W0075663 PUMP BODY ASSY
W0075675 HOLDER HOSE
W0075694 BRACKET HOSES
W0075705 ELEMENT (1950 WATT)
W0075712 CABINET FRONT (WHITE)
W0075714 DRAIN PUMP. ASKOLL 230/240/50
W0075776 FOOT ASSY BACK 20MM
W0075797 CONTROLS SUPPORT EW1280F
W0075809 DIFFUSER DISPLAY RIM 2000 EW12
W0075810 BUTTON PUSH
W0075813 WORK TOP
W0075817 CABINET REAR (WHITE)
W0075822 LEG ADJUSTABLE ANTI VIBRATE
W0075851 BOARD USER INTERFACE (EWM1000)
W0075873 CONTROL PANEL ASSY DELTA3
W0089181 HINGE ASSY
W0112836 GLASS PORTHOLE
W0112862 ELECTRIC VALVE EW1280F
W0127193 INDICATOR LAMP
W0127746 BEARING FRONT 6025-2Z
W0127747 BEARING BACK 30X62X16 - 6206
W0127930 OUTER DRUM & WEIGHT KIT
W0127968 BEARING ASSY SPIDER BUSH
W0130193 SCREW M10 X 25 PULLEY CLAMPING
W0134805 CABLE SUPPLY
