DE35F56AW1 — 93007-A

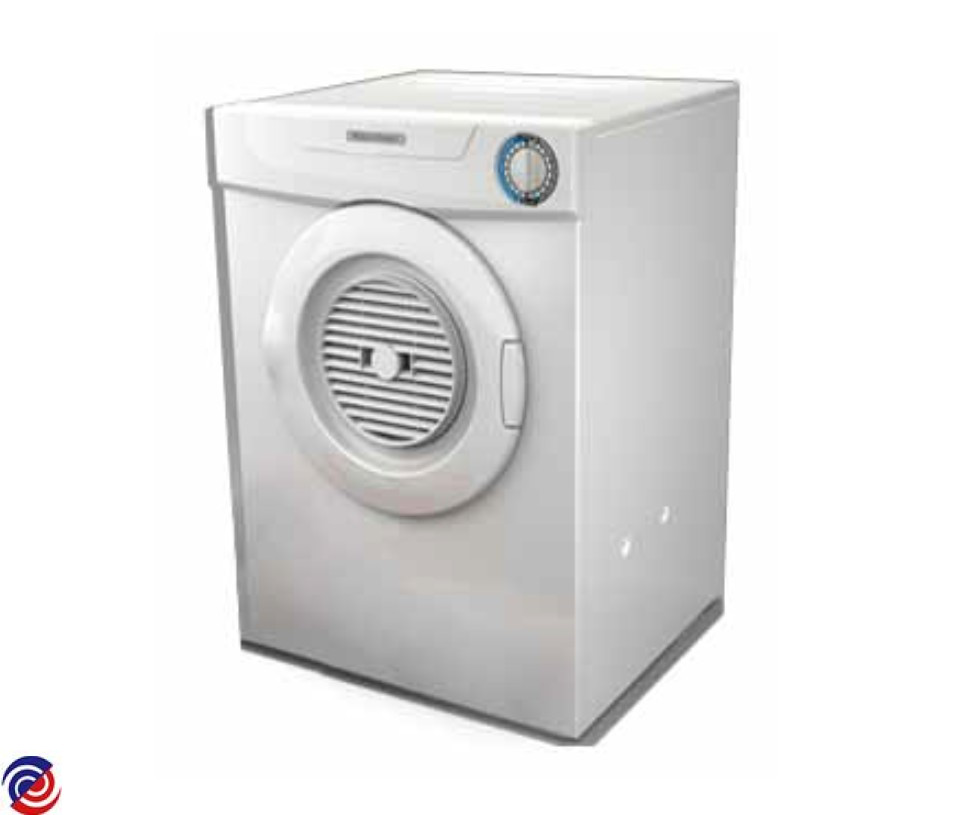

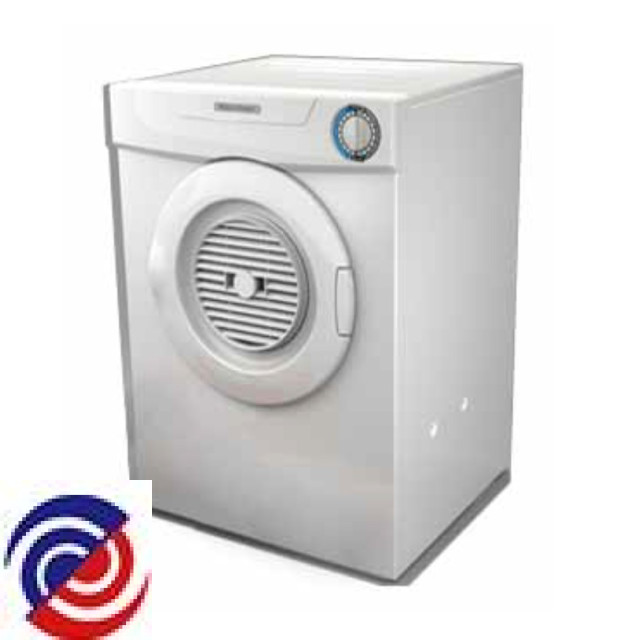

FISHER & PAYKEL — Clothes Dryer

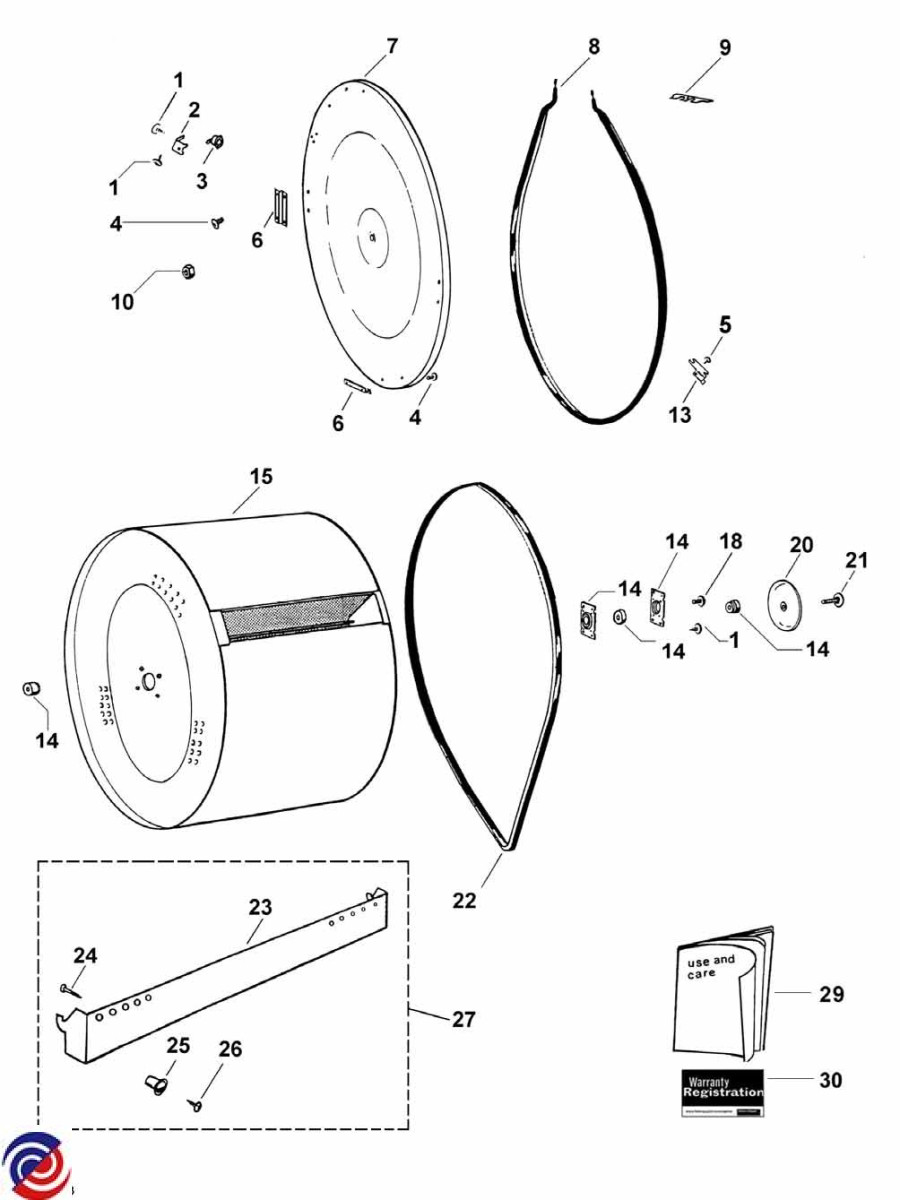

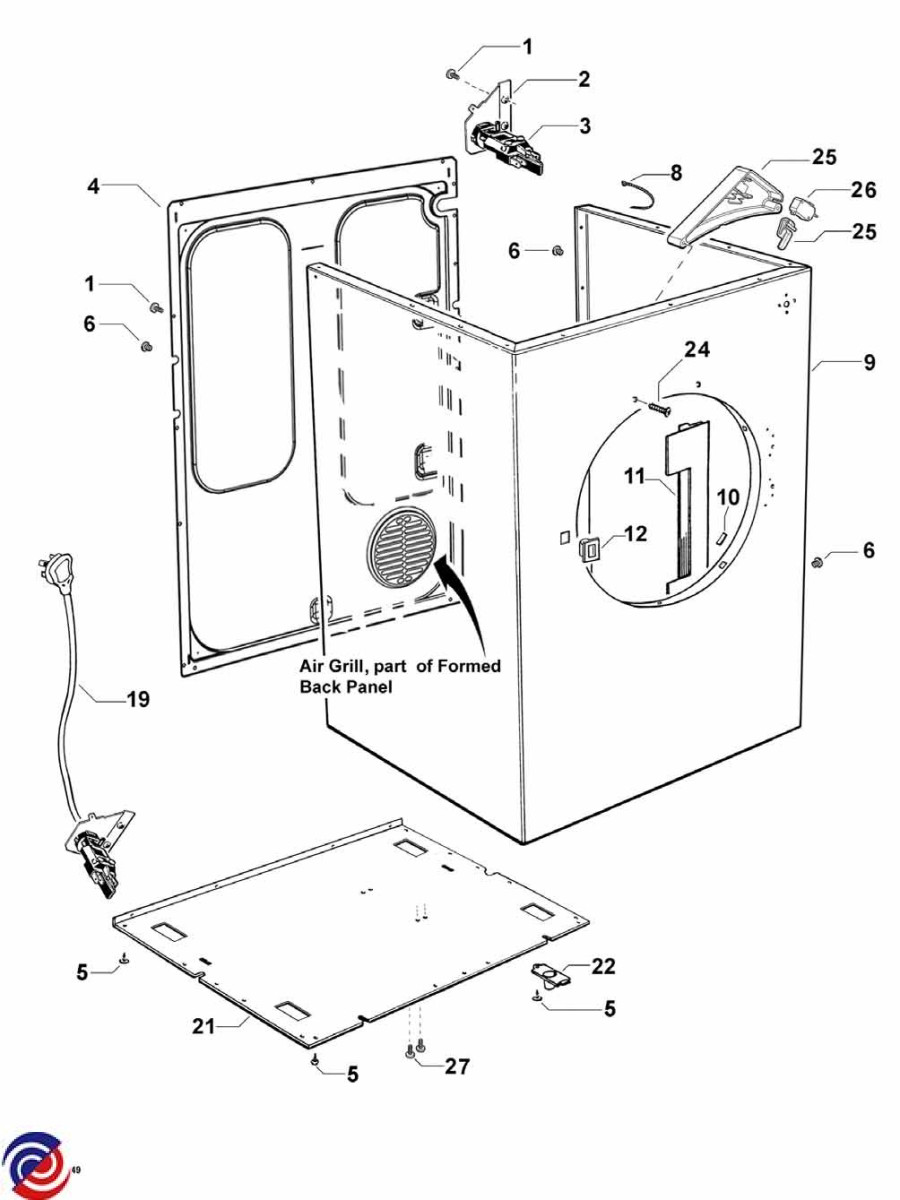

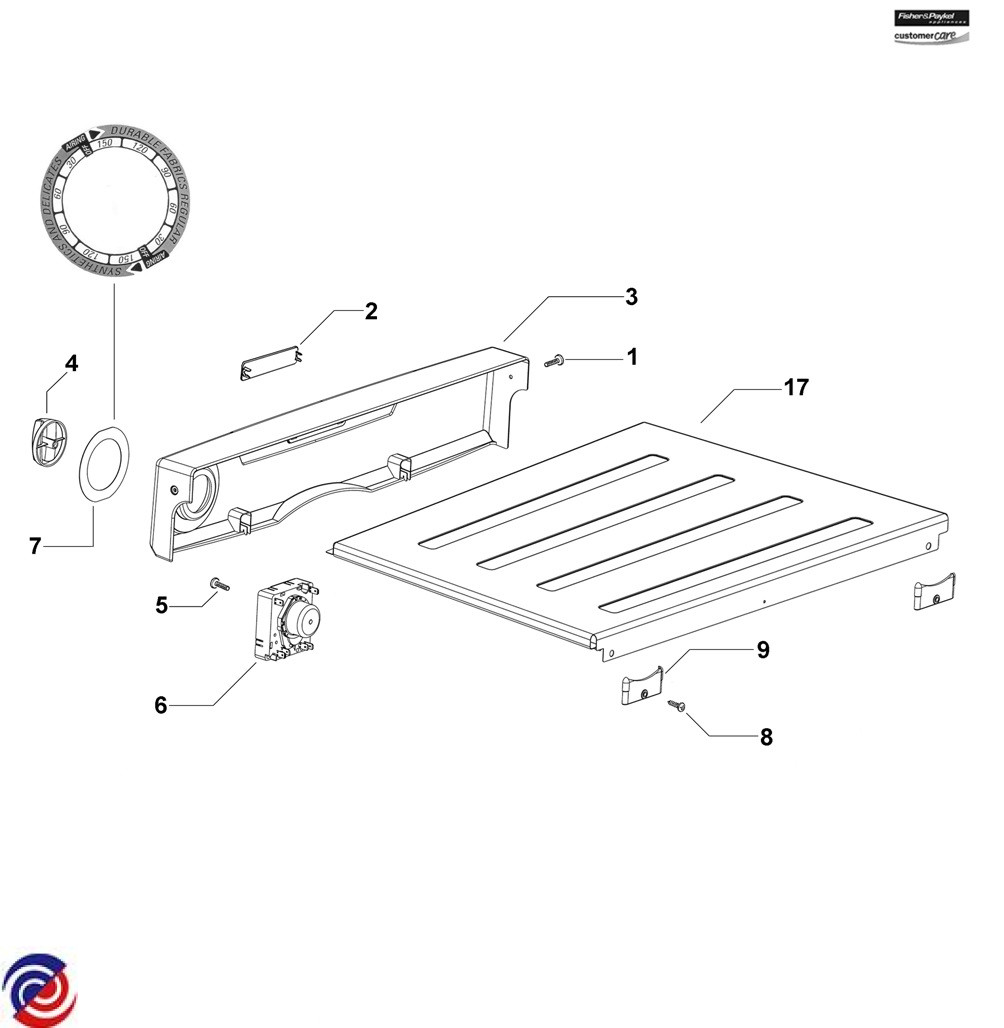

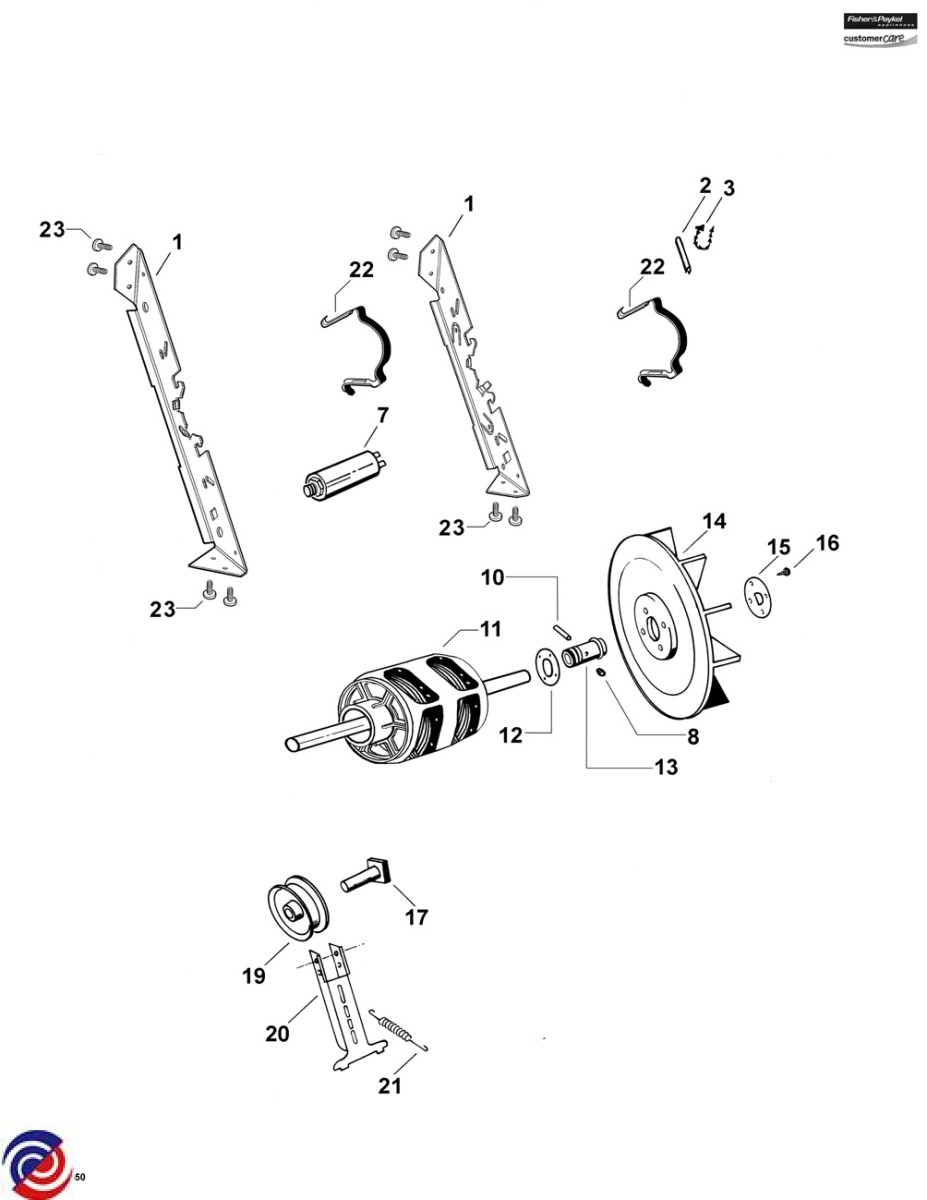

Parts for DE35F56AW1

W0182764 KIT WALL MOUNTING
W0188402 COVER HINGE D5 WHITE
W0189105 FISHER & PAYKEL DRYER GRILLE SPIGOT
$21.00
W0197467 FISHER & PAYKEL DRYER TIMER PKD
$184.70
W0200472 KIT CAPACITOR 7UF PRL
W0271394 FISHER & PAYKEL DRYER DOOR CATCH
$24.00
No image available
W0175968 BOOK USE CARE DRYER REFRESH
No image available
W0179405 FAN AD3
No image available
W0179826 KIT DOOR ASSY FRONT VENTED
No image available
W0179889 MICROSWITCH D3 KWMD0004
No image available
W0179892 CLIP MOTOR MOUNTING
No image available
W0179924 PULLEY JOCKEY ASSEMBLY
No image available
W0179933 SCREW ST 14 X 50 TIMBERTITE HX
No image available
W0180004 KIT HEATER PLATE
No image available
W0180038 PIN ROLL 532 X 34 ST
No image available
W0183843 DRUM ASSY D3 PACKED
No image available
W0183882 BASE CABINET D3
No image available
W0185126 RETAINER ELEMENT
$4.50
No image available
W0185270 SEAL TOP PANEL REAR PKD
$4.50
No image available
W0185393 BRACKET TWIN ELEMENT
$4.50
No image available
W0185406 BOLT DRUM TAPERED
$4.50
No image available
W0186037 SCREW ST 8X12 TDS PAN PKT10
$4.50
No image available
W0186137 BRACKET MAINS CABLE
No image available
W0186142 BADGE DEFAW FP PKD
$4.50
No image available
W0186596 SCREW MC M3 04MM PAN PH MS X10
$4.50
No image available
W0186810 CLAMP DISC
$4.80
No image available
W0186945 BUTT HINGE ROUNDED DOOR
$5.40
No image available
W0187202 SPACER MOUNTING BRKT PKT2
$6.70
No image available
W0187254 NUT M4 HEX FS PKT 10
$7.10
No image available
W0187342 SCREW ST 8X34 TAB PKT 10
$6.70
No image available
W0187434 SPRING JOCKEY PULLEY AD3
$8.30
No image available
W0187451 PIN JOCKEY PULLEY PKD
$8.40
No image available
W0187474 KNOB TIMER DEFAW PKD
$10.00
No image available
W0187597 WASHER PLAIN 5X10X09PKT 10
No image available
W0187765 FOOT DRYER
$10.20
No image available
W0187843 COMPRESSION RING SPIRE PKT 10
$10.60
No image available
W0187960 SCREW MC M4X08 PAN MS PKT10
$11.40
No image available
W0188061 SCREW ST 10 32X38 TRILOB PKD
$10.00
No image available
W0188116 HINGE RIVETED ASSY SHORT PKD
$12.50
No image available
W0188195 ARM JOCKEY
$13.20
No image available
W0188470 SCREW 10X12 TAB PAN PKT10
$15.20
No image available
W0188473 SCREW SET M6X6 HEX W PKT10
$13.20
No image available
W0188474 SCREW ST 8X20MM HILO PKT10
$15.20
No image available
W0188564 SCREW ST 8X12 SD TRS NIB PH P
$15.90
No image available
W0188933 BRACKET MOTOR MTG D3
$16.20
No image available
W0189047 KIT AD39 DOOR SWITCH
$17.60
No image available
W0189118 SCREW ST 832X38 PKT 10
$17.60
No image available
W0189902 PANEL CONTROL DEFAW PKD
$18.50
No image available
W0190447 CAP DRUM REAR WHITE PKD
$20.20
No image available
W0191018 NUT LOCK M8 HEX FL PKT 10
$22.50
No image available
W0191728 THERMOSTAT OVERHEAT
$31.50
No image available
W0192237 CABLE ENTRY
$31.90
No image available
W0192896 CORD SETCLAMPBRKT DRYER ASSY
$56.04
No image available
W0193078 BEARING REVERSIBLE PKT 6
$46.20
No image available
W0193247 CONSOLE DEFAW PKD
$42.10
No image available
W0193546 KIT FELT DRYER
$47.30
No image available
W0193606 SCREEN LINT WHITE
$63.00
No image available
W0194106 TOP PANEL FORMED DE35 PKD
No image available
W0197136 ELEMENT SINGLE 240V
$116.40
No image available
W0197373 WRAPPER DE35F56AW1 PKD
$105.80
No image available
W0198567 MOTOR PSC REVERSING WTIC D3
$204.30
No image available
W0200329 BELT POLY VEE AD3 PKD
No image available
W0200330 STRIKE
No image available
W0200450 GRILLE OUTLET ASSY WHITE
No image available
W0200467 PANEL BACK FORMED D3
No image available
W0200483 KIT DRUM BEARING
No image available
W0201972 MOUNTING THERMOSTAT PKD
No image available
W0279045 PULLEY DRIVE AD35
$28.60
No image available
W0279046 SPRING RETAINER
$17.60
No image available
W0358719 DISC DRIVE
$9.10
