DE6060M1 — 92268-A

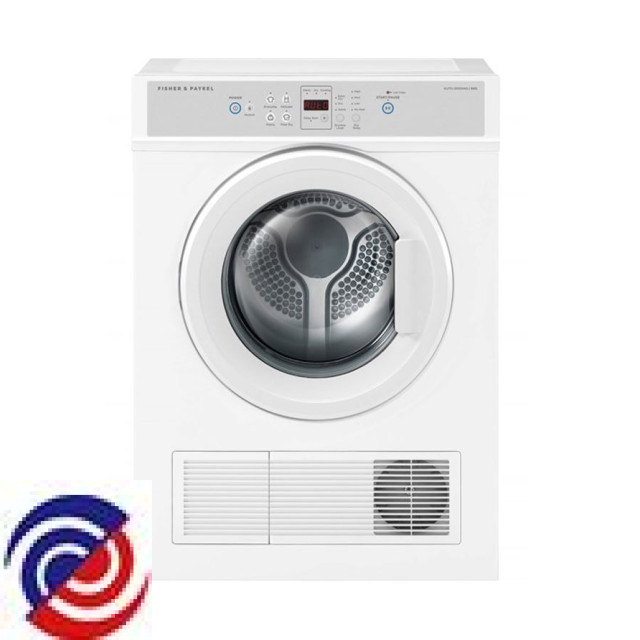

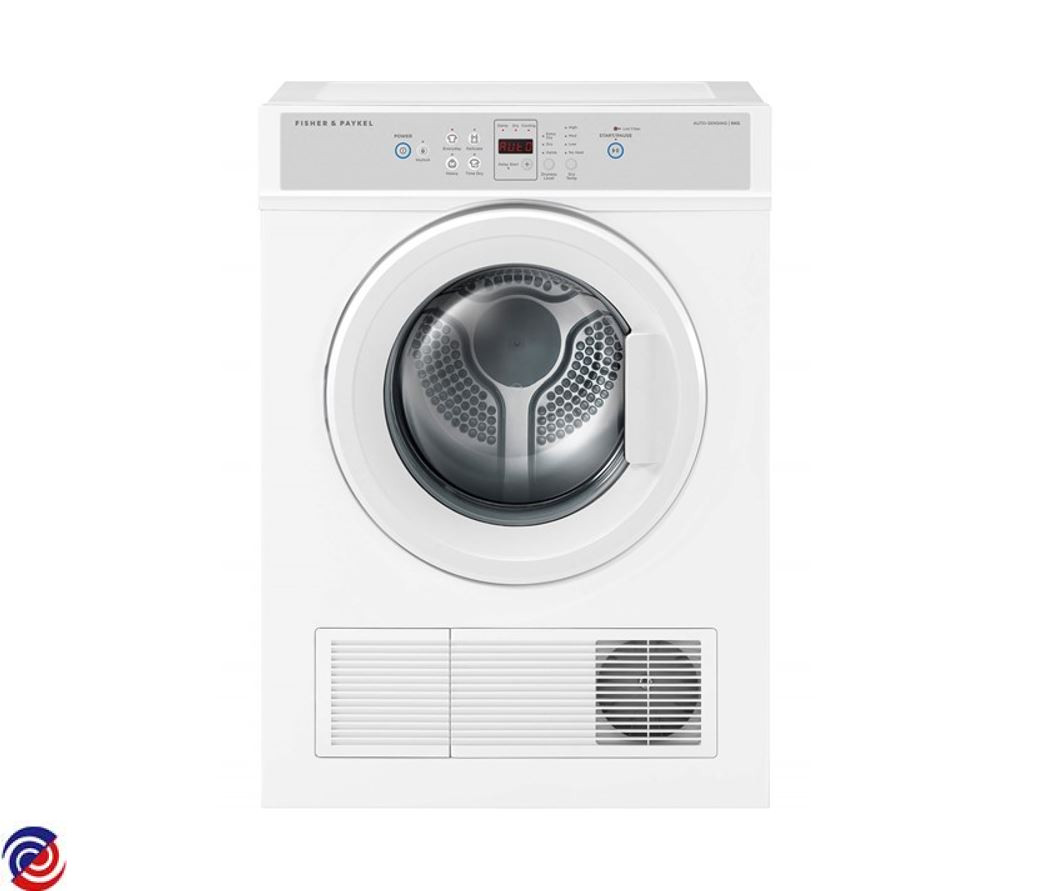

FISHER & PAYKEL — Clothes Dryer

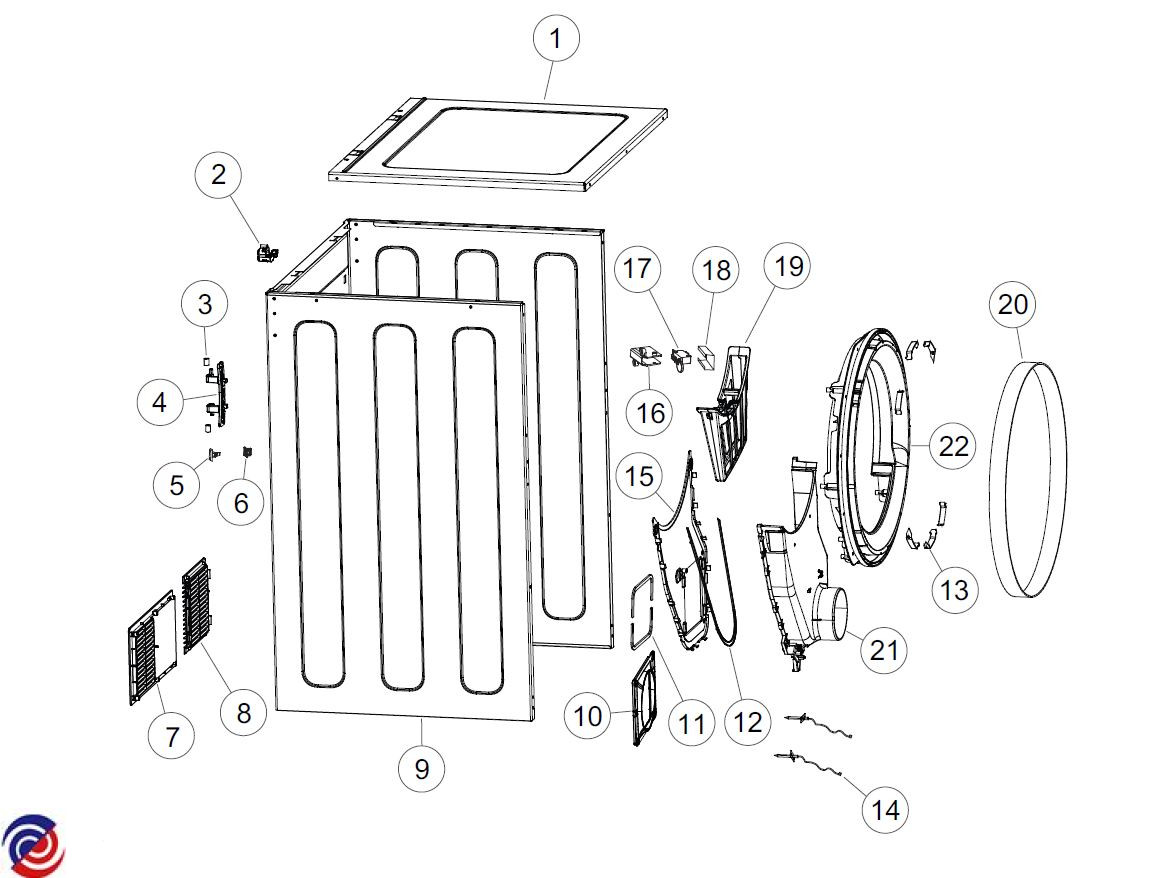

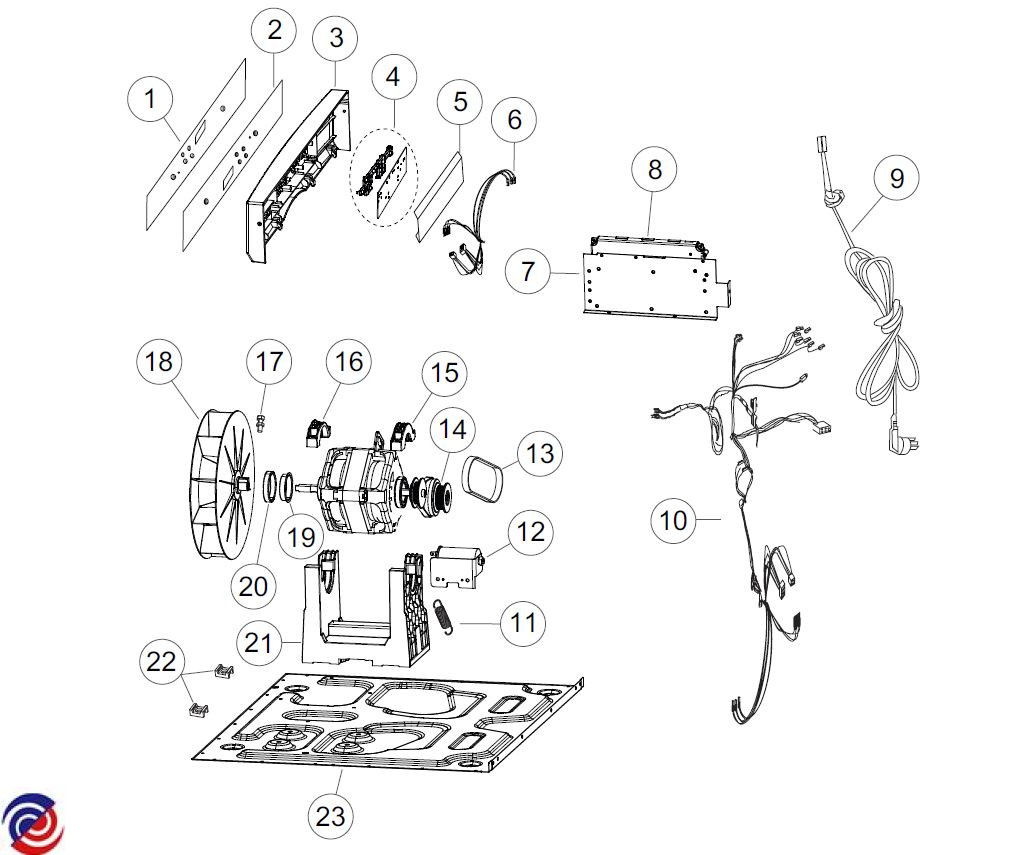

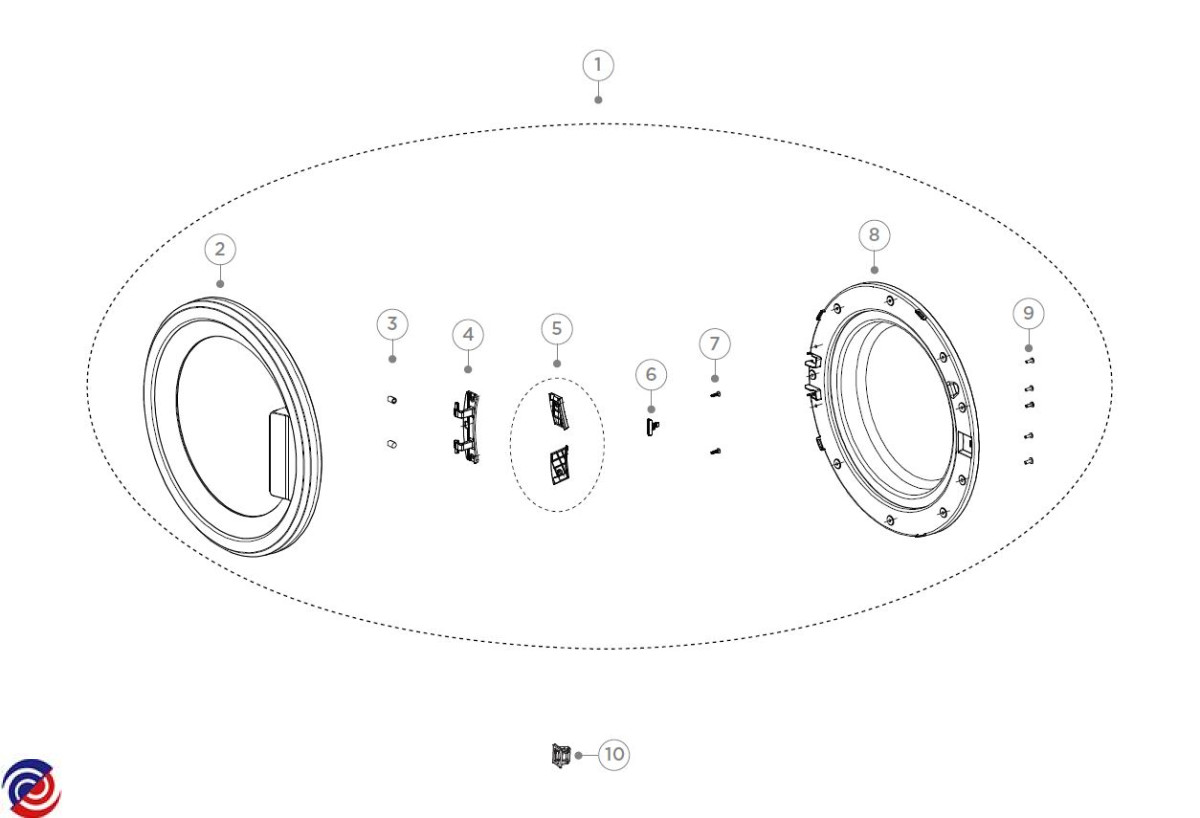

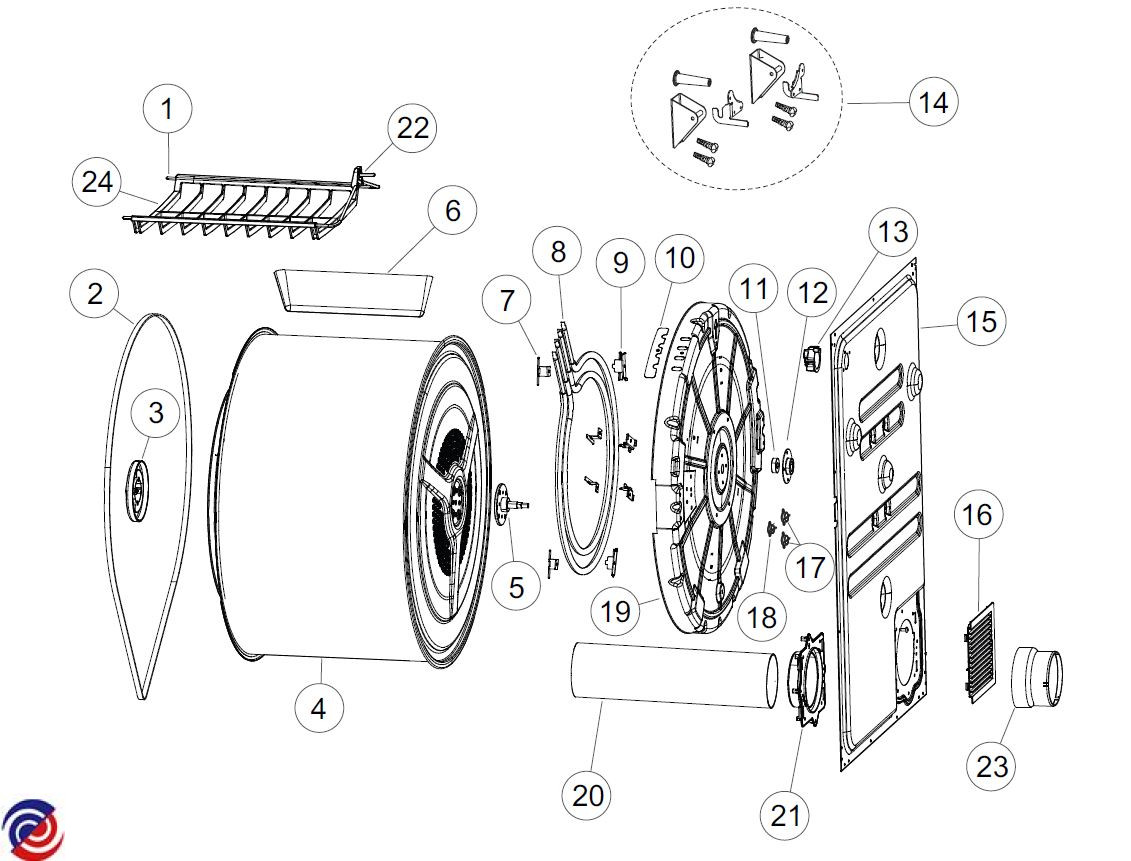

Parts for DE6060M1
W0185623 CAP HINGE
$5.85
W0187414 FISHER & PAYKEL/HAIER DRYER DOOR HOOK
$22.00
W0190073 FISHER & PAYKEL HAIER DRYER LINT FILTER
$40.15
W0190543 BEARING SLIDE
W0192112 CAPACITOR 6F
$47.00
W0194290 HAIER DRYER WALL MOUNTING BRACKET-HDY-E60 HDY-M40
$64.02
W0194346 FISHER & PAYKEL / HAIER DRYER DRUM BELT (PRODUCT FROM JAN 2018)
$90.00
W0185675 SEALING STRIP
$4.50
W0185776 BOLT NUT LOCKING
$4.50
W0185964 SPRING
$4.50
W0185966 ELEMENT SUPPORT
$4.50
W0185967 PLATE SUPPORT
$4.50
W0185968 MOUNT MOTOR SUPPORT
$5.00
W0185969 CUSHION MOTOR SUPPORT
$5.00
W0185977 MOTOR RETAINING CLIP FRONT
$4.50
W0185978 MOTOR RETAINING CLIP BACK
$4.50
W0185979 WIRING RETAINER
$4.50
W0185980 BEARING COVER
$5.95
W0185981 FIXING BRACKET
$4.50
W0185983 SEAL
$4.50
W0186217 BEARING SUPPORT
$15.00
W0186373 FASTEN SCREW ST3X8B
$4.50
W0186380 SCREW SELF TAPPING
$4.50
W0186545 SHIELD PROGRAMME SELECTOR
$4.50
W0186692 SUPPORT
$4.50
W0186739 BRACKET DOOR SWITCH
$4.50
W0186822 DUCT ADAPTOR
$5.30
W0187698 HINGE PACKER PIN
$9.70
W0187813 HOOK DRYING BRACKET
$10.40
W0188387 COVER
$12.10
W0188462 BAFFLE
$15.20
W0188463 HANGER CLIP
$18.00
W0188791 VENT DUCT SUPPORT
$14.90
W0189103 MODULE BRACKET
$17.30
W0189316 SEAL FELT
$17.90
W0189422 DOOR CATCH
$18.50
W0189869 TUB VEIN
$18.30
W0189897 SWITCH DOOR
$24.08
W0190208 REAR GRILLE
$26.00
W0190578 DRYING RACK
$23.90
W0190728 REAR DRUM BEARING
$36.05
W0191002 AIR DUCT COVER
$25.80
W0191003 EXHAUST GRILLE
$30.00
W0191143 THERMOSTAT
W0191395 WIRING HARNESS
$23.50
W0191650 EXHAUST DUCTING
$30.60
W0192003 SENSOR NTC EXHAUST
$51.00
W0192035 OVERHEAT PROTECTOR
$31.20
W0192100 BELT JOCKEY PULLEY
W0192182 GRILLE DUCT
$31.40
W0192260 PANEL TOP DRYER
W0192274 VENT DUCT
$42.00
W0192636 CONSOLE
$52.00
W0192795 HINGE PLATE
$70.00
W0192796 FISHER & PAYKEL HAIER DRYING RACK
$61.50
W0192883 SUPPORT DRUM FRONT
$59.95
W0193020 MOTOR MOUNTING BRACKET
$45.40
W0193305 FISHER & PAYKEL HAIER DRYER FAN
$62.82
W0193931 SHAFT FLANGE
$52.20
W0193945 CORDSET POWER
$86.00
W0194293 KIT VENTING EXTERNAL LOUVSEAL
W0194323 CARRIER ELEMENT
$50.60
W0194436 BASE PLATE
$49.70
W0194598 BACK PANEL
$52.30
W0196677 HEATER ELEMENT
$161.00
W0196832 WIRING HARNESS
$82.60
W0197432 PCB DISPLAY
$148.00
W0197503 DOOR PANEL CLEAR
$141.00
W0198020 WRAPPER DRYER
$154.90
W0198456 CONTROL MODULE
$202.00
W0198570 DEFLECTO DRYER VENTS KITS SID
$175.00
W0199225 MOTOR
$289.10
W0199339 DRUM
$271.40
W0281188 CONTROL PANEL DE6060M1
$39.00
W0281189 CONTROL PANEL INV DE6060M1
$32.00
