E388L — 22017-A

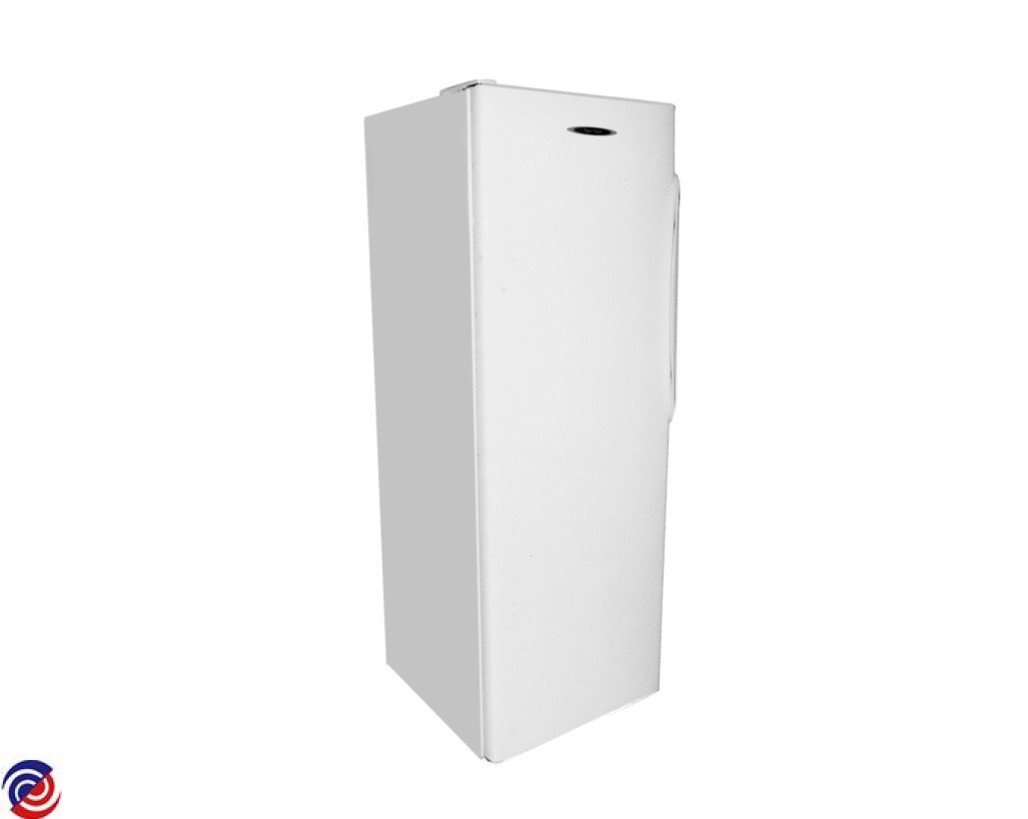

FISHER & PAYKEL — Fridge
Parts for E388L
W0177553 CLIP COVER 01245233
W0177628 CLIP FOOT COMPRESSOR
W0177950 BOLT BTTM HINGE BRKT
W0179138 FOOT LEVELLING ASSEMBLY
W0179269 BRACKET TOP HINGE ASSY PLATED
W0179316 DOOR FC WH635X1651 BS N388
W0179372 CAP HANDLE SCREW WHITE
W0183965 BRKT BTTM HINGE LH ASSY PLATED
W0184671 BEARING DR CLOSING LH WH
W0185139 RETAINER 511400205 MLX
$4.50
W0185149 FILTER P CATCHER DRAIN
$4.50
W0185351 PLUG MALE 511380200 MLX
$4.50
W0185370 TRIM CORNER WHITE
$4.50
W0185531 SCREW 8X16 SP PAN NIB TV PKT
$4.50
W0185561 COVER REED SWITCH P42 ST4 WH
$4.50
W0185562 POST COMPRESSOR MOUNTING TALL
$4.50
W0185568 COVER PLUG MOLEX
$4.50
W0186130 CAP FEMALE 511390200 MLX
$4.50
W0186724 CLIP OLOAD 01246801
$4.50
W0186732 COVER TERMINAL FAN
$4.60
W0186815 CLIP DEFROST SENSOR
$4.80
W0186819 PIN 1622AWG 505998100 MLX
$4.50
W0186900 POST EVAPORATOR TOP
$5.20
W0187099 SOCKET 1622AWG 505978100 MLX
$5.30
W0187295 COVER TOP HINGE WH
$7.30
W0187549 GROMMET EVAP TUBE
$7.50
W0187580 CLIP EVAP PLATE
$9.10
W0187712 COVER FC TRIM
$8.20
W0187918 MAGNET DOOR SWITCH ST4
$11.00
W0187985 SCREW 8X16 SP PAN NIB ST PKT10
$9.90
W0188175 PLUG TAPPED HOLE WHITE PKT 3
$13.00
W0188248 TRAY ICE BASE
$13.40
W0188368 KIT SCW M5X20 HEX PH ST TV PKT
$14.50
W0188412 NAMEPLATE FP ELEGTASMAN
$14.80
W0188457 TRAY ICE LID
$15.20
W0188475 SCREW 6 X12 AB TRUSS PH ST TV
$15.20
W0188476 SCREW 8X22 WAFER PHIL TV PKD
$15.20
W0188868 HARNESS EARTH 100MM
$16.30
W0189026 GROMMET FAN MOUNTING N210 WH
$17.60
W0189061 CAP DOOR END OUTER WH 635
$17.60
W0189159 GASKET EVAP COVER FF
$17.60
W0190781 HARNESS COMP 3
$20.40
W0190854 FISHER & PAYKEL FRIDGE FAN GRILLE COVER
$25.00
W0191482 COVER PROTECTOR 01899
$24.20
W0191658 KIT WHEEL BRACKET CLIP
W0191940 RUNNER FC ASSY 635790 BVF LH
$33.40
W0191941 RUNNER FC ASSY 635790 BVF RH
$35.00
W0193727 FISHER & PAYKEL FREEZER BASKET FRONT TRIM - 635 WHITE
$49.50
W0193878 CORDSET PWR AUNZ ST41
$51.30
W0194146 HANDLE DR SINGLE MOULD WH
$67.00
W0194385 TUBE SUCT CAP FORMED ASSY
$56.40
W0194842 SHELF FC TOP 635BVF WHITE
$67.70
W0195178 OVERLOAD MAT 205NHBYY DG66
W0196177 BASKET FC BOTTOM 635BVF
$78.60
W0196282 BASKET FC 635 N388308 POSN 2
$93.10
W0196400 BASKET FC CYCLIC 635BVF
$96.60
W0198198 PANEL BACK ASSY 400H395BN388
W0200123 COMPR PKD MAT DG73C12RAW5
W0200926 COVER FAN MOTOR
W0200935 THERMISTOR KIT
W0200965 CAP 40UF 450V RAST5 P2
W0200971 FILTER DRIER 12 GR DUAL BRAZED
W0200973 TRAY WATER EVAP TOPHAT
W0200976 BOOKLET UC LOCALUKROW
W0201013 GASKET PUSHIN 635X1626 FC LG
W0201030 LEAFLET WARRANTY NZ AUST
W0201058 FAN BLADE 102MM VF 635
W0201061 TRAY COMP MOUNTING 635
W0201064 CLIP EVAP BAFFLE 60MM
W0201066 HEATER DEFROST E308E388
W0201192 BEARING HINGE LH WH LIP 635
W0201197 COVER HGE DR 635 RHTLHBWH LIP
W0201198 COVER HGE DR 635 LHTRHBWH LIP
W0201211 CAP DOOR CLOSING LH HGE BRKT G
W0279702 GASKET TOP HINGE
$5.90
