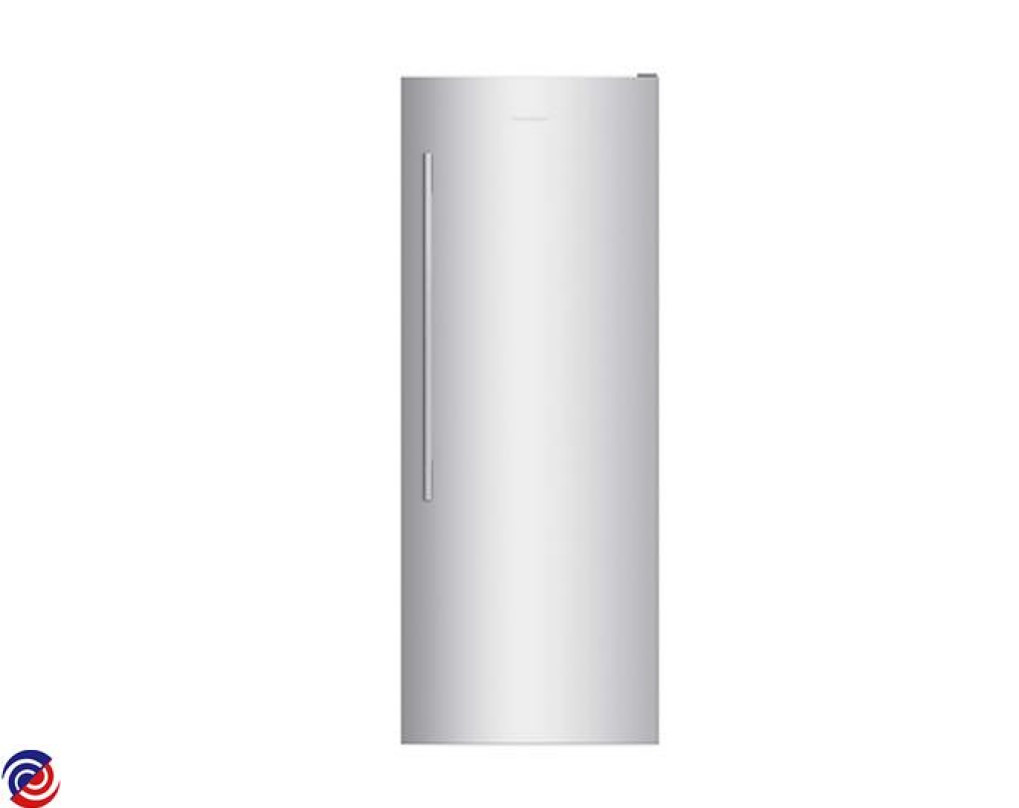

E388RXFD1 — 25123-A
FISHER & PAYKEL — Fridge
Parts for E388RXFD1
.JPG)
W0189764 BOSS HANDLE FLAT SPARES KIT
$20.32
W0175924 KIT SURROUND STAINLESS 635 X 2
W0176193 BOOKLET UC NZAUUKPAC
W0177553 CLIP COVER 01245233
W0177628 CLIP FOOT COMPRESSOR
W0177864 HANDLE D2 842 BRUSHED
W0185134 CARD REGISTRATION FP AA
$4.50
W0185139 RETAINER 511400205 MLX
$4.50
W0185149 FILTER P CATCHER DRAIN
$4.50
W0185351 PLUG MALE 511380200 MLX
$4.50
W0185531 SCREW 8X16 SP PAN NIB TV PKT
$4.50
W0185562 POST COMPRESSOR MOUNTING TALL
$4.50
W0185566 CAP DOOR CLOSING RH HGE BRKT
$4.50
W0185567 COVER REED SWITCH ST4 SILVER
$4.50
W0185568 COVER PLUG MOLEX
$4.50
W0186130 CAP FEMALE 511390200 MLX
$4.50
W0186724 CLIP OLOAD 01246801
$4.50
W0186732 COVER TERMINAL FAN
$4.60
W0186781 PLUG TAPPED HOLE SILVER PKT 3
$4.50
W0186815 CLIP DEFROST SENSOR
$4.80
W0186819 PIN 1622AWG 505998100 MLX
$4.50
W0186900 POST EVAPORATOR TOP
$5.20
W0187043 COVER MAGNET DOOR FLAT
$5.00
W0187056 WHEEL LEVELING FOOT ASSY RC
$12.50
W0187099 SOCKET 1622AWG 505978100 MLX
$5.30
W0187418 TRIM CORNER SILVER
$7.80
W0187453 BEARING HINGE TOP DOOR FLAT GR
$8.40
W0187483 COVER TOP HINGE SILVER
$7.40
W0187549 GROMMET EVAP TUBE
$7.50
W0187580 CLIP EVAP PLATE
$9.10
W0187712 COVER FC TRIM
$8.20
W0187802 TRIM CORNER DOOR FLAT SL
$10.30
W0187918 MAGNET DOOR SWITCH ST4
$11.00
W0187985 SCREW 8X16 SP PAN NIB ST PKT10
$9.90
W0188124 BRACKET TOP HINGE ASSY PLATES
$12.50
W0188248 TRAY ICE BASE
$13.40
W0188368 KIT SCW M5X20 HEX PH ST TV PKT
$14.50
W0188457 TRAY ICE LID
$15.20
W0188476 SCREW 8X22 WAFER PHIL TV PKD
$15.20
W0188868 HARNESS EARTH 100MM
$16.30
W0188931 BOLT BTTM HINGE BRKT TV
$16.90
W0189026 GROMMET FAN MOUNTING N210 WH
$17.60
W0189159 GASKET EVAP COVER FF
$17.60
W0189168 DOOR STOP ASSY
$17.60
W0189944 SCREW M5X40 CAP PKT 10
$21.50
W0190781 HARNESS COMP 3
$20.40
W0190854 FISHER & PAYKEL FRIDGE FAN GRILLE COVER
$25.00
W0191482 COVER PROTECTOR 01899
$24.20
W0191599 TRAY EVAP AS
$30.20
W0191658 KIT WHEEL BRACKET CLIP
W0191940 RUNNER FC ASSY 635790 BVF LH
$33.40
W0191941 RUNNER FC ASSY 635790 BVF RH
$35.00
W0192820 SWITCH REED FIELD FIX KIT ST4
$55.00
W0193727 FISHER & PAYKEL FREEZER BASKET FRONT TRIM - 635 WHITE
$49.50
W0193878 CORDSET PWR AUNZ ST41
$51.30
W0193895 TUBE EVAP TRAY FORMED HSHK 68
$51.50
W0194385 TUBE SUCT CAP FORMED ASSY
$56.40
W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH
$61.60
W0194842 SHELF FC TOP 635BVF WHITE
$67.70
W0195178 OVERLOAD MAT 205NHBYY DG66
W0196177 BASKET FC BOTTOM 635BVF
$78.60
W0196282 BASKET FC 635 N388308 POSN 2
$93.10
W0196400 BASKET FC CYCLIC 635BVF
$96.60
W0198198 PANEL BACK ASSY 400H395BN388
W0200123 COMPR PKD MAT DG73C12RAW5
W0200926 COVER FAN MOTOR
W0200935 THERMISTOR KIT
W0200965 CAP 40UF 450V RAST5 P2
W0200987 BRKT HINGE BASE RH ASSY NZ
W0201013 GASKET PUSHIN 635X1626 FC LG
W0201027 KIT JOINER SILVER
W0201034 CLOSING HOOK DR STOP CH RH
W0201058 FAN BLADE 102MM VF 635
W0201061 TRAY COMP MOUNTING 635
W0201064 CLIP EVAP BAFFLE 60MM
W0201066 HEATER DEFROST E308E388
W0279702 GASKET TOP HINGE
$5.90
W0279941 DOOR FC D SXF 635X1648 RH LGO
$353.30
