E521TLX2 — 23373-A

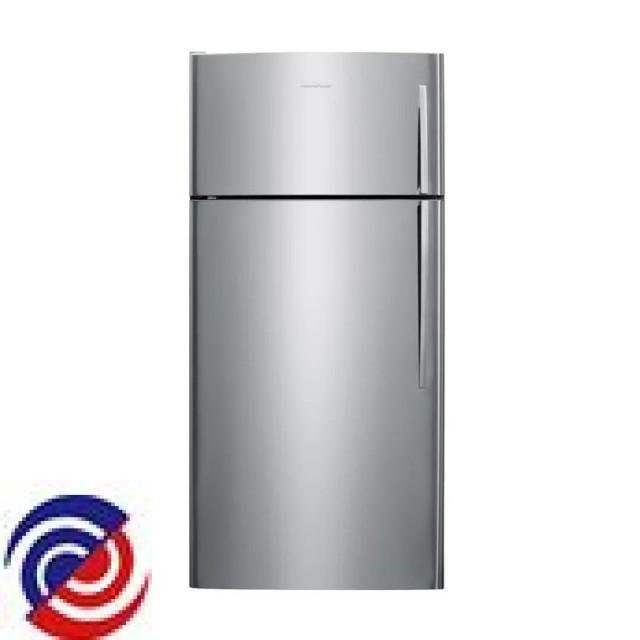

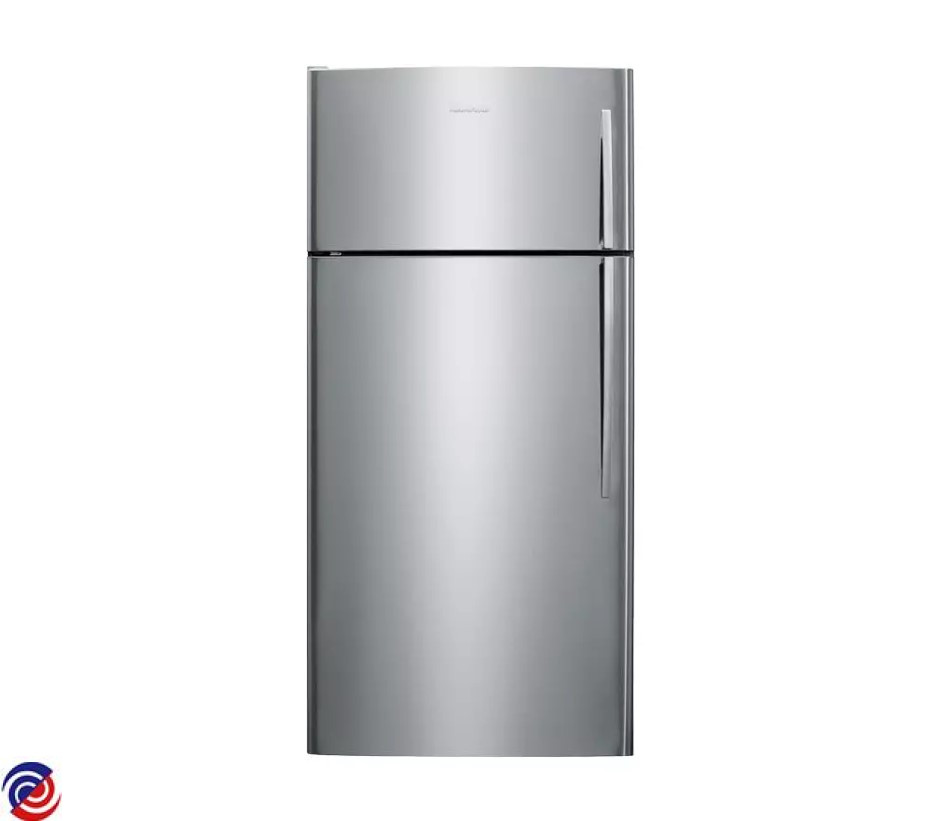

FISHER & PAYKEL — Fridge

W0177105 790 DEFRT ELEMT 230V ADAPT

W0177176 MOD CNTRL GLTH RT 220V SVC

W0187391 PLUGPIN HGE DAIRY COVER PKT 2

$14.00

W0189875 RAIL BOTTLE SUPPORT 790 SL

$21.10

W0190986 COVER DOOR SHELF 790 RH

$27.90

W0194717 SHELF DOOR LGE 790 WHITE

$68.00

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$75.00

W0195549 SHELF GL PC 790 ASSY SC

$84.83

W0196940 FISHER & PAYKEL FRIDGE FAN

$125.00

W0197964 FISHER & PAYKEL FREEZER FAN MOTOR KIT-790/900mm

$198.38

W0176063 CLOSING HOOK DR STOP GR LH

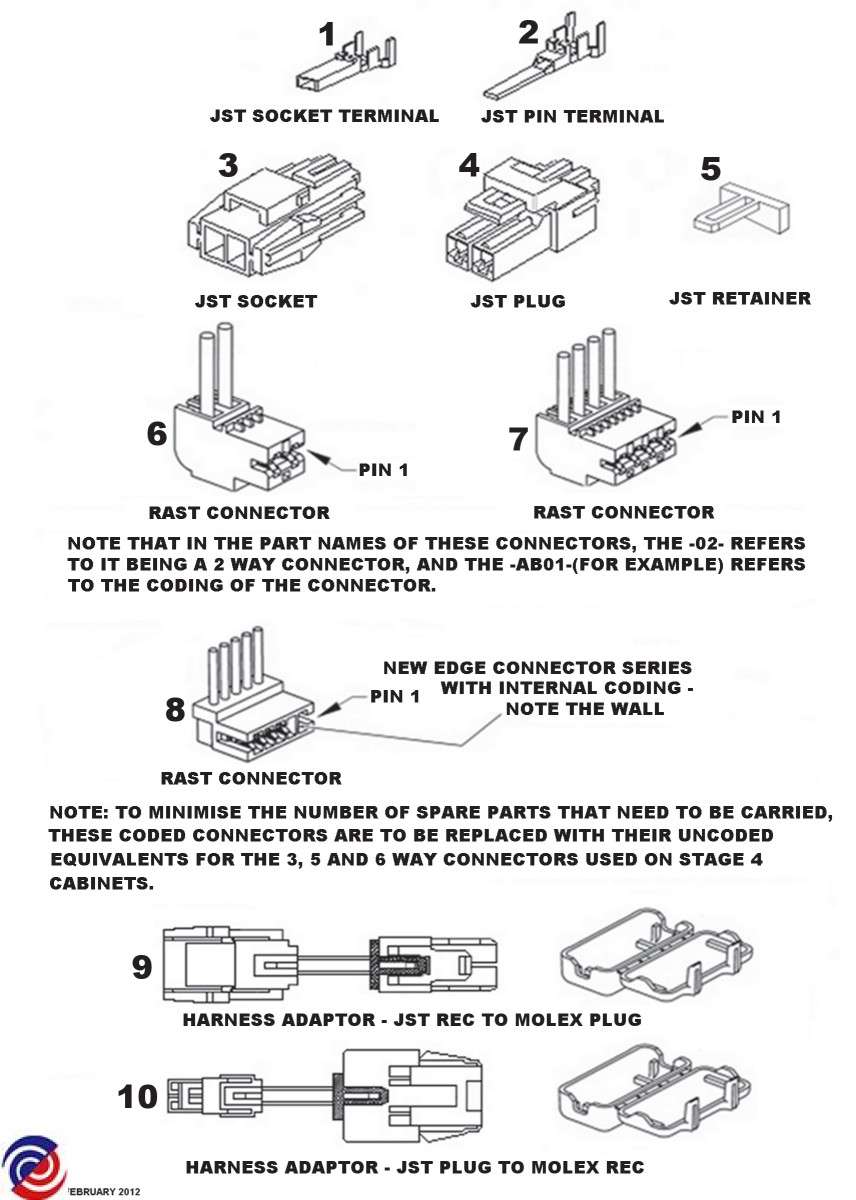

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0177251 BOOKLET UC NONIW NZAUUKIE

W0177933 INSULATION COVER DUCT LONG T

W0177970 CORD CLIP ACC 9N

W0183801 CONNECTOR RAST 7234014500

W0185268 SCREW 10X19 AB 2 SQ TV PKT 10

$4.50

W0185289 CAP SCREW CROSS RAIL WHT PKD

$4.50

W0185356 SCREW 8 X12 SP PAN NIB TV PKT

$4.50

W0185397 TRIM CORNER SILVER 680790

$4.50

W0185410 COMPR ANCILL PARTS MAT DHS77

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185530 SCREW 832X9 TYT PHTV PKT 10

$4.50

W0185531 SCREW 8X16 SP PAN NIB TV PKT

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185560 PLATE HANDLE SUPPORT PLATED

$4.50

W0185561 COVER REED SWITCH P42 ST4 WH

$4.50

W0185562 POST COMPRESSOR MOUNTING TALL

$4.50

W0185567 COVER REED SWITCH ST4 SILVER

$4.50

W0185569 COVER COMMS PORT

$4.50

W0186123 GASKET FOAM LIGHT

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186781 PLUG TAPPED HOLE SILVER PKT 3

$4.50

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186991 PLUG DOOR SHELF WHITE PKT 2

$5.60

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187080 JST SOCKET 2PIN YLR02V

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187483 COVER TOP HINGE SILVER

$7.40

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187643 INSERT GRAPHICS DISPLAY

$7.90

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187708 SHIELD HEATER LEFT HAND

$8.20

W0187709 SHIELD HEATER RIGHT HAND

$8.20

W0187721 BEARING HINGE LH SILVER 68079

$10.00

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187896 COVER HINGE RHTLHB 680790

$10.50

W0187897 COVER HINGE LHTRHB 680790

$11.00

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0187997 COVER LAMP PC P42

$11.50

W0188011 SCREW 12X12 TAB CSK PH PKT10

$9.60

W0188124 BRACKET TOP HINGE ASSY PLATES

$12.50

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188248 TRAY ICE BASE

$13.40

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188448 GASKET CONTROL BOX ELECTRONIC

$12.50

W0188457 TRAY ICE LID

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188515 WIRE DRAIN HEATER

$15.50

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188585 COVER DUCT TOP PC T

$14.00

W0188586 DIVIDER BOTTLE RAIL WHITE

$16.10

W0188599 LENS PCB ELECTRONIC

$13.40

W0188755 INSULATION COVER DUCT TOP T

$17.60

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189077 CHASSIS EVAP T

$17.60

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189593 BOTTLE HOLDER SINGLE ASSY

$17.50

W0189652 GROMMET COMP MOUNT PKT 4

$17.60

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189756 DIVIDER BIN LARGE

$17.60

W0189826 HEATER PCB LOW AMB T MOD RC

$18.00

W0189925 SHELF DOOR SML LH 790

$21.50

W0189926 SHELF DOOR SML RH 790

$21.50

W0189927 BIN FCT 790

$21.50

W0190058 SHIELD COVER 790B

$20.70

W0190118 TRAY ICE HOLDER

$22.10

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190950 EGG RACK 790

$25.40

W0190985 COVER DOOR SHELF 790 LH

$28.00

W0191022 HARNESS COMP 4 CORE DGX

$22.50

W0191211 SHIELD 790T CHASSIS

$22.20

W0191221 LID HUMIDITY CTRL 790T

$26.80

W0191399 BRACKET CTR HINGE LH PKD

$28.40

W0191599 TRAY EVAP AS

$30.20

W0191658 KIT WHEEL BRACKET CLIP

W0191685 CAP 4OUF 450V RAST5 P2

W0192098 TRAY COMP MOUNTING 790 VCC

$30.50

W0192497 COVER DUCT T MODEL LONG

$32.60

W0192583 COVER VENT 790T

$40.30

W0192691 RETAINER SLIDE PC T LH ASSY

$36.00

W0192820 SWITCH REED FIELD FIX KIT ST4

$55.00

W0193086 CAP DOOR END OUTER 790 SILVER

$46.30

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193895 TUBE EVAP TRAY FORMED HSHK 68

$51.50

W0193921 MOD LAMP AS SGL LED RH SVC

$51.90

W0194494 SHELF GL FC 790T ASSY SC

$61.10

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194714 RETAINER SLIDE PC T RH ASSY

$56.80

W0195151 COVER FAN FC FRONT 790T

$72.40

W0195168 SLIDE 305 RH ASSY

$98.00

W0195169 SLIDE 305 LH ASSY

$72.40

W0195576 SHELF GL HCL 790T ASSY AC

$76.70

W0195836 DISPLAY P42 ST4 SVC ROHS

$87.00

W0196096 GASKET FRAME E521T FC

$122.00

W0196503 BIN LARGE 790 ASSY

$99.20

W0196781 HANDLE DOOR CURVED SHORT

$102.00

W0197296 FISHER & PAYKEL FRIDGE DOOR GASKET/SEAL

$131.00

W0197366 HANDLE DOOR CURVED LONG

W0197555 PANEL BACK ASSY 1390X780

$112.70

W0197557 KIT JOINER SILVER AJRF17X

$102.00

W0197874 DOOR FC G 790X443 C SX T LH

$127.50

W0199338 DOOR PC G 790X1200 C SX T LH

$271.40

W0199490 COMPR PKD MAT DHS77C13RAW 220

$349.50

W0201139 EVAP ASSY 790T 220240V

W0201147 BEARING DR CLOSING LH GR

W0201207 CAP SCREW CROSS RAIL SILVER

W0201211 CAP DOOR CLOSING LH HGE BRKT G

W0279702 GASKET TOP HINGE

$5.90

W0358723 SINGLE LED HOUSING

$9.00
